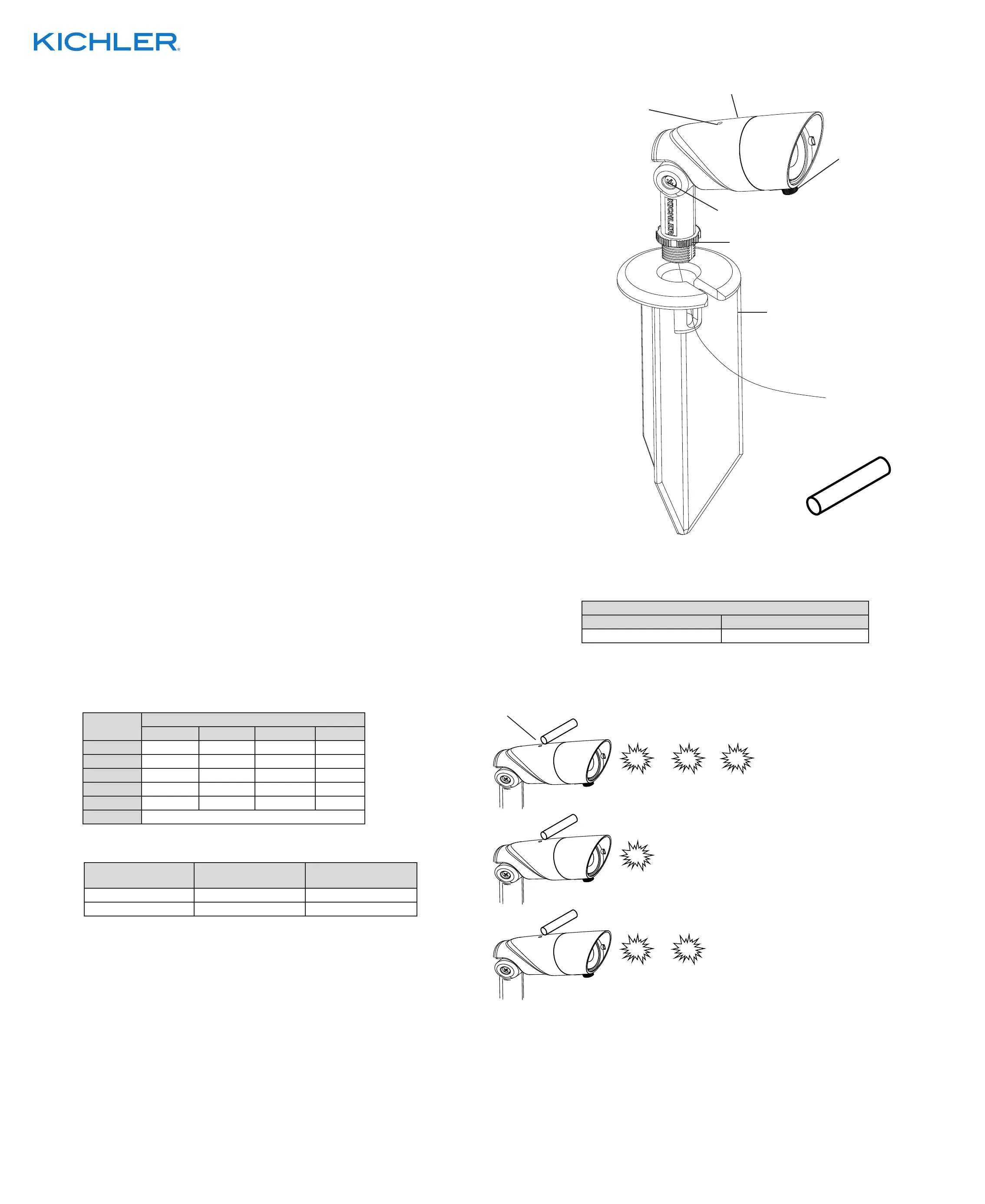

IS-16160-US

* DENOTES FACTORY SETTING

PROGRAMMING MODE

LUMEN ADJUSTMENT

SWITCH LOCATOR

FIXTURE

PHILLIPS HEAD SCREW TO

ADJUST ANGLE OF FIXTURE

THUMB SCREW

TO ADJUST ANGLE

OF COWL OR TO

LOOSEN AND

REMOVE COWL

LOCKNUT

STAKE

WIRE LEADS

SWITCHING

MAGNET

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

IMPORTANT! PLEASE READ

Lumen Level Table (For 2700K/3000K/5000K)

LEVEL 1 LEVEL 2

*1000 Lm 1200 Lm

CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel or main fusebox before starting and during the installation.

This xture is intended for installation in accordance with the National Electric Code (NEC) and Local code

specications. Failure to adhere to these codes and instructions may result in serious injury and/or property damage

and will void the warranty. If you are not familiar with code requirements, installation by a certied electrician is

recommended.

SAFETY INSTRUCTIONS

READ THIS FIRST

KEEP THESE INSTRUCTIONS

1) WARNING: This xture is not to be installed within 10 feet (3M) of a pool, spa or fountain.

2) According to the requirements of the National Electric Code (NEC), direct burial rated wire is to be buried a

minimum of 6” [152mm] beneath the surface of the ground.

NOTE: If additional Direct Burial wire is needed, contact your local Kichler

landscape distributor.

• 8 GA wire can be purchased in length of 250’ (76 M),15503-BK.

• 10 GA wire can be purchased in length of 250’ (76 M),15504-BK.

• 12 GA wire can be purchased in lengths of 100’ (30 M),15501-BK; 250’ (76 M), 15502-BK; 500’ (152M),

15505-BK; and 1000’ (304 M), 15506-BK.

3) Wiring connections must be made with approved/listed wire connection device(s) suitable for the application. Do

not exceed manufacturers’ wiring combination specications for size and quantity of conductors.

CAUTION

WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE), CARE SHOULD BE

TAKEN TO KEEP CLEAR OF POTENTIALLY COMBUSTIBLE MATERIALS.

WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES, GRASS CLIPPINGS,

MULCH, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE LIGHT BULB, LENS, OR BODY OF THE FIXTURE.

ASSEMBLY AND INSTALLATION

1) Determine desired location for mounting xture.

2) At desired location, hammer stake into ground. To avoid damage to stake, place a board on top of stake while

hammering. If ground is hard and stake is difcult to install, make a crosscut in ground using a at shovel.

3) Clear away area in ground at wireway slot in top of stake.

4) Lay 12V cable into wireway slot and screw xture into stake. Aim xture in desired direction and secure by tightening

locknut. If necessary, use wrench or pliers for nal tightening of nut.

5) Adjust angle of accent light by loosening Phillips head screw.

6) Adjust angle of cowl by loosening thumb screw.

7) TURN OFF POWER.

8) Make wire connections using supplied wire connectors following instructions included, or using other approved wiring

connection method (not supplied).

TO CHANGE LIGHT OUTPUT SETTING:

• NOTE: Fixure switches up in terms of lumen settings; it starts at “LEVEL 1” (1000 lumens). If this level is desired, no

adjustment is needed.

• Locate the dimple at the top of the xture. (This is called a lumen adjustment switch locator)

• Hold magnet on lumen adjustment switch locator for 1.5 seconds to begin programming mode. Remove magnet.

• Fixture will blink continuously 3x’s at full brightness level and go dark for 2 seconds and then will illuminate at original

factory setting (“LEVEL 1”, 1000 lumens).

• To switch lumen settings, magnet must be reapplied to lumen adjustment switch locator for 1.5 seconds and magnet

must be removed for 1 second between switching.

• NOTE: xture blinks 1x for “LEVEL 1” (1000 lumens), 2x’s for “LEVEL 2” (1200 lumens).

• Once the xture is set and magnet removed, it stays in programming mode for 2 minutes.

• After 2 minutes, the memory is set.

• To change the output brightenss, return to programming mode by holding magnet on magnetic locator for 1.5 seconds.

• NOTE: Fixture reverts back to original factory setting when put back into programming mode.

• NOTE: Once the desired setting is set, mark the level (1 or 2) with a marker on xture under the cowl.

For warranty information please visit: kichler.com/warranty

LUMEN ADJUSTMENT

SWITCH LOCATOR

SWITCHING

MAGNET

ORIGINAL

PROGRAMMING MODE

LEVEL 1

LEVEL 2

NOTE: When sizing your transformer please use the highest VA you expect to use depending

on desired lumen level per xture to prevent potentially overloading the transformer.

Best practice is to use VA/wattage buffer of 30% when sizing a transformer to account for xture

lumen adjustments. (ie. 210 VA on 300VA transformer.)

WATTS

(VA)

Wire Gauge/Length (ft/m) per run

10 12 14 16

0 - 20 1860/567 1150/351 730/223 450/137

40 930/283 580/177 370/113 230/70

60 620/189 390/119 240/73 150/46

80 470/143 290/88 180/55 110/34

100 370/113 230/70 140/43 90/27

>100 Consult Technical Support

Wire Gauge/Power/Length Chart

Lumen Level

VA (AC Power

Supplies)

WATTS (DC Power

Supplies)

2 23 18

1 19 14

Fixture Load Chart

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received, including interference

that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC INFORMATION
