INSTALLATION & MAINTENANCE MANUAL

SAVE THESE INSTRUCTIONS

for KCC & KCF SERIES CABINET HEATERS

Congratulations on the purchase of your new KING ELECTRICAL CABINET WALL

HEATER. Your new heater has been designed and built to withstand heavyduty commercial

and institutional usage. KCF models feature a whisper-quiet squirrel cage blower, with

permanently lubricated bearings. Both models feature long-life heating elements with alumi-

num plate fins for rapid heat transfer. A variety of factory installed options allow this heater

to be tailored to your specific application.

9131 - 10th Avenue South Seattle Washington 98108

WARNING

This unit is manufactured to operate on a specific control voltage in compliance with your

order. Standard control voltages are 208 / 240 / 277 for 208 / 240 / 277 volt heaters.

24 Volt control is standard on 480 Volt heaters. 208 / 240 or 277 Volt heaters may also

be ordered with an optional 24 Volt control. It is important that you verify your power

supply voltage with the heater that you have chosen. Improper installation or failure to

follow the procedures as outlined in this manual can result in serious electrical shock.

Disconnect all power from the heater at

the main service panel and lock before attempting to

install or service this unit. All electrical wiring must conform to local electrical codes. Heater

circuit must be protected with the proper size fuses or circuit breakers.

KCC-KCF.indd : 2/18

Installation Instructions

All products covered by this instruction sheet are war-

ranted against defects in workmanship and materials for

one year from date of installation, except heating ele-

ments which are warranted against defects in workman-

ship and materials for five years from date of installation.

This warranty does not apply to damage from accident,

misuse, or alteration; nor where the connected voltage

is more than 5% above the nameplate voltage; nor to

equipment improperly installed, wired or maintained

in violation of this instruction sheet. All claims for war-

ranty work must be accompanied by proof of the date

of installation. The customer shall be responsible for all

cost incurred in the removal or reinstallation or products,

including labor costs, and shipping costs incurred to

return products to King Manufacturing. King Mfg. will

repair or replace, at our option, at no charge to you with

return freight paid by King. King Electrical Mfg. shall

not be liable for consequential damages arising with

respect to the product, whether based upon negligence,

tort, strict liability or contract. King Manufacturing can

be contacted in Seattle, Washington by phone at (206)

762-0400, by fax at (206) 763-7738 or by email at www.

king-electric.com

Clearances: CAUTION - High temperature, risk of fire,

keep electrical cords, drapery, furnishings, and other

combustibles at least 3 feet (0.9 m) from the front of

the heater and away from the side and rear.

Unit cannot be installed greater than 2’ off the floor.

Do Not Install Less Than 6" From Vertical Side Walls.

Do Not Install Less Than 1 in. Above Floor.

Remove the heater from the box and check for any

damage. Verify that the factory installed options are

correct for the application. Remove and set aside the

grill.

Select power supply wire type and size to comply

with local and national electric codes using heater

rating given in table. Connect wire to heater as shown

in wiring diagram attached to cover. Remove one of

the knockouts from back of unit. Secure power supply

cable with clamps (or run in conduit, if required by

local codes). Also run the wiring for a remote thermo-

stat, if required. Connect grounding conductor to the

green screw.

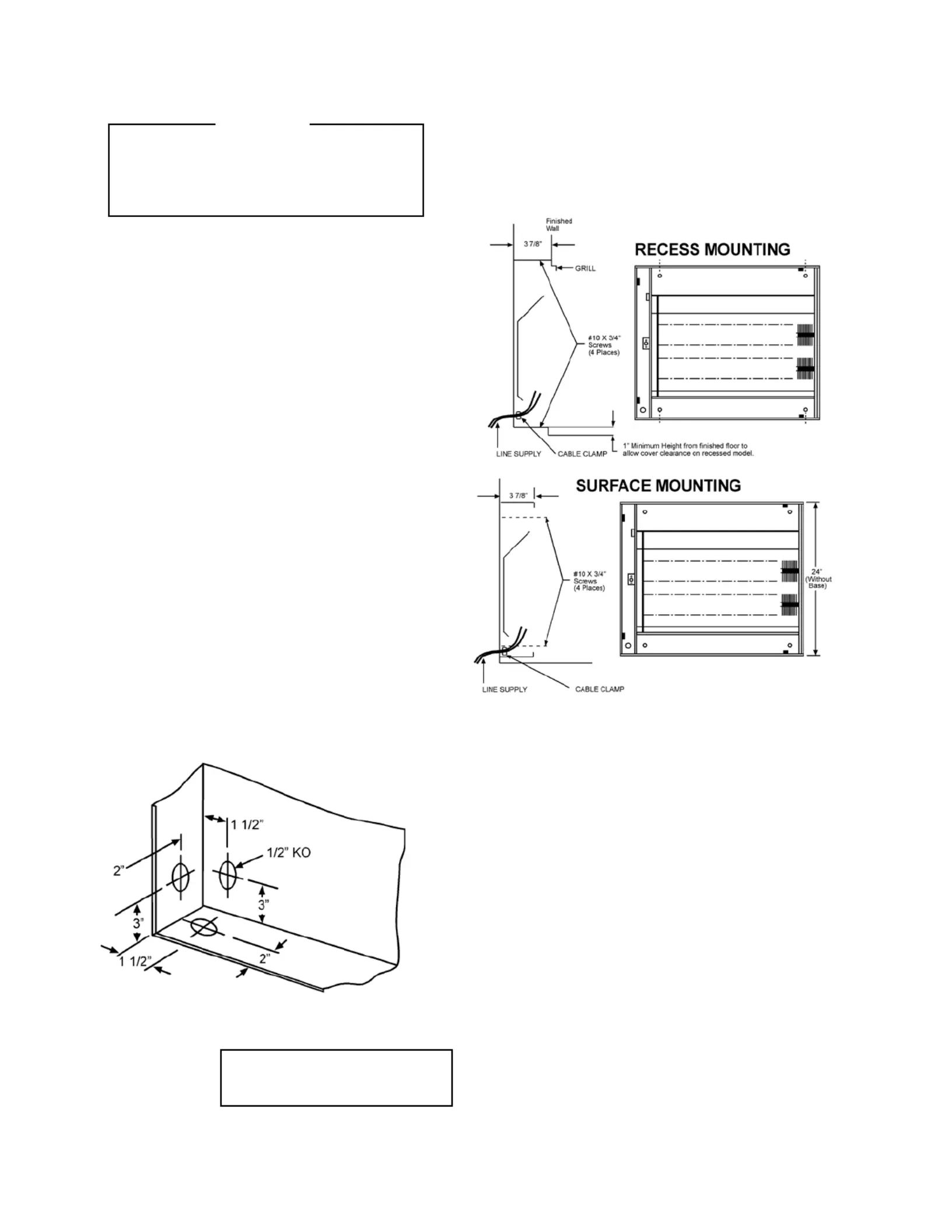

Fasten the heater to the wall with #10 screws, as

shown in the mounting diagrams. On recess models,

be sure to leave enough clearance to install the grill.

Replace the grill. Test the heater for proper operation.

Warranty

WARNING

Before proceeding further with the instal-

lation of this heater, turn off the power and

lock to the supply line for the heater at the

main service box.

WARNING - All Power must be shut

off at the main service panel before

inspecting or cleaning the heater.

Maintenance

With proper care your electric heater should last a

lifetime, however seasonal cleaning is recommended

JUNCTION BOX

(Left side wiring only)

KCC-KCF.indd : 2/18

to maintain the efficiency of the heater. To clean the

heater remove the four screws that hold the grill

in place and remove the grill. Remove dust or lint

from the heating elements and the fan blades with

a soft brush, compressed air, or a vacuum cleaner.

KCF units require a few drops of SAE 20 synthetic

oil on the motor shaft. Replace the grill and tighten

the screws.
