CLS-AOCH / CP-AOCH Fiber Optic HDMI Cable

Congratulations on purchasing your Kramer CLS-AOCH / CP-AOCH Plug and Play active

Fiber Optic HDMI Cable. The CLS-AOCH / CP-AOCH provides an extremely high quality

signal over a wide range of resolutions, up to 4K@30Hz. This cable is available at lengths of

33ft (10m), 50 (15m), 66ft (20m), 98ft (30m), 131ft (40m), 64ft (50m), 197 (60m), 230 (70m),

262 (80m), 295 (90m) and 328ft (100m).

The CLS-AOCH / CP-AOCH is ideal for long distance transmission in professional AV

systems, indoor and outdoor digital signage and kiosks, home theater systems, surgical

theaters, facility automation systems and whenever high resolution video and audio is

required.

Features

The CLS-AOCH / CP-AOCH:

• Supports a wide range of resolutions up to 4K@30Hz Full HD, 3D, Deep Color

• Supports Multi-channel audio, Dolby True HD, dts-hd Master Audio

• Is HDMI compliant: EDID, CEC, HDCP

• Provides protection from electromagnetic interference (EMI) and radio frequency

interference (RFI)

• Has built-in powering with low power consumption

• Has high pulling strength

Cable Dimensions

The CLS-AOCH / CP-AOCH includes four optical ﬁbers and six AWG 28 wires with compact

size HDMI connectors. The cable has a SOURCE end to which the source is connected (for

example, a DVD, Blu-ray or game console box) and a DISPLAY end to which the acceptor is

connected (for example, a projector, an LCD display or a tablet device), see Figure 1

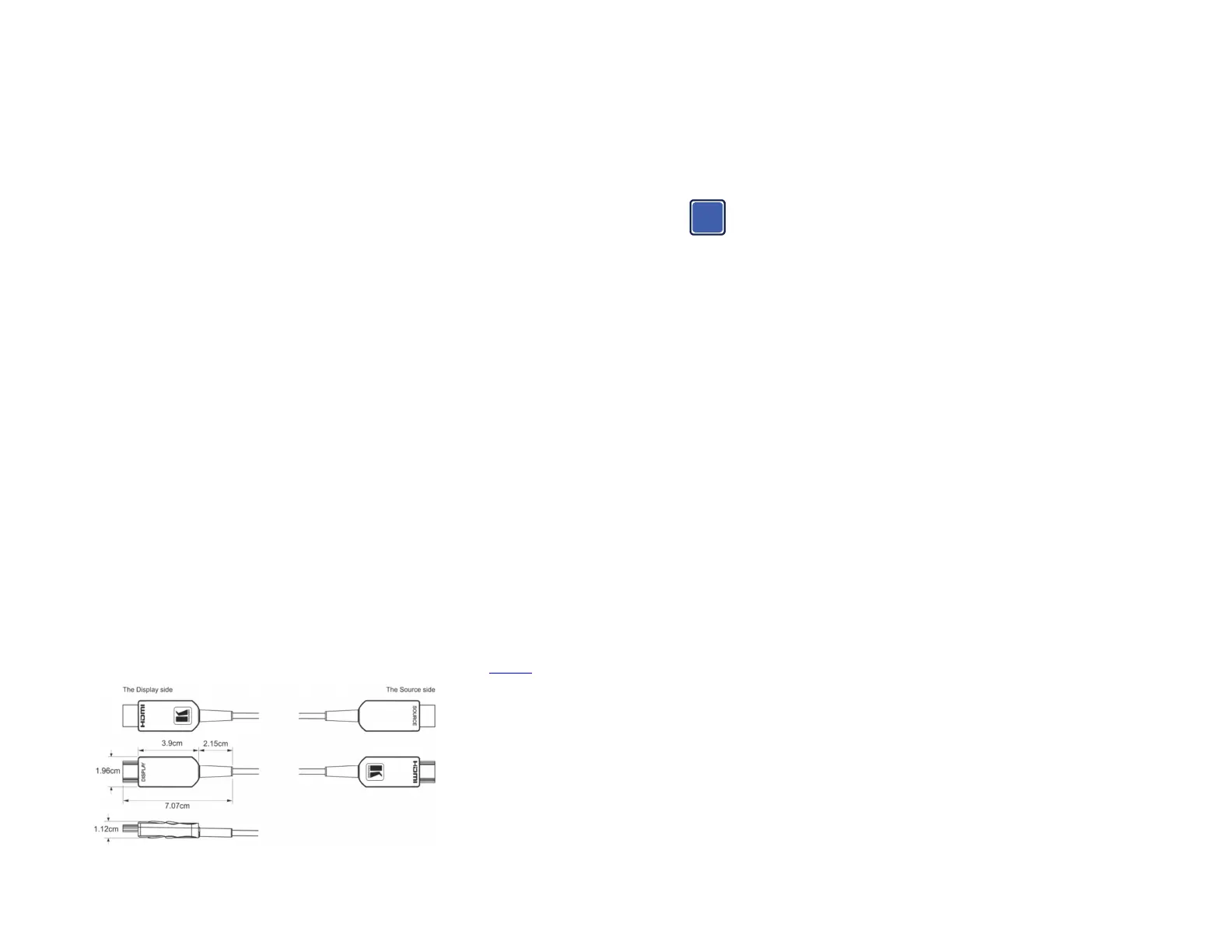

Figure 1: HDMI Connectors – SOURCE and DISPLAY (with Dimensions)

CLS-AOCH / CP-AOCH Plug and Play Installation

Before installing the cable, make sure that you have an HDMI graphic card or devices with an

HDMI port (for example, a PC, laptop, DVD/Blue-ray player or any other video/audio signal

source devices).

Kramer CLS-AOCH / CP-AOCH Fiber Optic HDMI cables are designed to

take +5V DC power from the source devices to the HDMI pin #18 of the

SOURCE side connector on the cable.

Optical ﬁber cable is not robust physically compared to conventional copper

cable materials. Even if this cable is designed to be seamlessly resistant at

certain levels of artiﬁcial strengths to the cable, CLS-AOCH / CP-AOCH can

be damaged if it is excessively pinched, twisted or kinked when being installed

and after being installed. Be careful not to bend or twist the cable tightly.

When CLS-AOCH / CP-AOCH is installed into the conduit, the ﬁber pulling

strength and the bending radius are the key conditions to safe installation of

the cable:

Fiber bending radius: 6mm

Fiber pulling/tensile strength: 50kg (500N)

Crush Resistance: 50kg (500N)

Do not disassemble or modify the products, especially the HDMI connector

head parts. Do not remove the dust plug before the cable laying process is

completed. HDMI connector heads are very critical parts. Remove the head at

the last moment just before the connector is plugged into the source or the

display devices after the installation is complete.

To install the CLS-AOCH / CP-AOCH:

1. Unpack the cable from the package with care and remove the cable tie.

We recommend that you save the original box and packaging materials for possible

future shipment.

2. Install the cable (for example, an in-wall or conduit installation or under-ﬂoor

installations).

3. Once the cable installation is complete, remove the dust cap and plug the SOURCE

connector head of the cable into the source devices.

Do not plug the SOURCE connector to the display device.

4. Remove the dust cap and plug the DISPLAY connector head of the cable into the

display devices.

Do not plug the DISPLAY connector to the source device.

5. Switch on the power of source and display devices.

Troubleshooting

If you have encountered a problem, check that:

• The source and display devices are both switched on

• Both HDMI connector heads are fully plugged into the devices

• The cable or its jacket are not physically damaged

• The cable is not bent or kinked

Note that it is important to connect the cable correctly as marked on the

end of each connector: SOURCE to the source side and DISPLAY to the

acceptor side.

Speciﬁcations

Audio and Power

VIDEO RESOLUTION: 1080p Full HD Deep Color 48bit, 3D. 4K@30Hz

EMBEDDED AUDIO SUPPORT: PCM 8ch, Dolby Digital True HD, DTS-HD Master

Audio

HDMI COMPLIANCE: HDCP, EDID, CEC

PIXEL CLOCK RATE: 300MHz

DDC SIGNAL INPUT: 5.0V

Cable Assembly

HDMI CONNECTOR: Male HDMI Type A Connector

HDMI CONNECTOR DIMENSIONS: 7.07cm x 1.96cm x 1.12cm (2.78" x 0.8" x 0.44")

W, D, H

CABLE STRUCTURE: Hybrid Optical Fiber Cable

CABLE JACKET MATERIAL: UL Plenum (CMP-OF) and LSZH (Low Smoke

Zero Halogen)

CABLE DIAMETER: 3.4mm

CABLE BENDING RADIUS: 6mm

MAX. PULLING STRENGTH: 500N (50kg, 110lbs)

MAX. COMPRESSION LOAD

RESISTANCE: 500N (50kg, 110lbs)

Power

POWER SUPPLY HDMI: PIN # 18 (draws current from the source)

POWER CONSUMPTION: 0.5W

General

OPERATING TEMPERATURE: 0° to +50°C (32° to 122°F)

STORAGE TEMPERATURE: -30° to +70°C (-22° to 158°F)

OPERATING HUMIDITY: 5% to 85%, RHL non-condensing

AVAILABLE SIZE: 33ft (10m), 50 (15m), 66ft (20m), 98ft (30m), 131ft

(40m), 64ft (50m), 197 (60m), 230 (70m), 262 (80m),

295 (90m) and 328ft (100m)

WEIGHT: 1.46kg (3.22lbs) approx.

KRA M E R ELECTRONICS LTD.

Installation

Instructions

MODELS:

CLS-AOCH (Low Smoke Version)

CP-AOCH (Plenum Version)

Fiber Optic HDMI Cables

For the latest information on our products and a list of Kramer

distributors, visit our Web site where updates to these installation

instructions may be found.

We welcome your questions, comments, and feedback.We welcome your questions, comments, and feedback.We welcome your questions, comments, and feedback.We welcome your questions, comments, and feedback.

Web site: www.kramerelectronics.com

E-mail: info@kramerel.com

SAFETY WARNING

Disconnect the unit from the power

supply before opening and servicing
