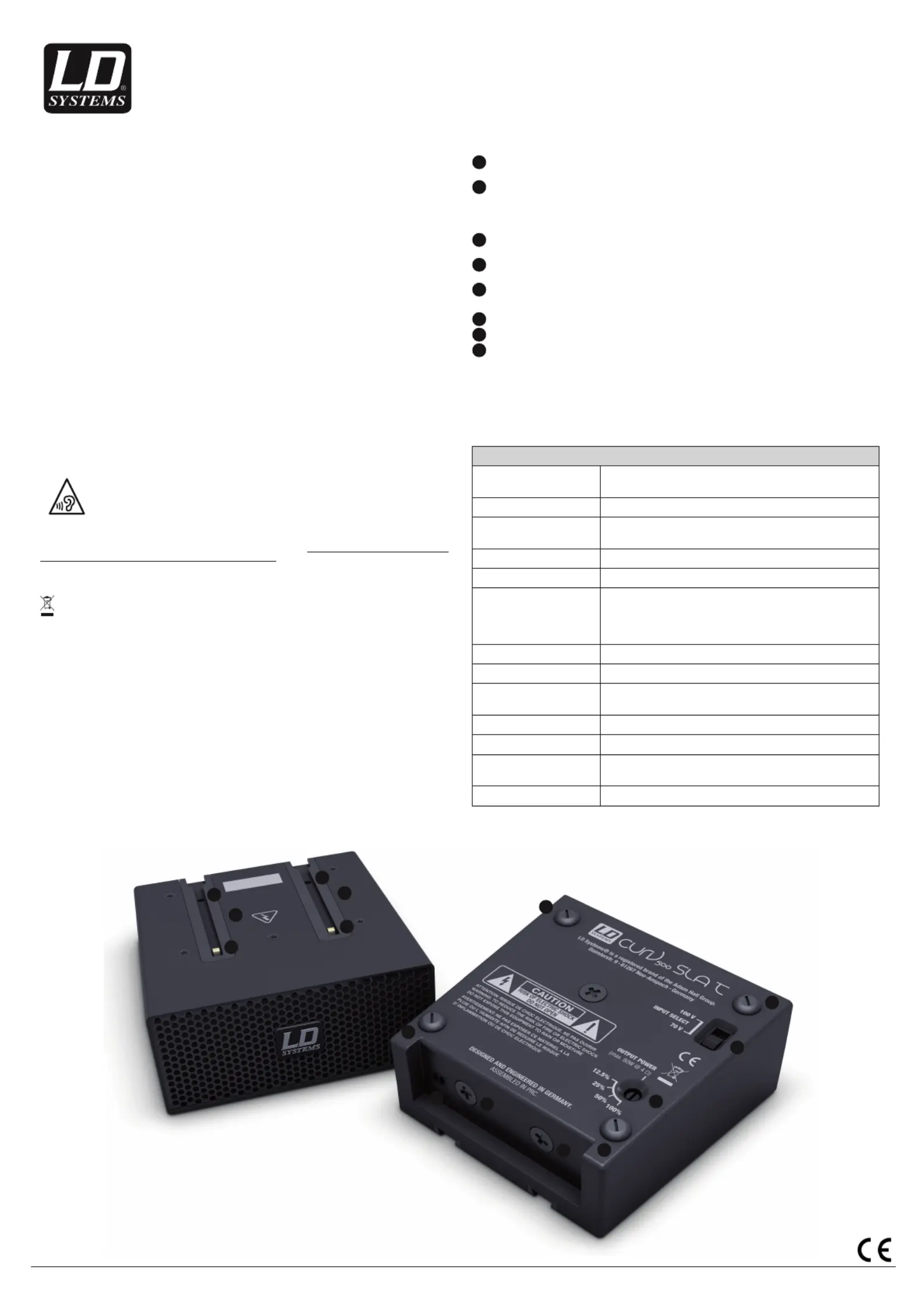

USER´S MANUAL

LDCURV500SLA(W)T

SAFETY INFORMATION

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. During installation, observe the applicable safety regulations for your country.

7. Never place sources of ignition, e.g., burning candles, on the equipment.

8. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in

this case, observe the special instructions noted below. Do not expose this equipment to flammable materials,

fluids or gases.

9. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with

liquids, such as vases or drinking vessels, on the equipment.

10. Make certain that objects cannot fall into the device.

11. Use this equipment only with the accessories recommended and intended by the manufacturer.

12. Do not open or modify this equipment.

13. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping

hazards.

14. During transport, make certain that the equipment cannot fall down and possibly cause property damage

and personal injuries.

15. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if

it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a

powered device). This equipment may only be repaired by authorized, qualified personnel.

16. Clean the equipment using a dry cloth.

17. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate

plastic and paper/cardboard.

18. Plastic bags must be kept out of reach of children.

CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!

This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the

respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is ob

ligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume

and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that

can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid

prolonged exposure to volumes in excess of 90 dB.

To prevent possible hearing damage, avoid listening at high volume levels over long periods of time.

Even exposure to short bursts of loud noise can result in hearing loss. Please keep the volume

constantly at a comfortable level.

MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY

You can find our current warranty conditions and limitation of liability at: https://cdn-shop.adamhall.com/media/

pdf/Manufacturers-Declarations-LDSYSTEMS_DE_EN_ES_FR.pdf

To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach

/ Email Info@adamhall.com / 49 (0) 6081 / 9419-0

PROPER DISPOSAL OF THIS PRODUCT

(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal.

Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government

office, for details on where and how they can recycle this item in an environmentally friendly manner.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This

product should not be mixed with other commercial wastes for disposal

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable):

R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017 / Low-voltage directive (2014/35/EU)

EMC Directive (2014/30/EU) / RoHS (2011/65/EU) / The full declaration of conformity can be found at www.adam

hall.com. You can also request it via info@adamhall.com

LDCURV500SLA(W)T - CURV 500® SMARTLINK® ADAPTER 100 V/70 V

SmartLink® adapter as the base for up to 4 CURV 500® array satellites for 100 V/70 V installations.

CONNECTIONS, CONTROLS AND MOUNTING

INPUT SELECT: switch with 2 positions to adjust the SmartLink adapter to 100 V or 70 V installation amplifiers.

Before connecting, place the switch in the position corresponding to installation amplifiers.

OUTPUT POWER: switch with 4 positions for setting the output power. The maximum output power is 80 W at

4 ohms (switch in 100% position). Since a CURV 500 satellite has an impedance of 16 ohms, setting the

output power to adjust the volume is independent of the number of connected satellites (maximum 4 units).

Using a suitable tool (flat head screwdriver), place the switch in the position corresponding to the desired

output power (12.5%, 25%, 50%, 100%).

SIGNAL INPUT: screw/plug connection to connect an installation amplifier (screw/plug connection included).

When connecting the cables, make sure to have the correct polarity.

Four rubber feet provide stability for desktop applications. For the installation of the ceiling mount bracket

LDCURV500CMB(W), unscrew the rubber feet (M3 thread).

Two M6 threads for attaching the wall mounting bracket LDCURV500WMB(W), or the truss mounting bracket

LDCURV500TMB.

Grooves to mount the LD CURV 500 satellites.

The contacts ensure the electrical connection to the CURV 500 satellites.

The locking mechanism provides for a reliable mechanical connection with the CURV 500 satellites.

Slide a CURV 500 satellite from the rear onto the SmartLink adapter until it stops, while pressing the spring-loaded

release button on the side of the satellite. Ensure that the two guide rails of the satellite properly slide into the grooves

of the SmartLink adapter in order to ensure a tight fit and establish a contact for both components. Now release the

button to lock the connection and to bring the button back to its original position. Proceed in the same manner as

described above to add other satellites. When disassembling, please proceed in reverse order.

SPECIFICATIONS

Model type: LDCURV500SLA(W)T

Product type: 70V/100V SmartLink ® adapter as base for up to 4 CURV 500 ® array

satellites.

Connectors: screw-/plug-in terminal 2 pole

Frequency Response

(100V/70V):

20Hz - 20kHz

THD+ N: 0.02%

Controls: 70V/100V switch, 12.5% / 25% / 50% / 100% switch

Output power / switch position

(100V/70V):

1 satellite (16 ohms): 12.5% = 2W, 25% = 5W, 50% = 10W, 100% = 20W

2 satellites (8 ohms): 12.5% = 5W, 25% = 10W, 50% = 20W, 100% = 40W

3 satellites (5.3 ohms): 12.5% = 8W, 25% = 15W, 50% = 30W, 100% = 60W

4 satellites (4 ohms): 12.5% = 10W, 25% = 20W, 50% = 40W, 100% = 80W

Material: Diecast Aluminium

Surface: Powder coating

Colour: black (LDCURV500SLAT)

white (LDCURV500SLAWT)

Dimensions (W x H x D): 122 x 57 x 122 mm

Weight: 1.15 kg

Features: 2x M6 thread for optional wall/truss mount, M6 thread for safety eye

bolt, SmartLink® System, 4x rubber feet for desktop use

Included Accessories: screw-/plug-in connector 2 pole black
