Adam Hall GmbH · Daimlerstr. 9 · 61267 Neu-Anspach · Germany
Tel.: (+49) 60 81 / 94 19 0 · Fax: (+49) 60 81 / 94 19 1000 · eMail: mail@adamhall.com
A
A
C
E
D
F
B
USER´S MANUAL LDEB(102)G3WMB1
Tilt and Swivel wall mount
SAFTY INFORMATION
1. Please read these instructions carefully before you start installation and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Be attentive when mounting the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead to product failure and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate
plastic and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings, please contact your local distributor.
MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at: https://cdn-shop.adamhall.com/media/
pdf/Manufacturers-Declarations-LDSYSTEMS_DE_EN_ES_FR.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu Anspach
/ Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. This is to avoid environmental damage or personal injur y due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable
economic activity.
LDEB102G3WMB1 (SUITABLE FOR LDEB102G3, LDEB102AG3)
LDEBG3WMB1 (SUITABLE FOR LDEB122G3, LDEB122AG3, LDEB152G3, LDEB152AG3)

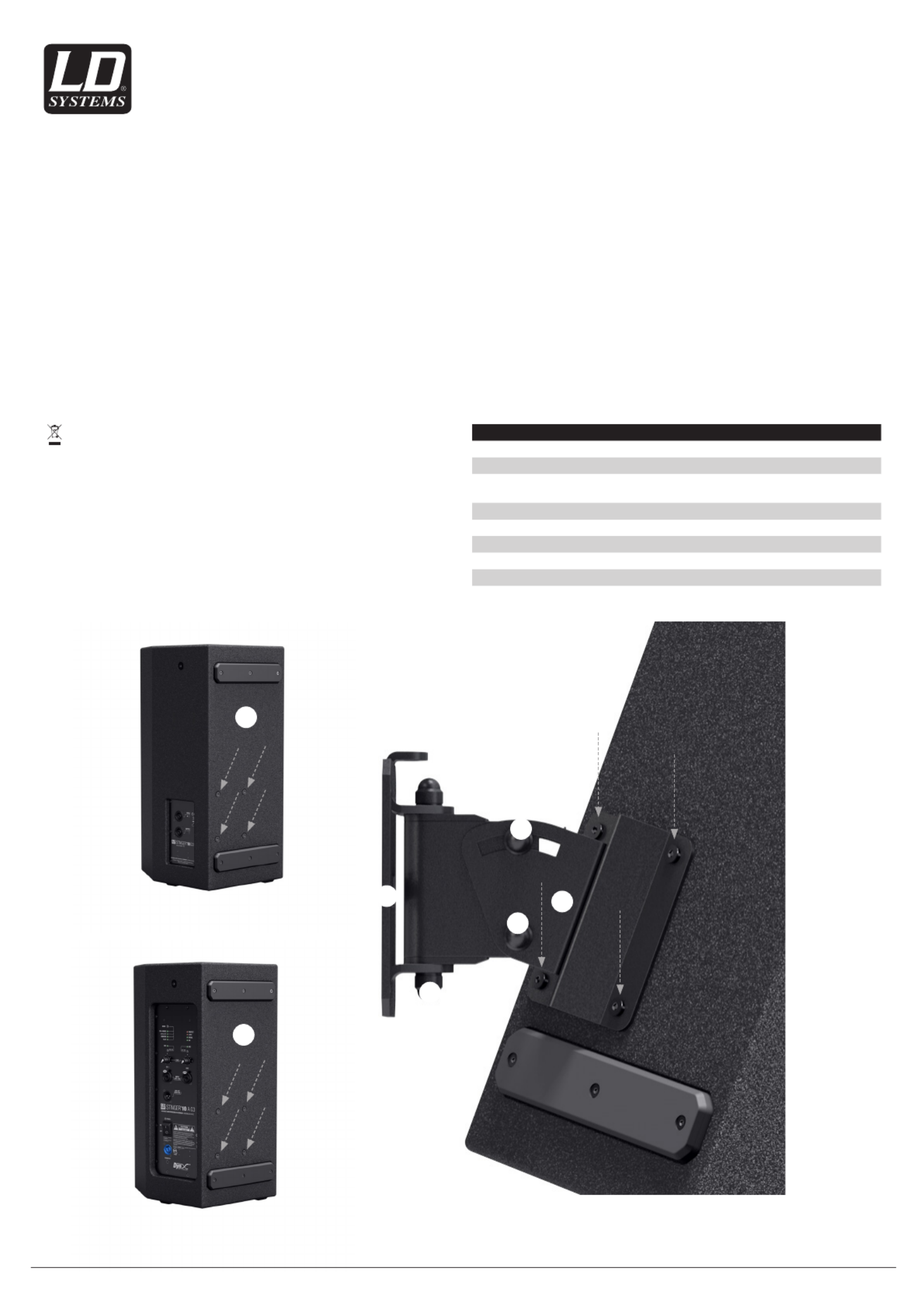

1. Remove the four M6 screws A on the back of the speaker.
2. Slightly loosen bolt E of the wall bracket (do not remove), loosen and remove bolt D from the tilt & swivel
arm, remove and lift the U-bracket with mounting plate B from its mounting. Attach the U-bracket with
mounting plate B to the rear of the speaker with the supplied screws.
3. Using screws, attach mounting plate C vertically in a suitable position to a solid wall with its flat side and
safety eyelet facing upwards (4 screws LDEB102G3WMB1 / 8 screws LDEBG3WMB1). Use suitable screws
and plugs etc. to ensure secure mounting.
4. Now slide the speaker with the attached U-bracket with mounting plate B into the bracket on the wall,
reinstall bolt D into its designated position and secure it with the previously removed nut.
5. The speaker can be tilted vertically by slightly loosening nut E, adjusting to the desired angle and then
re-tightening the nut. The speaker can be adjusted horizontally by loosening nut F (remove plastic cap before-
hand), adjusting the angle as required, and then re-tightening the nut.
SPECIFICATIONS
EN
For further instructions, please check out the detailed online manual in the download area of this product at:: www.ld-systems.com
Model name: LDEB102G3WMB1 LDEBG3WMB1
Type: PA Loudspeaker Accessories PA Loudspeaker Accessories
Part: Wall Mount Bracket Wall Mount Bracket
Suitable for: LDEB102G3, LDEB102AG3 LDEB122G3, LDEB122AG3
LDEB152G3, LDEB152AG3
Material: Steel Steel
Surface: Powder Coated Powder Coated
Colour: Black Black
Max. Load 20 kg 30 kg
Dimensions (W x H x D): 100mm x 157mm x 160mm 120mm x 220mm x 160mm
Weight: 1.4 kg 1.8 kg
