USER´S MANUAL LDEB282AG3WMB1
Tilt and Swivel wall mount
SAFTY INFORMATION
1. Please read these instructions carefully before you start installation and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Be attentive when mounting the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead to product failure and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate
plastic and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings, please contact your local distributor.
MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at: https://cdn-shop.adamhall.com/media/
pdf/Manufacturers-Declarations-LDSYSTEMS_DE_EN_ES_FR.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu Anspach
/ Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. This is to avoid environmental damage or personal injur y due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable
economic activity.

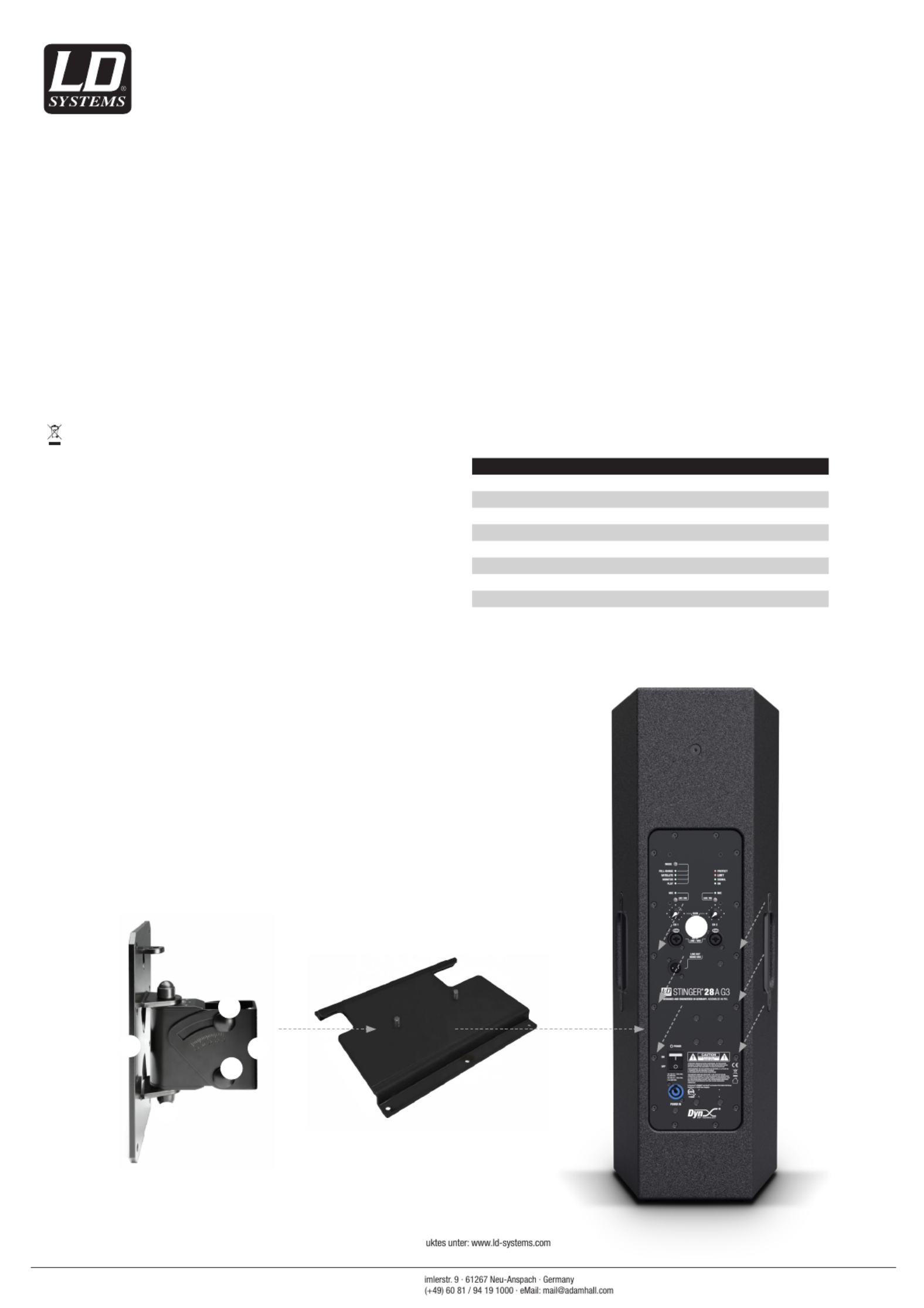

LDEB282AG3WMB1 (SUITABLE FOR LDEB282AG3)
1. Remove six M4 screws A on the back of the speaker in the positions for fastening the adapter plate. Ensure that the
cutouts for the LINE OUT jack and POWER switch are correctly positioned. Attach the adapter plate to the speaker with the
supplied M4 screws so that the LINE OUT jack and POWER switch are freely accessible.
2. Slightly loosen bolt E on the wall bracket (do not remove), loosen and remove bolt D from the tilt & swivel arm, remove
it and lift the U-bracket B from its mounting. Attach the U-bracket B to the rear of the adapter plate with the supplied nuts.
3. Using screws, attach mounting plate C vertically in a suitable position to a solid wall with its flat side and safety eyelet
facing upwards (8 screws). Use suitable screws and plugs etc. to ensure secure mounting.
4. Now slide the speaker with the attached U-bracket B into the bracket on the wall, reinstall bolt D into its designated
position and secure it with the previously removed nut.
5. The speaker can be tilted vertically by slightly loosening nut E, adjusting to the desired angle and then re-tightening the
nut. The speaker can be adjusted horizontally by loosening nut F (remove plastic cap beforehand), adjusting the angle as
required, and then re-tightening the nut.
SPECIFICATIONS
EN
For further instructions, please check out the detailed online manual in the download area of this product at:: www.ld-systems.com
C
E
D
B
F
A
Model name: LDEB282AG3WMB1
Type: PA Loudspeaker Accessories
Part: Wall Mount Bracket
Suitable for: LDEB282AG3
Material: Steel
Surface: Powder Coated
Colour: Black
Max. Load 21 kg
Dimensions (W x H x D): 130mm x 220mm x 173mm
Weight: 3.3 kg
