Side 1/2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle
voltage within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of
this product in the end user.
• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded
surfaces or shall be provided with brushings.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Warning: Do not install this equipment in a confined space such as a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA
70.
Warning: This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or
moisture.
Caution: This installation should be made by a qualified service person and should conform to
all local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified
personnel only.
Caution:
The apparatus shall not be exposed to water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the apparatus.
LG Electronics hereby declares that this/these product(s) is/are in
compliance with the essential requirements and other relevant
provisions of Directive 2004/108/EC and 2011/65/EU.
Contact office for compliance of this product:
LG Electronics Inc.
EU Representative, Krijgsman 1,1186 DM
Amstelveen, The Netherlands
• Please note that this is NOT a Customer Service contact point. For Customer Service
Information, see Warranty Card or contact the dealer that you purchased this product.
MODEL
L330-DN
L330-DP
L330 Series
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
Color Video Camera
Specication
ITEM L330-DP L330-DN
Signal System PAL NTSC
Total Pixels No./ Effective
Pixels No.
610 000 Pixels /
570 000 Pixels
520 000 Pixels /
480 000 Pixels
Image Device 6 mm CCD
Signal Process Sony Effio-E
Lens CS Mount (C Mount using adaptor ring)
IRIS Control ALC / ELC
Sync. System Internal
Scanning Frequency (H/V) 15.625 kHz / 50 Hz 15.734 kHz / 59.94 Hz
Horizontal Resolution 650 TV Lines
S/N Ratio 50 dB
Minimum Illumination 0.1 lx (F1.2, 30 IRE)
Video Output Signal 1 Vp-p Composite (75 Ω)
Day & Night Digital (Auto / Day / Night)
Backlight OFF / BLC / HLC
DNR 2D-DNR
Electronic Shutter Speed 1/50 to 1/10 000 1/60 to 1/10 000
ITEM L330-DP L330-DN
White Balance
ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL /
PUSH LOCK
Power Source DC 12 V
Power Consumption 140 mA
Operation Temp. -10 ºC to 50 ºC
Storage Temp. -20 ºC to 60 ºC
Operation Humidity 0 % RH to 80 % RH
Storage Humidity 0 % RH to 85 % RH
Weight 305 g
Dimension (H x V x D) 61.5 mm x 67.54 mm x 134 mm
Power Supply
This camera must always be operated DC 12 V. Certified/Listed Adaptor which comply with LPS.
Handling of the unit
Be careful not to spill water or other liquids on the unit. Be cautious not to get combustible or
metallic material inside the body. If used with foreign matter inside, the camera is liable to fail
or to get cause of fire or electric shock.
• Remove dust or dirt on the surface of the lens with a blower.
• Use a dry soft cloth to clean the body. If it is very dirty, use a cloth dampened with a small
quantity of neutral detergent then wipe dry.
• Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides.
They may damage the surface finish and/or impair the operation of the camera.
Operating and storage location
Avoid viewing a very bright object (such as light fittings) during an extended period. Avoid
operating or storing the unit in the following locations.
• Extremely hot or cold places (operating temperature -10 °C to 50 °C,
however, we recommend that the unit be used within a temperature range of
0 °C to 45 °C)
• Damp or dust place
• Places exposed to rain
• Places subject to strong vibration
• Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.

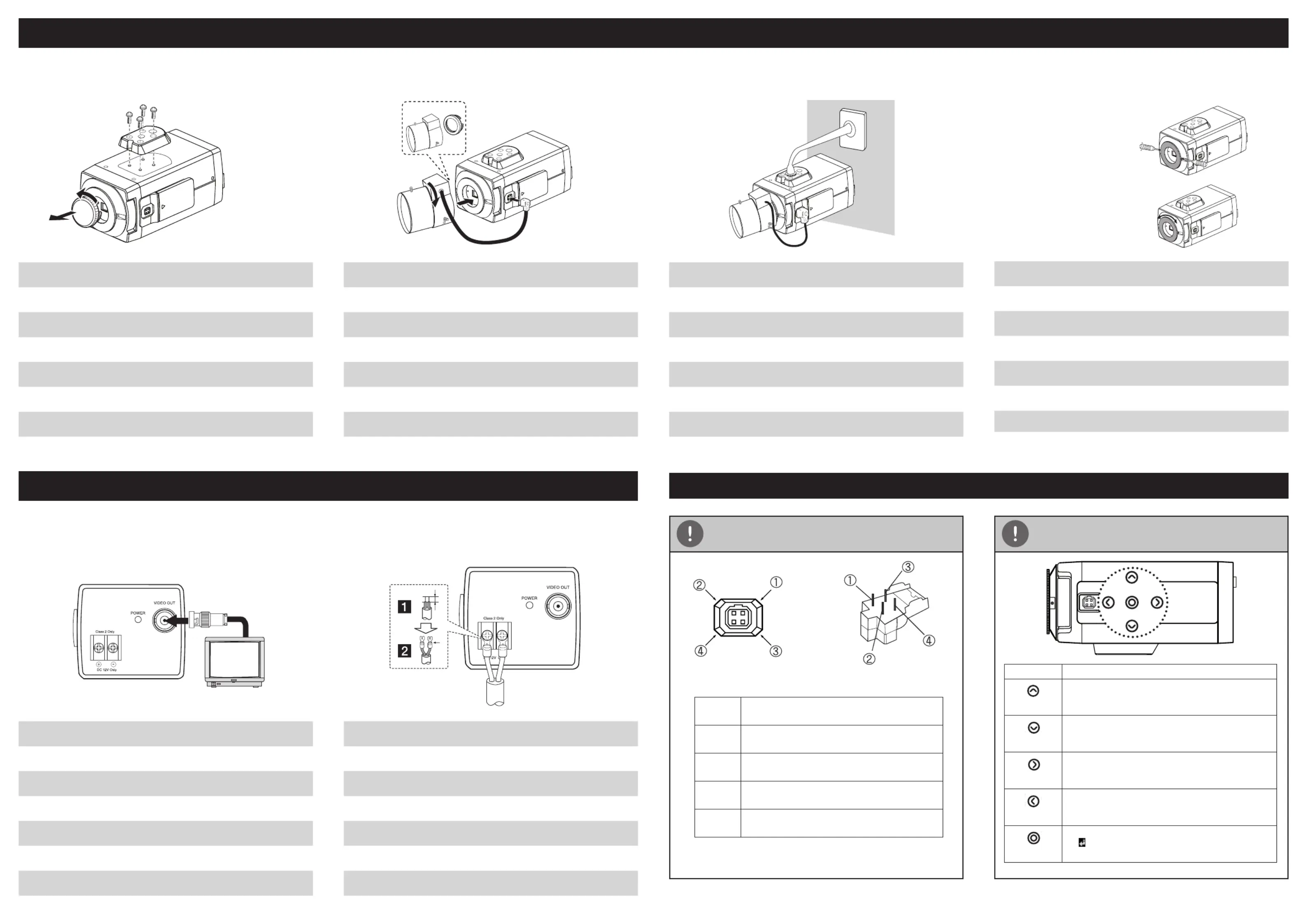

a
Install the camera and mounting bracket
securely.
<FRANÇAIS> Installez solidement la caméra et le support de montage.
<ITALIANO> Montare la videocamera alla staffa in maniera sicura.
<ČE >ŠTINA Připevněte řádně kameru a mechanismus pro uchycení.
<POLSKI> Zamontować dokładnie kamerę oraz wspornik montażowy.
<ESPAÑOL> Monte la cámara y el soporte.
<NEDERLANDS>
Zet de camera en de montagebeugel stevig vast.
<PORTUGUÊS> Instale a câmera e o suporte de montagem firmemente.
b
Install the C or CS mount type lens.
C mount type
CS mount type
<FRANÇAIS> Installez l’objectif à monture C ou CS.
<ITALIANO> Installare un obiettivo di tipo C o CS.
<ČE >ŠTINA Nainstalujte připevňovací čočky typu C nebo CS.
<POLSKI> Mailować obiektyw typu C lub CS.
<ESPAÑOL> Instale un objetivo C o CS.
<NEDERLANDS>
Monteer een C-mount- of CS-mount-objectief (‘lens’).
<PORTUGUÊS> Instale as lentes de montagem do tipo C ou CS.
c
Install the camera and mounting arm.
<FRANÇAIS> Installez la caméra et le bras de montage.
<ITALIANO> Montare la videocamera al braccio.
<ČE >ŠTINA Připevněte kameru a připevňovací rameno.
<POLSKI> Zamontować kamerę oraz ramię montażowe.
<ESPAÑOL> Monte la cámara y el brazo de soporte.
<NEDERLANDS>
Monteer de camera en de montagearm.
<PORTUGUÊS> Instale a câmera e o braço de montagem.
d
Loosen the flange-back fixing screws. Use the
flange-back adjusting ring to obtain a focused
point.
<To loosen the screws>
<To adjust the focus>
<FRANÇAIS>
Desserrez les vis de fixation de la face d’appui. Utilisez la bague d’ajustement de
la face d’appui pour obtenir un point ciblé.
<ITALIANO>
Allentare le viti di fissaggio posteriori della flangia. Usare l’anello di
regolazione posteriore della flangia per ottenere un punto di messa a fuoco.
<ČE >ŠTINA
Povolte šrouby zajišťující flange-back (vzdálenost objektivu a snímače). K
zaostření použijte kroužek pro úpravu vzdálenosti flange-back.
<POLSKI>
Poluzować śruby mocowania kołnierza. Aby uzyskać punkt ogniskowania
należy użyć pierścienia regulacyjnego kołnierza.
<ESPAÑOL>
Afloje los tornillos de fijación de fijación de distancia focal. Utilice el
anillo de ajuste de distancia focal para obtener un punto enfocado.
<NEDERLANDS>
Draai de flange-back bevestigingsschroeven los. Gebruik de flange-
back instelring om op een bepaald punt scherp te stellen.
<PORTUGUÊS>
Solte os parafusos de fixação da flange. Use a flange ajustando o anel
para obter um ponto focado.
Installation Guide
a
Connect the display device.
<FRANÇAIS> Branchez l’écran de visualisation.
<ITALIANO> Collegare il dispositivo del display.
<ČE >ŠTINA Připojte zobrazovací zařízení.
<POLSKI> Podłącz wyświetlacz.
<ESPAÑOL> Conecte el dispositivo de visualización
<NEDERLANDS>
Sluit het weergave-apparaat aan.
<PORTUGUÊS> Ligue o visor.
b
Connect the power source.
<FRANÇAIS> Raccordez l’alimentation électrique.
<ITALIANO> Collegare l’alimentazione elettrica.
<ČE >ŠTINA Připojte zdroj napájení ke svorkám pro vstup napájení.
<POLSKI> Podłącz źródło zasilania do gniazd wejściowych.
<ESPAÑOL> Conecte la fuente de energía.
<NEDERLANDS>
Sluit de voeding aan.
<PORTUGUÊS> Conecte a fonte de alimentação.
Pin layout for the lens iris output
connector.
No. DC type lenses
ADamping -
BDamping +
CDrive +
DDrive -
OSD Menu control buttons
BUTTON Description
UP
Used to move upper direction on the menu screen. Use this
button to select an item or adjust the parameters.
DOWN
Used to move lower direction on the menu screen. Use this
button to select an item or adjust the parameters.
RIGHT
Moves the cursor to the right. Used to increment the value
selected in the menu. The parameter changes each time this
button is pressed.
LEFT
Moves the cursor to the left. Used to decrement the value
selected in the menu. The parameter changes each time this
button is pressed.
SET
Executes selections and displays a submenu for an item with
the
mark.
Connection Guide Additional Information

Produkt Specifikationer

Mærke: LG
Kategori: Overvågningskamera
Model: L330

Har du brug for hjælp?

Hvis du har brug for hjælp til LG L330 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Overvågningskamera LG Manualer

LG

LG LVC-SX810HP Manual

5 August 2025
LG

LG LVC-SX703MC Manual

5 August 2025
LG

LG LPT-OS513AQ Manual

5 August 2025
LG

LG LCD5300 Manual

5 August 2025
LG

LG LS902 Manual

5 August 2025
LG

LG LCU5300R Manual

5 August 2025
LG

LG LS921 Manual

5 August 2025
LG

LG LNB5110 Manual

5 August 2025
LG

LG LCV5100 Manual

5 August 2025
LG

LG LVC-SX703PC Manual

5 August 2025

Overvågningskamera Manualer

Nyeste Overvågningskamera Manualer

Swann

Swann SONVK-1676808 Manual

13 August 2025
Swann

Swann SONVK-876806 Manual

13 August 2025
Swann

Swann SWNVW-MR4KCAM Manual

13 August 2025
Swann

Swann SWDVK-845808WL Manual

13 August 2025
Swann

Swann SWDVK-84880W6AOC Manual

13 August 2025
Swann

Swann SONVK-1676808B8D Manual

13 August 2025
Swann

Swann SWDVK-84880W8AOC Manual

13 August 2025
Swann

Swann SWNVK-88680W4FB Manual

13 August 2025
Swann

Swann SONVK-16898081PT Manual

13 August 2025
Swann

Swann SWDVK-846804MQB Manual

13 August 2025
