Side 1/2

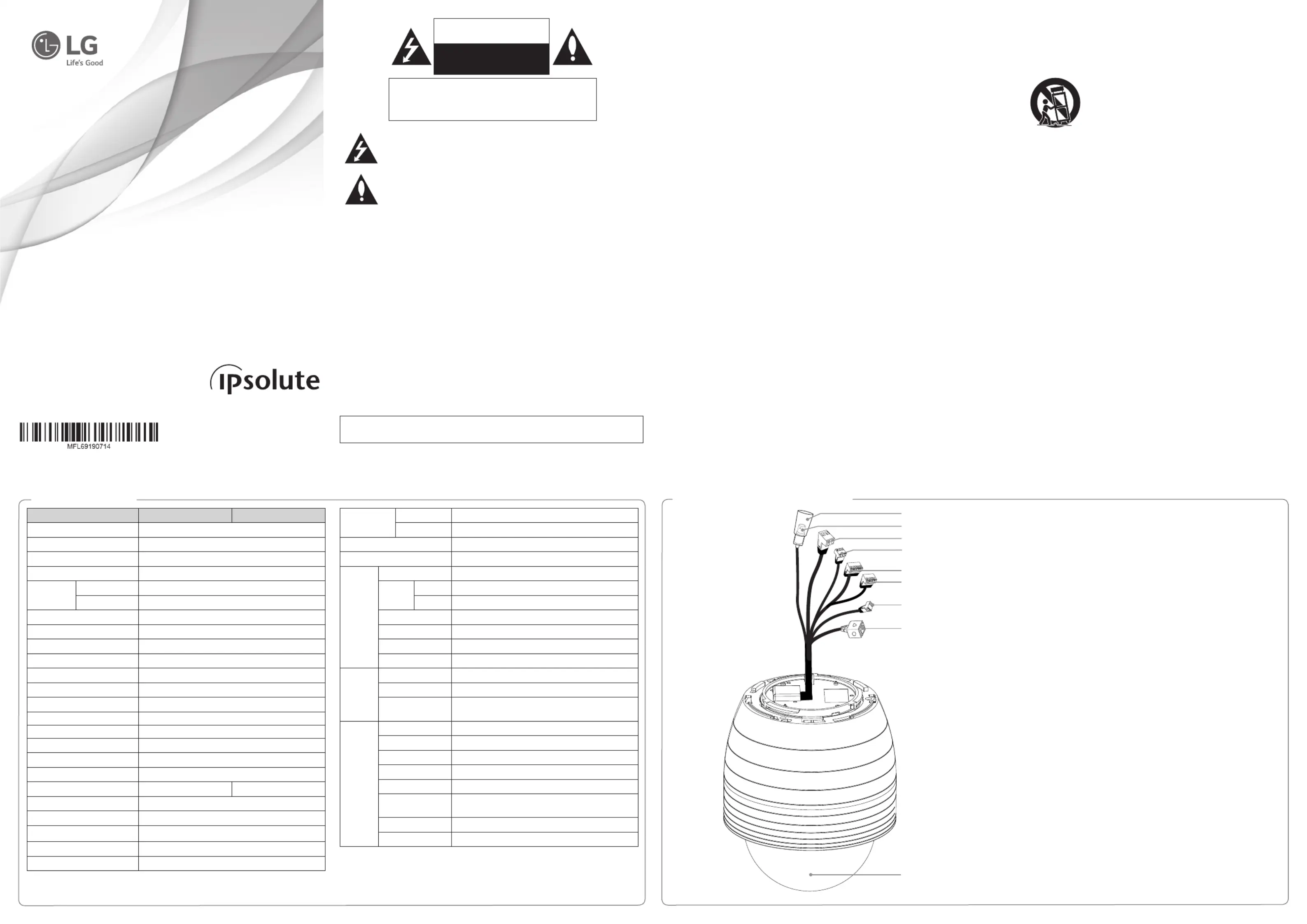

Item LNP2810 Series LNP2810T Series

Image Sensor 4.5 mm (1/4 type) CMOS

Lens x28 Zoom, f = 3.5 mm to 98 mm

Resolution (Maximum) Up to 1280 x 720

Day&Night ICR Day & Night (Day / Night / Auto)

Mininum

Illumination

Color 0.8 lx (F1.5, Sens-up off ), 0.16 lx (F1.5, Sens-up x32)

B/W 0.01 lx (F1.5, Sens-up off ), 0.000 1 lx (F1.5, Sens-up x32)

White Balance Auto / ATW / One Push / Manual

Shutter Speed 1/160 to 1/10 000

Iris Auto / Manual

BLC Off / WDR/ BLC

3D-DNR OFF / LOW / MIDDLE / HIGH

AGC OFF / LOW / MIDDLE / HIGH

Privacy Mask 8 Masks

Multi-Streaming Dynamic Profile (Up to 7)

ROI (Region of Interest) Support

Video Out 1xBNC

Frame Rate (Maximum) 30 fps @ 720p

Bit Rate 256 kbps to 10 240 kbps

Auto Tracking No Support Support

Audio Compression G.711, G726

Audio In/Out 1/1

Sample Rate 8 KHz

Audio Bit Rate G.711: 64 kbps, G.726: 24 kbps, 32 kbps

Ethernet 10/100 Ethernet

Protocol IPv4 and IPv6 TCP/IP, UDP, HTTP, HTTPS, RTP, RTSP, DHCP, ICMP

IPv4 FTP, SMTP, NTP, ARP, SNMP v1/v2c/v3, DDNS(LG)

Open Protocol ONVIF 2.2 Profile S, PSIA 1.1

Remote S/W LVi510, Mobile Application (IPhone, Android, iPad)

Pan/Tilt Travel Range Pan:360˚(Endless), Tilt:180˚

Speed Preset 500˚/second

Jog 0.1˚ to 360˚/second

Preset 256

Pattern 4 Patterns (760 command/Pattern)

Auto Pan 2 points to 8 points

Group 10 Groups (8 presets/Group)

Sensor /

Alarm

Sensor 4 Inputs, Photo-Coupler Input

Alarm 2 Relay Outputs, Max Load : DC 30 V 1 A / AC 125 V 0.3 A

IP Module Reset

Terminal

Support

Misc. Mount Accessory Mount Adaptor

Material Aluminum, Plastic sunshield

Rated Power PoE+ / AC 24 V (49 W)

Waterproof IP66, IK10

Fan Always ON

Operation

Temperature

-20˚C to 50˚C

Weight 3.3 Kg

Dimension (Ø x H) 195 mm x 229 mm

Specifications

a BNC connector cover cap

b Video output BNC connector

c Power input terminal

This camera must always be operated AC 24 V.

Certified/Listed Adaptor which comply with LPS.

d AUDIO IN / OUT (Line Level Input / Output)

Input for a mono microphone, or a line-in mono signal.

Connect to an active speaker with a built-in amplifier.

e Data Input Terminal

Input data terminal for alarm signal.

f Data Output Terminal

Output data terminal for alarm signal.

g IP Reset

h ETHERNET Port

Connects to a PC or a network via a hub with a 10 BASE-T/100 BASE-TX cable attached

RJ-45 connector.

i Dome Cover

Accessories

• Software Installation CD

• Cover adaptor

• Mount adaptor

• RJ-45 Cable

• Wrench

• M3 SAMS Screws

Part Names and Functions

Warning

• Do not install this equipment in a confined

space such as a bookcase or similar unit.

• Wiring methods shall be in accordance with

the National Electric Code, ANSI/NFPA 70.

• This is a class A product. In a domestic

environment this product may cause radio

interference in which case the user may be

required to take adequate measures.

• To reduce a risk of fire or electric shock, do

not expose this product to rain or moisture.

Caution

• This installation should be made by a

qualified service person and should

conform to all local codes.

• To avoid electrical shock, do not open

the cabinet. Refer servicing to qualified

personnel only.

• The apparatus shall not be exposed to

water (dripping or splashing) and no

objects filled with liquids, such as vases,

shall be placed on the apparatus.

NOTICE: For safety marking information

including product identification and supply

ratings, please refer to the main label on the

bottom or rear of the apparatus.

Contact oce for compliance of this product:

LG Electronics European Shared Service Center B.V.

European Standard Team

Krijgsman 1

1186 DM Amstelveen

The Netherlands

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that

produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug.

A polarized plug has two blades with

one wider than the other. A grounding

type plug has two blades and a third

grounding prong. The wide blade or the

third prong are provided for your safety.

If the provided plug does not fit into

your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at

plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories

specified by the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination

to avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods

of time.

14. Refer all servicing to qualified service

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

Handling of the unit

Be careful not to spill water or other liquids on

the unit. Be cautious not to get combustible or

metallic material inside the body. If used with

foreign matter inside, the camera is liable to

fail or to get cause of fire or electric shock.

• Remove dust or dirt on the surface of the

lens with a blower.

• Use a dry soft cloth to clean the body. If it

is very dirty, use a cloth dampened with a

small quantity of neutral detergent then

wipe dry.

• Avoid the use of volatile solvents such

as thinners, alcohol, benzene and

insecticides.

They may damage the surface finish and/

or impair the operation of the camera.

Operating and storage

location

Avoid viewing a very bright object (such as

light fittings) during an extended period. Avoid

operating or storing the unit in the following

locations.

• Extremely hot or cold places (operating

temperature -20 °C to 50 °C, however, we

recommend that the unit be used within

a temperature range of 0 °C to 45 °C)

• Damp or dust place

• Places exposed to rain

• Places subject to strong vibration

• Close to generators of powerful

electromagnetic radiation such as radio

or TV transmitters.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of uninsulated dangerous voltage

within the product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the product.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or

modifications to this equipment may cause harmful interference unless the modifications are

expressly approved in the instruction manual. The user could lose the authority to operate this

equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio

communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this

product in the end user.

• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or

equivalent type recommended by the manufacturer. Dispose of used batteries according to

the manufacturer’s instructions.

• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces

or shall be provided with brushings.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

MODEL

LNP2810 series

LNP2810T series

Please read this manual carefully before operating

your set and retain it for future reference.

OWNER'S MANUAL

Network Dome Camera

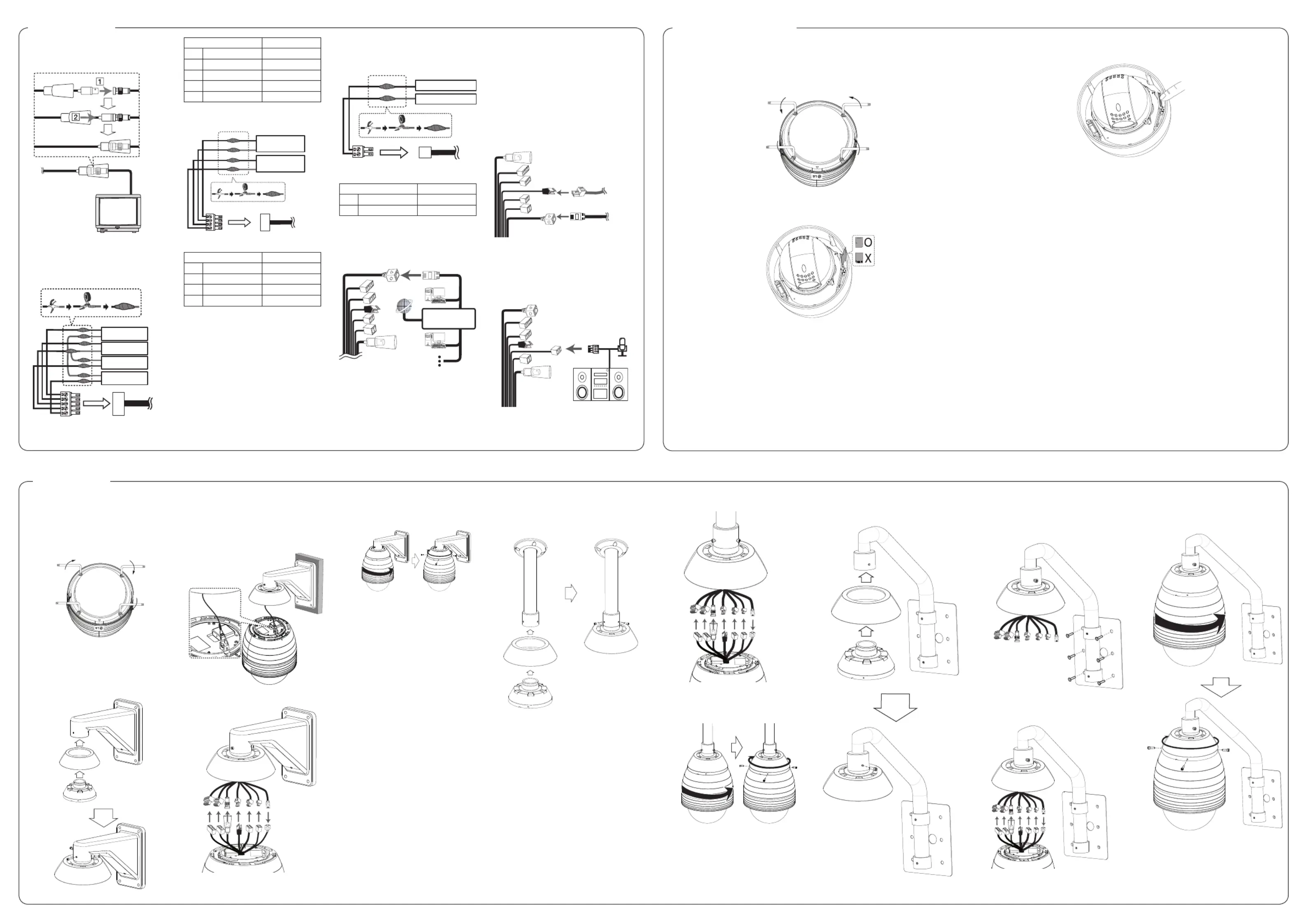

Connecting Display device

The video signal connection between the

camera and the monitor.

ALARM input connection

Connect sensor and alarm devices to

corresponding terminals accordingly.

Alarm device

Terminal BlockTerminal Plug

Description Color

AALARM IN 1 Brown

BALARM IN 2 Red

CALARM IN COM Black

DALARM IN 3 Orange

EALARM IN 4 Green

ALARM output connections

Terminal Block

Alarm device

Terminal Plug

Description Color

AALARM OUT 1A Blue

BALARM OUT 1B Violet

CALARM OUT 2A Gray

DALARM OUT 2B White

CAUTION:

Output specifications are lowactive, open-

collector and a drive capacity of DC 30 V 1

A/ AC 125 V 0.3 A. Connecting the alarm out

incorrectly may cause damaging the camera.

Connecting IP Reset

Connect the (IP Reset) and (GND) to 2 3

reset the IP address as shown below.

IP Reset

GND

Terminal BlockTerminal Plug

Description Color

AIP Reset Pink

BGND Yellow

Connecting Network

Connect the IP camera to your network

using a standard Terminal block as shown

below.

Router

Connecting power source

Connect a AC 24 V or PoE+ power source to

the power input terminal as shown below.

(Recommended power adaptor is AC 24 V/3

A or above.)

NOTES:

• In case of connecting both AC 24 V and

PoE+, PoE+ has a priority.

• Do not connect the power source AC 24 V

and PoE at once.

AC 24 V

PoE+

Connecting Microphone and

Speaker Device

Optionally connect an active speaker and/or

external microphone with a built-in amplifier.

NOTE:

Keep the microphone away from the speaker

to avoid howling.

You can record your surveillance environment with the SD card even if the network is disconnected

condition.

To insert the SD card

1. Remove the dome cover.

2. Insert the SD card carefully as shown in the following illustrations. Make sure the SD

card

terminal position before insert the SD card. Push the back end of the SD card to fix it at the last

step.

NOTES:

• Do not use the power too much when you insert the SD card. The SD card may be

damaged.

• If you insert the SD card in the wrong position, the SD card may be damaged or it may cause

the malfunction of the SD Card Slot.

• Keep the terminal part of the SD card in clean. Be careful the terminal part of the SD card

not to dusty.

• As the SD card is consumable, the SD card end its days and may be not able to save data if

you use it more than over certain times. In this case, replace SD card to buy

a new one.

Remove the SD card

1. Press the back end of the SD card to release the lock condition.

2. Take the SD card out carefully from the camera. It may cause a malfunction of the SD

card

or the SD card slot if you use the power too much at lock status.

CAUTION:

• If you install the SD card on the camera and remove with the SD card condition indicator

lights on, you must unmount the SD card by using the [System > Storage > Device

Management > Unmount] menu. The SD card data is compromised or the camera may

not operate normally, if you remove the card without use [Unmount] function.

• Do not insert Micro SD card to SD card adapter. It is recommended to use a standard SD

card.

• Insert the SD card before install the camera.

• LG Electronics is not responsible for deleted data caused by user mishandling when you

insert or remove the SD card.

Precautions

• Remove the dome cover carefully to

prevent falling.

• Align the s mark of the dome cover

and LG logo of the camera assembly for

proper camera orientation.

Wall mount (optional)

Install the camera by the following order.

1. Install the wall mount assembly as

shown below.

2. Drill a hole on the wall where you want

to install the pipe. Pass the connection

cable through the wall mount assembly

so that they hang down.

3. Connect the safety cable to the camera

in order to prevent a camera from falling.

4. Connect the cables to the camera jack.

5. Assemble the camera to the mounting

adaptor by turning it clockwise. Tighten

the M3 SAMS Screws and then align the

cover adaptor and main body.

Pandent mount (optional)

Install the camera by the following order.

1. Install the pandent mount assembly as

shown below.

2. Drill a hole on the wall where you want

to install the pipe. Pass the connection

cable through the pendant mount

assembly so that they hang down.

3. Connect the safety cable to the camera.

4. Connect the cables to the camera jack.

5. Assemble the camera to the mounting

adaptor by turning it clockwise. Tighten

the M3 SAMS Screws and then align

the cover adaptor and main body.

Parapet mount (optional)

1. Install the parapet mount assembly as

shonw below.

2. Drill a hole on the wall where you

want to install the parapet. Pass the

connection cable through the parapet

mount assembly so that they hang

down.

3. Connect the safety cable to the camera.

4. Connect the cables to the camera jack.

5. Assemble the camera to the mounting

adaptor by turning it clockwise. Tighten

the M3 SAMS Screws and then align the

cover adaptor and main body.

Connection Using the SD Card

Installation

Produkt Specifikationer

Mærke:	LG
Kategori:	DVD afspiller
Model:	LNP2810

Har du brug for hjælp?

Hvis du har brug for hjælp til LG LNP2810 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

DVD afspiller LG Manualer

19 August 2025

18 August 2025

18 August 2025

18 August 2025

18 August 2025

18 August 2025

18 August 2025

18 August 2025

18 August 2025

18 August 2025

DVD afspiller Manualer

Nyeste DVD afspiller Manualer

Samsung DVD-H40C Manual

30 September 2025

Samsung DVD-1010 Manual

30 September 2025

Denon DVD-2930 Manual

28 September 2025

Proscan PDVD6990 Manual

28 September 2025

Panasonic DVD-S700 Manual

15 September 2025

Samsung DVD-P560 Manual

15 September 2025

Samsung DVD-P490KD Manual

12 September 2025

Samsung DVD-L70 Manual

12 September 2025

Samsung DVD-C500 Manual

12 September 2025

Samsung DVD-P365KD Manual

26 August 2025
