Side 1/28

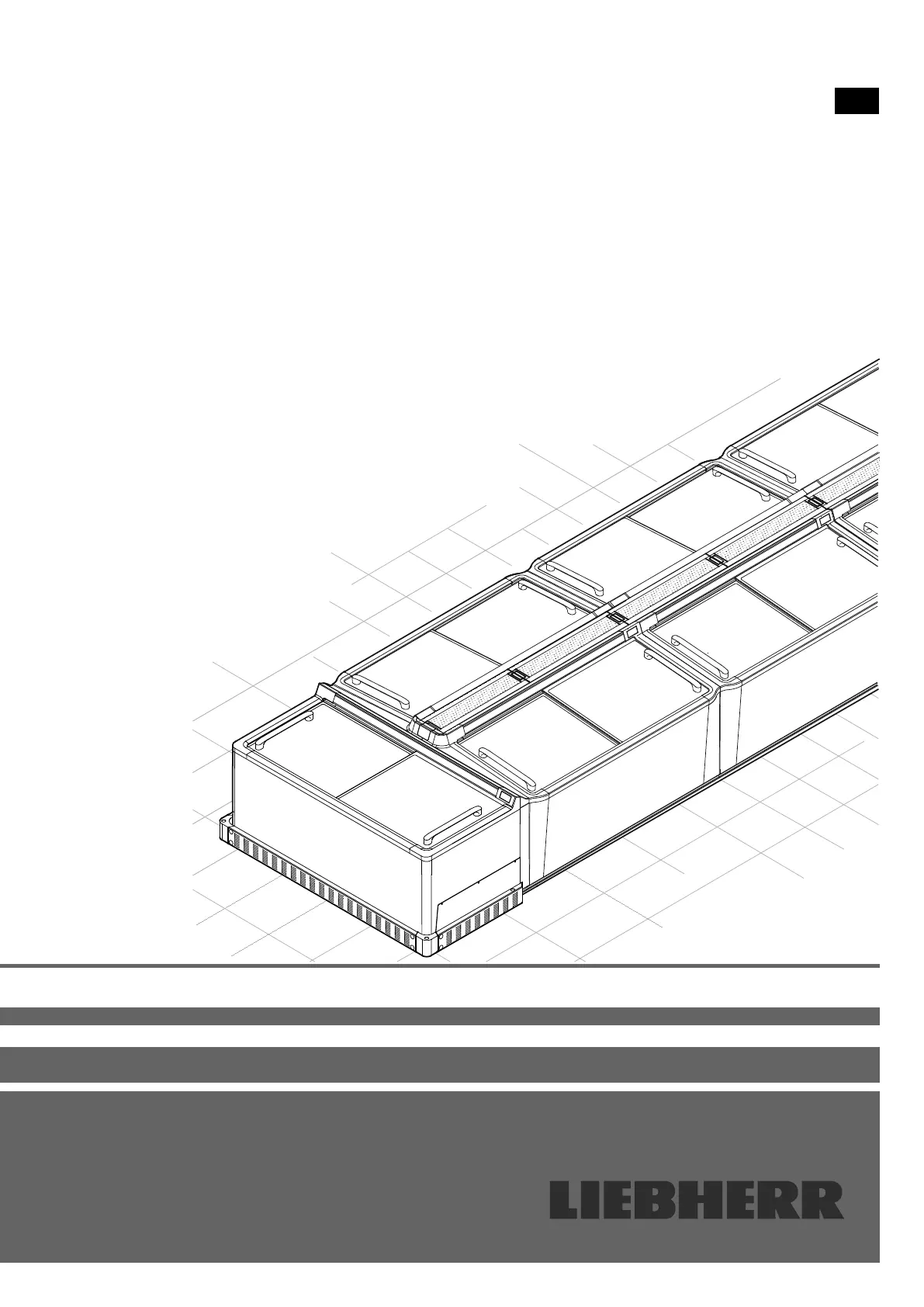

Assembly instructions

ST 11/SGT 11

ST 13/SGT 13

STE 11

7084 183-00

Content

Safety instructions and warnings ................................... 2

Appliance dimensions .................................................... 3

Cable lengths .................................................................. 3

Requirements for assembly ........................................... 4

Requirements for the place of installation ........................... 4

Requirements for the electrical connection ........................ 4

Requirements for a remote data transmission connection .. 4

Bus connection ............................................................... 4

Addressing...................................................................... 5

Scope of delivery ........................................................... 6

Standard (per appliance).................................................... 6

Accessories (depending on conguration) ......................... 6

Accessories (optional) ........................................................ 6

Positioning rail................................................................. 6

Single-piece block end plate ........................................... 6

Split block end plate........................................................ 6

End-of-aisle appliance connection kit ............................. 6

Cover .............................................................................. 6

End-of-aisle appliance collision guard ............................ 7

Block end plate collision guard ....................................... 7

Product plate holder (for longitudinal appliances) ........... 7

Product plate holder (for end-of-aisle appliances) .......... 7

Plug set for alarm output ................................................. 7

Transport and unpacking ............................................... 7

Moving the appliances to the place of installation .............. 7

Possible congurations .................................................. 8

Installing an individual appliance ........................................ 8

Installing appliances in a row .............................................. 8

Installing the appliances in a block or in island form ........... 9

Axing shaped foam tape ................................................ 10

Installation and connection .......................................... 10

Fitting the cables .............................................................. 10

Fitting the service interface extension ........................... 12

External alarm (oating alarm output) ........................... 13

Connecting appliances ..................................................... 14

End-of-aisle appliance connection kit ............................... 14

Block completion with block end plates ............................ 16

Single-piece block end plate ......................................... 16

Split block end plates .................................................... 16

Fitting the protection strips ............................................... 17

Individual appliances .................................................... 17

Row conguration ......................................................... 17

Block conguration ....................................................... 18

Fitting the cover ................................................................ 18

Assembling the cover ................................................... 18

Inserting the covers....................................................... 19

Assigning addresses to the appliances ............................ 19

Commissioning the appliances ........................................ 20

Checks ......................................................................... 20

Fitting various accessories ........................................... 21

Fitting product plate holders ............................................. 21

Product plate holders for longitudinal appliances .......... 21

Product plate holders for end-of-aisle appliances ......... 21

Fitting the collision guard .................................................. 22

Block completion with end-of-aisle appliance ............... 22

Block completion with a block end plate ....................... 23

Technical data .............................................................. 25

Safety instructions and warnings

• If there is obvious transport damage on

the appliance after it has been unpacked,

contact the supplier. Do not start the

appliance.

• Do not allow naked ames or ignition sources

to enter the appliance. When transporting

and cleaning the appliance, ensure that the

refrigerant circuit is not damaged. In the

event of damage, make sure that there are no

ignition sources nearby and keep the room

well ventilated.

• Do not place objects on the appliance and

do not place heavy loads on the sliding glass

lids. The lids could be damaged.
