Sealed enclosures oer a range of performance

proﬁ les depending on the internal air volume.

Larger enclosures will have a smoother more

extended response while a small enclosure

will have increased output in a more focused

frequency range. Sealed enclosures are the

simplest to construct but do require that the box

be completely air tight.

• Use 3/4” MDF

• Make sure the woofer mounting panel is

full width and height

• Glue all mating surfaces

• Use wood screws

• Use silicone caulk on all internal joints

The internal volume of the

enclosure must be determined

to insure proper performance.

Simply measure height, width and

depth of enclosure you intend

to build. Subtract the material

thickness. Multiply these numbers

and divide by 1728 to get the

volume in cubic feet.

For enclosures with an angled

panel, measure the larger and

smaller depths, add these

together and divide by two. Use

this averaged depth.

Enclosure

Volume

H x W x D

1728

D1 + D2

Sealed

Vented

Enclosure types

Volume calculation

Subwoofer dimensions

CAUTION

Always consider consulting a professional audio installer

before installing new subwoofers. High power audio

systems have the ability create sound levels above 130dB.

Extended exposure to high sound pressure levels can

cause hearing damage.

Always run any new wiring through safe areas that wont

interfere with the normal operation of the vehicle.

Congratulations on your choice of a MBQuart subwoofer.

This “Quick Start Installation” guide is meant to help you

“hook up” and play music. For more detailed information

on system setting, speaker and subwoofer conﬁ guration,

and full speciﬁ cations by model, visit the website at

MBQuart.com

It’s a good idea to conﬁ rm that you have purchased the

correct size subwoofers to ﬁ t your vehicle. If you have any

reservations about being able to complete the installation

yourself, we recommend contacting a professional. Be careful

as you go. Always disconnect the negative battery terminal

before starting any electrical work on the vehicle.

DS1-204 DS1-254 DS1-304

Height 12.5” 13” 14.5”

Width 12.5” 13” 14.5”

Depth 9.0” 10” 10.25”

Vb 0.5 ft

30.65 ft30.75 ft3

F3 46 Hz 42 Hz 40 Hz

Qtc .866 .959 1.10

DS1-204 DS1-254 DS1-304

Height 12.5” 13.5” 14.5”

Width 17.5” 18.5” 19.5”

Depth 1 5.5” 6.0” 6.0”

Depth 2 7.5” 8.0” 8.0”

Vb 0.5 ft30.65 ft30.75 ft3

F3 46 Hz 42 Hz 40 Hz

Qtc .866 .959 1.10

Before you start

Rectangular

Angled

Recommended enclosures

Enclosure construction

in(mm) ABCD

DS1-204 8.43”(214) 2.77”(70) 7.17”(182) 0.57”(14.4)

DS1-254 10.31”(262) 2.93”(74) 9.06”(230) 0.67”(17)

DS1-304 12.28”(312) 3.00”(76) 10.59”(269) 0.96”(24)

Vented designs are NOT recommended. This

subwoofer is designed to perform in small

sealed enclosures.

Quick Start

Installation Guide

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from

defects in material and workmanship for a period of one (1) year from the date of purchase.

Maxxsonics USA Inc. will, at it’s discretion, repair or replace defective products during the warranty

period. Components that prove to be defective in materials and workmanship under proper installation

and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was

purchased. A photocopy of the original receipt must accompany the product being returned. The

costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics

USA Inc. This warranty is limited to defective parts and speciﬁ cally excludes any incidental or

consequential damages connected therewith. To view the full warranty, please visit the website.

MBQuart products are designed and engineered in the USA by

847-540-7700

www.maxxsonics.com MBQ Discus shallow wfr QSG 01 - rev2

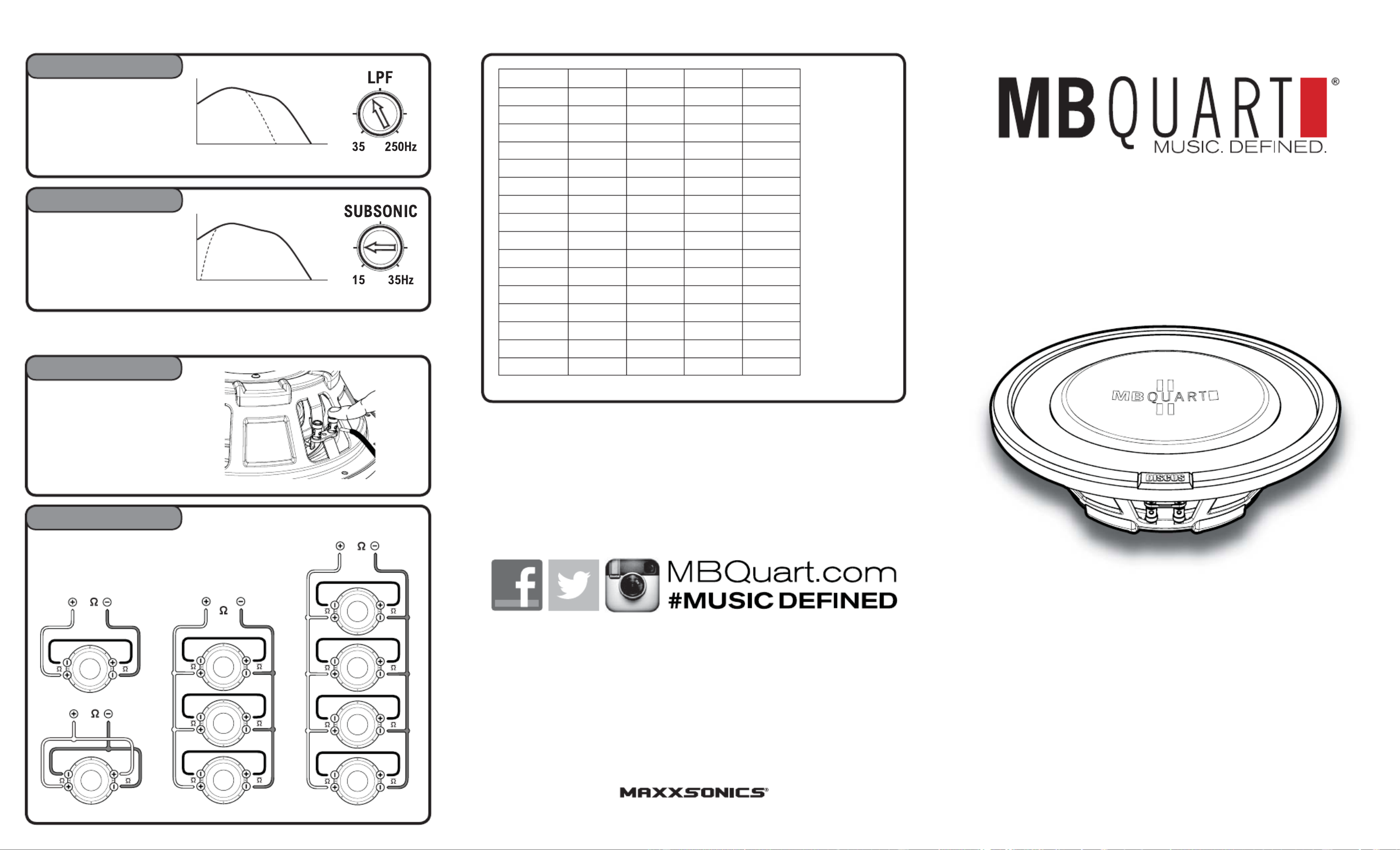

A Low pass ﬁ lter will allow only

the bass frequencies to reach the

woofer making for a more natural

transition to the higher frequency

drivers. Check your ampliﬁ er’s

manual for details.

We recommend using an

electronic subsonic ﬁ lter. This will

help to protect the woofer from

extreme low frequency distortion.

Many ampliﬁ ers are equipped

with this type ﬁ lter. Check your

ampliﬁ er’s manual for details.

This subwoofer is equipped with

quick disconnect type terminals.

Use crimp type terminals or solder

the wire directly to the terminals.

Depending on the number of woofers you intend to use,

you can conﬁ gure the wiring to provide the best impedance

load for your system. Below are some examples. Consult

your ampliﬁ er’s manual for recommendations.

Low Pass (LPF)

Subsonic

Conﬁ gurations

Connections

Subwoofer speciﬁ cationsCrossovers

Wiring

DS1

1-20

-20

-204

4DS1-204

DS1

1-25

-25

-254

4DS1-254

DS1

1-3

-3

-30

4DS1-304

SDISCUS

4 4

82.7

4 4

10Hz 100Hz 1000Hz

DS1-204 DS1-254 DS1-304

NomZ 2 x 4 2 x 4 2 x 4 Ohm

Sd .021 .034 .047 sqM

Revc 7.13 7.18 7.19 Ohm

BL 11.62 15.21 15.05 TxM

Vas 10.71 34.92 82.11 Liters

Cms 168.96 212.96 260.17 um/N

Mms 128.14 128.14 153.38 Grams

Fs 44.65 31.03 25.19 Hz

Qms 6.011 6.681 7.275

Qes 1.113 0.732 0.771

Qts 0.940 0.662 0.696

no 0.081 0.108 0.135 %

SPL@1W 82 83 84 dB

Xmax 8.2 8.7 9.0 mm

RMS 200 300 300 Watts

Peak 400 600 600 Watts
