Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 4/15/25 INST108-CH2B
INSTALLATION INSTRUCTIONS
108-CH2B
Patent # 10,579,232
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.

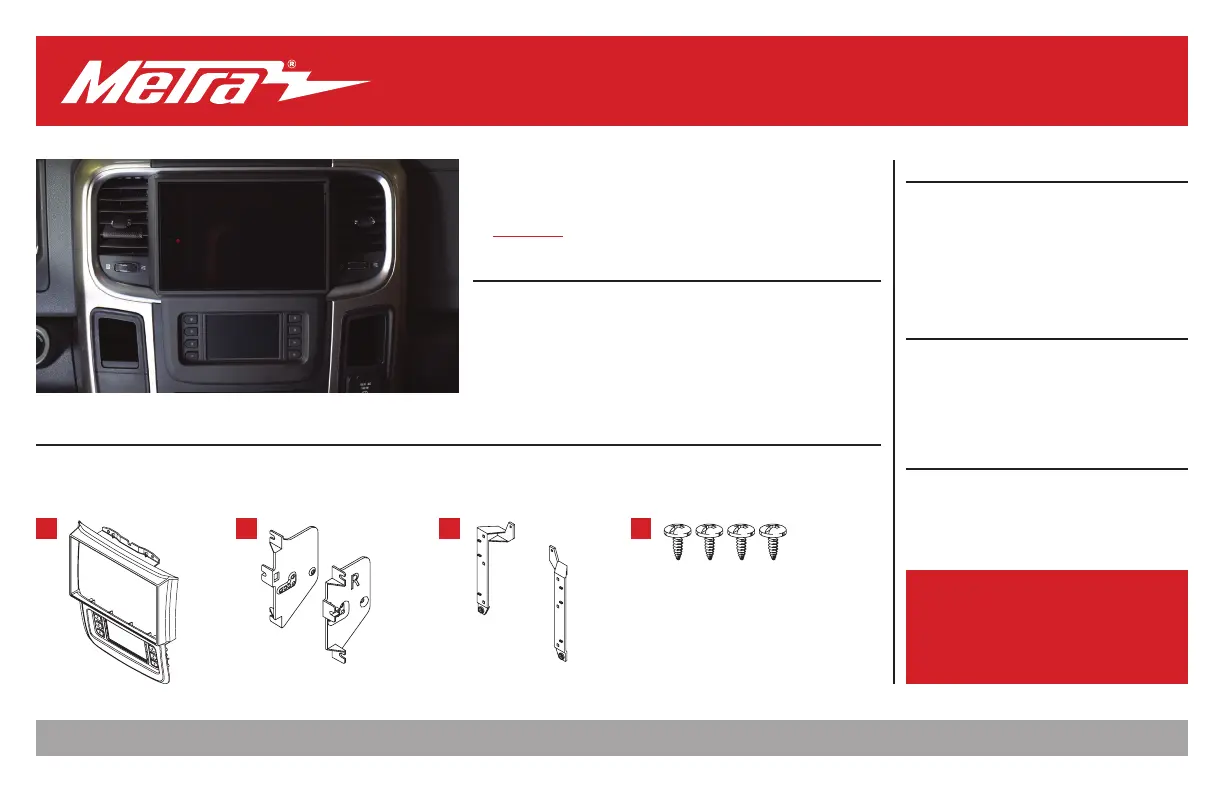

KIT COMPONENTS
• A) Radio trim panel (with touchscreen display) • B) Radio chassis brackets • C) Radio display screen brackets • D) Phillips screws (4)
• E) Antenna adapter (not shown)
KIT FEATURES
• Designed specifically for the Pioneer
DMH-C5500NEX 8-inch radio
• Included interface for climate and
steering wheel functions
• Touchscreen display for climate,
audio interfacing, and personaliza-
tion features
• Painted black
Note: Reference the Troubleshooting
section for factory items known to be
no longer functional.
• Trailer brake control system not
retained
• Cargo camera system not retained
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • T-20 Torx driver
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-3
Kit Assembly ......................................................4-5
Axxess Interface Installation ...........................6-16
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Fits Ram 1500/2500/3500, Chassis Cab 3500/
4500/5500 (with 5” or 8” touchscreen) 2013-2017
A B C D
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
386.257.1187
|
MetraOnline.com

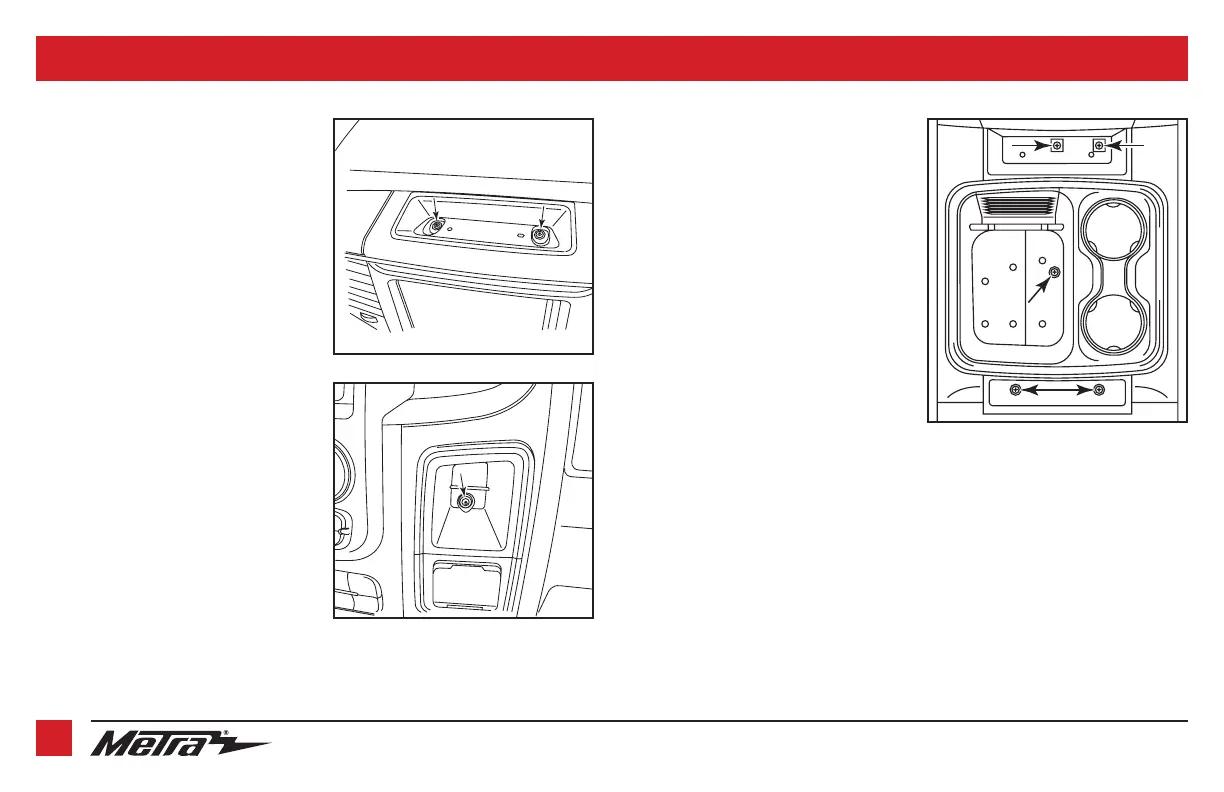

DASH DISASSEMBLY
2
1. Remove the rubber tray liner inside the
tray at the top center of the dash, then
remove (2) Torx T-20 screws exposed.
(Figure A)
2. Remove the rubber tray liner from inside
the small pocket on the passenger side
of the center dash panel, then remove
(1) Torx T-20 screw exposed. (Figure B)
(Figure C)
3. For models with a center console:
a. Remove the rubber liner from the
storage tray in front of the center
console, then remove (2) Phillips
screws exposed. (Figure C)
b. Remove the rubber liner from the
middle of the center console, then
remove (1) Phillips screw exposed.
(Figure C)
c. Models with a column shifter:
Remove the rubber liner from the
rear of the center console, then
remove (2) Phillips screws exposed.
(Figure C)
d. Models with a console shifter:
Pull down on the chrome shifter
trim, then pull up on the shifter
to remove it.
e. Models with a console shifter:
Remove the rubber liner from the
cupholders, then remove (2) 9/32”
screws exposed.
Continued on the next page
(Figure B)
(Figure A)
