INSTALLATION INSTRUCTIONS

108-FD2B

Metra. The World’s Best Kits.

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

Patent Pending

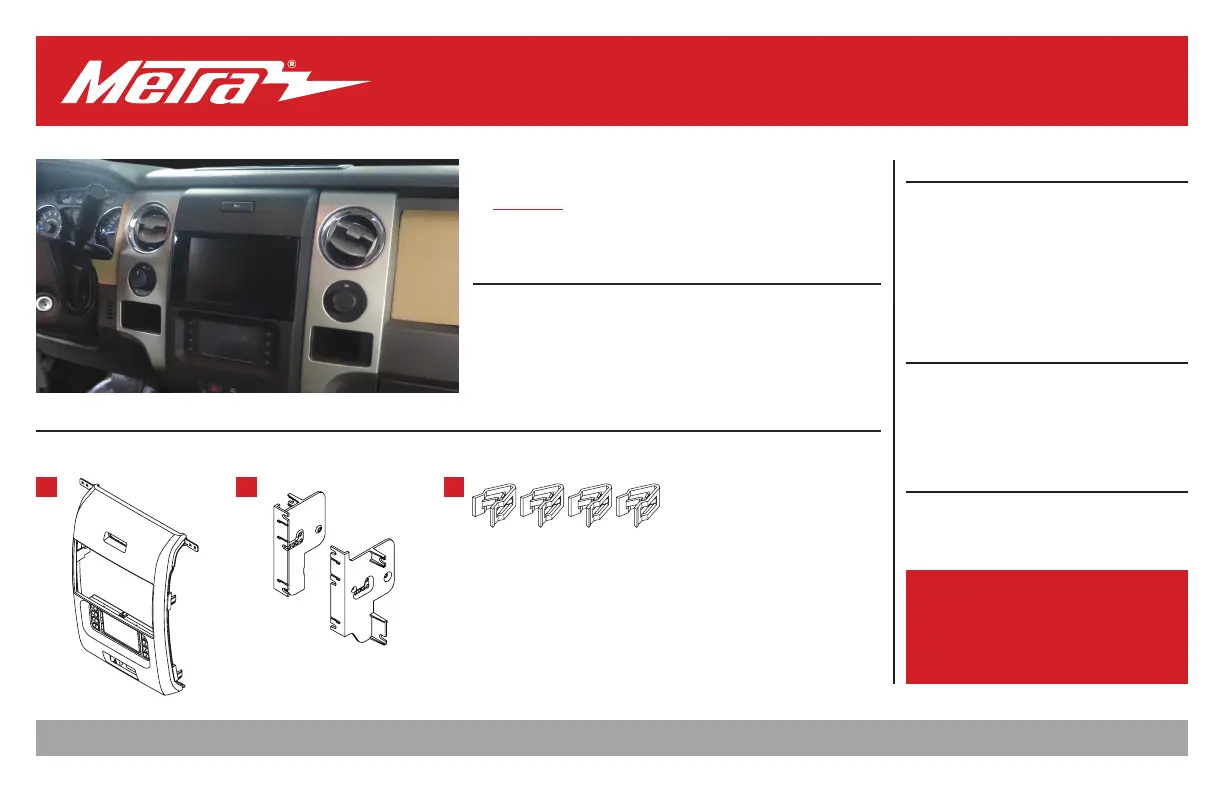

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C5500NEX 8-inch radio

• Included interface for climate and steering wheel functions

• Touchscreen display for climate, audio interfacing, and personalization features

• Integrated hazard button and passenger airbag light

• Painted scratch resistant matte black

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 10mm and 7mm socket wrench

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly ..........................................................3

Axxess Interface Installation .............................4-11

Final Assembly .......................................................7

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into touchscreen

Antenna Adapter: Included with kit

Steering wheel control interface: Included with kit

Ford F-150 (with 4.2” screen) 2013-2014

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets (a)

• C) (4) Panel clips •

D) Antenna adapter (not shown)

A B C

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

386.257.1187

MetraOnline.com

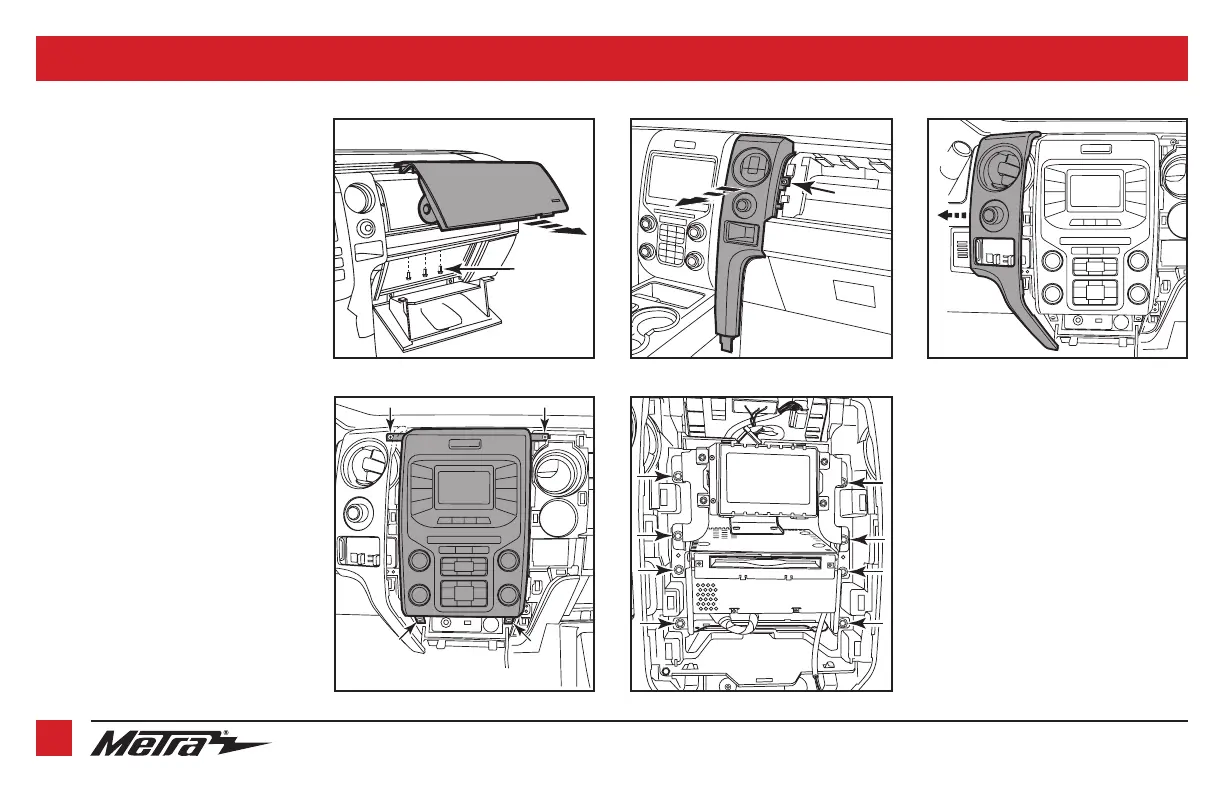

DASH DISASSEMBLY

1. Open and lower the glove box, then

remove (3) 10mm bolts facing up from

inside the glove box opening. (Figure A)

2. Remove (1) 7mm screw securing the

trim panel to the right of the radio, then

unclip and set to the side. (Figure B)

3. Unclip the trim panel to the left of the

radio and slightly move aside to access

the radio/climate panel top left screw.

(Figure C)

4. Open the compartment below the

climate controls.

5. Remove (4) 9/32” screws securing

the radio/climate control panel to the

dash, then unclip, unplug, and remove.

(Figure D)

6. Remove (4) 7mm screws securing the

radio chassis. Slide the chassis out, then

unplug and remove. (Figure E)

7. Remove (4) 7mm screws securing the

radio display, then unplug and remove.

(Figure E)

Continue to Kit Preparation

(Figure A)

(Figure B)

(Figure E)

(Figure C)

(Figure D)
