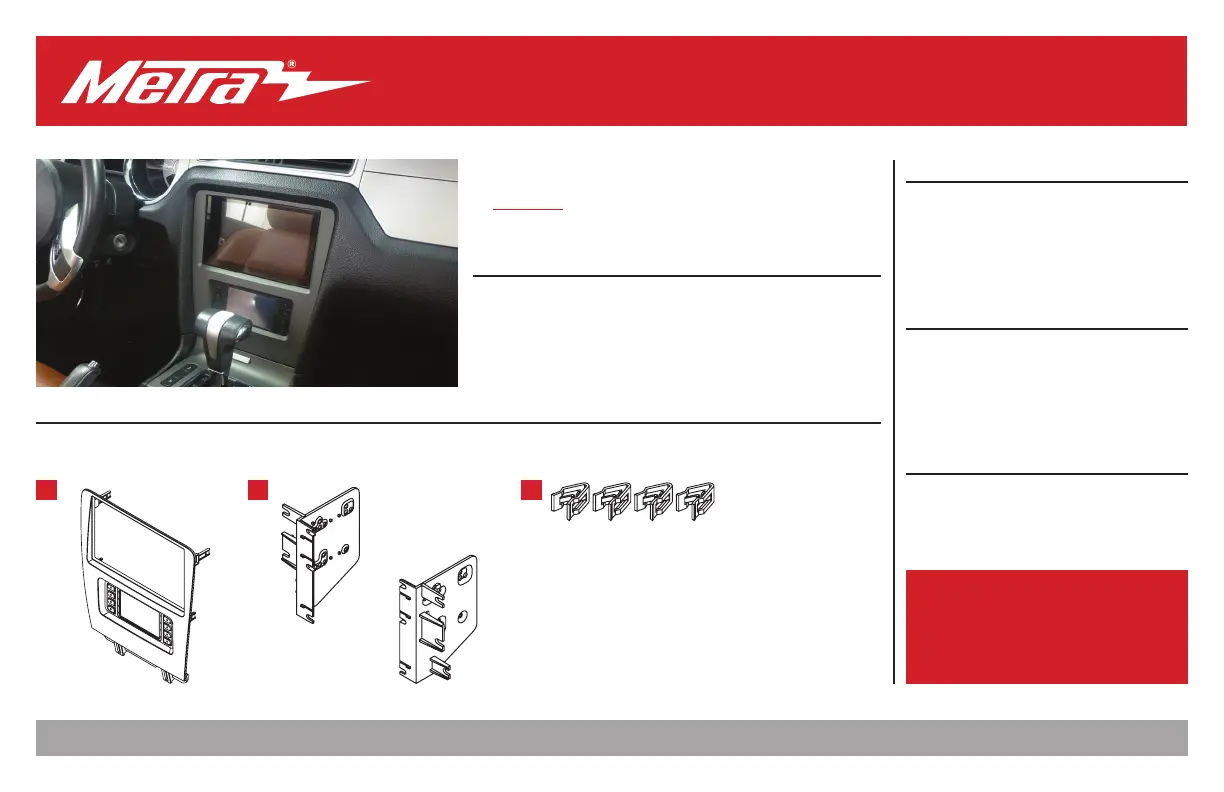

INSTALLATION INSTRUCTIONS

108-FD4CH

Metra. The World’s Best Kits.

Patent # 10,579,232

Attention! With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C5500NEX 8-inch radio

• Included interface for climate and steering wheel functions

• Touchscreen interface for climate, audio interfacing, and personalization features

• Painted charcoal to match the factory ﬁnish

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets

• C) Panel clips (4) • D) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly ..........................................................3

Axxess Interface Installation ............................4-13

Final Assembly .......................................................8

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built

into touchscreen

Antenna Adapter: Included with kit

Steering wheel control interface: Included with kit

A B C

Ford Mustang 2010-2014

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

1.800.221.0932

MetraOnline.com

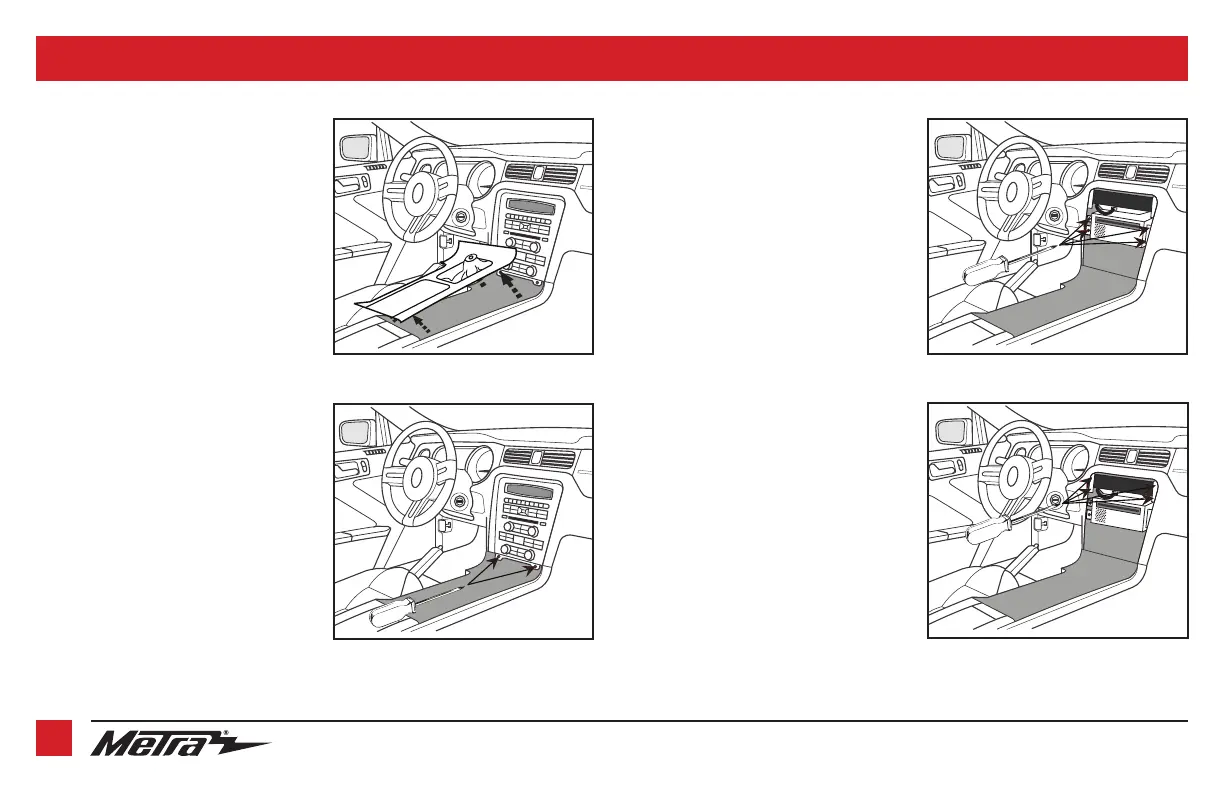

DASH DISASSEMBLY

1. Unclip and remove the trim panel

surrounding the shifter, including the

cup holders. (Figure A)

2. Remove (2) 9/32” screws from the

bottom of the radio/climate control

panel, then unclip and remove the

panel. (Figure B)

(Figure C)

(Figure D)

(Figure B)

(Figure A)

3. Remove (4) Phillips screws securing the

radio chassis to the vehicle. Slide the

chassis out, then unplug and remove.

(Figure C)

4. Remove (4) Phillips screws securing the

radio display to the vehicle. Slide the

display out, then unplug and remove.

(Figure D)

Continue to Kit Assembly
