INSTALLATION INSTRUCTIONS

99-5840CH

The World’s best kits.

Patent # 10,579,232

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) Engine start/stop circuit board and cover

• E) Engine start/stop trim

• F) #8 x 3/8” Phillips truss-head screws (4) • G) #4 x 1/2” Phillips pan-head screws (6) • H) Panel clips (4) • I) USB cable

• J) HVAC interface and wiring harness (not shown) • K) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Cutting tool

• Torx T-10 screwdriver

TABLE OF CONTENTS

Dash Disassembly .............................................. 2-3

Kit Preparation ...................................................4-5

Kit Assembly

–ISO DIN radio provision with pocket ..................6

–ISO DDIN radio provision ....................................6

Axxess Interface installation ...........................7-15

Final Assembly ...................................................... 11

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: Axxess interface and

harness included

Antenna Adapter: 40-EU10 (sold separately)

A B C

GF H I

Attention! With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

KIT FEATURES

• ISO Single-DIN radio provision with pocket

• ISO Double-DIN radio provision

• Touchscreen display for factory climate information and driver customization menus

• Built-in ASWC-1 Technology Retains Factory Steering Wheel Controls

• Will not retain launch control

• Painted Charcoal

Fits select Ford Mustang models (with 8" screen)

2015-2023

Visit MetraOnline.com for more detailed information about the product and up-to-date

vehicle specific applications

386.257.1187

MetraOnline.com

1. Open the passenger door and remove

the trim panel from the side of the dash.

(Figure A)

2. Open the glove box and remove the

trim panel on the right side. (Figure B)

3. Unclip and remove the trim/vent dash

panel. (Figure C)

DASH DISASSEMBLY

4. Remove the rubber tray cover in front

of the shifter, and then remove the (2)

9/32” screws exposed. (Figure D)

5. Unclip and remove the front side panels

from each side of the center console.

(Figure E)

6. Remove the (2) 9/32” screws from each

side of the center console. (Figure F)

Continued on the next page

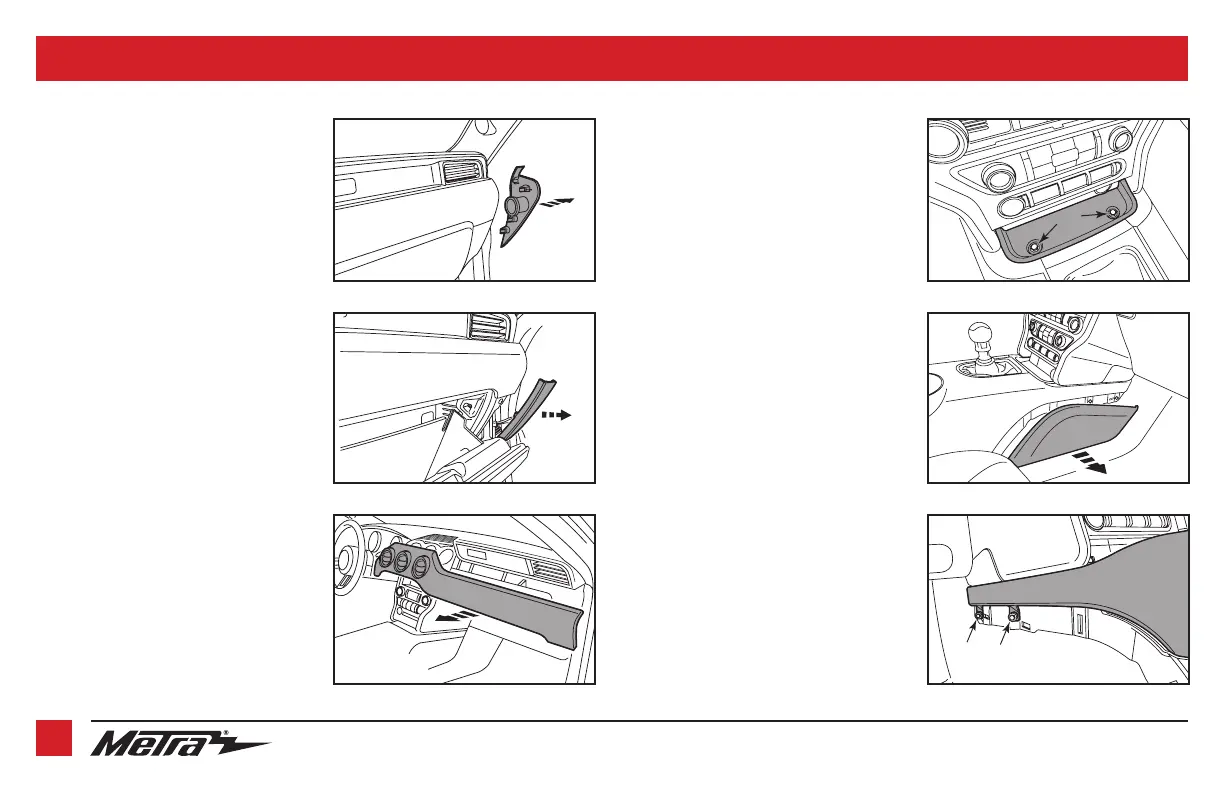

(Figure A) (Figure D)

(Figure B) (Figure E)

(Figure C) (Figure F)
