CONNECTIONS
For models
without
a factory amp:

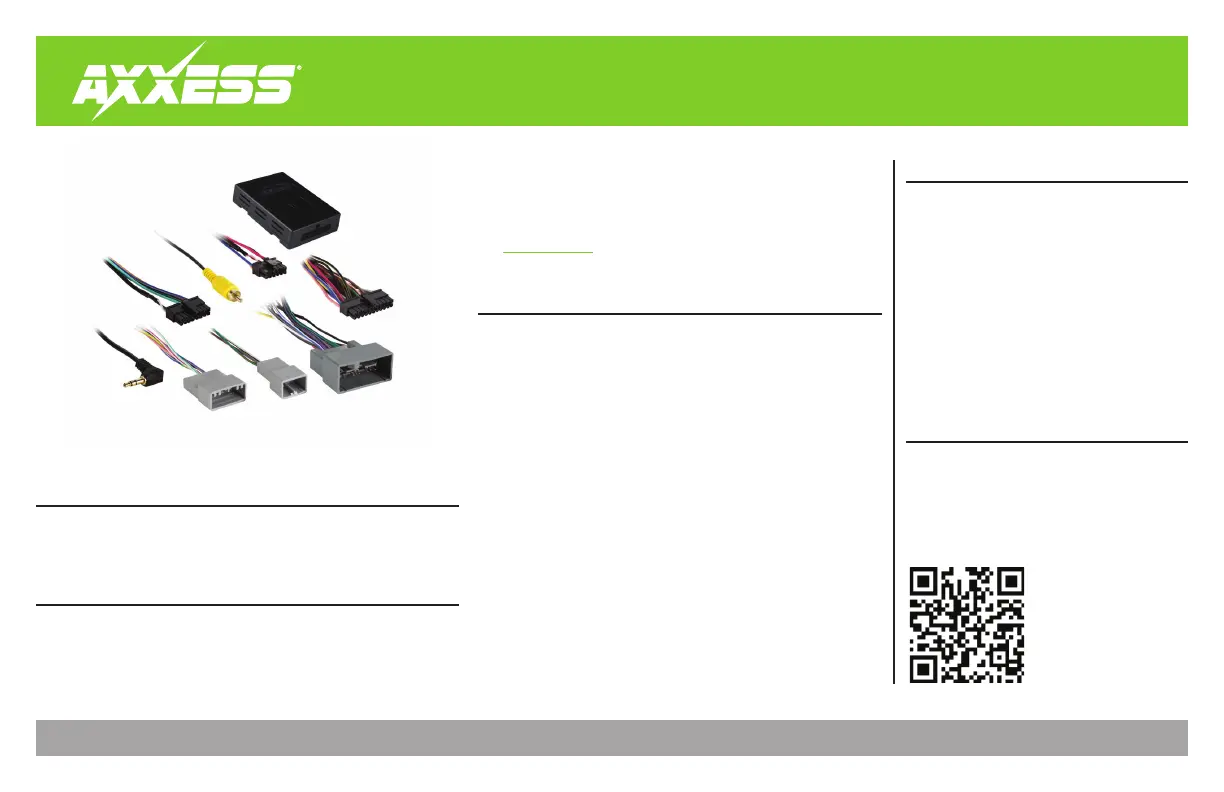

From the AXHN-2 harness to the aftermarket radio
Main harness:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Red wire to the accessory wire.
For the following (8) connections, cut off the RCA jacks to expose the speaker wire inside.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative speaker output.
16-pin harness:
• Connect the Orange/White wire to the illumination wire.
The following (3) wires are for aftermarket multimedia/navigation radios that require these wires:
• Connect the Light Green wire to the parking brake wire (if applicable).
• Connect the Blue/Pink wire to the speed sense wire (if applicable).
• Connect the Green/Purple wire to the reverse wire (if applicable).
• Connect the Yellow RCA jack to the backup camera input.
Note: This RCA jack is used to retain the backup camera as well as the LaneWatch camera.
• Connect the White and Red RCA jacks to the audio AUX-IN jacks (if applicable).
8-pin harness:
• Disregard the White RCA jack, it will not be used in this application.
12-pin pre-wired AXSWC harness & 3.5mm jack:
• This harness and 3.5mm jack is to be used along with the optional AXSWC (sold separately) to
retain steering wheel audio controls. If the AXSWC is not being used, disregard this harness. If
it will be used, refer to the vehicle specific AXSWC instruction from Axxess Interfaces for radio
connections and programming. Disregard the harness that comes with the AXSWC.
• The Gray/Blue wire will only be used in vehicles equipped with Bluetooth. Connect this wire
to the Yellow wire in pin-15 from the 32-pin harness in the factory Bluetooth module.
Bluetooth module location:
Civic - Behind glovebox
CR-V - In dash, under radio
Continue to Installation
