Rev. 03-10-10 INSTGMOS-10

CADILLAC ONSTAR CLASS II

DATA BUS INTERFACE

1-800-221-0932

www.metraonline.com

GMOS-10

INSTALLATION INSTRUCTIONS

The GMOS-10 is designed to be used in Cadillacs equipped

with Onstar and amplified system. It will retain the warning

chimes that are lost when the factory radio is removed. The

GMOS-10 also provides a 12-volt switched accessory output

along with Mute, Parking Brake, Speed Sense (VSS), and

Reverse outputs for the installation of an aftermarket naviga-

tion radio.

1-800-221-0932

www.metraonline.com

* IMPORTANT WARNING

THIS PRODUCT INCLUDES INSTRUCTIONS FOR INSTALLATION WHICH

MUST BE CAREFULLY FOLLOWED. THE INSTRUCTIONS ARE WORDED

IN SUCH A MANNER TO ASSUME THAT THE INSTALLER IS CAPABLE

OF COMPLETING THESE TYPE OF ELECTRONIC INSTALLATIONS. IF YOU

ARE UNCLEAR AS TO WHAT YOU ARE INSTRUCTED TO DO OR BELIEVE

THAT YOU DO NOT UNDERSTAND THE INSTRUCTIONS SO AS TO

PROPERLY AND SAFELY COMPLETE THE INSTALLATION YOU SHOULD

CONSULT A TECHNICIAN WHO DOES HAVE THIS KNOWLEDGE AND

UNDERSTANDING. FAILURE TO FOLLOW THESE INSTRUCTIONS

CAREFULLY AND TO INSTALL THE INTERFACE AS DESCRIBED COULD

CAUSE HARM TO THE VEHICLE OR TO SAFETY SYSTEMS ON THE

VEHICLE. INTERFERENCE WITH CERTAIN SAFETY SYSTEMS COULD

CAUSE HARM TO PERSONS AS WELL. IF YOU HAVE ANY QUESTIONS

IN THIS REGARD PLEASE CALL THE HELP LINE OR THE METRA AT

1-800-221-0932 FOR ASSISTANCE.

GMOS10 GMOS10

* READ IMPORTANT WARNING ON PAGE 1

BEFORE ATTEMPTING ANY INSTALLATION

INTERF

ACE COMPONENTS

• GMOS-10

• 14 pin harness with RCA’s

• 16 pin harness to 16 and 20 pin Cadillac harness

APPLICATIONS

CADILLAC

• CTS 2003-2009

• SRX 2004-06 with RPO codes U2R U2S

ONSTAR LEVEL ADJUSTMENT

To adjust the Onstar volume level find the Black/Yellow wire on the 16-pin har-

ness. Push the blue Onstar button, while the voice is speaking tap the

Black/Yellow wire to ground. There are 4 volume settings for Onstar; once the

4th setting is reached and the Black/Yellow wire is tapped to ground it will auto-

matically go back to the first volume setting. Once the volume is set it will stay at

that volume until the Black/Yellow wire is tapped to ground again. This can be

set during installation and then left alone. If user adjustment is desired, a

momentary contact switch (sold separately) can be added. Connect one terminal

from the switch to ground and the other terminal to the Black/Yellow wire. The

volume will change one level every time the switch is pressed.

GMOS10

TOOLS REQUIRED FOR INSTALLATION

• Cutting Tool • Tape • Crimping Tool

• Connectors (ie: butt-connectors, bell caps, etc.)

HARNESS PREPARATION

* Important: Before beginning any of the following, disconnect the negative

battery terminal to prevent accidental short circuit.

**Note: The ignition power source of the Cadillac keeps the radio on until one

of the doors is opened. This is called the R.A.P. (retained accessory power).

The GMOS-10 is designed to retain this feature.

Connections to be made on the 14 pin harness:

1) Connect the white RCA to the radio’s left front RCA output.

2) Connect the gray RCA to the radio’s right front RCA output.

3) Connect the green RCA to the radio’s left rear RCA output.

4) Connect the violet RCA to the radio’s right rear RCA output.

Note: If no RCA outputs are available, use the Metra line output converter

part # LOC-648 (sold separately).

5) Connect the blue/white wire to the radio’s amplifier turn-on output.

6) Connect the red wire to the radio’s 12-volt accessory or switched wire.

The following wires on the 14-pin harness are for the aftermarket radios

equipped with navigation features:

1) Connect the Brown wire to the mute wire of the aftermarket radio.

2) Connect the Green wire to the parking brake wire of the aftermarket radio.

3) Connect the Blue/Pink wire to the VSS or speed sense wire of the

aftermarket radio.

4) Connect the Green/Purple wire to the reverse wire of the aftermarket radio.

When completed,

plug the 14-pin harness into the GMOS-10.

Connections to be made on the 16 pin harness:

1) Connect the yellow wire to the radio’s 12-volt battery or memory wire.

2) The blue/white wire is the amplifier turn-on wire for aftermarket amplifiers

only. If you are not using this connection, be sure to properly terminate the

wire using an insulated connector or electrical tape.

3) The black/yellow wire will be discussed in the Onstar Level Adjustment

section.

When completed, plug the 16-pin harness into the GMOS-10.

INSTALLING THE GMOS-10

1) With all connections completed to the aftermarket radio, plug the 16 and

20 pin harness into the Cadillac’s wiring harness.

2) Cycle the key by turning the ignition on then back off, then on again to test

the radio.

TESTING THE GMOS-10

1) Turn the ignition on, then turn the radio on to verify that the radio works. Check

the balance control of the radio for proper operation.

2) Push the Onstar button, if so equipped, to verify Onstar is working properly. The

radio will turn off or mute if the radio has this feature and Onstar will be heard

through the front speakers. Turn off Onstar and the radio will turn back on or

deactivate mute if equipped.

AUDIO LEVEL ADJUSTMENT

When using the GMOS-10 with a radio that has a high pre-out voltage the audio

signal may become distorted.

To resolve this follow these steps:

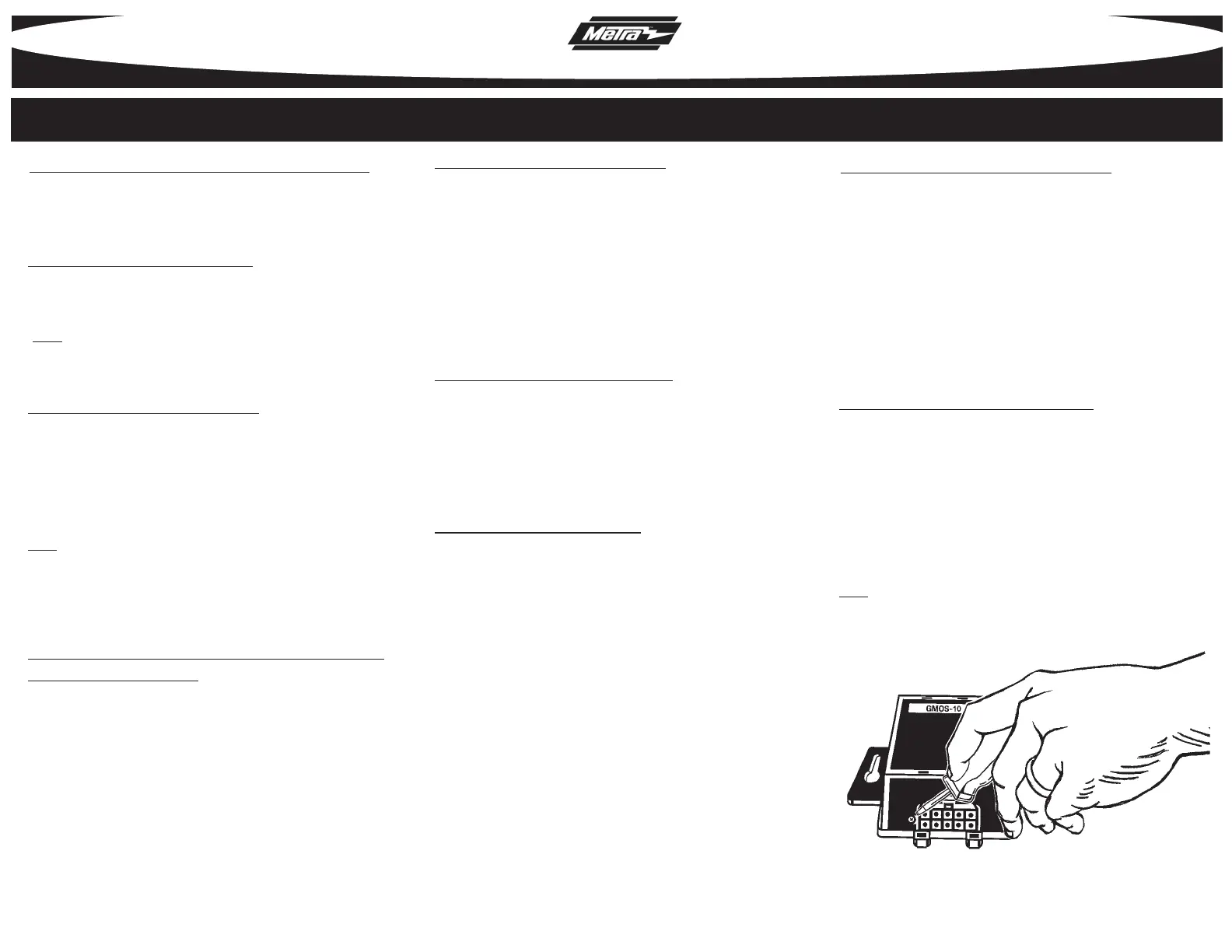

1. Locate the potentiometer next to the 14-pin connector

located on the GMOS-10.

2. Taking a small flat headed screwdriver, turn the potentiometer

counter-clockwise to lower the input level going to the factory amplifier.

Note: The chime volume will also adjust with the audio input.
