2013 - 2016 Microchip Technology Inc. DS20005173B-page 1
MCP16251/2
Features
Up to 96% Typical Efficiency
650 mA Typical Peak Input Current Limit:
- IOUT > 100 mA @ 3.3V VOUT
, 1.2V VIN
- IOUT > 250 mA @ 3.3V VOUT
, 2.4V VIN
- IOUT > 225 mA @ 5.0V VOUT
, 3.3V VIN
Low Device Quiescent Current:
- Output Quiescent Current: < 4 µA typical,
device is not switching (VOUT > VIN,
excluding feedback divider current)
- Input Sleep Current: 1 µA
- No Load Input Current: 14 µA typical
Shutdown Current: 0.6 µA typical
Low Start-Up Voltage: 0.82V, 1 mA load
Low Operating Input Voltage: down to 0.35V
Adjustable Output Voltage Range: 1.8V to 5.5V
Maximum Input Voltage VOUT < 5.5V
Automatic PFM/PWM Operation:
- PWM Operation: 500 kHz
- PFM Output Ripple: 150 mV typical
Feedback Voltage: 1.23V
Internal Synchronous Rectifier
Internal Compensation
Inrush Current Limiting and Internal Soft Start
(1.5 ms typical)
Selectable, Logic Controlled, Shutdown States:
- True Load Disconnect Option (MCP16251)
- Input-to-Output Bypass Option (MCP16252)
Anti-Ringing Control
Overtemperature Protection
Available Packages:
- SOT-23, 6-Lead
- TDFN, 2 x 3 x 0.8 mm, 8-Lead
Package Types
Applications
One, Two and Three-Cell Alkaline and NiMH/NiCd
Portable Products
Solar Cell Applications
Personal Care and Medical Products
Bias for Status LEDs
Smartphones, MP3 Players, Digital Cameras
Remote Controllers, Portable Instruments
Wireless Sensors
Bluetooth Headsets
+3.3V to +5.0V Distributed Power Supply
General Description
The MCP16251/2 is a compact, high-efficiency, fixed
frequency, synchronous step-up DC-DC converter.
This family of devices provides an easy-to-use power
supply solution for applications powered by either
one-cell, two-cell or three-cell alkaline, NiCd, NiMH,
one-cell Li-Ion or Li-Polymer batteries.
Low-voltage technology allows the regulator to start-up
without high inrush current or output voltage overshoot
from a low-voltage input. High efficiency is
accomplished by integrating the low-resistance
N-Channel boost switch and synchronous P-Channel
switch. All compensation and protection circuitry are
integrated to minimize external components.
MCP16251/2 operates and consumes less than 14 µA
from battery after start-up, while operating at no load
(VOUT = 3.3V, VIN = 1.5V). The devices provide a true
disconnect from input to output (MCP16251) or an
input-to-output bypass (MCP16252), while in shutdown
(EN = GND). Both shutdown options consume less
than 0.6 µA from battery.
Output voltage is set by a small external resistor
divider. Two package options, SOT-23, 6-lead and
TDFN, 2 x 3 x 0.8 mm, 8-lead are available.
MCP16251/2
2x3x0.8 TDFN*
PGND
SGND
EN
VOUTS
VOUTP
1
2
3
4
8
7
6
5 SW
VIN
VFB
EP
9
4
1
2
3
6VIN
VFB
SW
GND
EN
5VOUT
MCP16251/2
6-Lead SOT-23
* Includes Exposed Thermal Pad (EP); see Table 3-1.
Low Quiescent Current, PFM/PWM Synchronous Boost Regulator
with True Output Disconnect or Input/Output Bypass Option
MCP16251/2
DS20005173B-page 2 2013 - 2016 Microchip Technology Inc.

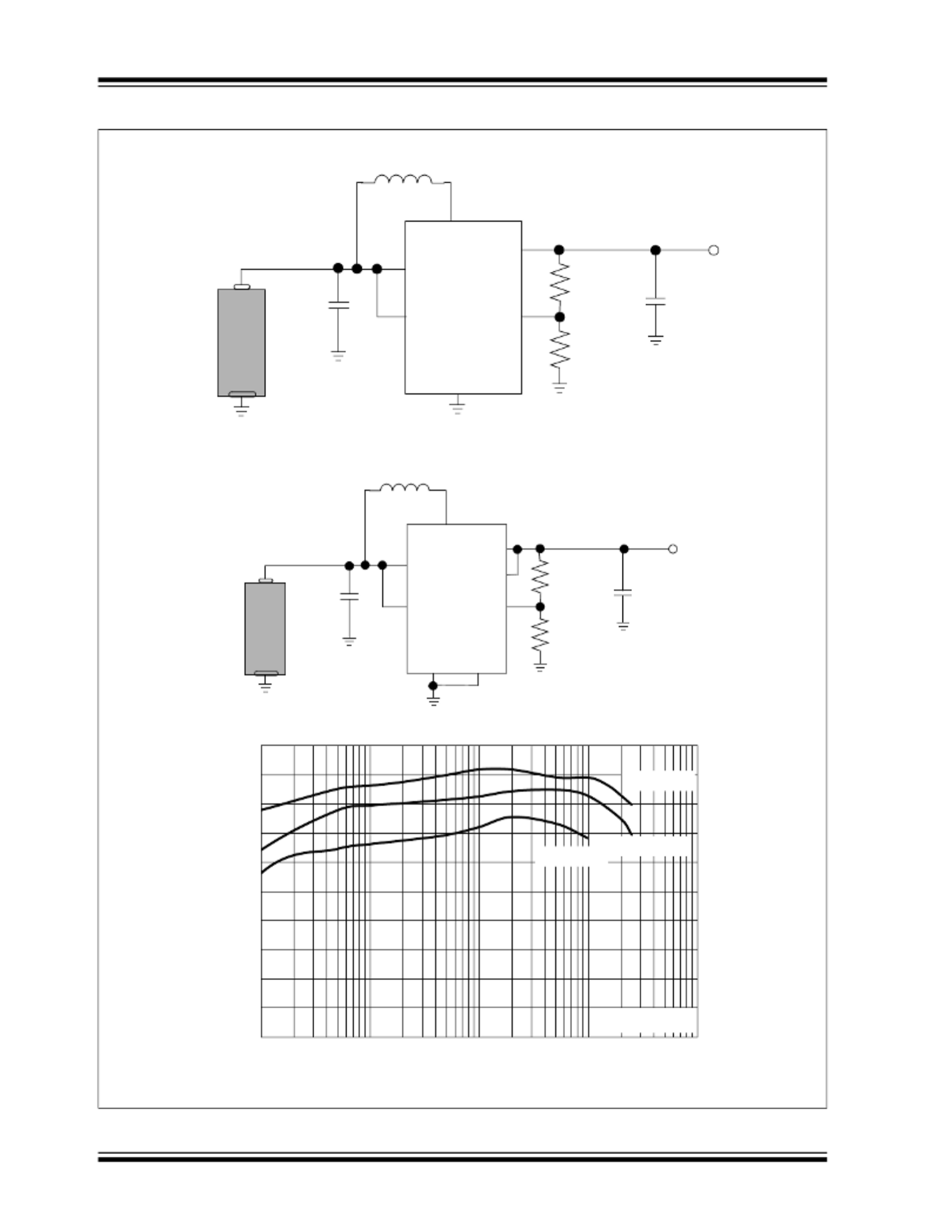

Typical Application
VIN
PGND
VFB
SW
VIN
3.0V to 4.2V
VOUT
5.0V / 200 mA
COUT
10 µF
CIN
4.7 µF
L
4.7 µH
VOUTS
+
-
3.09 M
1 M
VOUTP
SGND
Li-Ion
EN
VIN
GND
VFB
SW
VIN
0.9V to 1.7V
VOUT
3.3V / 75 mA
COUT
10 µF
CIN
4.7 µF
L
4.7 µH
VOUT
+
-
1.69 M
1 M
Alkaline
EN
50
55
60
65
70
75
80
85
90
95
100
0.1 1 10 100 1000
Efficiency (%)
IOUT (mA)
VOUT = 3.3V
VIN = 1.5V V
IN
= 2.4V
VIN = 3.0V
RTOP
RBOT
RTOP
RBOT
