14 | minnkotamotors.com ©2014 Johnson Outdoors Marine Electronics, Inc.

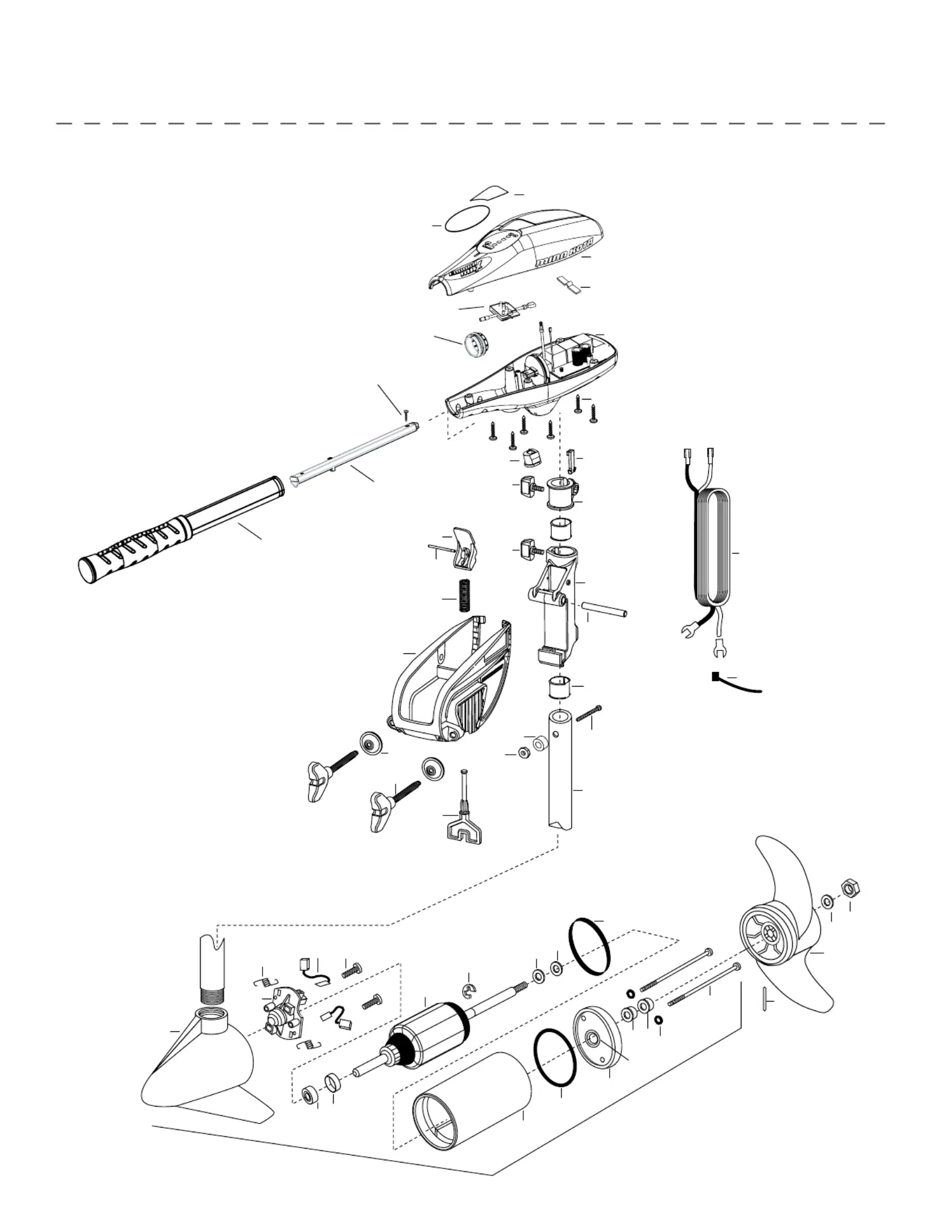

PARTS DIAGRAM
1
8
2
3
4
5
20
67
9
10
11
12
15
13
14
16
17
18
19
21
23
24
25
26
27
28
29
30
31
33
34
35
36
37
38
39
40
43
44
45
47
46
48
52
49
32
22
41
51
53
54
55
42
57
56
50
This page provides Minn Kota® WEEE compliance disassembly
instructions. For more information about where you should
dispose of your waste equipment for recycling and recovery and/
or your European Union member state requirements, please
contact your dealer or distributor from which your product was
purchased.
Tools required, but not limited to: fl at head screw driver, Phillips
screw driver, socket set, pliers, wire cutters.
ENDURA MAX 55
55 LBS THRU - 12 VOLT - 36”/42” SHA
2064989 rev F ECN 35938 7 /14
minnkotamotors.com | 15
©2014 Johnson Outdoors Marine Electronics, Inc.
PARTS LIST
ITEM QTY PART
NUMBER DESCRIPTION
1 1 2-100-117 ARMATURE  SEMBLY 12V 3.62
2 1 788-015 R AINING RING
3 1 2-200-101 HOUSING  SEMBLY CENTER 3.62 TXT
4 1 421-065 BRUSH END HOUSING  SEMBLY 3.62
5 1 2-400-101 P IN END HOUSING  SEMBLY 3.62
6 1 880-003 SEAL
7 1 880-006 SEAL W/SHIELD
8 1 140-010 BALL BEARING
9 2 188-036 BRUSH SEMBLY
10 725-0501 BRUSH R ENTION — PAPER TUBE
11 738-0361 BRUSH P TE W/HOLDER 3.62
12 975-0402 TORSION SPRING
13 701-0082 O-RING — THRU BOLT
14 1 701-081 O-RING
15 1 337-036 G K
16 2 830-007 SCREW — SELF THREAD #8-32X1.0
17 2 830-042 THRU BOLT #8-32X8.83
18 990-0671 W HER — EEL THRU
19 1 990-070 W HER — NY TRON
20 144-0491 F NGE BEARING (SERVICE ONLY)
21 20970731 MOTOR SEMBLY 12 V 3.62 VARIABLE SPD 36”
21 20970741 MOTOR  SEMBLY 12 V 3.62 VARIABLE SPD 42”
22 20320461 36” COMPOSITE TUBE
22 20320471 42” COMPOSITE TUBE
n1 1378170 PROPELLER KIT (INCLUD 23-26)
23 20911701 PROPELLER 3.62 HUB DIA
24 21517261 W HER — 5/16  D SS
25 20531011 NUT — PROP NYLOCK (MED) SS
26 20926001 DRIVE PIN
n1 2771818 BRACK & HINGE SEMBLY (INCLUD 27-28)
n1 2771910 BRACK SEMBLY (INCLUD 27, 29, 30)
*27 2061910 BRACK 1
ITEM QTY PART
NUMBER DESCRIPTION
28 20605101 PIN — HINGE PIN
*29 20613002 SCREW — C MP
*30 20117102 W HER — C MP SCREW
31 20636051 P TIC T-BAR
32 20627061 T-BAR SPRING
33 1 2067201 B CK TILT LEVER
34 20618101 P TIC HINGE
35 20373012 BUSHING HINGE
36 20628001 SNAP-IN TENSION BLOCK
37 1 2011385 SCREW — TENSION/KNOB
38 20605151 TILT LEVER PIN
39 20615201 DEPTH COL R
40 20113651 SCREW — COL R/NEW KNOB
41 20506091 LEADWIRE (WITH 10GA HD SPADE TERMINAL)
42 20629051 RAIN RELIEF
43 1 2026300 TIE WRAP
44 29940401 CONTROL BOX
45 20602251 CONTROL BOX COVER
46 20657181 DE L COVER ENDURA MAX 55
47 1 2065730 COVER DE L
48 20334011 SCREW — #10-24 X 1-3/4
49 1 2383124 NUT — 10-24 HEX
50 20617201 NYLON W HER
51 20121006 SCREW — #8-18 X 5/8
52 29909241 INNER HANDLE  SEMBLY
53 20121041 SCREW — #6 X 1/2” SS
54 29909131 OUTER HANDLE SEMBLY
55 20600091 FRONT BEARING
56 20740701 BATTERY M ER 12V
57 23027421 D ENT SPRING - OFF
n1 2888460 SEAL AND O-RING KIT (INCLUD 6-7, 13-15)
ENDURA MAX 55
55 LBS THRU - 12 VOLT - 36”/42” SHA
n THIS ITEM IS PART OF AN SEMBLY.
*THIS ITEM IS PART OF A KIT AND ONLY LI ED FOR VIEWING PURPOS .
