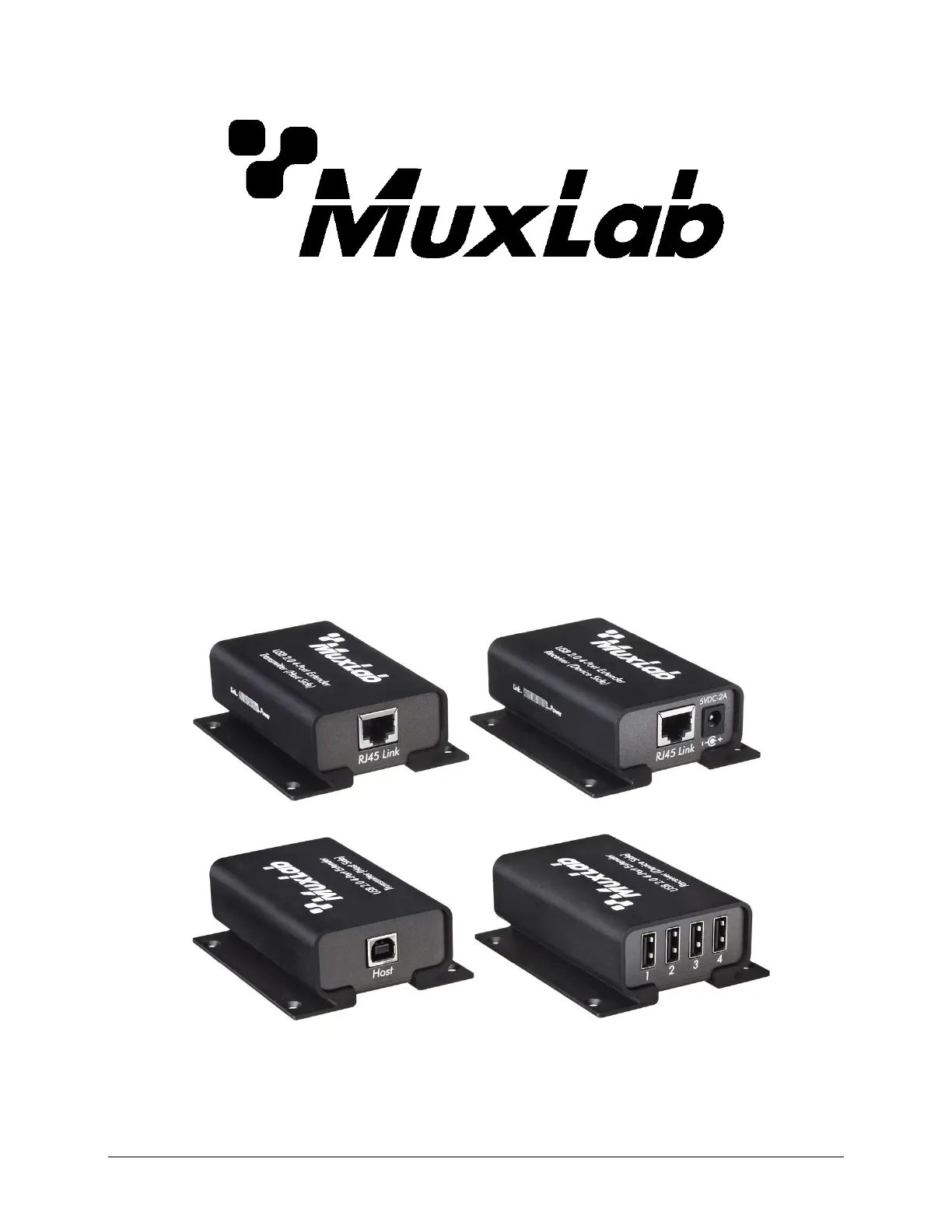

Side 1/8

USB 2.0 4-Port Extender Kit

Installation Guide

500072

USB 2.0 4-Port Extender Kit Installation Guide

Table of Contents

1. Introduction ............................................................................................................................... 2

2. Features ..................................................................................................................................... 2

3. Specifications ............................................................................................................................ 2

4. Package Contents ...................................................................................................................... 3

5. Physical Diagram ...................................................................................................................... 3

6. Installation ................................................................................................................................. 5

7. Category cable wiring ............................................................................................................... 6

8. Troubleshooting ........................................................................................................................ 7

9. Regulatory Compliance ............................................................................................................ 8

1. Introduction

The USB 2.0 high speed extender system enables USB 2.0 connectivity over Cat5e/6 at data

rates up to 480Mbps and extends true USB up to 100m (328ft) over standard Cat5 twisted pair

cable. This unit is true plug and play, requires no additional software drivers, and is compatible

with all major operating systems such as Windows, Mac and Linux.

It is ideal for accessing remotely laser printers, scanners, web cameras, external hard drives,

CD/DVD burners, and flash drives. It supports a wide variety of USB extension applications

including security, industrial control, digital signage, scientific data acquisition and other

implementations of USB standards.

2. Features

True plug and play, no driver installation required.

Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices up to 100m

(328ft) over Cat. 5e/6 cable

Supports all USB device types: Control, Interrupt, Bulk and Isochronous at up to 480Mbps

Ideal for a wide variety of USB devices, printers, scanners, hard drives, audio devices,

touch screens, web cams, and game controllers.

Compatible with major operating systems: Windows 2000 / XP / Vista / 7 / 8 / 8.1, Mac OS,

Linux or higher

Aluminum enclosure and wall mountable

3. Specifications

Model No.

500072

Transmitter

Receiver

Connector

Upstream / Input

USB B Female

RJ-45 Female

Output / Downstream

RJ-45 Female

USB Type A Female x 4

Interconnection Cable

Standard Cat. 5e/6

Max. Cable Length

100m (328ft)

LED

USB Cable Length

0.6m (USB Type A/M to Type B/M)

Power Supply

5VDC 2A

Housing

Aluminum

Dimension ( L x W x H )

90 x 73 x 31mm

Produkt Specifikationer

Mærke:	MuxLab
Kategori:	Ikke kategoriseret
Model:	500072
Type:	Konsol sender & modtager
Bredde:	73 mm
Dybde:	90 mm
Højde:	31 mm
Ethernet LAN:	Ja
Udgangsspænding:	5 V
Udgangsstrøm:	2 A
Indgangsspænding:	5 V
Plug and play:	Ja
Indgangsstrøm:	1 A
Maksimal overførselsafstand:	100 m
Antal RJ-45-porte:	1
Dataoverførselshastighed:	480 Mbit/s
Understøttede kabeltyper:	Cat5e, Cat6
Antal USB 2.0 type-A-porte:	4
