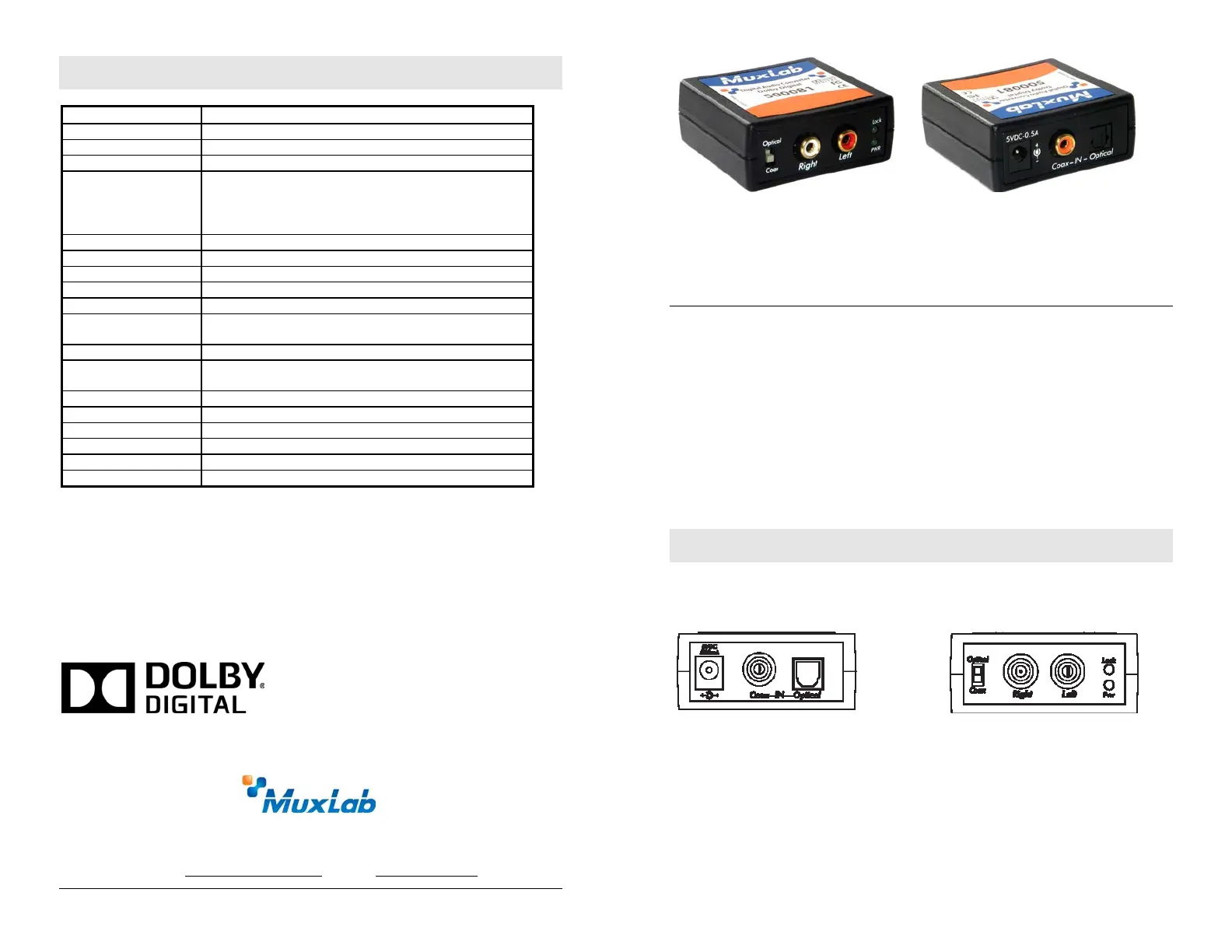

Specifications
Environment
Digital Audio, Dolby Digital or LPCM
Devices
DVD, CD Players, TV, PC, laptops.
Transmission
Transparent to the user
Signals
Dolby Digital & 2 channel LPCM
Connectors
One (1) Coaxial connector
One (1) TOSLink Connector.
Two (2) RCA Connectors.
Note: Audio cables not included.
Switch
Selects between SPDIF and TOSlink
Distortion
<0.001% @ 1KHz
SNR
> 90 dB (20Hz – 20 KHz)
Sample Rate
32, 44.1, 48 and 96 KHz
Bit Depth
24 bit S/PDIF compress & uncompress bitstream
Power Supply
One (1) 110-240V/5VDC power supplies with interchangeable
blades
Power Consumption
1.75 Watt
Temperature
Operating: 0° to 40°C 20° to 85°C -Storage:
Humidity: Up to 95% non-condensing
Enclosure
ABS fire retardant plastic
Dimensions
2.4” x 2.25” x 1.0” (6.1 x 5.5 x 2.5 cm)
Weight
1.0 lb (0.45 kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
2 years
Order Information
500081 Digital Audio Converter, Dolby Digital
Trademark acknowledgments
All products or services names mentioned in this document may be trademarks of
the companies with which they are associated. Manufactured under license from
Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Digital Audio Converter, Dolby Digital
500081
Quick Installation Guide
Overview
The Digital Audio Converter, Dolby Digital (500081) converts one LPCM-encoded or
one Dolby Digital coaxial (S/PDIF) or optical (TOSLink) digital audio signal to a
standard left/right analog audio output, thereby allowing a digital audio source such as a
DVD or CD player without RCA analog audio output to be connected to an audio-video
receiver or TV.
Applications
Applications include commercial and residential audio systems, boardroom systems,
collaborative PC systems, and medical information systems.
Installation
1. Identify the connectors on the Digital Audio Converter as indicated on the product
panels.
© MuxLab Inc. 2012 94 000721- -A SE-000721-A
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905 0588 Fax: (514) 905- -0589
Toll Free (North America): (877) 689-5228
E- mail: videoease@muxlab.com URL: www.muxlab.com
2. To install the Digital Audio Converter:
2a. Connect the converter input to the digital audio source with an Optical (TOSLink)
or 75 ohm coaxial (S/PDIF) cable.-
2b. Set the input switch to the appropriate signal.
2c. Connect the converter output to the analog audio receiver with a stereo audio
compliant cable.
3. Connect the 5 VDC power supply to the converter first, and then plug the power
supply into an AC power outlet. If power is present, the green power LED of the
Digital Audio Converter will be ON.
Note: Power -on the Digital Audio Converter only after all connections are made.
4. Power-on the audio source and receiver and verify the audio quality.

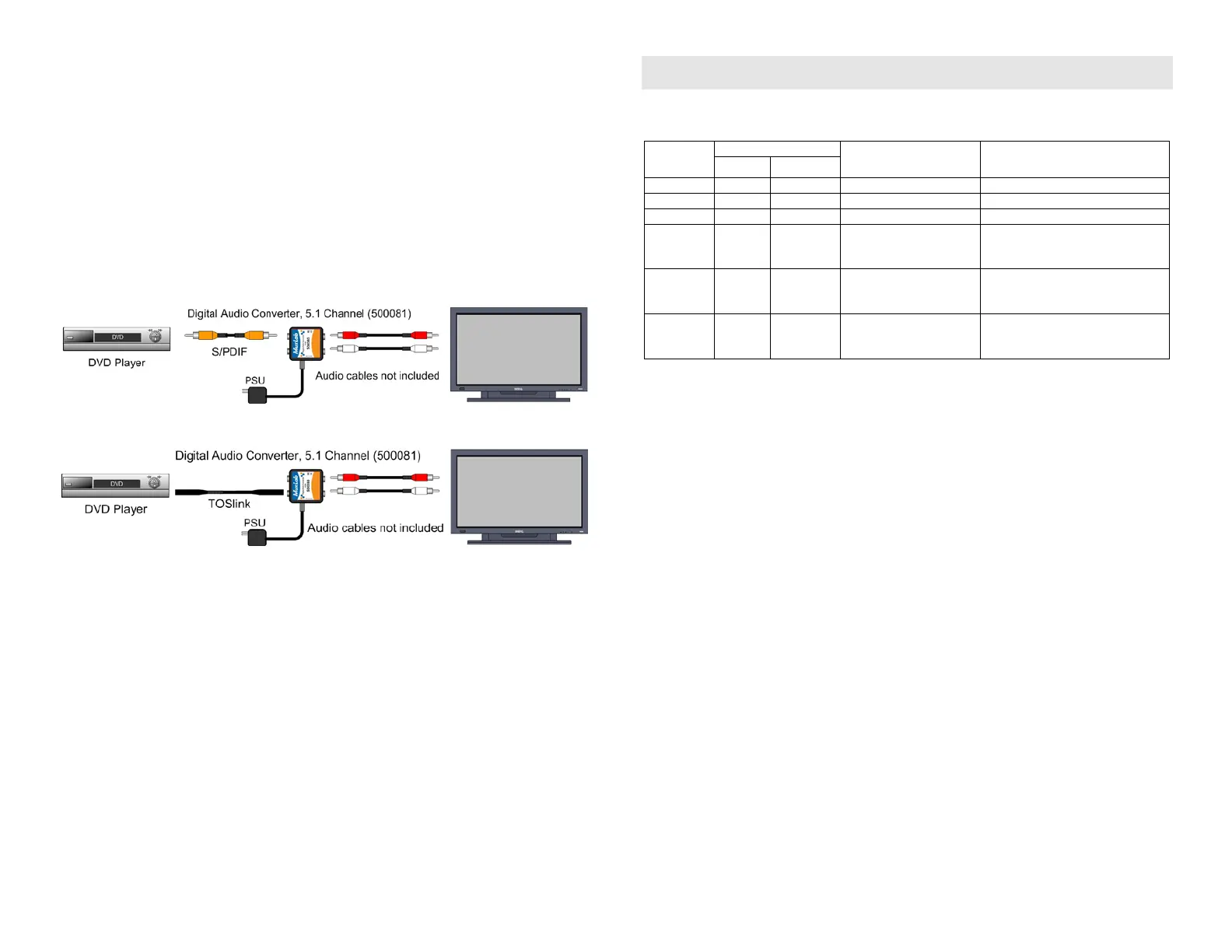

5. The following diagrams shows the final configuration.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions
in regard to the installation of the Digital Audio Converter:
Symptom
LEDs
Probable
Cause
Possible
Solutions
Power
Lock
No Sound
OFF
OFF
No power
No Sound
ON
OFF
Optical/Coaxial Cable
No Sound
ON
ON
Stereo audio cable
No Sound
ON
ON
Wrong input on receiver
receiver can receive analog stereo
No Sound
ON
ON
Audio source outputs a
unsupported compressed
bitstream such as DTS
output a uncompressed LPCM or
Choppy
sound
ON
ON
Weak Connections
• Check the Optical/Coaxial Cable
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877 689- -5228 (toll-free in North America) or (+1) 514- -905 0588 (International).
