Specifications
HDMI 2.0a, Dolby Digital, Dolby Digital Plus, Dolby TrueHD,
DTS, DTS-HD Master Audio or LPCM
Cable/Satellite Set-Top Box, DVD, Blu-Ray, TV, PC, laptops.
HDMI 2.0a protocol, Dolby Digital, Doby Digital Plus, Dolby
TrueHD, DTS, DTS-HD Master Audio or LPCM up to 7.1
channels.
Revision 1.4 & 2.2 compliant.
Two (2) HDMI connectors
Two (2) RCA Connectors
One (1) Mini-USB (for firmware updates)
Note: Audio cables not included.
32, 44.1, 48, 96 and 192 KHz
One (1) 110-240V/5VDC power supply
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Metal with ABS fire retardant plastic panel
4.50” x 3.00” x 1.25” (114 x 76 x 32 mm)
Regulatory: FCC, CE, RoHS Flammability: 94V0
500439 HDMI Audio Extractor with Dolby & DTS Downmixer
Trademark acknowledgments
All products or services names mentioned in this document may be trademarks of the companies with which
they are associated.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS licensing Limited. DTS,
the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of
DTS, Inc. © DTS, Inc. All Rights Reserved.

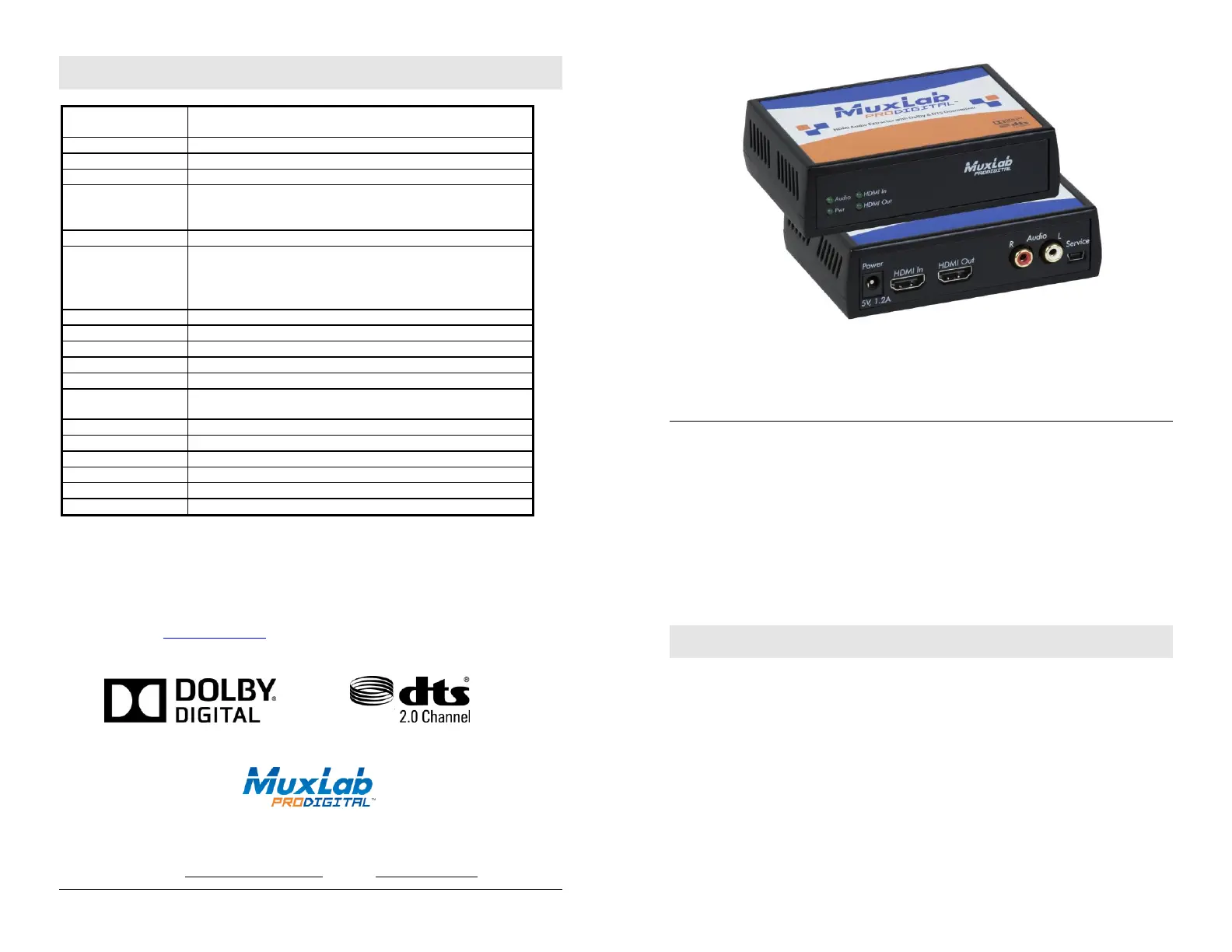

HDMI Audio Extractor with Dolby & DTS Downmixer
500439
Quick Installation Guide
Overview
The HDMI Audio Extractor with Dolby & DTS Downmixer (500439) extracts digital
audio from a video source up to HDMI 2.0 and downmixes Dolby Digital, Dolby Digital
Plus, Dolby TrueHD, DTS, DTS-HD Master Audio or LPCM up to 7.1 channels to 2CH
analog audio via RCA L/R jacks. In addition, the unit allows the HDMI source up to 4K
resolution at 60Hz (4:4:4) to be looped out and extended to a local display.
Applications
Applications include commercial and residential audio systems, boardroom systems,
collaborative PC systems, and medical information systems.
Installation
1. Identify the connectors on the HDMI Audio Extractor with Dolby & DTS
Downmixer as indicated on the product panels above.
2. To install the HDMI Audio Extractor with Dolby & DTS Downmixer:
2a. Connect the extractor HDMI input to the source equipment with a HDMI
Cable.
2b. Connect the extractor HDMI output to the sink equipment (such as a
Television) with a HDMI Cable.
2c. Connect the extractor Stereo Audio Out to the audio equipment using RCA
cables.
3. Connect the 5 VDC power supply to the Audio Extractor first, and then plug
the power supply into an AC power outlet. If power is present, the green
power LED of the Audio Extractor will be ON.
