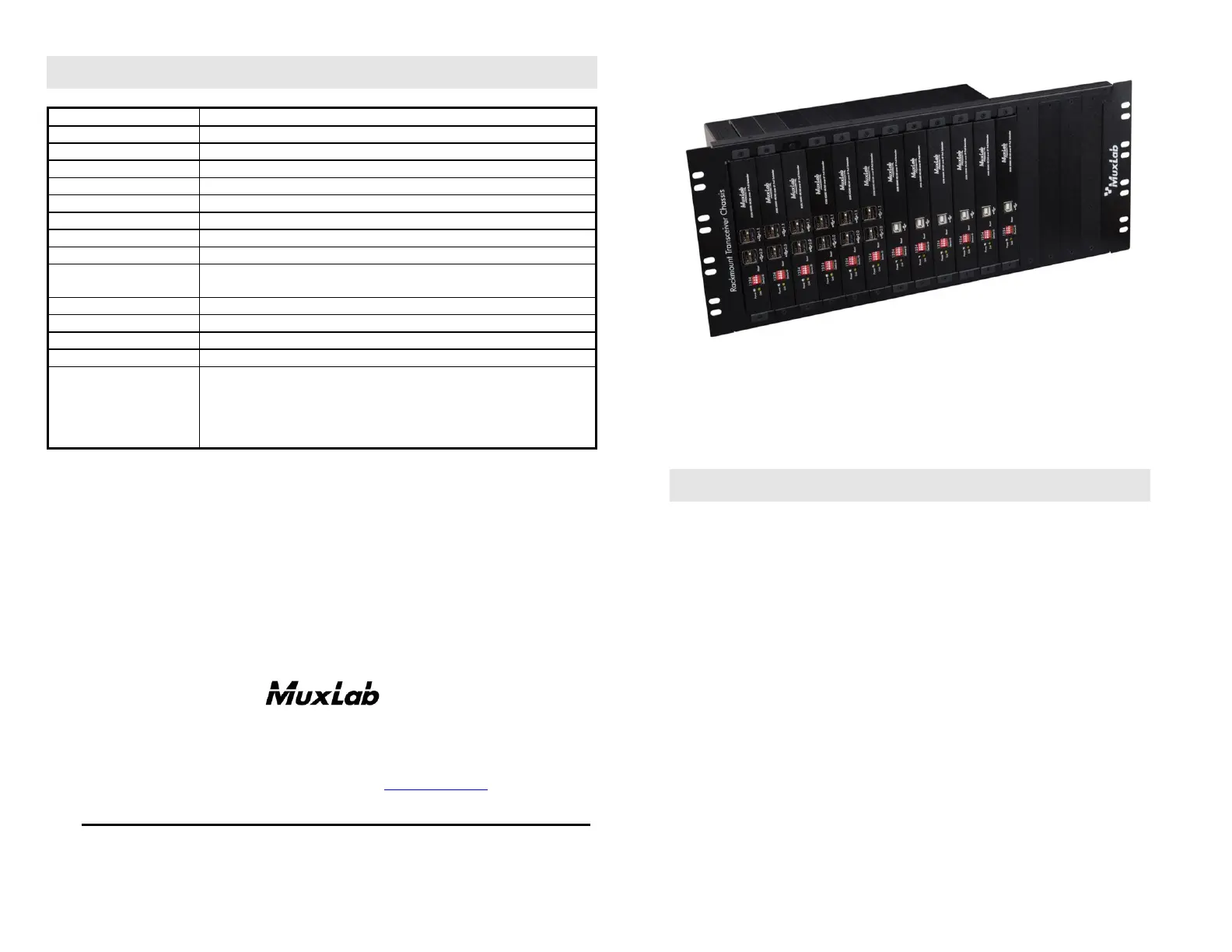

Side 1/2
© MuxLab Inc. 2023
Specifications
Environment
Custom audio-video systems in a structured cabling environment.
Application
Head-end installations, audio-video rooms, telecom rooms.
Capacity
Sixteen (16) positions.
Compatible product
MuxLab products measuring: 6.4”x5.3”x0.8” (16.2x13.5x2.2cm).
Orientation
Baluns may be installed front or rear facing.
Lock-in mechanism
Special brackets to hold the transceivers into position via front screws.
Rack height
4.5U (7.87”), 19” rack
Enclosure
Black painted steel.
Mounting holes
Sixteen (16) rackmounting holes
Mounting hardware
Four (4) rackmounting 10-32 screws and washers are included.
Thirty-two (32) Transceiver Brackets
Dimensions
19” (W) x 7.75” (H) x 0.5” (D) (48.3 cm x 19.6 cm x 1.2 cm).
Weight
0.9 lbs (0.4 kg).
Standards
EIA/TIA
Warranty
Lifetime
Order Information
500923 16 Port Rackmount Transceiver Chassis 4.5U
(UPC: 627699009239)
500924 Blank Filler for 500923 (qty 4) (UPC: 627699009246)
500922 Spare Brackets for 500923 (qty 4) (UPC: 627699009222)
2321 Rue Cohen, Montreal, Quebec, Canada, H4R 2N7
Tel.: (+1) 514-905-0588 Fax: (+1) 514-905-0589
Toll Free (North America): 1 877 689-5228
E-mail: info@muxlab.com URL: www.muxlab.com
94-000997-A SE-000997-A
16 Port Rackmount Transceiver Chassis 4.5U
(500923)
Installation Guide
Introduction
The 16 Port Rackmount Transceiver Chassis 4.5U is designed as a head-end cable
management solution, allowing any combination of up to sixteen (16) MuxLab
Transceivers to be installed in a standard 19” telecom relay rack. Head-end AV
equipment such as DVD players, video servers and cable boxes may be installed in a
local wiring closet and connected to the Cat5e/6 structured cabling system via a
wide array of MuxLab Transceiver solutions.
The Transceiver may be installed in either front or rear-facing orientation depending
on the application. At the display end, the appropriate MuxLab Transceivers are
installed at the receivers to support a fully Cat5e/6 cabling solution. Each
Transceiver can be mounted and secured into place with screws & brackets. The 16
Port Rackmount Transceiver Chassis 4.5U (500923) includes 32 brackets to mount
16 transceivers. Blank filler plates can be ordered separately in quantities of four (4)
(P/N: 500924). In case of misplaced brackets, spare brackets can be ordered
separately in quantities of four (4) (P/N: 500922) for mounting two (2) transceivers
to the rack.
Before installing, please make sure you have all the parts. The package includes (1) a
19” rack, (2) thirty-two brackets for mounting all 16 transceivers, (3) four 10-32
screws and washers, (4) this manual.
