en
2
Ú Table of contents
[en]Instructions for installation and use
INSTRUCTION MANUAL.......................................................... 2
8 Intended use................................................................... 2
( Important safety information ........................................ 3
7 Environmental protection ............................................. 5
Ç Operating modes ........................................................... 5
1 Operating the appliance................................................ 6
2 Cleaning and maintenance ......................................... 16
3 Trouble shooting ......................................................... 18
4 Customer service ........................................................ 18
INSTALLATION INSTRUCTIONS .......................................... 20
( Important safety information...................................... 21
K General information .................................................... 23
5 Installation ................................................................... 24
INSTRUCTION MANUAL
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.neff-international.com and in the online shop
www.neff-eshop.com
8Intended use
Intended use
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental capacity
or by persons with a lack of experience or
knowledge if they are supervised by someone
who is responsible for their safety, or have
been instructed in how to use the appliance
safely and have understood the risks involved
in not using it properly.
Children must not play with the
appliance.Cleaning and user maintenance
must not be performed by children unless they
are over 15 years of age and are supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote
control.
Important safety information en
3
(Important safety
information
Important safety information
:Warning
Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■ Adequate incoming air must therefore
always be ensured.
■ An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Risk of fire!
■ Fatty deposits in the grease filter may catch
fire. Regularly clean the grease filter. Never
operate the appliance without a grease
filter.
Risk of fire!
■ Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■ Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■ When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■ Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner of
more than 5 kW (wok) is equivalent to the
power of two gas burners.
en Important safety information
4
:Warning
Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.
:Warning
Risk of injury!
■ Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■ Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
■ The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than 100
seconds.
:Warning
Risk of injury!
Risk of trapping body parts when opening and
closing the glass front. Do not reach into the
area behind the glass panel, and keep your
fingers away from the hinges.
:Warning
Hazard due to magnetism!
Permanent magnets are inserted in the
appliance front. They may affect electronic
implants, e.g. heart pacemakers or insulin
pumps. Wearers of electronic implants must
stay at least 10 cm away from the appliance
front.
:Warning
Risk of electric shock!
■ A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the after-
sales service.
Risk of electric shock!
■ Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless
steel cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and
abrasive cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly (1°
slope).
Risk of damage as a result of incorrect
loading of design elements. Do not pull design
elements.Do not place objects on the design
elements or hang objects from them.
Environmental protection en
5
7Environmental protection
Environmental protection
Your new appliance is particularly energy-efficient. Here
you can find tips on how to save even more energy
when using the appliance, and how to dispose of your
appliance properly.
Saving energy
■ During cooking, ensure that there is a sufficient
supply of air so that the extractor hood can work
efficiently and with a low level of operating noise.
■ Adjust the fan speed to the intensity of the cooking
fumes. Only use intensive mode where this is
required. A lower fan speed means that less energy
is consumed.
■ If there are intensive cooking fumes, select a higher
fan speed in good time. If cooking fumes have
already spread in the kitchen, the extractor hood
must be operated for longer.
■ Switch off the extractor hood if you no longer require
it.
■ Switch off the lighting if you no longer require it.
■ Clean and, if required, replace the filter at regular
intervals in order to increase the effectiveness of the
ventilation system and to prevent the risk of fire.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
ÇOperating modes
Operating modes
Exhaust air mode
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms which
contain heat-producing appliances.
■ Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
■ If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Circulating-air mode
Note: To bind odours in circulating-air mode, you must
install an activated carbon filter. The different options for
operating the appliance in circulating-air mode can be
found in the brochure. Alternatively, ask your dealer.
The required accessories are available from specialist
retailers, from customer service or from the Online
Shop.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter and conveyed back into the
kitchen.
en Operating the appliance
6
1Operating the appliance
Operating the appliance
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
Note: . Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Control panel model 1
Setting the fan
Switching on
■ Touch the # symbol.
The fan starts at setting ƒ.
■ Touch + or - to alter the fan speed.
Switching off
Touch the # symbol.
Noise reduction function
The noise reduction function reduces the fan noise.
Switching on
Note: This function can be used at any fan setting
except fan setting ‚. The function will remain active
even after the fan is switched off.
Touch the Q symbol.
Switching off
Touch the Q symbol.
AirFresh function
Switching on
Touch the 3 symbol.
3 will be shown on the display panel.The fan runs for
approximately 5 minutes per hour at fan setting 1.
Switching off
Touch the 3 symbol.
This ends the AirFresh function.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Switching on
Touch the ˜ symbol. ˜ƒ will light up on the display.
Touch the ˜ symbol again to switch back to intensive
mode ˜‚.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset
time expires, touch the ˜ symbol.
Intermediate position for the glass front
On some appliances, the glass front can be adjusted to
an intermediate position. The intermediate position can
be used for eliminating particularly strong cooking
smells and large amounts of steam.
Take hold of the glass front in the centre and open it
carefully.
Symbol Explanation
#
Fan on/off
Q
Noise reduction function
3
AirFresh function
A
Decrease fan setting
@
Increase fan setting/intensive mode 1, 2
˜
Intensive mode 2 shortcut
9
Fan run-on
6
Light on/off/dimming
Indicator/
symbol
Explanation
Q
Noise reduction function
1-3 Fan settings
9
Fan run-on
3
AirFresh function
Operating the appliance en
7
Fan run-on time
Switching on
Touch the 9 symbol.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself
off automatically.
Switching off
Touch the 9 symbol.
This immediately stops fan run-on.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the 6 symbol.
Setting the brightness
Press and hold the 6 symbol until the required
brightness is reached.
Saturation display
If the metal grease filters or activated charcoal filter are/
is saturated, the corresponding symbols will flash once
the appliance has been switched off:
■ Metal grease filter: ”ª
■ Activated charcoal filter: ’ª
■ Metal grease filter and activated charcoal filter: ”ª
and ’ª
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced. ~ "Cleaning and maintenance" on page 16
The saturation indicators can be reset while they are
flashing. To do this, touch the A symbol.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must
be switched over accordingly:
■ The extractor hood must be connected and switched
off.
■ Touch and hold the Q symbol and touch the @ or
A symbol until "2" lights up for air recirculation mode
(filters that cannot be regenerated). Take your finger
off the Q symbol. This will switch the electronic
controller over to air recirculation mode (filters that
cannot be regenerated).
■ Touch and hold the Q symbol and touch the @ or
A symbol until "3" lights up for air recirculation mode
(filters that can be regenerated). Take your finger off
the Q symbol. This will switch the electronic controller
over to air recirculation mode (filters that can be
regenerated).
■ Repeatedly touching and holding the Q symbol and
touching the @ or A symbol until "1" lights up
switches the electronic controller back over to air
extraction mode.
Audible signal
Switching on
Touch and hold the # and Q symbols at the same time
for approximately 3 seconds when the fan is switched
off. An audible signal will sound as an
acknowledgement.
When the signal tone is activated, ‚ will be lit.
Switching off
Touch and hold the # and Q symbols at the same time
for approximately 3 seconds when the fan is switched
off. An audible signal will sound as an
acknowledgement.
When the signal tone is deactivated, ‹ will be lit.
en Operating the appliance
8
Control panel model 2
Setting the fan
Switching on
■ Touch the # symbol.
The fan starts at setting ƒ.
■ Touch + or - to alter the fan speed.
Switching off
Touch the # symbol.
Noise reduction function
The noise reduction function reduces the fan noise.
Switching on
Note: This function can be used at any fan setting
except fan setting ‚. The function will remain active
even after the fan is switched off.
Touch the Q symbol.
Switching off
Touch the Q symbol.
AirFresh function
Switching on
Touch the 3 symbol.
3 will be shown on the display panel.The fan runs for
approximately 5 minutes per hour at fan setting 1.
Switching off
Touch the 3 symbol.
This ends the AirFresh function.
Fan run-on time
Switching on
Touch the A symbol while the fan is running at fan
setting 1.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself
off automatically.
Switching off
Touch the @ symbol to select a different fan setting.
This immediately stops fan run-on.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Switching on
Touch the ˜ symbol. ˜ƒ will light up on the display.
Touch the ˜ symbol again to switch back to intensive
mode ˜‚.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset
time expires, touch the ˜ symbol.
Intermediate position for the glass front
On some appliances, the glass front can be adjusted to
an intermediate position. The intermediate position can
be used for eliminating particularly strong cooking
smells and large amounts of steam.
Take hold of the glass front in the centre and open it
carefully.
Symbol Explanation
#
Fan on/off
Q
Noise reduction function
3
AirFresh function
A
Reduce fan setting/fan run-on
@
Increase fan setting/intensive mode 1, 2
˜
Intensive mode 2 shortcut
k
AmbientLight
6
Light on/off/dimming
Indicator/
symbol
Explanation
Q
Noise reduction function
1-3 Fan settings
9
Fan run-on
3
AirFresh function
Operating the appliance en
9
AmbientLight
The AmbientLight can be switched on and off
independently of the fan.
Touch the k symbol.
Setting the brightness
Press and hold the k symbol until the required
brightness is reached.
Setting the colour
1. Switch off the fan.
2. Touch the k symbol.
The @ and A symbols will be lit for approximately
10 seconds.
3. Within this 10-second period, touch the A or
@ symbol until the colour you require is selected.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the 6 symbol.
Setting the brightness
Press and hold the 6 symbol until the required
brightness is reached.
Saturation display
If the metal grease filters or activated charcoal filter are/
is saturated, the corresponding symbols will flash once
the appliance has been switched off:
■ Metal grease filter: ”ª
■ Activated charcoal filter: ’ª
■ Metal grease filter and activated charcoal filter: ”ª
and ’ª
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced. ~ "Cleaning and maintenance" on page 16
The saturation indicators can be reset while they are
flashing. To do this, touch the A symbol.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must
be switched over accordingly:
■ The extractor hood must be connected and switched
off.
■ Touch and hold the Q symbol and touch the @ or
A symbol until "2" lights up for air recirculation mode
(filters that cannot be regenerated). Take your finger
off the Q symbol. This will switch the electronic
controller over to air recirculation mode (filters that
cannot be regenerated).
■ Touch and hold the Q symbol and touch the @ or
A symbol until "3" lights up for air recirculation mode
(filters that can be regenerated). Take your finger off
the Q symbol. This will switch the electronic controller
over to air recirculation mode (filters that can be
regenerated).
■ Repeatedly touching and holding the Q symbol and
touching the @ or A symbol until "1" lights up
switches the electronic controller back over to air
extraction mode.
Audible signal
Switching on
Touch and hold the # and Q symbols at the same time
for approximately 3 seconds when the fan is switched
off. An audible signal will sound as an
acknowledgement.
When the signal tone is activated, ‚ will be lit.
Switching off
Touch and hold the # and Q symbols at the same time
for approximately 3 seconds when the fan is switched
off. An audible signal will sound as an
acknowledgement.
When the signal tone is deactivated, ‹ will be lit.
en Operating the appliance
10
Control panel model 3
Setting the fan
Switching on
■ Touch the # symbol.
The fan starts at setting ƒ.
■ Touch + or - to alter the fan speed.
Switching off
Touch the # symbol.
Noise reduction function
The noise reduction function reduces the fan noise.
Switching on
Note: This function can be used at any fan setting
except fan setting ‚. The function will remain active
even after the fan is switched off.
Touch the Q symbol.
Switching off
Touch the Q symbol.
AirFresh function
Switching on
Touch the 3 symbol.
3 will be shown on the display panel.The fan runs for
approximately 5 minutes per hour at fan setting 1.
Switching off
Touch the 3 symbol.
This ends the AirFresh function.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Switching on
Touch the ˜ symbol. ˜ƒ will light up on the display.
Touch the ˜ symbol again to switch back to intensive
mode ˜‚.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset
time expires, touch the ˜ symbol.
Intermediate position for the glass front
On some appliances, the glass front can be adjusted to
an intermediate position. The intermediate position can
be used for eliminating particularly strong cooking
smells and large amounts of steam.
Take hold of the glass front in the centre and open it
carefully.
Fan run-on time
Switching on
Touch the 9 symbol.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself
off automatically.
Switching off
Touch the 9 symbol.
This immediately stops fan run-on.
Symbol Explanation
#
Fan on/off
Q
Noise reduction function
3
AirFresh function
A
Decrease fan setting
@
Increase fan setting/intensive mode 1, 2
˜
Intensive mode 2 shortcut
9
Fan run-on
6
Light on/off/dimming
Indicator/
symbol
Explanation
Q
Noise reduction function
1-3 Fan settings
9
Fan run-on
3
AirFresh function
Operating the appliance en
11
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the 6 symbol.
Setting the brightness
Press and hold the 6 symbol until the required
brightness is reached.
Saturation display
If the metal grease filters or activated charcoal filter are/
is saturated, the corresponding symbols will flash once
the appliance has been switched off:
■ Metal grease filter: ”ªª
■ Activated charcoal filter: ’ªª
■ Metal grease filter and activated charcoal filter:
”ªª and ’ªª
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced. ~ "Cleaning and maintenance" on page 16
The saturation indicators can be reset while they are
flashing. To do this, touch the A symbol.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must
be switched over accordingly:
■ The extractor hood must be connected and switched
on.
■ Touch and hold the Q symbol and touch the @ or
A symbol until "2" lights up for air recirculation mode
(filters that cannot be regenerated). Take your finger
off the Q symbol. This will switch the electronic
controller over to air recirculation mode (filters that
cannot be regenerated).
■ Touch and hold the Q symbol and touch the @ or
A symbol until "3" lights up for air recirculation mode
(filters that can be regenerated). Take your finger off
the Q symbol. This will switch the electronic controller
over to air recirculation mode (filters that can be
regenerated).
■ Repeatedly touching and holding the Q symbol and
touching the @ or A symbol until "1" lights up
switches the electronic controller back over to air
extraction mode.
Audible signal
Switching on
Touch and hold the # and Q symbols at the same time
for approximately 3 seconds when the fan is switched
on. An audible signal will sound as an
acknowledgement.
When the signal tone is activated, ‚ will be lit.
Switching off
Touch and hold the # and Q symbols at the same time
for approximately 3 seconds when the fan is switched
on. An audible signal will sound as an
acknowledgement.
When the signal tone is deactivated, ‹ will be lit.
en Operating the appliance
12
Control panel variant 4
Setting the fan
Switching on
■ Touch the # symbol.
The fan starts at setting ƒ.
■ Touch + or - to alter the fan speed.
Switching off
Touch the # symbol.
Noise reduction function
The noise reduction function reduces the fan noise.
Switching on
Note: This function can be used at any fan setting
except fan setting ‚. The function will remain active
even after the fan is switched off.
Touch the Q symbol.
Switching off
Touch the Q symbol.
AirFresh function
Switching on
Touch the 3 symbol.
3 will be shown on the display panel.The fan runs for
approximately 5 minutes per hour at fan setting 1.
Switching off
Touch the 3 symbol.
This ends the AirFresh function.
Fan run-on time
Switching on
Touch the A symbol while the fan is running at fan
setting 1.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself
off automatically.
Switching off
Touch the @ symbol to select a different fan setting.
This immediately stops fan run-on.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Switching on
Touch the ˜ symbol. ˜ƒ will light up on the display.
Touch the ˜ symbol again to switch back to intensive
mode ˜‚.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset
time expires, touch the ˜ symbol.
Intermediate position for the glass front
On some appliances, the glass front can be adjusted to
an intermediate position. The intermediate position can
be used for eliminating particularly strong cooking
smells and large amounts of steam.
Take hold of the glass front in the centre and open it
carefully.
Symbol Explanation
#
Fan on/off
Q
Noise reduction function
3
AirFresh function
A
Reduce fan setting/fan run-on
@
Increase fan setting/intensive mode 1, 2
˜
Intensive mode 2 shortcut
k
AmbientLight
6
Light on/off/dimming
Indicator/
symbol
Explanation
Q
Noise reduction function
1-3 Fan settings
9
Fan run-on
3
AirFresh function
Operating the appliance en
13
AmbientLight
The AmbientLight can be switched on and off
independently of the fan.
Touch the k symbol.
Setting the brightness
Press and hold the k symbol until the required
brightness is reached.
Setting the colour
1. Switch off the fan.
2. Touch the k symbol.
The @ and A symbols will be lit for approximately
10 seconds.
3. Within this 10-second period, touch the A or
@ symbol until the colour you require is selected.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the 6 symbol.
Setting the brightness
Press and hold the 6 symbol until the required
brightness is reached.
Saturation display
If the metal grease filters or activated charcoal filter are/
is saturated, the corresponding symbols will flash once
the appliance has been switched off:
■ Metal grease filter: ”ªª
■ Activated charcoal filter: ’ªª
■ Metal grease filter and activated charcoal filter:
”ªª and ’ªª
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced. ~ "Cleaning and maintenance" on page 16
The saturation indicators can be reset while they are
flashing. To do this, touch the A symbol.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must
be switched over accordingly:
■ The extractor hood must be connected and switched
on.
■ Touch and hold the Q symbol and touch the @ or
A symbol until "2" lights up for air recirculation mode
(filters that cannot be regenerated). Take your finger
off the Q symbol. This will switch the electronic
controller over to air recirculation mode (filters that
cannot be regenerated).
■ Touch and hold the Q symbol and touch the @ or
A symbol until "3" lights up for air recirculation mode
(filters that can be regenerated). Take your finger off
the Q symbol. This will switch the electronic controller
over to air recirculation mode (filters that can be
regenerated).
■ Repeatedly touching and holding the Q symbol and
touching the @ or A symbol until "1" lights up
switches the electronic controller back over to air
extraction mode.
Audible signal
Switching on
Touch and hold the # and Q symbols at the same time
for approximately 3 seconds when the fan is switched
on. An audible signal will sound as an
acknowledgement.
When the signal tone is activated, ‚ will be lit.
Switching off
Touch and hold the # and Q symbols at the same time
for approximately 3 seconds when the fan is switched
on. An audible signal will sound as an
acknowledgement.
When the signal tone is deactivated, ‹ will be lit.
en Operating the appliance
14
Control panel variant 5
Setting the fan
Switching on
■ Touch the # symbol.
The fan starts at setting ƒ.
■ Touch + or - to alter the fan speed.
Switching off
Touch the # symbol.
Noise reduction function
The noise reduction function reduces the fan noise.
Switching on
Note: This function can be used at any fan setting
except fan setting ‚. The function will remain active
even after the fan is switched off.
Touch the Q symbol.
Switching off
Touch the Q symbol.
AirFresh function
Switching on
Touch the 3 symbol.
3 will be shown on the display panel.The fan runs for
approximately 5 minutes per hour at fan setting 1.
Switching off
Touch the 3 symbol.
This ends the AirFresh function.
Fan run-on time
Switching on
Touch the A symbol while the fan is running at fan
setting 1.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself
off automatically.
Switching off
Touch the @ symbol to select a different fan setting.
This immediately stops fan run-on.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Switching on
Touch the ˜ symbol. ˜ƒ will light up on the display.
Touch the ˜ symbol again to switch back to intensive
mode ˜‚.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset
time expires, touch the ˜ symbol.
Symbol Explanation
#
Fan on/off
Q
Noise reduction function
3
AirFresh function
A
Reduce fan setting/fan run-on
@
Increase fan settings/intensive mode 1, 2
˜
Intensive mode 2 shortcut
‘
Automatic air sensor
6
Light on/off/dimming
Indicator/
symbol
Explanation
Q
Noise reduction function
1-3 Fan settings
9
Fan run-on
3
AirFresh function
Cleaning and maintenance en
17
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
:Warning
Risk of fire!
Fatty deposits in the grease filter may catch fire.
Regularly clean the grease filter. Never operate the
appliance without a grease filter.
Notes
■ Do not use aggressive, acidic or alkaline cleaning
products.
■ We recommend cleaning the grease filters every 2
months.
■ When cleaning the metal grease filters, also clean
the metal grease filter holder in the appliance using
a damp cloth.
■ The metal grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special degreaser to remove
stubborn dirt. This can be ordered from the online shop.
■ Soak the metal grease filters in hot soapy water.
■ Clean the filters with a brush and then rinse them
thoroughly.
■ Leave the metal grease filters to drain on an
absorbent material.
In the dishwasher:
Note: Slight discolouration may occur if the metal
grease filters are cleaned in the dishwasher. This
discolouration has no effect on the performance of the
metal grease filters.
■ Use normal domestic dishwashing detergents.
■ Do not clean heavily soiled metal grease filters
together with cookware.
■ Place the metal grease filters in the dishwasher,
leaving plenty of space around them. Do not trap the
metal grease filters.
■ Select a temperature of no more than 50 °C.
Installing the metal mesh grease filter
:Warning
Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Note: Clean all accessible parts of the housing.
1. Insert the metal grease filter and lock it in place.
When you do this, take hold of the metal grease filter
from underneath with your other hand.
Note: Make sure that the metal grease filter is
positioned correctly.
2. If the metal grease filter has not been inserted
correctly, open the lock and reinsert the metal
grease filter correctly.
en Trouble shooting
18
3Trouble shooting
Trouble shooting
Malfunctions often have simple explanations. Please
read the following notes before calling the after-sales
service.
:Warning
Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Malfunction table
--------
LED lights
Defective LED lights may be replaced by the
manufacturer, their customer service or a qualified
technician (electrician) only.
:Warning
Risk of injury!
The light emitted by LED lights is very dazzling, and can
damage the eyes (risk group 1). Do not look directly
into the switched on LED lights for longer than 100
seconds.
4Customer service
Customer service
When calling us, please quote the product number (E
no.) and the production number (FD no.) so that we can
provide you with the correct advice. These numbers can
be found on the rating plate on the top of the appliance.
You can make a note of the numbers of your appliance
and the telephone number of the after-sales service in
the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer
will be charged if a problem turns out to be the result of
operator error, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
Problem Possible cause Solution
The appliance
does not work
The plug is not
plugged in.
Connect the appliance to the
electricity supply
Power cut Check whether other kitchen
appliances are working
Faulty fuse Check in the fuse box to make
sure that the fuse for the
appliance is OK
The lighting does
not work.
The LED lights
are defective.
Call the after-sales service.
The button illumi-
nation does not
work.
The control unit is
faulty.
Call the aftersales service.
E no. FD no.
After-sales serviceO
GB 0344 892 8989
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.
=1U)'(1U
7\SH
en Customer service
20
INSTALLATION INSTRUCTIONS
Installation instructions
■ This appliance is installed on the wall.
■ If the extractor hood is to be operated in exhaust-air
mode, a flue duct must be fitted.
If the extractor hood is to be operated in air-
recirculation mode, an optional accessory must be
fitted. To do this, refer to the installation instructions
provided.The flue duct does not need to be fitted for
air-recirculation mode.
■ For additional optional accessories, refer to the
installation instructions provided.
■ The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
$ %
$ %
"
PLQ
PP
PLQ PP
PD[PP
PLQ
PP
PLQ PP
PD[PP
PP
PP
#
PP
PP
PP
PP
en Important safety information
22
:Warning
Risk of death!
Risk of poisoning from flue gases that are
drawn back in. The exhaust air must not be
conveyed into a functioning smoke or exhaust
gas flue or into a shaft which is used to
ventilate installation rooms that contain
heating appliances. If the exhaust air is to be
conveyed into a non-functioning smoke or
exhaust gas flue, you must obtain the consent
of the heating engineer responsible.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■ Adequate incoming air must therefore
always be ensured.
■ An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in. If installing a ventilation system
in a room with a heat-producing appliance
connected to a chimney/flue, the electricity
supply to the hood must be equipped with a
suitable safety switch.
:Warning
Risk of injury!
■ Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■ The appliance may fall down if it has not
been properly fastened in place. All
fastening components must be fixed firmly
and securely.
Risk of injury!
■ The appliance is heavy. To move the
appliance, 2 people are required. Use only
suitable tools and equipment.
Risk of injury!
■ Changes to the electrical or mechanical
assembly are dangerous and may lead to
malfunctions. Do not make any changes to
the electrical or mechanical assembly.
en Installation
24
5Installation
Installation
Preparing for installation
Caution!
Ensure that there are no electrical wires, gas pipes or
water pipes in the area where holes are to be drilled.
If the extractor hood is to be operated in exhaust-air
mode, a flue duct must be fitted.
If the extractor hood is to be operated in air-recirculation
mode, an optional accessory must be fitted. To do this,
refer to the installation instructions provided. The flue
duct does not need to be fitted for air-recirculation
mode.
1. Determine where the extractor hood should be
positioned and lightly mark where the lower edge of
the appliance should be on the wall. Determine
where the middle should be based on the hob.
Note: We recommend fitting the extractor hood such
that the lower edge of the glass screen is in line with
the lower edges of the adjacent wall-hung cabinets.
Make sure that the specified safety clearances from
the hob are complied with.
2. Place the template against the line drawn on the wall
and fasten it in place. Mark where the screws should
be inserted.
To fit the flue duct, the template must be cut along
the marked cut line.
3. Drill 8 mm diameter holes to a depth of 80 mm for
fastening the appliance, remove the template and
press in the wall plugs flush with the wall.
$
%
]
]
[
PP
[
PP
[
PP
[
PP
\
\
Installation en
25
Fitting with a flue duct Fitting without a flue duct
Installation
Screw in the mounting supports for the extractor hood
until they are hand-tight, use a spirit level to level the
appliance and then screw the mounting supports in
fully.
[
PP
PP
PP
PP
PP
PP
PP
PP
$
PP
PP
%
[
[
[
PP
PP
PP
PP
PP
PP
$
%
en Installation
26

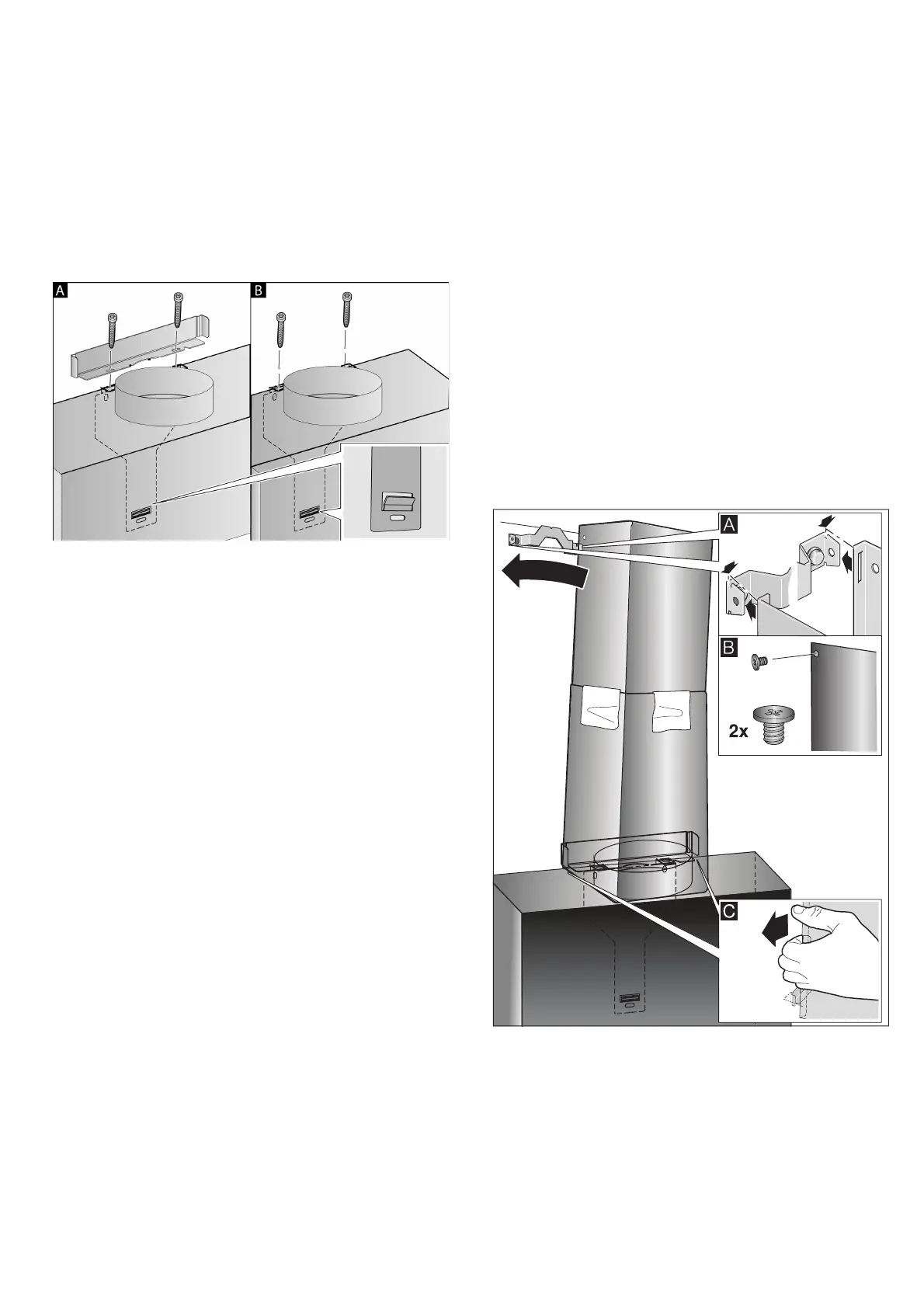

Wall-mounting the appliance and levelling it
1. First remove the protective film from the back of the
appliance and, following installation, remove the rest
of the film.
2. When mounting the appliance, ensure that it
engages properly with the mounting supports.
3. If required, the appliance can be moved to the right
or to the left.
4. Firmly tighten the screws for the mounting supports.
Hold the bracket firmly when doing so. ¨
5. If no duct is to be fitted, screw in the two locking
screws without the bracket. ©
Connecting the pipes
If the extractor hood is to be operated in exhaust-air
mode, the pipes must be connected. If the extractor
hood is to be operated in air-recirculation mode, an
optional accessory must be fitted. To do this, refer to
the installation instructions provided.
Note: If an aluminium pipe is being used, smooth the
connection area beforehand.
Exhaust air pipe, dia. 150 mm (recommended size)
Fit the exhaust air pipe directly to the air-pipe connector
and seal the joint.
Exhaust air pipe, dia. 120 mm
1. Fit the reducing connector directly to the air-pipe
connector.
2. Attach the exhaust air pipe to the reducing
connector.
3. Use suitable means to seal both joints.
Attaching the flue duct
If the extractor hood is to be operated in exhaust-air
mode, a flue duct must be fitted.
The flue duct does not need to be fitted for air-
recirculation mode.
:Warning
Risk of injury!
From sharp edges during installation. Always wear
protective gloves while installing the appliance.
:Warning
Risk of electric shock!
Components inside the appliance may have sharp
edges. These may damage the connecting cable. Do
not kink or pinch the connecting cable during
installation.
1. Separate the flue duct sections by removing the
adhesive tape.
2. Remove the pieces of protective film from both flue
duct sections.
3. Push one flue duct section into the other.
Notes
– To prevent scratches, lay paper over the edges of
the outer flue duct section to protect the surface.
– The slots of the inner flue duct section point
downwards.
4. Place flue ducts sections on the appliance.
5. Slide the inner flue duct section upwards, attach it to
the left and right sides of the retaining bracket, and
then slide it down to engage it. ¨
6. Screw the flue duct section to the sides of the
retaining bracket using two screws. ©
7. Clip the lower flue duct section in at the retaining
bracket. The connection cable must not be
damaged. ª
Note: If an air-recirculation optional accessory has been
fitted and the extractor hood is to be operated without a
flue duct, the cable must be wound onto the connector.
6
www.neff-international.com
*9001159981*
9001159981 961005
Constructa Neff
Vertriebs-GmbH
Carl-Wery-Straße 34
D-81739 München
Register your product online
Produkt Specifikationer
| Mærke: | Neff |
| Kategori: | Emhætte |
| Model: | DFHP951S |
Har du brug for hjælp?
Hvis du har brug for hjælp til Neff DFHP951S stil et spørgsmål nedenfor, og andre brugere vil svare dig
Emhætte Neff Manualer
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
27 Juli 2025
27 Juli 2025
27 Juli 2025
27 Juli 2025
27 Juli 2025
27 Juli 2025
Emhætte Manualer
- Jenn-Air
- V-Zug
- Daikin
- Summit
- Vent-A-Hood
- Røros
- Philco
- Mx Onda
- Viali
- Schneider
- Exquisit
- Monogram
- CEEM
- Applico
- Esatto
Nyeste Emhætte Manualer
11 August 2025
11 August 2025
11 August 2025
10 August 2025
10 August 2025
10 August 2025
10 August 2025
10 August 2025
10 August 2025
10 August 2025
