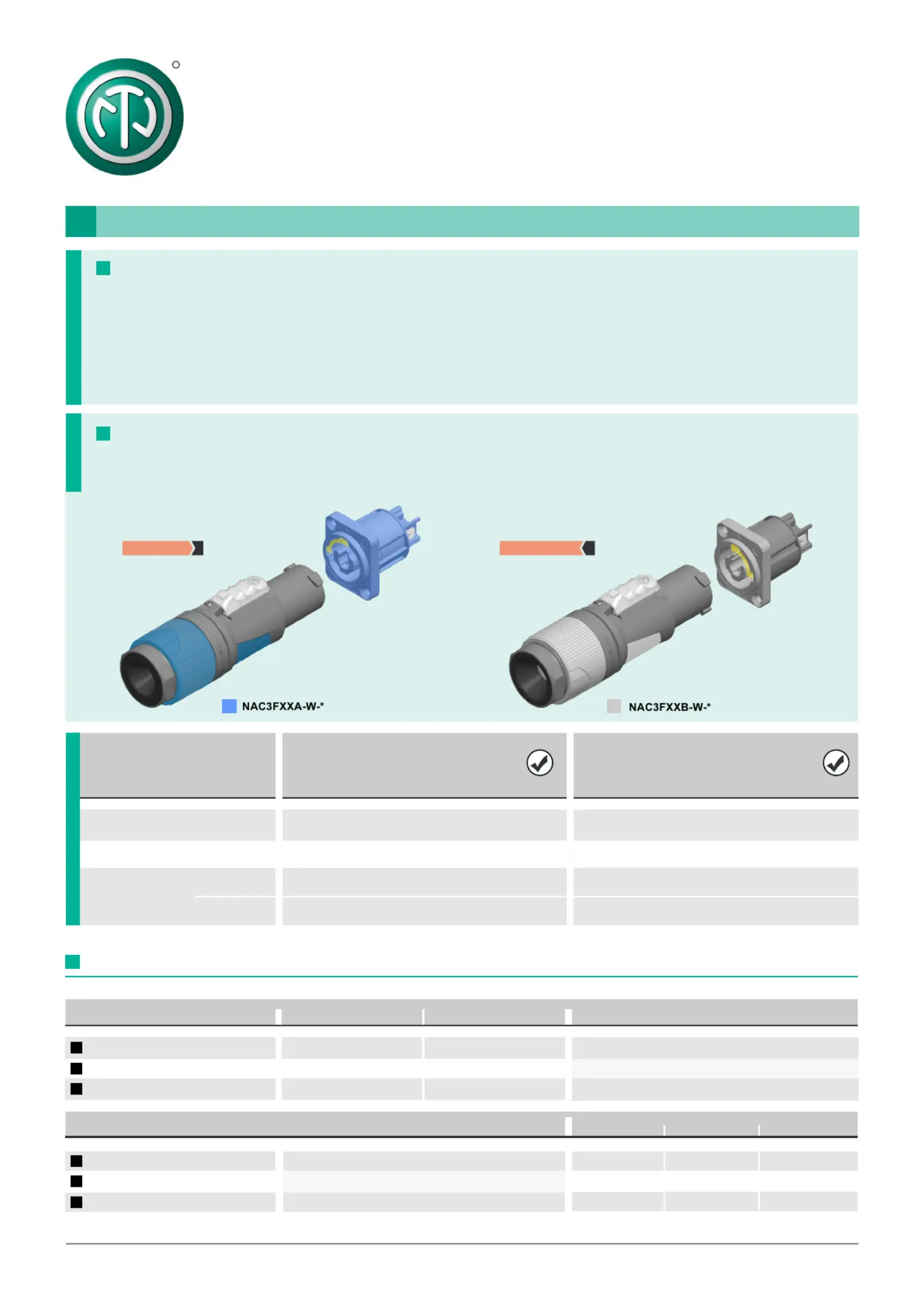

Page 1BDA 639

The power system is certified as a connector with breaking capacity according CON

IEC / EN / UL / CSA-C22.2 No. 60320-1.

It is intended for use as an appliance coupler and interconnection coupler.

It serves to supply power to an appliance and from an appliance to other equipment.

To be installed by qualified person only.

Connector Combination & Keyways:

With the two non-interchangeable types of connectors (A type and B type) it is impossible to produce a short circuit.

Mating connectors (combination) are identified by mechanical keyways and by color.

A type (color coding blue) B type (color coding gray)

A APPLICATION & SAFETY INSTRUCTION

Approval based: IEC/EN 60320-1 UL 60320-1

CAN/CSA-C22.2 No. 60320-1

Rating:

Wire size:

Cable O.D.: *-S:

*-L:

250 V ac / 16 A

1.5 - 2.5 mm

6.0 - 12.0 mm (0.24 - 0.47")

10.0 - 16.0 mm (0.39 - 0.63")

127 V ac / 20 A

16 - 12 AWG

6.0 - 12.0 mm (0.24 - 0.47")

10.0 - 16.0 mm (0.39 - 0.63")

CABLE LIST

Cable: IEC/EN 60320-1

H07RN-F

H05RN-F

H05VV-F

2 2

3 x 1.5 mm 3 x 2.5 mm

-S L-

-S -

-S -S

Cable: UL 60320-1, CAN/CSA-C22.2 No. 60320-1

SOOW

SJOOW

SJTOOW

16/3 AWG 14/3 AWG 12/3 AWG

-S -L -L

-S -S -L

-S -S -S

CABLE LIST

APPLIANCE INLET APPLIANCE OUTLET

Power OUT

Power IN

APPLICATION & ASSEMBLY INSTRUCTION

power Locking 3 pole Power ConnectorCON

NAC3FXXA-W-* & NAC3FXXB-W-*

APPLICATION:

ASSEMBLY INSTRUCTION Locking 3 pole powerCON

Page 2BDA 639

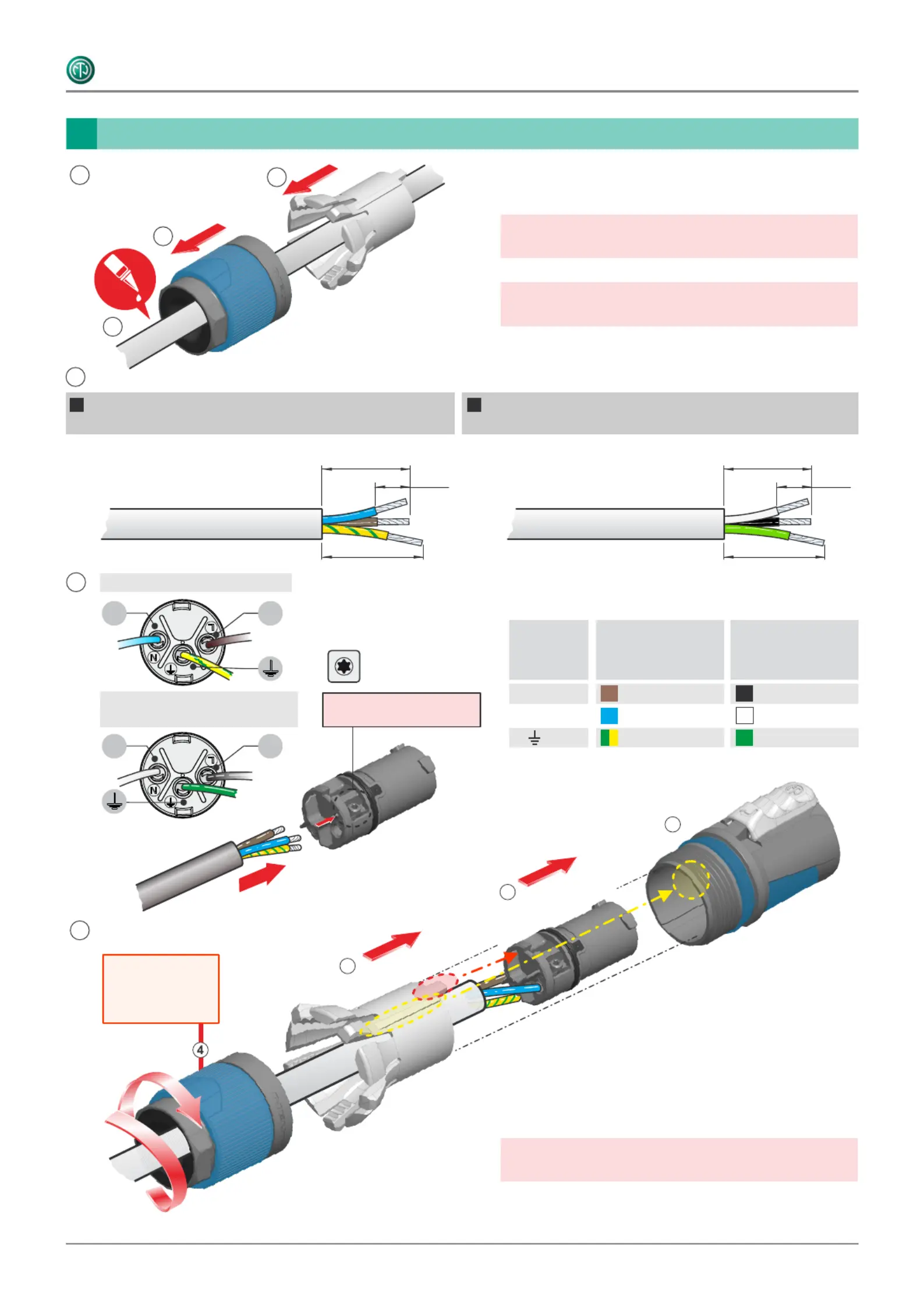

B ASSEMBLY INFORMATION

Position chuck (1) on insert (2).

Slide insert (2) with chuck (1) together into

housing (3).

Important: Align the chuck by positioning the nose

into keyway.

Slide bushing (4) over chuck (1).

Important:

Push and turn

simultaneously.

Place the bushing (1) and chuck (2) over the cable.

Important: Chuck and Bushing cannot be placed

over the cable after the assembly of the insert.

(3) For easier assembly please use a cable

lubricant.

Prepare cable as shown.

[0.35"]

9 mm

[0.94”]

24 mm

[1.06”]

PE 27 mm

Cable O.D.:

S: 6.0 - 12.0 mm (0.24 - 0.47")

L: 10.0 - 16.0 mm (0.39 - 0.63")

[0.35"]

9 mm

[0.94”]

24 mm

[1.06”]

PE 27 mm

IEC/EN 60320-1 UL60320-1

CAN/CSA-C22.2 No. 60320-1

Cable O.D.:

S: 6.0 - 12.0 mm (0.24 - 0.47")

L: 10.0 - 16.0 mm (0.39 - 0.63")

IEC/EN 60230-1

UL60320-1

CAN/CSA-C22.2 No. 60320-1

Torx size

Torque Value 0.7 Nm

(6.2 inch pound / 0.52 lb.ft)

Slide the cable into the contacts and clamp with the

screw with Torx size T8.

Typical IEC/EN UL60320-1

Wiring 60230-1 CAN/CSA-C22.2

No. 60320-1

brown blackLÞ

blue whiteNÞ

green / yellow greenÞ
