Side 1/4
R

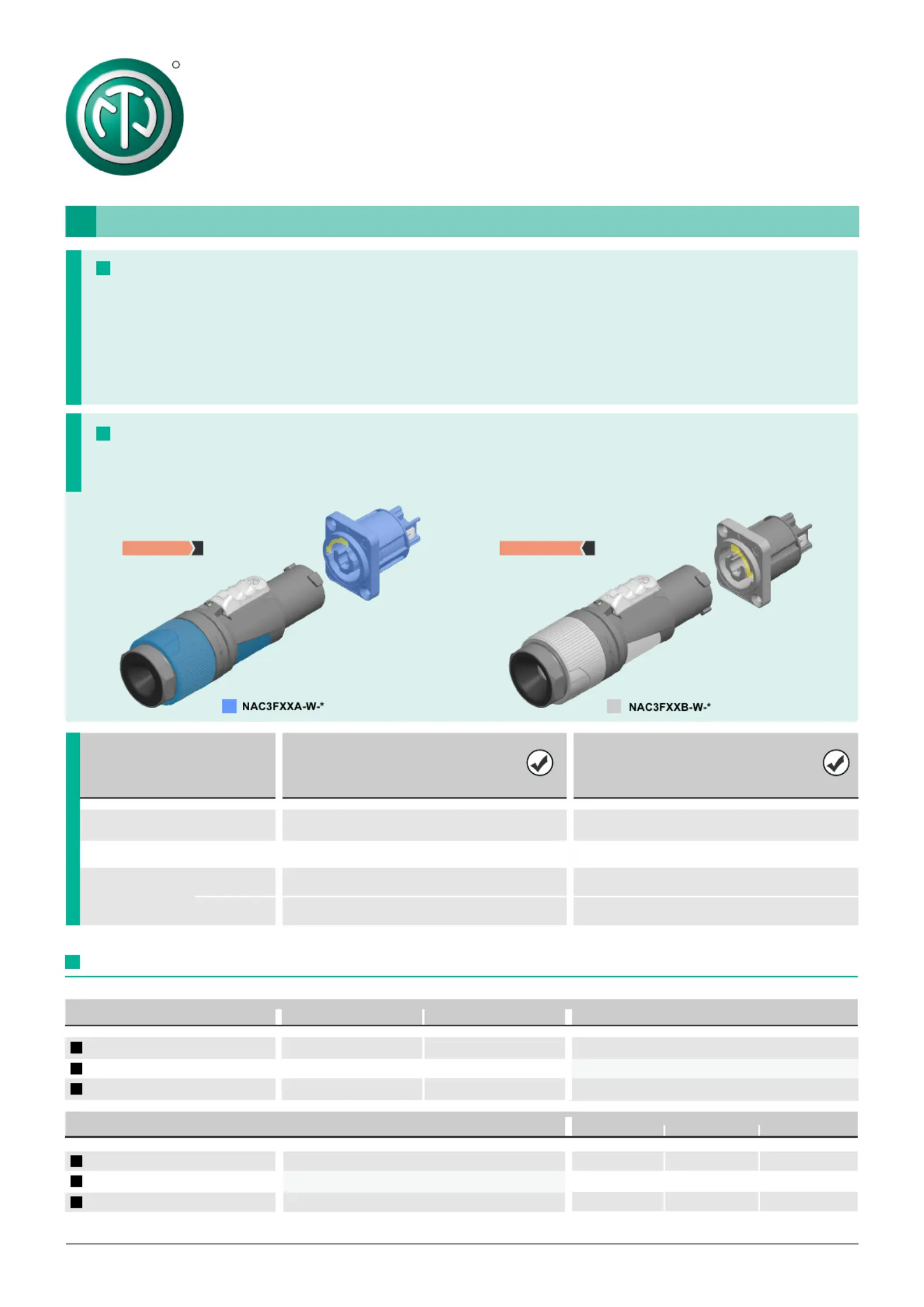

Page 1BDA 639
·
The power system is certified as a connector with breaking capacity according CON
IEC / EN / UL / CSA-C22.2 No. 60320-1.
·
It is intended for use as an appliance coupler and interconnection coupler.
·
It serves to supply power to an appliance and from an appliance to other equipment.
·
To be installed by qualified person only.
With the two non-interchangeable types of connectors (A type and B type) it is impossible to produce a short circuit.
Mating connectors (combination) are identified by mechanical keyways and by color.
A type (color coding blue) B type (color coding gray)
A APPLICATION & SAFETY INSTRUCTION
ð
Approval based: IEC/EN 60320-1 UL 60320-1
CAN/CSA-C22.2 No. 60320-1
Rating:
Wire size:
Cable O.D.: *-S:
*-L:
250 V ac / 16 A
2
1.5 - 2.5 mm
6.0 - 12.0 mm (0.24 - 0.47")
10.0 - 16.0 mm (0.39 - 0.63")
127 V ac / 20 A
16 - 12 AWG
6.0 - 12.0 mm (0.24 - 0.47")
10.0 - 16.0 mm (0.39 - 0.63")
CABLE LIST
Cable: IEC/EN 60320-1
H07RN-F
H05RN-F
H05VV-F
2 2
3 x 1.5 mm 3 x 2.5 mm
-S L-
-S -
-S -S
Cable: UL 60320-1, CAN/CSA-C22.2 No. 60320-1
SOOW
SJOOW
SJTOOW
16/3 AWG 14/3 AWG 12/3 AWG
-S -L -L
-S -S -L
-S -S -S
CABLE LIST
APPLIANCE INLET APPLIANCE OUTLET
Power OUT
Power IN
APPLICATION & ASSEMBLY INSTRUCTION
power Locking 3 pole Power ConnectorCON
®
|
NAC3FXXA-W-* & NAC3FXXB-W-*
APPLICATION:
ASSEMBLY INSTRUCTION Locking 3 pole powerCON
I
Page 2BDA 639
ð
B ASSEMBLY INFORMATION
A
2.
D
Position chuck (1) on insert (2).
Slide insert (2) with chuck (1) together into
housing (3).
Important: Align the chuck by positioning the nose
into keyway.
Slide bushing (4) over chuck (1).
3
2.
Important:
Push and turn
simultaneously.
1.
1.
3.
Place the bushing (1) and chuck (2) over the cable.
Important: Chuck and Bushing cannot be placed
over the cable after the assembly of the insert.
(3) For easier assembly please use a cable
lubricant.
B
Prepare cable as shown.
[0.35"]
9 mm
[0.94”]
24 mm
[1.06”]
PE 27 mm
Cable O.D.:
S: 6.0 - 12.0 mm (0.24 - 0.47")
L: 10.0 - 16.0 mm (0.39 - 0.63")
[0.35"]
9 mm
[0.94”]
24 mm
[1.06”]
PE 27 mm
IEC/EN 60320-1 UL60320-1
CAN/CSA-C22.2 No. 60320-1
Cable O.D.:
S: 6.0 - 12.0 mm (0.24 - 0.47")
L: 10.0 - 16.0 mm (0.39 - 0.63")
C
IEC/EN 60230-1
UL60320-1
CAN/CSA-C22.2 No. 60320-1
Torx size
T8
Torque Value 0.7 Nm
(6.2 inch pound / 0.52 lb.ft)
Slide the cable into the contacts and clamp with the
screw with Torx size T8.
Typical IEC/EN UL60320-1
Wiring 60230-1 CAN/CSA-C22.2
No. 60320-1
brown blackLÞ
blue whiteNÞ
green / yellow greenÞ
N
L
N
L
