Side 1/3

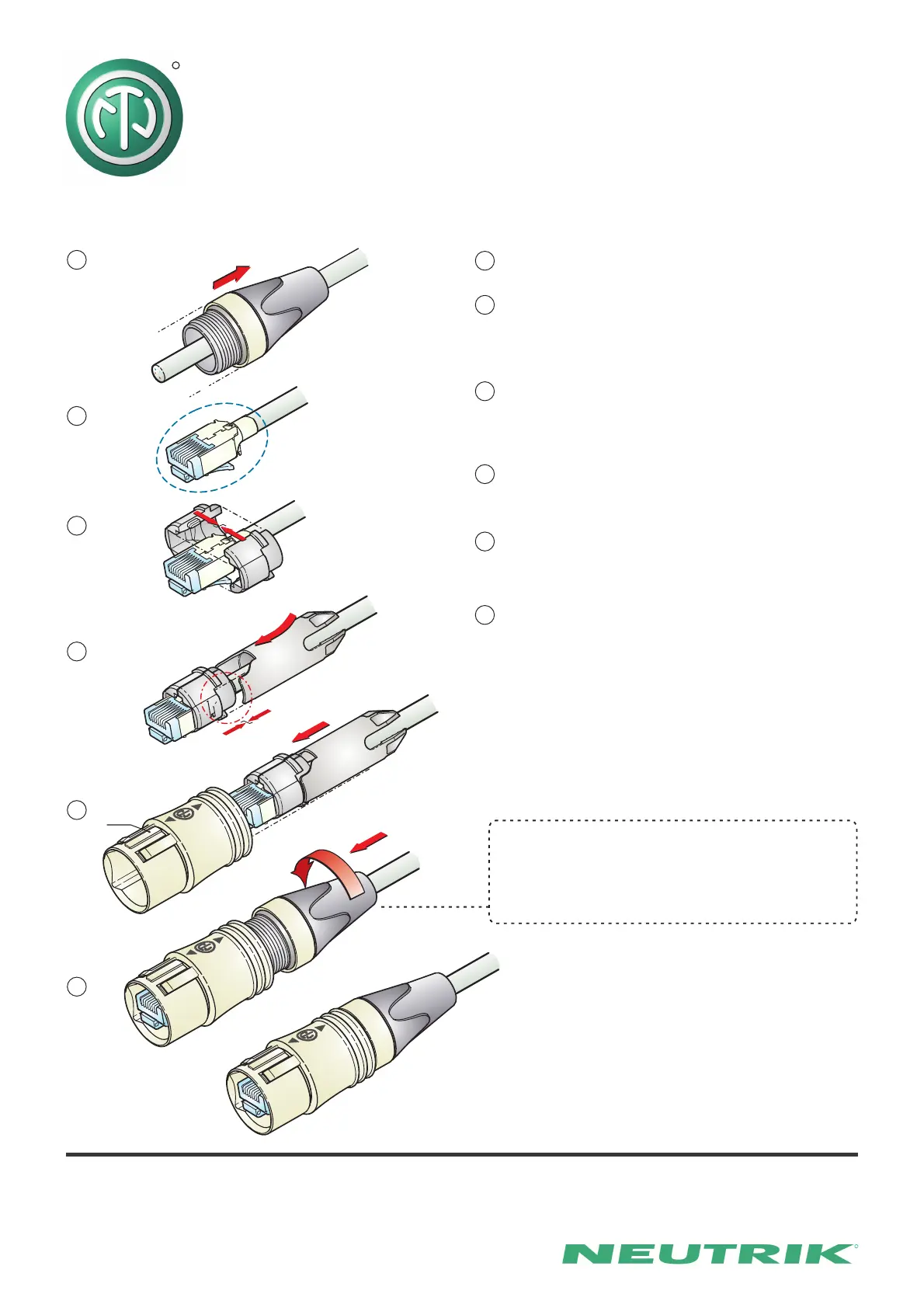

Slide the boot onto the cable.
Terminate RJ45 connector on the cable.
Press the locking latch of the RJ45 and place the
two adapters onto the RJ45.
Put chuck onto the cable.
Slide RJ45 and chuck together into the housing.
Finish the assembly by turning the bushing onto the
connector. Screw bushing fully up to the end.
Jacket:
See following pages.
onductors with an
insulation. O.D. 0.037” / 0.95 mm to 0.047” / 1.07 mm.
O.D. 0.22” / 5.5 mm to 0.25” / 6.5 mm
Pay attention: Hold the brackets together.
Pay attention to the plug latch which has to be on the
opposite side of the key.
Attention: Pay attention to the guiding key.
Suitable cables:
AWG 22 to 28 soldid or stranded c
A
B
C
E
F
D
A
B
C
D
E
F
Key
NEUTRIK AG
NEUTRIK Zürich AG
NEUTRIK USA Inc.
NEUTRIK UK Ltd.
( )
LI
CH
USA
UK
T: F:
T: F:
T: F:
T: F:
+423 / 237 24 24 +423 / 232 53 93
+41 44 / 736 5010 +41 44 / 736 5011
+1 732 / 901 9488 +1 732 / 901 9608
+44 1983 / 811441 +44 1983 / 811 439
Draft. Nr.: BDA 194 Update: 20.05.2010/ 3102M1581 I I Data subject to change without prior notice. 2010 NEUTRIK . ALL RIGHTS RESERVED.© ®
NEUTRIK
NEUTRIK France
NEUTRIK Tokyo Ltd.
NEUTRIK
Vertriebs GmbH
Ltd.Hong Kong
DE / NL / AT
FR
JP
HK
T: F:
T: F:
T: F:
T: F:
+49 8131 / 280 890 +49 8131 / 280 830
+33 1 / 4131 6750 +33 1 / 4131 0511
+81 3 / 3663 4733 +81 3 / 3663 4796
+852 / 2687 6055 +852 / 2687 6052
www.neutrik.com
ASSEMBLY INSTRUCTION
NE8MC6 etherCON Cable Connector CAT 6
|
R
R
- 2 -
ASSEMBLY INSTRUCTION etherCON CAT 6
I
Terminate RJ45 connector on the cable.
B
1
2
3
4
5
6
Consider cable end termination usually straight - thru
cable acc. TIA 568A.
Assembly of wire, load bar and plug.
Strip outer jacket 20 mm long.
Separate pairs in bundles.
Straighten and separate into individual leads.
Organize leads into proper order and trim edge to be
even.
Wire lead ends shown organized and trimmed.
1
2
3
4
5
6
7
8
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
R
R
BDA 194 20.05.2010
I
