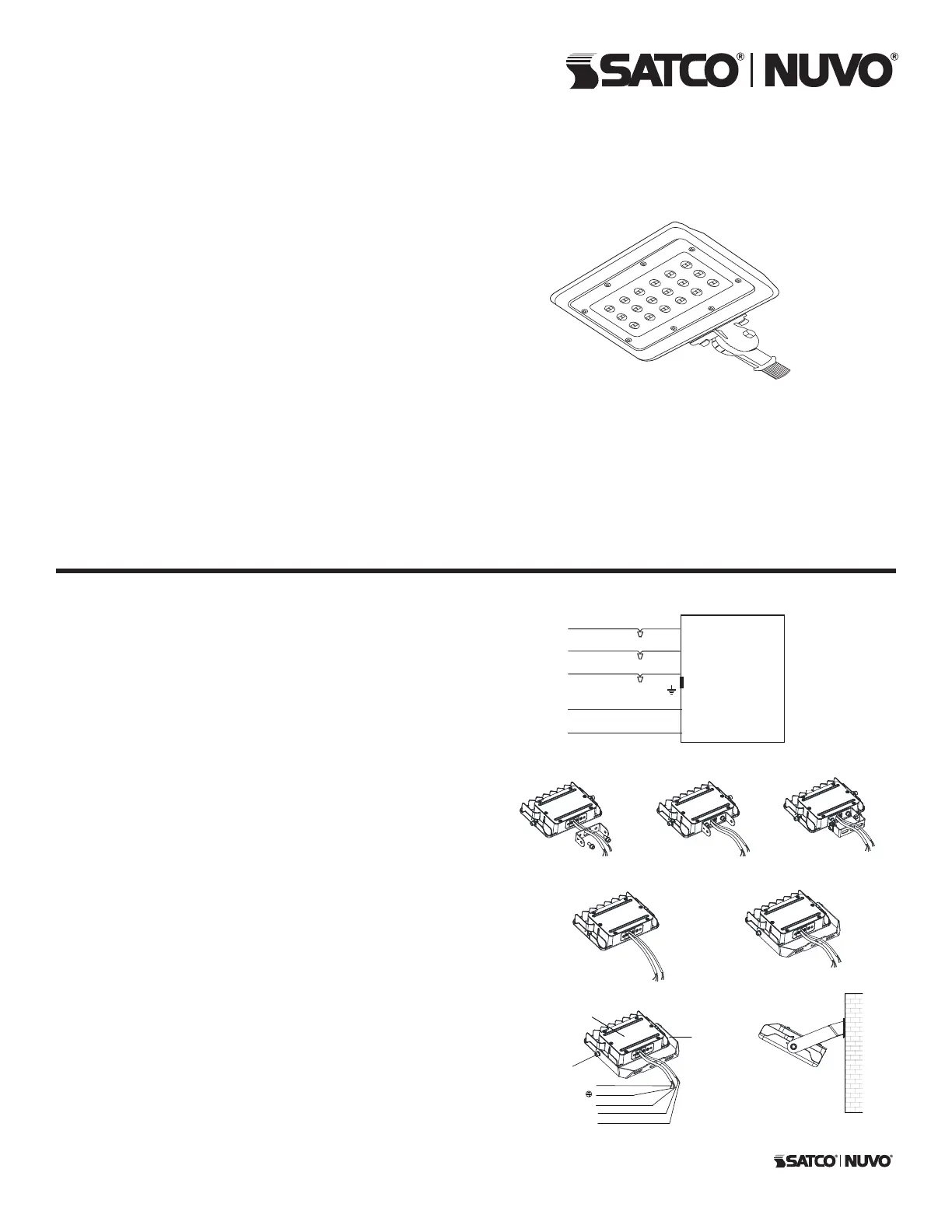

LED MEDIUM FLOOD LIGHTS

Models: 65-534R1, 65-535R1, 65-536R1, 65-537R1,

65-538R1, 65-539R1

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

WARNING:

• To reduce the risk of personal injury or property damage from

re, electric shock, falling parts, cuts/abrasions and other

hazards read all warnings and instructions included with and

on the xture and all xture labels.

• Commercial installation, service and maintenance of luminaries

should be performed by a qualied licensed electrician. For

the installation; if you are unsure about the installation or

maintenance of the luminaries, consult a qualied licensed

electrician and check your local electrical code.

• Turn OFF the power when you perform any maintenance.

• All connections should be capped with UL approved wire

connectors.

• Minimum size 18 AWG or 14 AWG for continuous runs.

• Risk of burn. Disconnect power and allow xture to cool

before handling.

• Verify that supply voltage is correct by comparing it with the

luminaire label information.

• Do not install in a hazardous atmosphere, except where the

ambient temperature does not exceed the rated operating

temperature of the xture.

• Keep tightly closed when in operation.

Electrical Requirements:

The LED driver must be supplied with 120–277V, 50/60 Hz and

connected to an individual, properly grounded branch circuit

protected by a 20 ampere circuit breaker. Use min. 75°C supply.

Grounding Instructions:

The grounding and bonding of the overall system shall be done

in accordance with NEC Article 600 and local codes.

Tools Required:

Crescent Wrench, Wire Strippers and Wire Cutters

WIRING DIAGRAM

Light Fixture

L = BLACK

N = WHITE

G = YELLOW/GREEN

DIM + PURPLE

DIM – GR AY/ V IOLE T

Installation Instructions for Different Brackets:

1. TRUNION MOUNTING (TM)

Suitable for all power in this series

STEP 1: Pass the input wire of the xture through the

bracket (Figure 1).

STEP 2: Fix the bracket (Figure 2).

STEP 3: Tighten the other bracket with screws (Figure 3).

2. YOKE MOUNTING (YM)

Suitable for all power in this series

STEP 1: Take the lamp out of package (Figure 4).

STEP 2: Tighten the brackets and screws (Figure 5).

2.1. Installation of LED lamp with ood mount (B

FM)

Suitable for all power in this series

STEP 1: Take the lamp out of package.

STEP 2: Connect the wires properly according to the

right wiring requirements (pay attention to positive wire,

negative wire, and ground wire), and then put the wires

into lamp pole (Figure 6).

STEP 3: Loosen the screws, adjust the lamp angles as per

actual demands and then tighten the screws (Figure 7).

NOTE: Lamp angles are adjustable.

Figure 1 Figure 2 Figure 3

Bracket

Hexagon Socket Screws

Black/Brown: ACL

White/Blue: ACN

Green/Yellow

LED Lamp

DIM+

DIM –

INSTALLATION: Turn OFF power at fuse or circuit breaker.

• Unpack xture and ensure there are no damaged parts.

• Attach xture to outdoor box cover, routing the xture wires

into the junction box. Connect xture cables as seen in Wiring

Diagram: Black to Black, White to White, and Green to Green.

• Aim xture by loosening bolt on the arm, and repositioning to

the desired angle. Tighten the bolt.

Figure 4 Figure 5

Figure 6

Figure 7
