Optoma X402 Manual

Optoma videoprojektorer X402

Læs gratis den danske manual til Optoma X402 (79 sider) i kategorien videoprojektorer. Denne vejledning er vurderet som hjælpsom af 16 personer og har en gennemsnitlig bedømmelse på 3.6 stjerner ud af 8.5 anmeldelser. Har du et spørgsmål om Optoma X402, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/79

1English

Table of Contents ............................1

Usage Notice ...................................2

Safety Information ...............................2

Precautions .........................................3

Eye Safety Warnings ..........................5

Product Features ................................5

Introduction ......................................6

Package Overview ..............................6

Product Overview ...............................7

Main Unit .............................................. 7

Keypad ................................................. 8

Input/Output Connections .................... 9

Remote Control .................................. 10

Installation .....................................11

Connecting to the Projector ..............11

Connecting a Computer/Notebook .... 11

Connecting a Video source ................ 12

Connect to 3D Video Devices ...........13

Using the 3D glasses ........................15

Powering On/Off the Projector ..........16

Powering On the Projector ................. 16

Powering Off the Projector ................. 17

Warning Indicator ............................... 18

Adjusting the Projected Image ..........19

Adjusting the Projector’s Height ........19

Adjusting the Projector’s Zoom /

Focus ................................................. 20

Adjusting Projection Image Size ........ 20

User Controls ................................22

Keypad & Remote Control ................22

Keypad ............................................... 22

Remote Control .................................. 23

On-screen Display Menus ................30

How to operate .................................. 30

Menu Tree .......................................... 31

IMAGE ............................................... 34

IMAGE | Advanced ............................ 36

IMAGE | Advanced | Signal (RGB) ... 38

DISPLAY ............................................ 39

DISPLAY | 3D ................................... 42

SETUP ............................................... 43

SETUP | Audio Settings ..................... 45

SETUP | Security ............................... 46

SETUP | Network|LAN Settings ......... 48

SETUP | Network|Control Settings .... 50

SETUP | Advanced ............................ 51

OPTIONS ........................................... 52

OPTIONS | Lamp Settings ................. 55

OPTIONS | Remote Settings ............. 57

OPTIONS | Advanced ........................ 58

OPTIONS | Optional Filter Settings ... 59

Appendices ....................................60

Troubleshooting ................................60

Image Problems ................................. 60

Other Problems .................................. 62

Remote Control Problems ................. 62

LED Lighting Messages ..................... 63

On Screen Messages ........................ 64

Replacing the Lamp ..........................65

Installing and Cleaning

the Dust Filter ...................................67

Compatibility Modes .........................68

RS232 Commands and Protocol

Function List .....................................70

RS232 Pin Assignments .................... 70

RS232 Protocol Function List ............ 71

Ceiling Mount Installation ..................75

Optoma Global Ofces .....................76

Regulation & Safety Notices .............78

FCC Notice ........................................ 78

Declaration of Conformity

for EU countries ................................. 79

Table of Contents

English

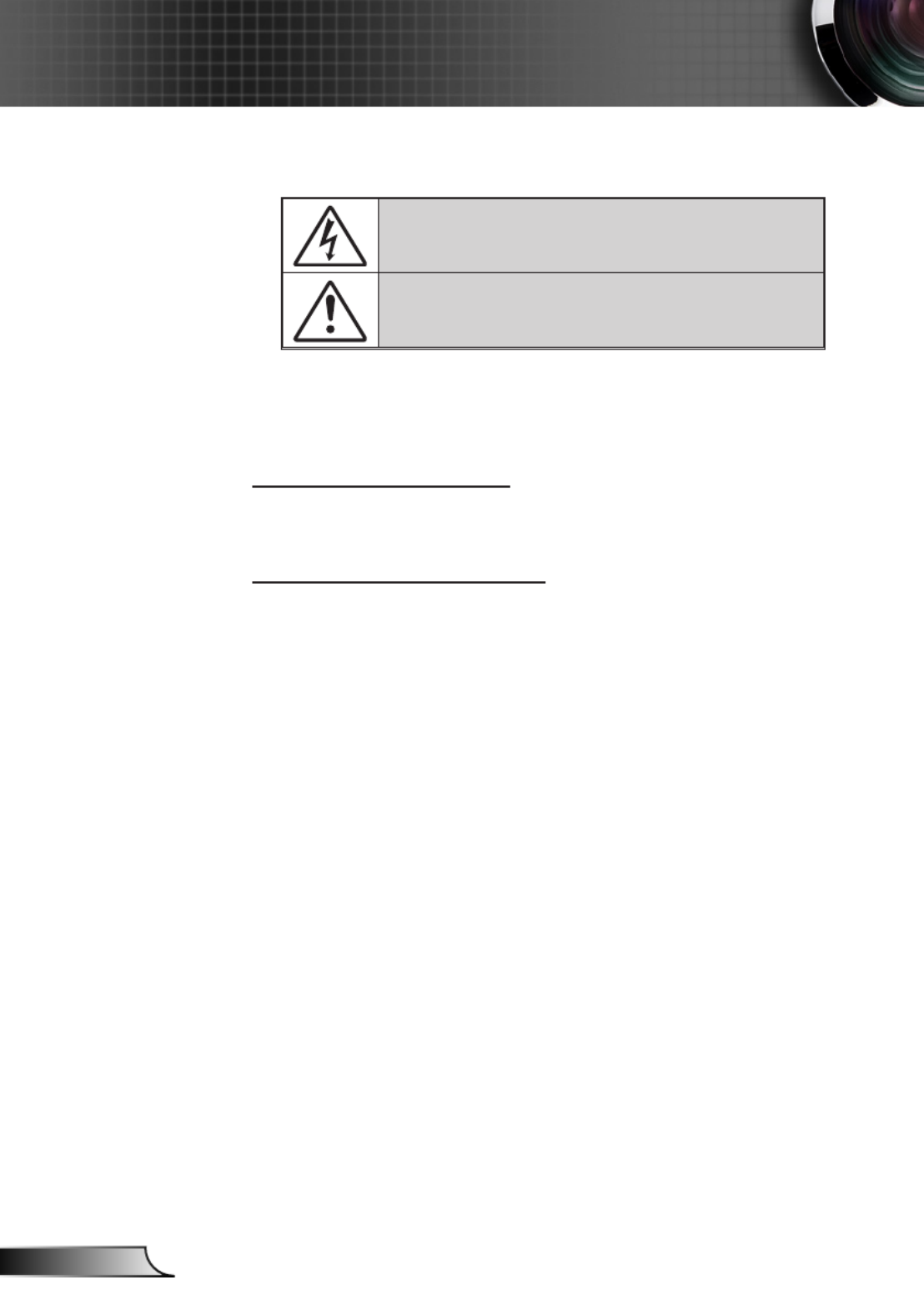

Usage Notice

The lightning ash with arrow head within an equilateral triangle is

intended to alert the user to the presence of uninsulated “dangerous volt-

age” within the product’s enclosure that may be of sufcient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance (servic-

ing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH

VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE

CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Inter-

ference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the

projector and to protect from over heating, it is recommended to install the

projector in a location that does not block ventilation. As an example, do

not place the projector on a crowded coffee table, sofa, bed, etc. Do not

put the projector in an enclosure such as a book case or a cabinet that

restricts air ow.

2. Do not use the projector near water or moisture. To reduce the risk of re

and/or electric shock, do not expose the projector to rain or moisture.

3. Do not install near heat sources such as radiators, heaters, stoves or any

other apparatus such as ampliers that emits heat.

4. Clean only with dry cloth.

5. Only use attachments/accessories specied by the manufacturer.

6. Do not use the unit if it has been physically damaged or abused. Physical

damage/abuse would be (but not limited to):

Unit has been dropped. -

Power supply cord or plug has been damaged. -

Liquid has been spilled on to the projector. -

Projector has been exposed to rain or moisture. -

Something has fallen in the projector or something is loose inside. -

Do not attempt to service the unit yourself. Opening or removing covers

may expose you to dangerous voltages or other hazards. Please call

Optoma before you send the unit for repair.

7. Do not let objects or liquids enter the projector. They may touch danger-

ous voltage points and short out parts that could result in re or electric

shock.

8. See projector enclosure for safety related markings.

9. The unit should only be repaired by appropriate service personnel.

Safety Information

Produkt Specifikationer

Mærke:	Optoma
Kategori:	videoprojektorer
Model:	X402
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	315 mm
Dybde:	224 mm
Højde:	102 mm
Vægt:	2570 g
Brugervejledning:	Ja
Produktfarve:	Hvid
Indbygget skærm:	Ingen
Produkttype:	Standard kasteprojektor
Wi-Fi:	Ingen
Naturligt aspektforhold:	4:3
Understøttede videotilstande:	1080i,1080p,480i,480p,576i,576p,720p
3D:	Ja
Indbyggede højttaler(e):	Ja
Relativ luftfugtighed ved drift (H-H):	0 - 85 %
Format til analogt signal:	NTSC,NTSC 3.58,NTSC 4.43,NTSC J,NTSC M,PAL,PAL 4.43,PAL B,PAL D,PAL G,PAL H,PAL I,PAL M,PAL N,SECAM,SECAM 4.25/4.4,SECAM B,SECAM D,SECAM G,SECAM K,SECAM K1,SECAM L
Udgangseffekt (RMS):	10 W
Antal HDMI-porte:	1
DVI-port:	Ingen
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	1
Ethernet LAN:	Ja
Skærmvisning (OSD):	Ja
OSD-sprog:	ARA,CZE,DAN,DEU,DUT,ENG,ESP,FIN,GRE,HUN,ITA,NOR,POL,POR,RUM,RUS,SWE,TUR
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	306 W
Driftstemperatur (T-T):	5 - 40 °C
Hurtig start guide:	Ja
Kabler inkluderet:	AC,VGA
Batterier inkluderet:	Ja
Understøttede grafikopløsninger:	1024 x 768 (XGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),640 x 480 (VGA),800 x 600 (SVGA)
Sammensat videoindgang:	1
Understøttede billedformater:	16:9
Støjniveau:	31 dB
Fjernbetjening inkluderet:	Ja
Strømkilde:	Vekselstrøm
Strømforbrug (strømbesparelse):	257 W
Placering:	Desktop
Indbygget kortlæser:	Ingen
Full HD:	Ingen
Pc lydindgang:	Ja
Bæretaske:	Ja
Bæredygtighedscertifikater:	RoHS
Slot til kabellås:	Ja
Driftshøjde:	0 - 3000 m
Antal farver:	1.073 milliarder farver
Kontrastforhold (dynamisk):	20000:1
HDMI-version:	1.4a
Antal VGA-porte (D-sub):	3
AC (strøm) indgang:	Ja
Kabellåseslids type:	Kensington
Zoom kapacitet:	Ja
Brændviddeområde:	18.2 - 21.9 mm
Projektor lysstyrke:	4200 ANSI lumens
Projektionsteknologi:	DLP
Projektor indbygget opløsning:	XGA (1024x768)
Skærmstørrelse kompatibilitet:	30.8 - 307 "
Projiceringsafstand:	1.2 - 12 m
Ensartethed:	80 %
Trapezkorrektion, vertikal:	-40 - 40 °
Matrix størrelse:	0.55 "
Blændeområde (F-F):	2.4 - 2.66
Forskydning:	115 %
Throw-forhold:	1.6 - 1.92:1
Zoom type:	Vejledning
RS-232-porte:	1
Levetid for lyskilde:	7000 t
Lampeeffekt:	260 W
Levetid for lyskilde (økonomisk tilstand):	3000 t
Lyskilde type:	Lampe
Antal af S-video-indgange:	1
Seriel grænsefladetype:	RS-232
Matrix-type:	DMD
Beskyttelse af adgangskode:	Ja
PC-lydudgang:	Ja
HD-Ready:	Ingen
Horisontal synkronisering (min.):	15.3 kHz
Horisontal synkronisering (maks.):	91.1 kHz
Vertikal synkronisering (min.):	24 kHz
Vertikal synkronisering (maks.):	85 kHz
