STANDARD EQUIPMENT

5 6

mm 00 in.

1/2

5 6

PXBLTS-018

INSTRUCTION MANUAL

SPECIFICATIONS

Input: 18V

No Load Speed: 10,000 - 30,000/min

Collet Size: 6.35mm & 8mm

Max. Cutter Size: 28mm

Dust Port Size: Ø35mm

Weight: 1.84kg

ozito.com.au

0722

Brushless Trim Router

Dust Extraction Port, Parallel

Guide & Trimmer Guide

8mm Collet, Template Guide

Bushing, Compass Point & 2 x

Spanners (22 & 13mm)

TRIM

ROUTER

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU

MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS

WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE

OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

WARRANTY

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL

NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER

SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND

ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE

WARRANTY POLICY OR PROCEDURE.

OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.

The benets provided under this warranty are in addition to other rights and

remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to

a replacement or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to have the goods

repaired or replaced if the goods fail to be of acceptable quality and the failure

does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this

warranty, however, where you have suffered any additional direct loss as a result of

a defective product you may be able to claim such expenses by contacting our

customer service helpline above.

WARNING

The following actions will result in the warranty being

void.

• If the tool has been operated on a supply voltage other than that specied

on the tool.

• If the tool shows signs of damage or defects caused by or resulting from

abuse, accidents or alterations.

• Failure to perform maintenance as set out within the instruction manual.

• If the tool is disassembled or tampered with in any way.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of

purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it

will be replaced in accordance with the terms of this warranty. Lithium Ion

batteries and chargers are covered by a 36 month

warranty and are excluded from the warranty extension. Warranty excludes

consumable parts.

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to

the online manual.

5 6

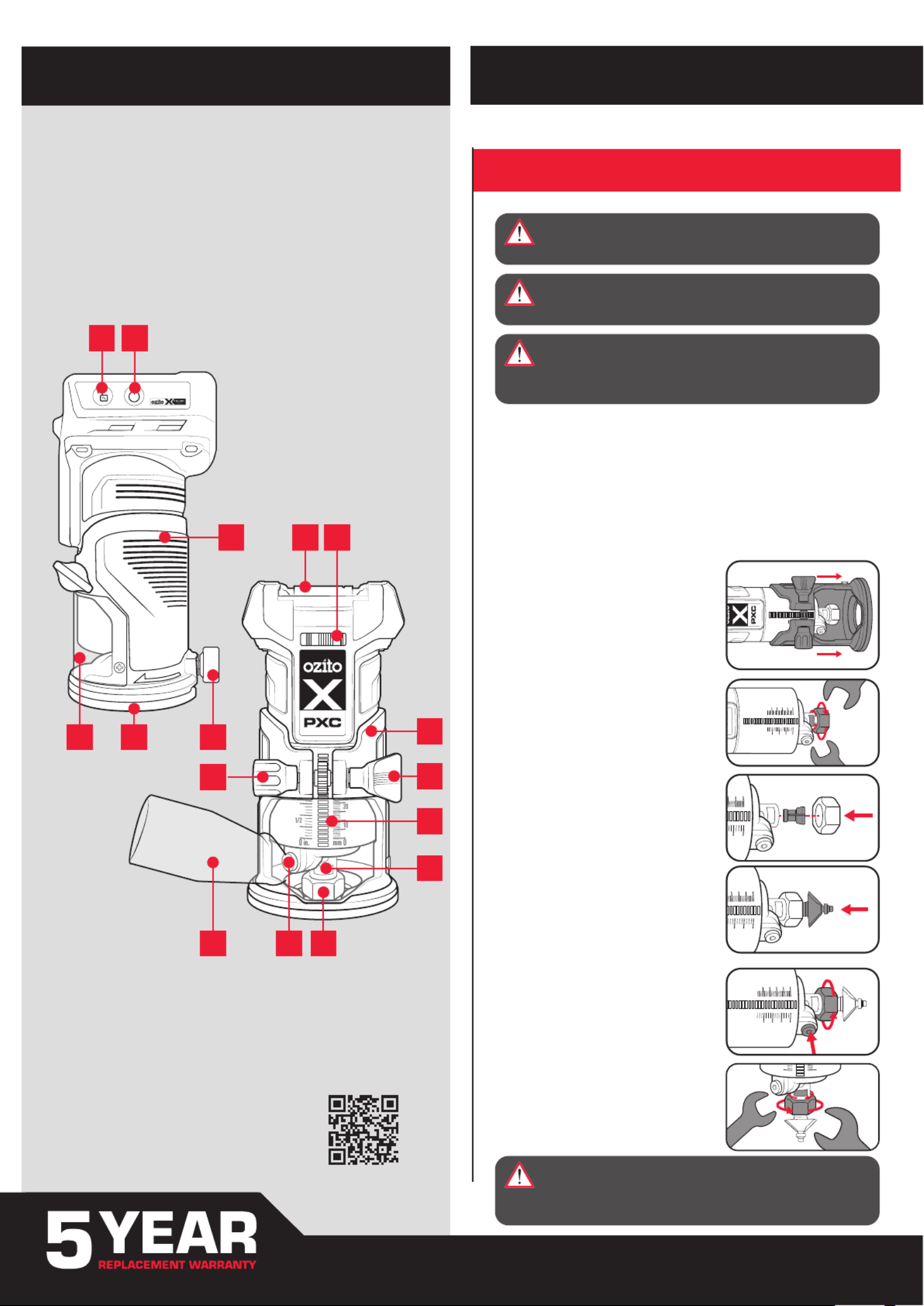

1. Lock Off Switch

2. On/Off Switch

3. Sure Grip Handle

4. Battery Seating

5. Speed Control Dial

6. Trim Router Base

7. Depth Fastening Screw

8. Cut Depth Scale

9. Spindle

10. Spindle Nut

11. Spindle Lock

12. Dust Extraction port

13. Height Adjustor

14. Guide Mount Screw

15. Baseplate

16. Clear Safety Guard

This tool is compatible with all batteries & chargers from the Ozito PXC range.

For optimal performance, we recommend the use of a 3.0Ah battery or

higher to operate this PXC Trim Router.

BRUSHLESS TRIM ROUTER

BATTERY & CHARGER

KNOW YOUR PRODUCT

1. ASSEMBLY

SETUP & PREPARATION

Installing A Router Bit

When using the trim router, only use router bits that:

• are suitable for cutting wood or plastic,

• has a suitable shank diameter for the collet mounted (collet size:

6.35mm & 8mm),

• has a maximum diameter of 28mm,

• are suitable for the router’s speed (n0 = 10,000-30,000/min).

1. Remove the trim router base from the

router unit.

2. Place the smaller supplied spanner on

the spindle and use the large spanner to

loosen the collet nut.

Note: If a different collet size is required,

remove the collet nut entirely and replace

the collet. Re-attach the collet nut but don’t

tighten it all the way.

3. Fully insert the shaft of the router bit (not

supplied) into the collet.

4. Press and hold down the spindle lock

while tightening the collet nut with your

ngers.

5. Release the spindle lock and then use the

2 spanners to fully tighten the collet nut.

WARNING! THE SPINDLE LOCK IS NOT ALLOWED

TO BE USED FOR TIGHTENING WITH THE SPANNER.

TIGHTEN THE CLAMP NUT USING THE TWO

SPANNERS.

mm 00 in.

1/2

mm 00 in.

1/2

mm 00 in.

1/2

mm 00 in.

1/2

4 5

1416 15

11 1012

WARNING! ENSURE THE TOOL IS SWITCHED

OFF AND THE BATTERY IS REMOVED BEFORE

PERFORMING ANY OF THE FOLLOWING TASKS.

WARNING! WEAR GLOVES WHEN HANDLING

ROUTER BITS AS THEY CAN BE SHARP AND/OR

HOT TO THE TOUCH AFTER USE.

WARNING! ONLY USE THE ROUTER UNIT WITH A

COMPATIBLE BASE. USING IT WITHOUT A BASE

OR WITH AN INCOMPATIBLE BASE MAY RESULT IN

SERIOUS INJURY.
