STANDARD EQUIPMENT

0°

15°

22.5°

30°

45°

0°

15°

22.5°

30°

45°

PXTBSS-036

INSTRUCTION MANUAL

SPECIFICATIONS

Input: 2 x 18V

No Load Speed: 3,800/min

Blade: Ø210 x Ø30 x 1.8mm

Blade Teeth: 40TCT

Bevel Angle: 0-45° Left

Mitre Angle: 0-60° Left & Right

Blade Height: 0-70mm

Max. Cutting Capacity: 70mm @ 90°; 45mm @ 45°

Table Size: 480 x 467mm

Extension Length: 370mm

Weight: 13.0kg

ozito.com.au

0922

Cordless Table Saw & 40TCT

Blade

Rip Fence, Stop Rail,

Sliding Mitre Gauge, Dust

Port Adaptor, Riving Knife,

Blade Guard, Push Stick &

2 x Spanners (10/13mm &

10/21mm)

210MM

TABLE SAW

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU

MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS

WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE

OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

WARRANTY

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL

NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER

SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND

ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE

WARRANTY POLICY OR PROCEDURE.

OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, VIC 3175, Australia.

The benets provided under this warranty are in addition to other rights and

remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to

a replacement or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to have the goods

repaired or replaced if the goods fail to be of acceptable quality and the failure

does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this

warranty, however, where you have suffered any additional direct loss as a result of

a defective product you may be able to claim such expenses by contacting our

customer service helpline above.

WARNING

The following actions will result in the warranty being

void.

• If the tool has been operated on a supply voltage other than that specied

on the tool.

• If the tool shows signs of damage or defects caused by or resulting from

abuse, accidents or alterations.

• Failure to perform maintenance as set out within the instruction manual.

• If the tool is disassembled or tampered with in any way.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of

purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it

will be replaced in accordance with the terms of this warranty. Lithium Ion

batteries and chargers are covered by a 36 month

warranty and are excluded from the warranty extension. Warranty excludes

consumable parts.

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to

the online manual.

0°

15°

22.5°

30°

45°

Installing The Dust Port Adaptor

A 35mm vacuum hose and vacuum can be attached to the extraction port on

the rear for dust extraction during use.

1. Undo the Phillips head screw on the back

of the unit.

2. Push the dust extraction adaptor onto the

port.

3. Replace the screw to lock the adaptor in

place.

4. Connect a suitable vacuum or dust extraction system to the dust

extraction adaptor for use with the table saw.

Installing The Riving Knife & Blade Guard

1. Unlock the table insert by using

a spanner to turn the insert lock.

Then lift and remove the table

insert.

2. Raise the blade to its highest position by

turning the adjustment wheel clockwise.

Note: Ensure the bevel angle is set to 0°.

3. Use the 10mm spanner to loosen the

riving knife bolt.

4. Insert the riving knife behind

the plate, leaving a 3-8mm gap

between the riving knife and

blade teeth.

5. Re-tighten the riving knife bolt.

6. Replace the table insert and use the

spanner to lock it in place.

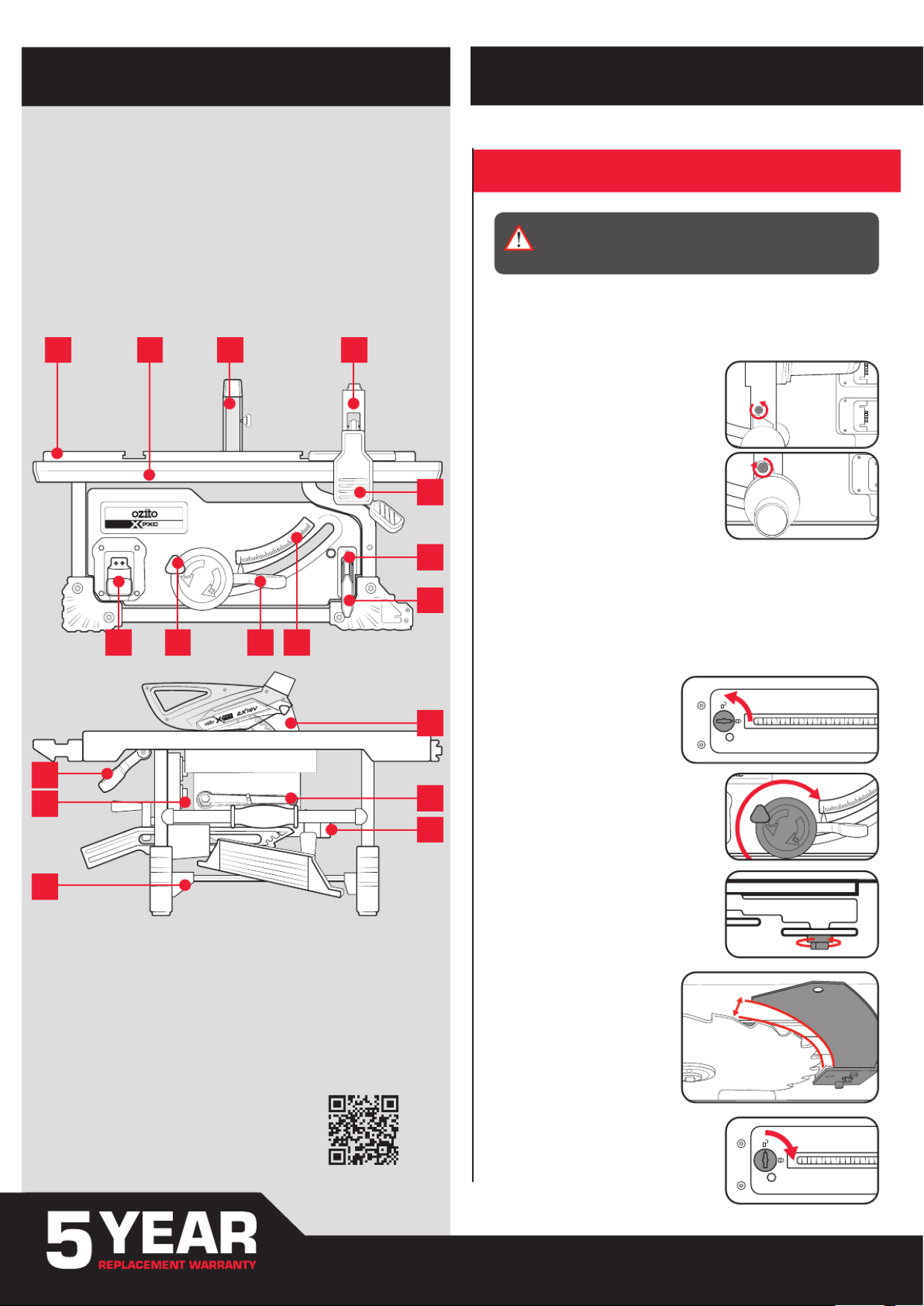

1. Table

2. Extension Table

3. Blade Guard

4. Rip Fence

5. Rip Fence Lock Lever

6. Push Stick Storage

7. Push Stick

8. Bevel Scale

9. Bevel Lock Lever

10. Height Adjustment Wheel

11. On/Off Switch

12. Riving Knife

13. Spanner Storage

14. Dust Port Adaptor

15. Mitre Guide Storage

16. Battery Seating

17. Extension Table Lock Lever

This tool is compatible with all batteries & chargers from the Ozito PXC range.

For optimal performance, we recommend the use of 3.0Ah batteries or

higher to operate this PXC Table Saw.

CORDLESS TABLE SAW

BATTERY & CHARGER

KNOW YOUR PRODUCT

1. ASSEMBLY

SETUP & PREPARATION

0°

15°

22.5°

30°

3 - 8mm

1 432

10 911 8

WARNING! ENSURE THE TOOL IS SWITCHED

OFF AND THE BATTERIES ARE REMOVED BEFORE

PERFORMING ANY OF THE FOLLOWING TASKS.
