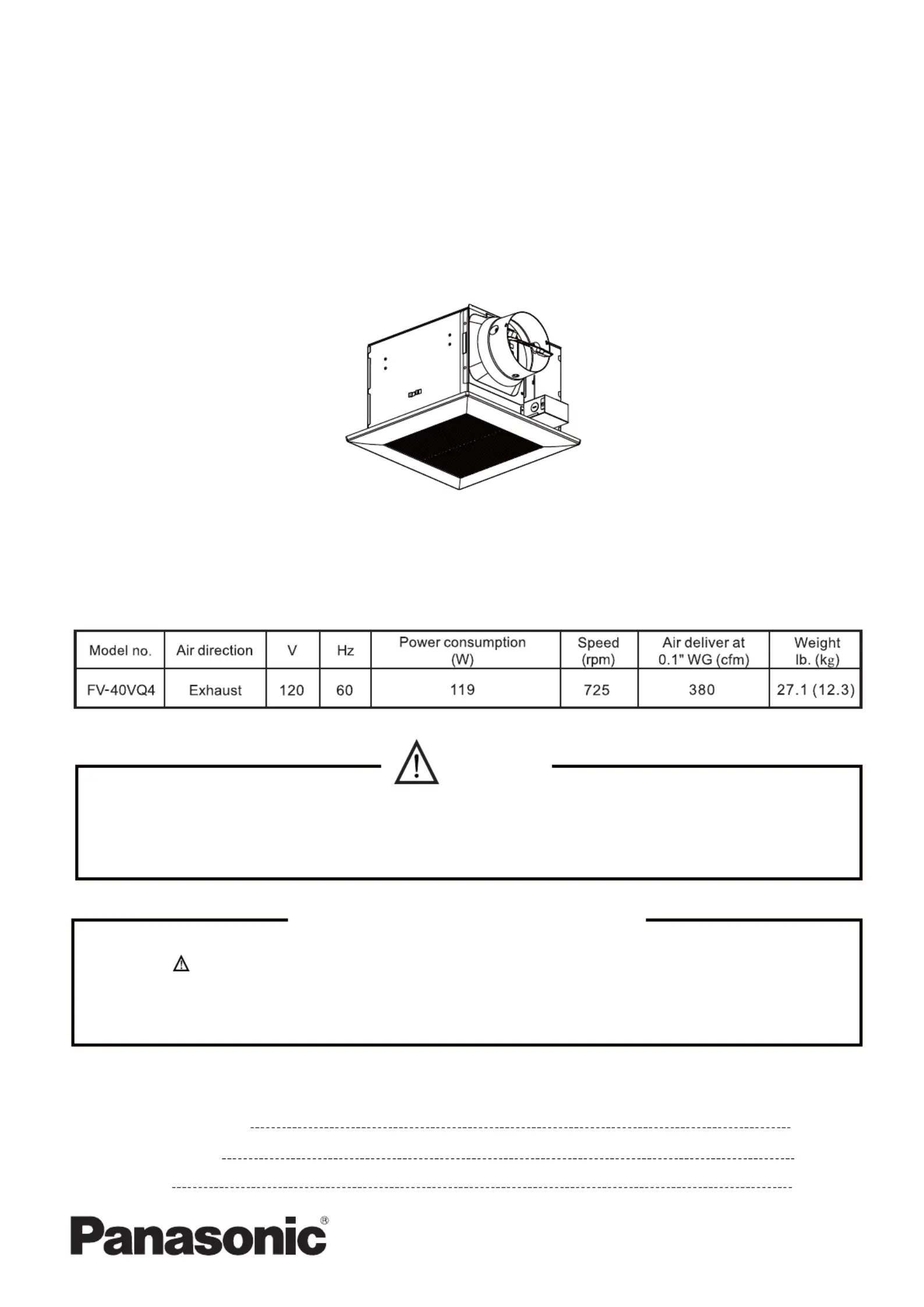

Service Manual

CONTENTS

1 Parts Identification

2 Wiring Diagram

3 Parts List

PAGE

1~2

3

4~5

PEG1208024CE

Version:1201

Ceiling Mount Ventilating Fan

(North America Market)

FV-40VQ4

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should b replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

e

Specifications

1

(2pcs)

9

D

12

14

13

15

16

18

19

20

21

A

10

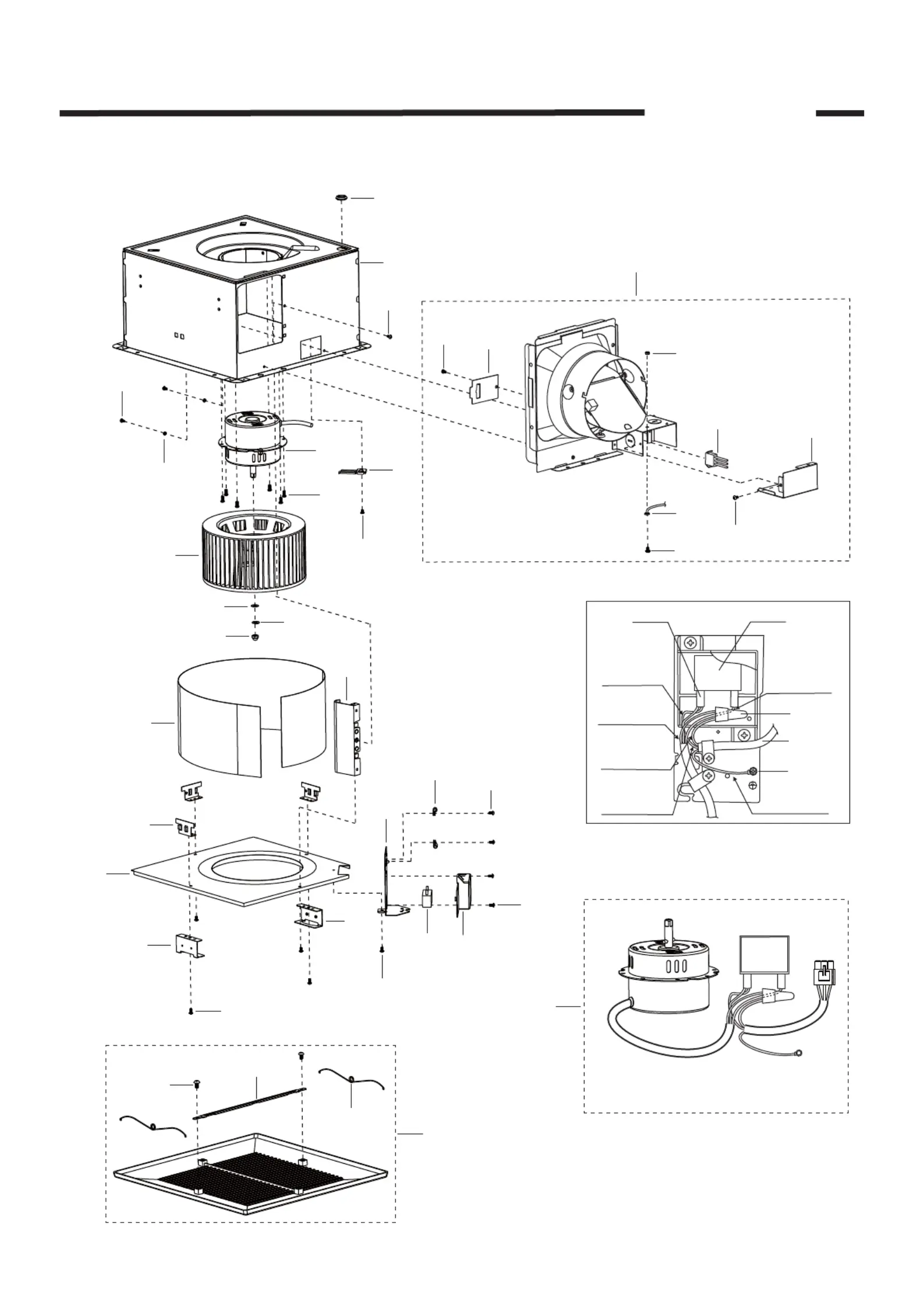

1. Parts Identification

FV-40VQ4

2

A

11

A

17

E

23

A

32

G

31

30

25

24

F

22

1

Main Body Section

A

(2pcs)

(6pcs)

(3pcs)

(4pcs)

(2pcs)

(2pcs)

(2pcs)

(2pcs)

(2pcs)

C

7

5

Motor Unit

(24)

26

27

28

C

Motor Lead

(Red)

Earth Lead

Cord Lead

(White)

Motor Lead

(Black)

Motor Lead

(White)

Cord Lead

(Black)

Wiring Section

(2pcs)

29

3

B

B

4

6

8
