For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

RW207

- or -

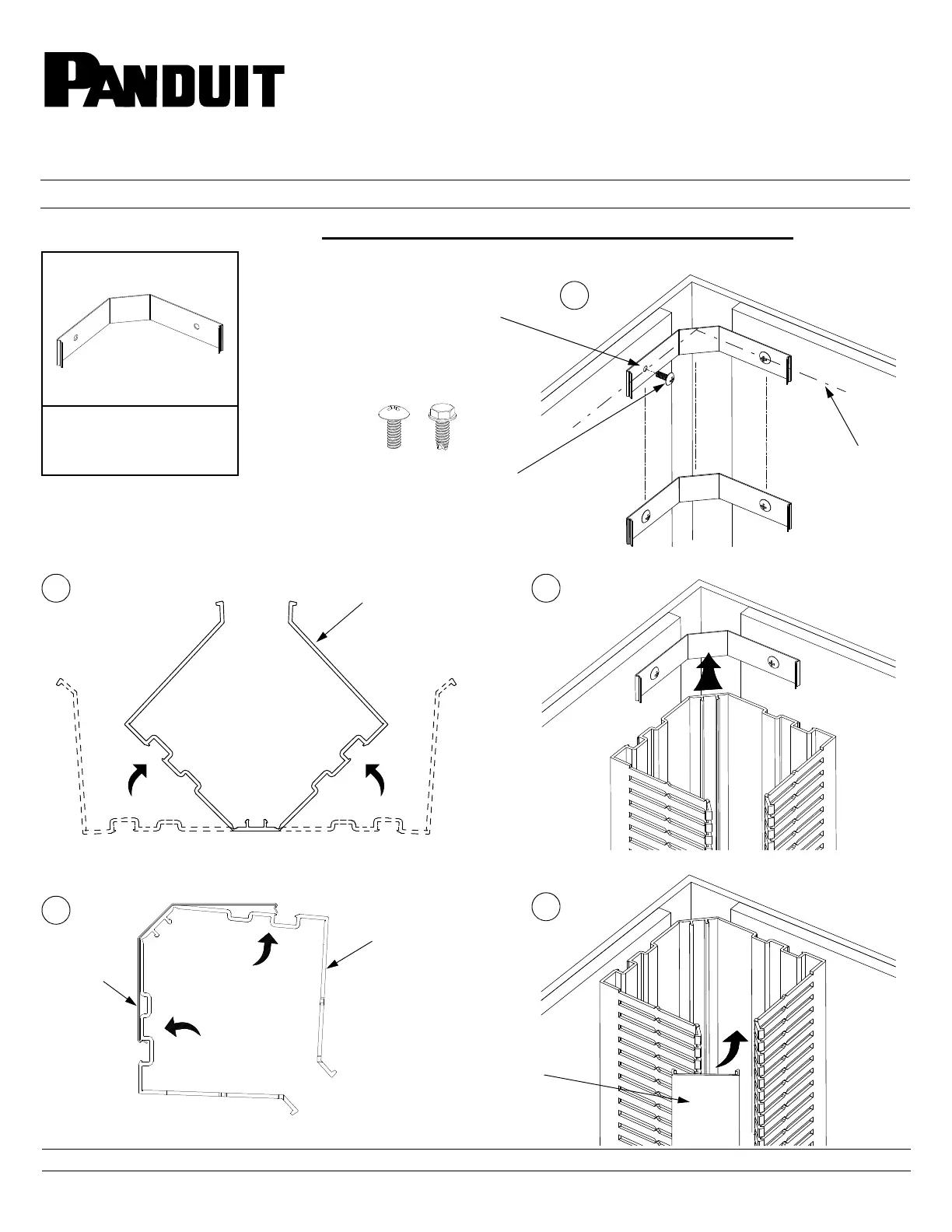

Option 1 - Panduct Corner Wiring Duct Mounting Clip

Note: Clips provide a permanent installation and are not intended to allow for product removal

Panduct PanelMax One-Piece Corner Wiring Duct

For use with Panduit Panduct Types

F, G, FS and D Wiring Duct

Part Numbers: CWD2**6, CWD3**6, CWD4**6, C2**6, CDCLP2, CDCLP3,

CDCLP4, CDLB3, CDLB4

CDCLP2, CDCLP3,

CDCLP4

(sold separately)

CWD2**6

CWD3**6

-or-

CWD4**6

Note: #10-32 x 1/2" (or sheet metal

screw equivalent) to be supplied by

the installer/end user

Refer to chart on page 4 for

mounting hole locations

Mounting clips must

be installed level

Wiring Duct

Mounting

Clip

C2**6

(sold separately)

Page 1 of 4

** Denotes color.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

RW207

- or -

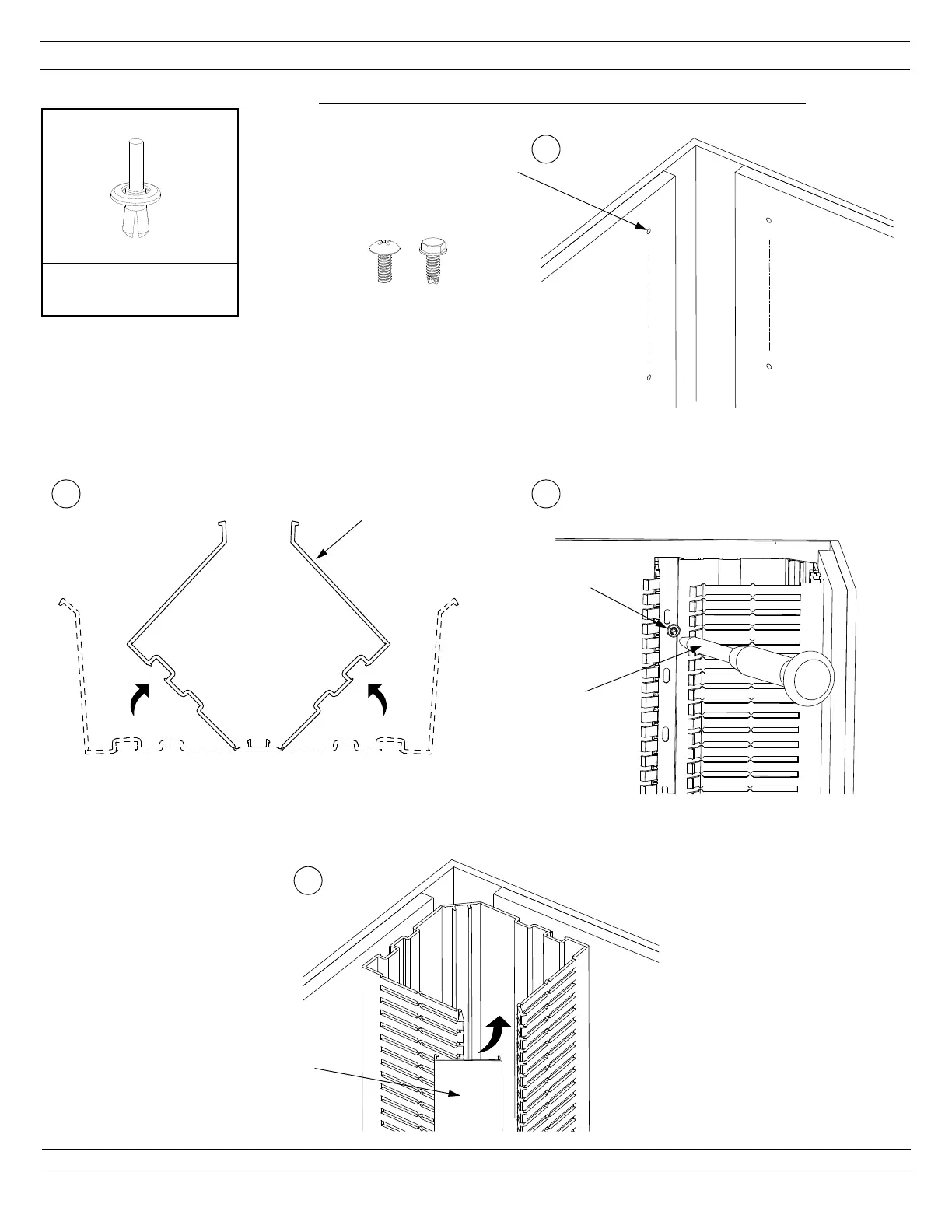

Option 2 - Panduct Nylon Rivets or Standard Fasteners

CWD2**6

CWD3**6

-or-

CWD4**6

NR1-C

(sold separately)

Refer to chart on page 4 for

mounting hole locations

Page 2 of 4

TNR

(sold separately)

NR1-C

(Install on both

sides of duct)

Note: #10-32 x 1/2" (or sheet metal

screw equivalent) to be supplied by

the installer/end user

C2**6

(sold separately)
