CT-2500CH, CT-2300, UP14ZLW Tools;

CD-525, CD-550, CD-570 and CD-090 Dies

PA25711A01

Rev. 06 11-23

CRIMPING HEAD and CRIMP DIE INSERT INSTALLATION INSTRUCTIONS

CT-2500CH

(shown without

Crimp Die Inserts)

CRIMPING HEAD REMOVAL / INSTALLATION

• Pull out the pins and remove crimp head for

mounting different crimping die inserts into the

crimp head. Once die inserts have been installed,

reinsert the crimp head and lock the head with

the locating pins (see Step 1) paying attention

that the pins are locked securely before starting.

• The crimping cycle is terminated when the dies

are completely closed and the maximum crimping

force is reached, which is indicated by the auto

retraction of the piston.

• Follow the instructions for installing crimp die

inserts below. The directional callouts indicate die

position for correct die orientation.

Refer to CT-2500, CT-2500/E (PA25346A01);

CT-2500/L or CT-2500/LE (PA28113A01) Operation

Manual for complete tool and crimping head

instructions.

NOTE: DIE MOUNTING ORIENTATION IS SAME FOR CT-2500CH, CT-2300 and UP14ZLW TOOLS.

CD-525

CD-550

CD-570

CD-090

Crimping Die for

installing the following

Panduit products:

#26 – #22 AWG insulated

terminals and splices,

#22 – #10 AWG fully insulated

disconnects, insulated parallel

splices; and specific #22 – #14

AWG barrel insulated

disconnects.

Crimping Die for installing

the following Panduit

products:

#22 – #10 AWG insulated

terminals and splices; and

specific insulated disconnects.

Crimping Die for installing

most of the following Panduit

products:

#22 – #10 AWG and 0,5 – 6,0 mm

non-insulated terminals,

disconnects; and specific non-

insulated splices.

Orient part seam on bottom half of

die opposite of indentor.

Crimping Die with square

profile for installing the

following Panduit products:

#26 – #10 AWG insulated and

non-insulated single wire ferrules;

and #22 - #12 AWG insulated twin

ferrules.

CRIMPING DIE INSERT INSTALLATION

Step 1: Align Crimp Die halves as shown.

• Crimp tabs should be centered on crimp pockets

• Color dot die halves should nest together when properly aligned. Crimp die

part numbers should be on top and in front (as shown above).

NOTE: CD-570 crimp die part number should be on bottom and in front

(as shown in view to the right). [Continued on Page 2]

E-mail:

techsupport@panduit.com

EU Website:

www.panduit.com/emea

EU Email:

emeatoolservicecenter

@panduit.com

www.panduit.com

Technical Support:

1-800-777-3300

Panduit Europe

EMEA Service Center

Almelo, Netherlands

Tel: +31-546-580-452

Fax: +31-546-580-441

INSTALLATION

INSTRUCTIONS

CT-2500CH, CT-2300, UP14ZLW Tools;

CD-525, CD-550, CD-570 & CD-090 Dies

Page: 2 of 2

NOTE: POSITION RED/BLUE

POCKET INDICATORS

FACING

AWAY FROM THE TOOL, AS

SHOWN IN THE PHOTO

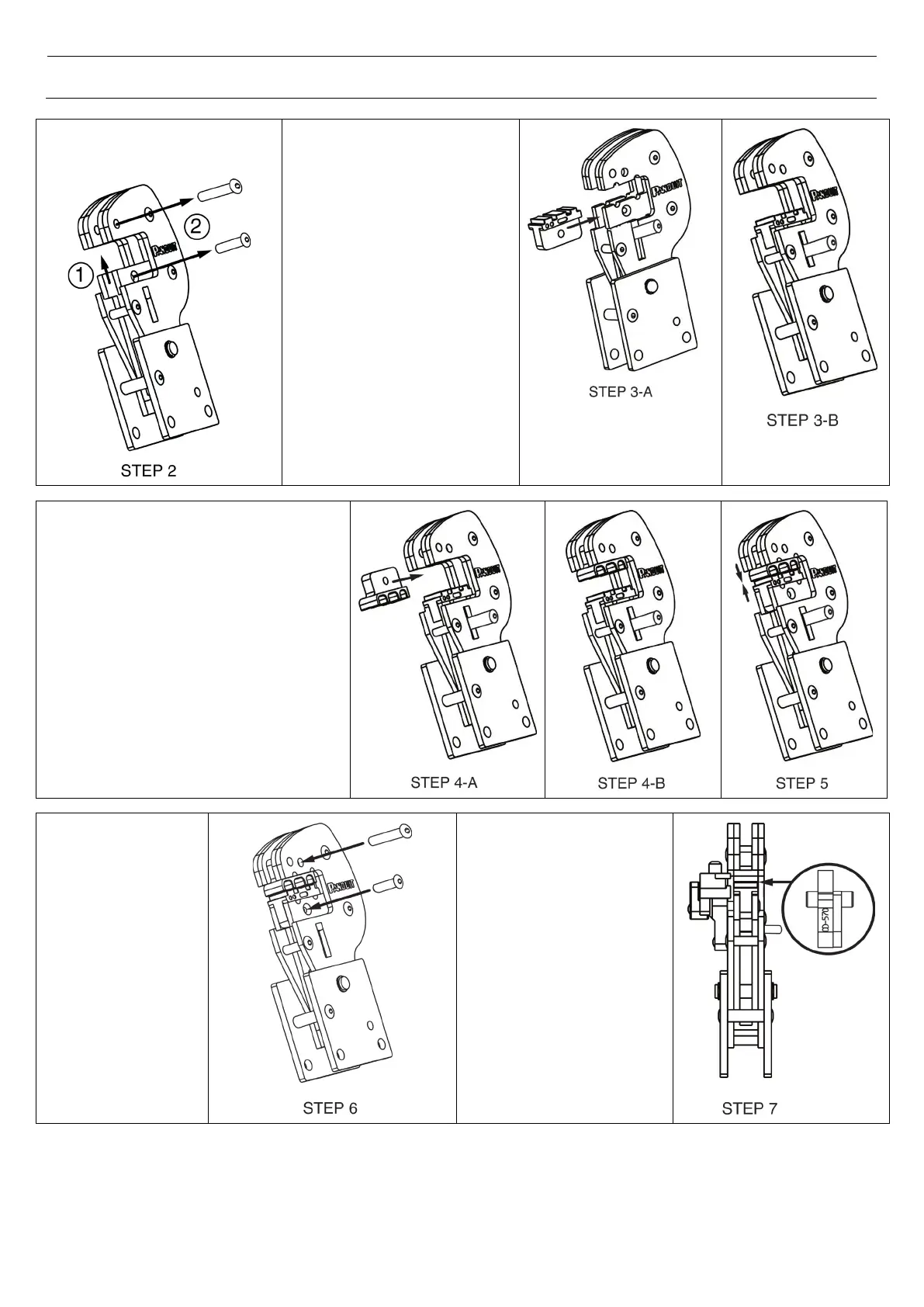

Step 2: Slide Lower Jaw

upward. Remove two (2)

screws as shown.

Step 3: Insert lower half

of Crimp Die Insert into

tool.

Insert should be fully seated

between plates. If insert has

pins, pins should be nested in

indent cavities.

Screw hole in crimp die (insert

should align with hole in jaw)

Pull lower jaw back down

Step 4: Insert upper half of Crimp Die

Insert into tool.

Part numbers should be facing forward.

Insert should be fully seated between

plates.

If Insert has pins, pins should be

nested in indent cavities.

Screw hole in Die Insert should align with

hole in jaw.

Step 5: Bring lower jaw up to mate with

upper jaw.

The two (2) Crimp Die Insert halves should

properly nest as shown on previous page.

Step 6: Insert the

two (2) screws into

the jaws and

tighten.

The longer screw is

used in the upper

jaw.

Step 7: Die halves should

align front and back; and

side-to-side.

Re-insert Crimp Head with newly installed Crimp Die Inserts into the tool per the instructions on Page 1.

Monthly Maintenance

1. Thoroughly clean all surfaces.

2. Oil the locating pins.
