For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 1 of 2

INSTALLATION INSTRUCTIONS

FS037A

Page 1 of 2

Panduit QuickNet MPO Fiber Optic Cassettes are designed to reduce the installation time and effort associated with

connecting a fiber optic network, as well as, improve overall network reliability through factory tested terminations. These

cassettes are compatible with the Panduit Opticom product line and can be selected with LC or SC connectors for the front

ports and an MPO connector for the rear port.

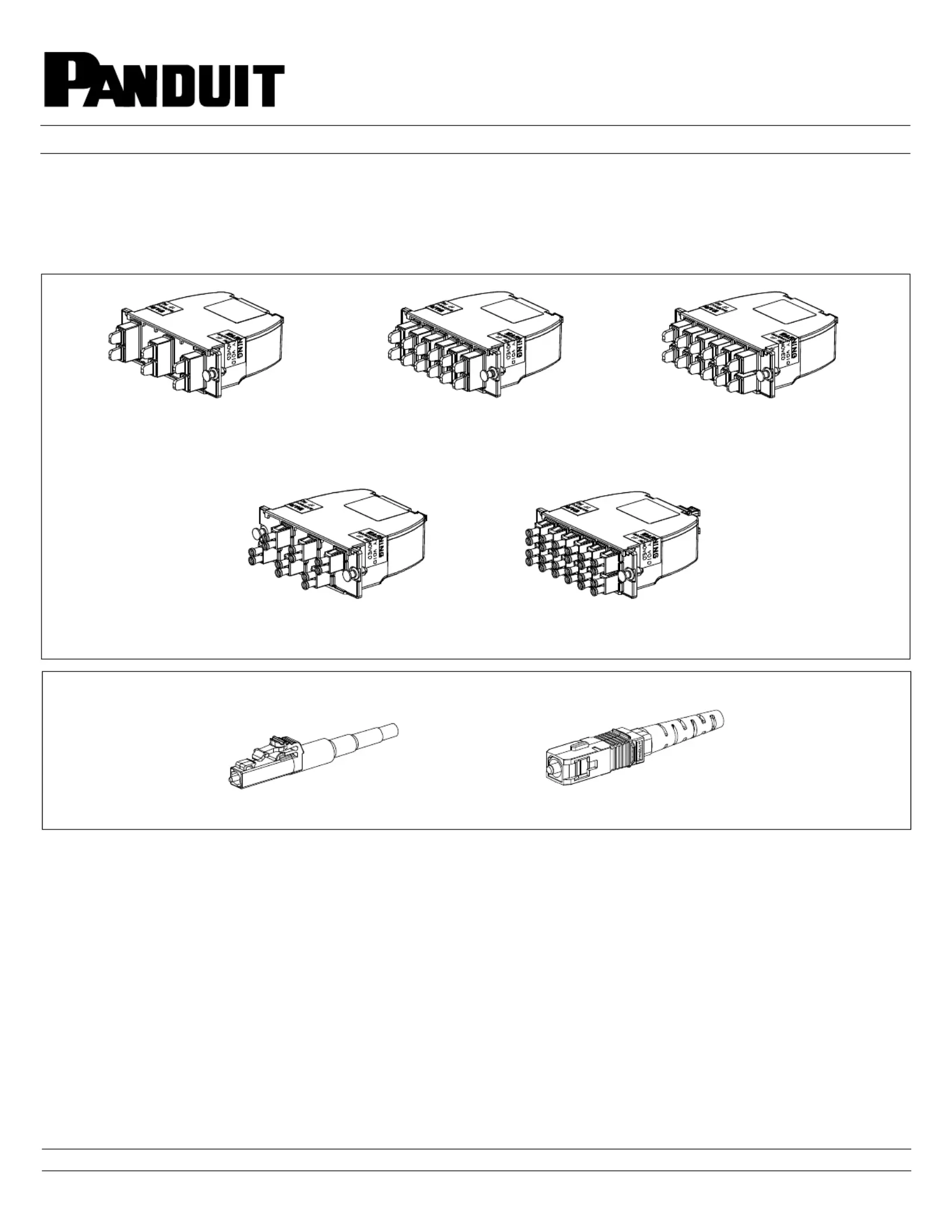

1.0 Component Identification

2.0 Precautions

2.1 It is strongly recommended that safety glasses be worn when handling bare optical fiber. Bare optical fiber is very sharp

and can easily damage the eye.

2.2 Pick up and discard all pieces of bare fiber with sticky tabs. Do not let cut pieces of fiber stick to clothing or drop in the

work area where they are hard to see and can cause injury.

2.3 Laser light is invisible. The invisible light is powerful enough to damage your eyes. Serious damage to the retina of the

eye is possible. Never look into the end of a fiber that may have a laser coupled into it. Should accidental eye exposure

to laser light be suspected, arrange for an eye examination immediately.

2.4 Excessive pulling, twisting, crushing, or bending stresses can damage fiber optic cable. Any damage may result in

decreased optical performance.

2.5 Use dry swab (Panduit part number FSWB-C) to clean the inside of the fiber adapters and the ferrule face of the internal

connectors. Insert and rotate the swab until it contacts the ferrule face. Repeat as needed.

2.6 Should internal connectors require a more thorough cleaning, consult Panduit.

Connector Selection

LC Connector

FC2**-06-03AS

FC2**-06-03AF

SC Connector

QuickNet MPO Fiber Optic Cassettes

For use with Panduit Pan-Net Opticom Network Cabling System

FC2**-12-03AS

FC2**-12-03AF

FC2**-12-3SAS

FC2**-12-10AS

FC2**-12-10AF

FC2**-24-10AS

FC2**-24-10AF

** Fourth position asterisk denotes fiber type, fifth position asterisk denotes fiber performance.

E-mail:

techsupport@panduit.com

Phone:

866-405-6654

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

Page 2 of 2

INSTALLATION INSTRUCTIONS

FS037A

www.panduit.com

Page 2 of 2

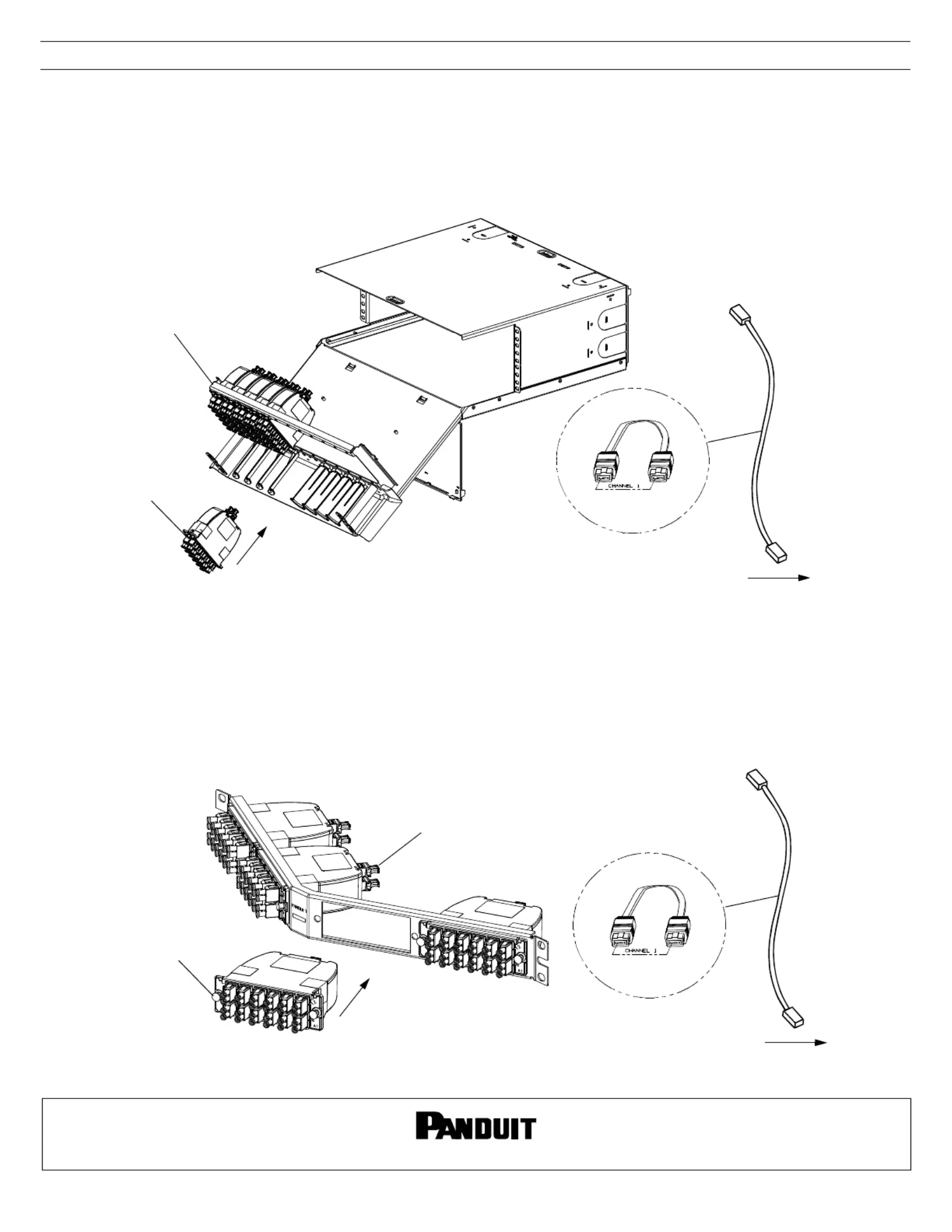

3.1 Insert the QuickNet MPO cassette through the cassette mounting bracket and secure by locking the plastic rivets.

3.2 Feed one end of the MPO/MTP* patch cord though the desired grommet location and connect to the rear MPO adapter

of the cassette.

3.3 Route and connect the free end of the MPO/MTP* patch cord to the appropriate equipment.

3.0 Cassette Installation for Opticom Enclosures

Cassette Mounting

Bracket

* MTP is a registered trademark of US Conec Ltd.

4.1 Insert the QuickNet MPO cassette through the panel opening and secure by locking the plastic rivets.

4.2 Connect the MPO/MTP* patch cord to the rear MPO adapter of the cassette.

4.3 Route and connect the free end of the MPO/MTP* patch cord to the appropriate equipment.

4.0 Cassette Installation for Opticom Patch Panels

MPO Cassette

To Equipment

MPO/MTP*

Patch Cord

MPO Adapter

To Equipment

MPO/MTP*

Patch Cord

Plastic Rivets

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	FC2XN-24-10AS
Bredde:	109 mm
Dybde:	125 mm
Højde:	35 mm
Produktfarve:	Black, Turquoise
Certificering:	RoHS
Porte, antal:	24
