8. Depress the green lever a few times and verify that the cleaning tape is advancing properly.

PN433A

Page 1 of 4

For Technical Support: www.panduit.com/resources/install_maintain.asp

OPERATING INSTRUCTIONS

PN433AOPERATING INSTRUCTIONS

Page 4 of 4

E-mail:

cs@panduit.com

Fax:

(708) 444-6993

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

www.panduit.com

MTP* Cleaning Tools

Part Numbers: FMTPFCT, FMTPMFCT, FIBCCT, FMTPRR6

READ ALL INSTRUCTIONS COMPLETELY BEFORE PROCEEDING

TABLE OF CONTENTS Page(s)

Safety Precautions.................................................................................................... 2

Important Connector Cleaning Information............................................................... 2

FMTPFCT Instructions - Cleaning Female MTP* Connectors.................................. 2

FMTPMFCT Instructions - Cleaning Male MTP* Connectors................................... 3

FIBCCT Instructions - Cleaning Q

UICKNET Cassette MTP* Connectors................... 3

FMTPRR6 Instructions - Replacing FMTPFCT and FMTPMFCT Cleaning Reel.... 4

*MTP is a registered trademark of US Conec Ltd.

FMTPFCT FMTPMFCT

FIBCCT FMTPRR6

(Contains 6 reels)

MTP* Female Fiber Cleaning Tool MTP* Male Fiber Cleaning Tool

UICKNET Cassette MTP* Cleaning Tool Cleaning Reel Refill for FMTPFCT and FMTPMFCT

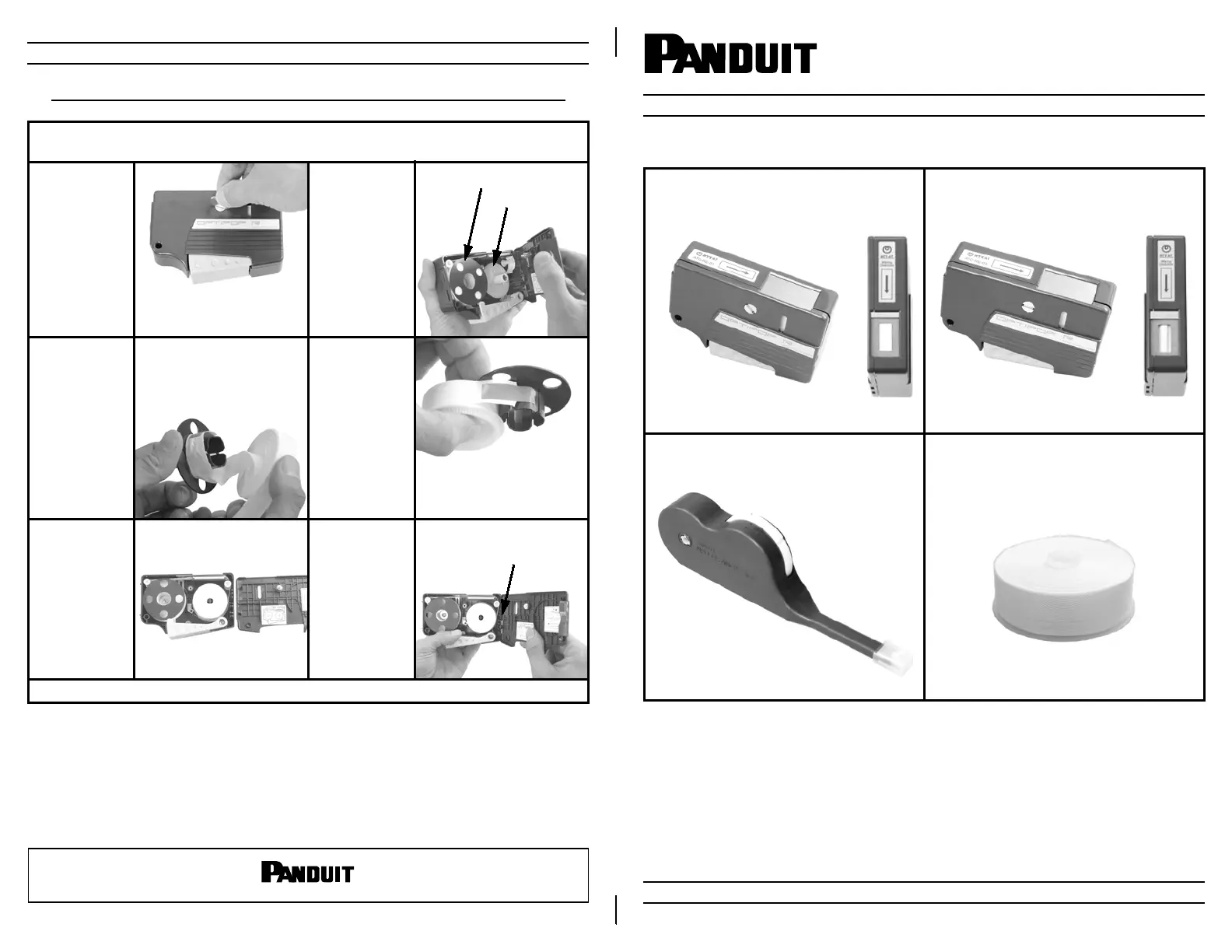

FMTPRR6 - Replacing FMTPFCT and FMTPMFCT Cleaning Reel

1. The cleaning reel should only be replaced in a clean and dust free environment. A contaminated cleaning

reel may cause damage to fibers.

2. Use a coin or

screwdriver to

loosen the screw

located on the

front of the

FMTPFCT or

FMTPMFCT

Fiber Cleaning

Tools.

3. Open and

remove the

cover using the

finger grip on

the side of the

tool.

4. Remove the

cleaning reel and

winding reel by

lifting them

straight out of the

tool. Remove the

cleaning tape

from the winding

reel. Do not

discard the blue

winding reel.

5. Place the empty

winding reel

next to the new

cleaning reel as

shown. Detach

the adhesive

tape from the

cleaning reel

and attach to the

winding reel.

6. Place the winding

reel and the

cleaning reel into

the tool and route

the cleaning tape

as shown on the

diagram located

on the tool cover.

7. Hook the cover

on the tool body

and swing the

cover closed.

Tighten the

screw.

*MTP is a registered trademark of US Conec Ltd.

Winding Reel

Cleaning Reel

Hooks

3. Insert the cleaning tool tip into the MTP* adapter as

shown.

NOTE: The FIBCCT Q

UICKNET Cassette MTP*

Cleaning Tool is keyed the same as a MTP* connector.

Insert the cleaning tool tip into the Q

UICKNET MTP*

adapter with the key of the cleaning tool tip matching

the keyway of the adapter.

4. Rotate the tape feeder wheel in the direction indicated

on the cleaning tool.

5. Remove the cleaning tool from the Q

UICKNET Cassette

MTP* adapter.

6. Repeat steps 3, 4 and 5 to ensure that any

contamination is removed. Replace the dust cap onto

the cleaning tool.

7. Clean the external connector as described in the

sections above.

8. Reinstall the external connector into the Q

UICKNET

Cassette MTP* adapter.

1. Grip the FMTPFCT, depressing the green lever of the

cleaning tool. The metal shutter on top of the cleaning

tool will open, exposing fresh cleaning material. Fresh

material is exposed each time the green lever is

depressed.

2. Position the female MTP* ferrule endface so that the

fiber tips are in contact with the cleaning material.

Wipe the ferrule endface along the cleaning material in

the direction shown on the cleaning tool.

3. Release the green lever of the cassette to cover the

cleaning material.

4. Repeat steps 1, 2 and 3 to ensure that any

contamination is removed.

PN433A PN433AOPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS

Page 3 of 4

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 2 of 4

For Technical Support: www.panduit.com/resources/install_maintain.asp

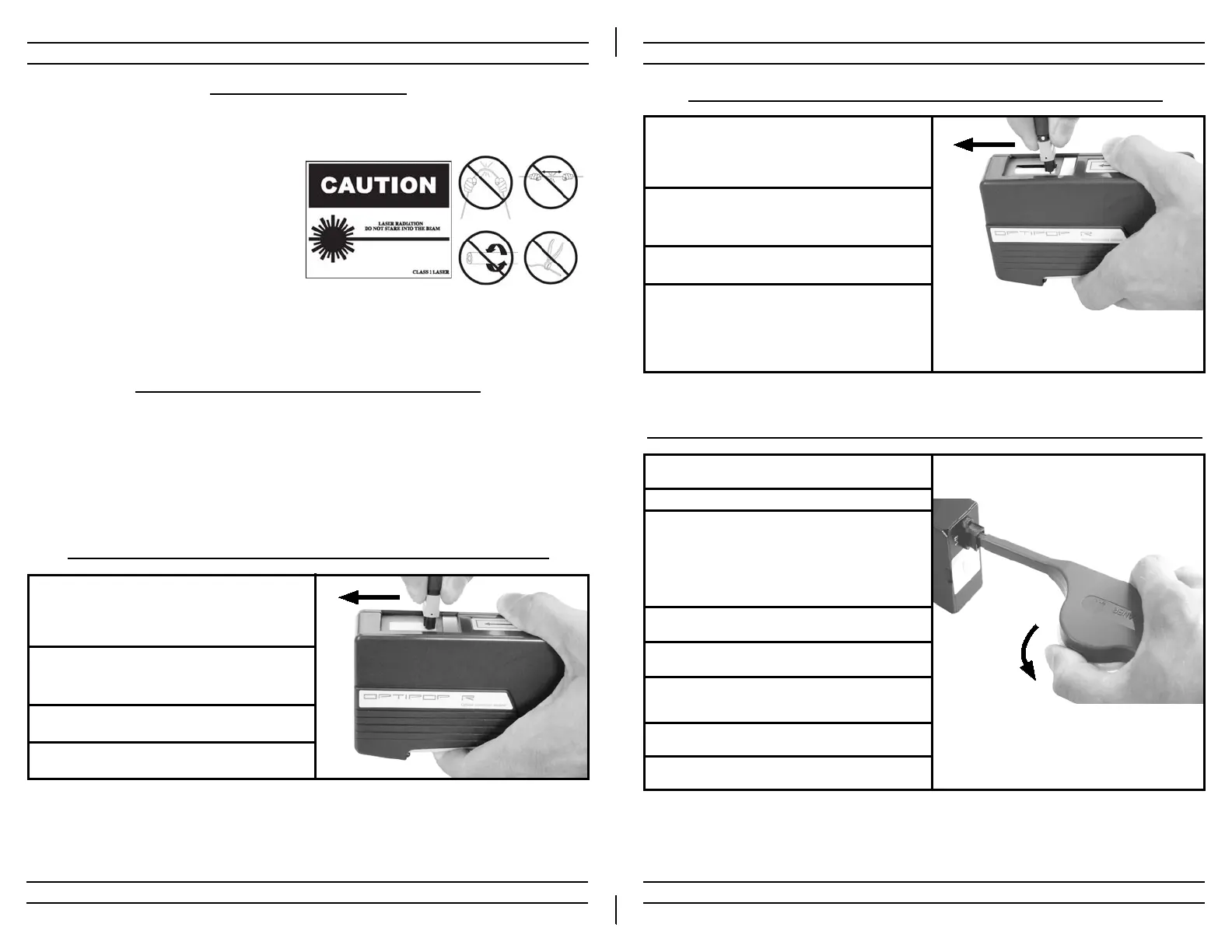

SAFETY PRECAUTIONS

FMTPMFCT Instructions - Cleaning Male MTP* Connectors

1. LASER LIGHT PROTECTION

WARNING: LASER LIGHT IS INVISIBLE. THE INVISIBLE

LIGHT IS POWERFUL ENOUGH TO DAMAGE YOUR

EYES. SERIOUS DAMAGE TO THE RETINA OF THE EYE

IS POSSIBLE. NEVER LOOK INTO THE END OF A FIBER

THAT MAY HAVE A LASER COUPLED INTO IT. SHOULD

ACCIDENTAL EYE EXPOSURE TO LASER LIGHT BE

SUSPECTED, ARRANGE FOR AN EYE EXAMINATION

IMMEDIATELY.

2. CABLE HANDLING

WARNING: FIBER OPTIC CABLE CAN BE DAMAGED

BY EXCESSIVE PULLING, TWISTING, CRUSHING OR

BENDING STRESSES. CONSULT THE APPROPRIATE

SPECIFICATION SHEETS AS PROVIDED BY YOUR

CABLE VENDOR. ANY DAMAGE MAY DECREASE

OPTICAL PERFORMANCE.

Important Connector Cleaning Information

Clean all connectors prior to connection. Just like single fiber connectors, all multi-fiber connectors must be

properly cleaned prior to connection to ensure optimum optical performance is achieved. Although interconnect

cords and cable assemblies are shipped from the factory pre-cleaned and protected with a dust cover, the user

should never assume the ferrule or connector has not been contaminated. A contaminated endface may not meet

system insertion loss and reflectance requirements or may cause permanent damage to the fiber(s) when mated

to another connector. Therefore, it is recommended that each ferrule endface or tip be cleaned using this

procedure prior to connection.

FMTPFCT Instructions - Cleaning Female MTP* Connectors

*MTP is a registered trademark of US Conec Ltd. *MTP is a registered trademark of US Conec Ltd.

1. Grip the FMTPMFCT, depressing the green lever of

the cleaning tool. The metal shutter on top of the

cleaning tool will open, exposing fresh cleaning

material. Fresh material is exposed each time the

green lever is depressed.

2. Position the male MTP* ferrule endface so that the

fiber tips are in contact with the cleaning material.

Wipe the ferrule endface along the cleaning material in

the direction shown on the cleaning tool.

3. Release the green lever of the cassette to cover the

cleaning material.

4. Repeat steps 1, 2 and 3 to ensure that any

contamination is removed.

NOTE: The FMTPMFCT MTP* Male Fiber Cleaning

Tool is designed to provide clearance for the

connector's guide pins allowing the fiber tips to contact

the cleaning material.

FIBCCT Instructions - Cleaning QuickNet Cassette MTP* Connectors

1. Remove the external connector or dust cover from the

UICKNET Cassette MTP* adapter.

2. Remove the dust cap from the FIBCCT.
