© Panduit Corp. 2008
For Worldwide Subsidiaries
and Sales Offices visit
Web Site: www.panduit.com

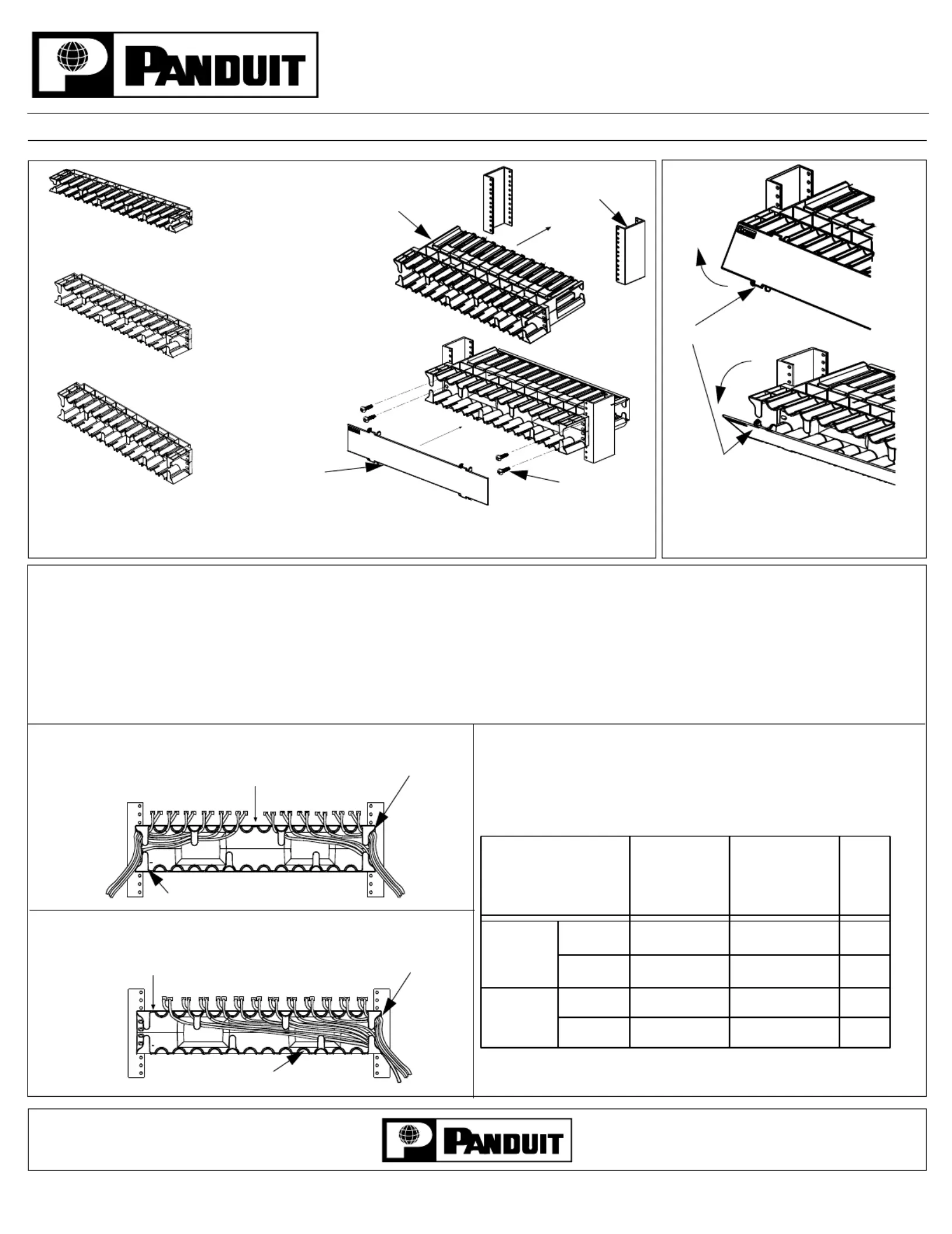

INSTRUCTIONS CM223B
Technical Support Phone: 866-405-6654
Fax: 708-444-6993
E-mail: ncginfo@panduit.com
Horizontal Network Cable Managers
Part Numbers: NCMH2, NCMHF2, NCMHF1
MANAGER
UTP Cable
.187 Dia
SeTP Cable
.250 Dia
Fiber
3mm
Method 1
Method 1
Method 2
Method 2
NCMH2/
NCMHF2
NCMHF1
96
72
48
24
72
48
32
16
312
192
144
72
Tabs
The network cable manager is recommended for use with Panduit 24 or 48 port patch panels mounted above and below the manager. When
routing the cables for the patch panels, either of the following two methods are recommended to help maintain cable bend radius.
METHOD 1: For each row of 24 ports, place two cables in each slot on the manager, leaving the middle slot empty. Route half the cables
through each of the wire retainers on the ends of the manager.
METHOD 2: If the cables are coming from one side of the rack, place 2 cables in each of the slots on the manager, leaving the last slot
empty.
NOTE: When using the NCMH2 to manage cables on the rear of the rack, place 2 cables in each of the 12 slots in the rear of the manager,
for each row of 24 ports.
Empty Slot
Empty Slot
Wire Retainer
Wire
Retainer
METHOD 1
METHOD 2
12-24x1
Screws
CABLE CAPACITY
Finger
Finger
NCMH2
Cover
Install the managers to the rack with the 12-24x1 screws provided. Install the Front Cover to the
manager by positioning it flat against the front of the manager and pushing to snap in place
.
NCMHF2
NCMHF1
19 Rack
The hinged cover opens from the top or
the bottom. Pull both tabs to open and
close cover
.
NCMH2


Produkt Specifikationer

Mærke: Panduit
Kategori: Ikke kategoriseret
Model: NCMH2
Bredde: 483 mm
Dybde: 248 mm
Højde: 88 mm
Produktfarve: Sort
Stativ-montering: Ja
Størrelse: 19 "
