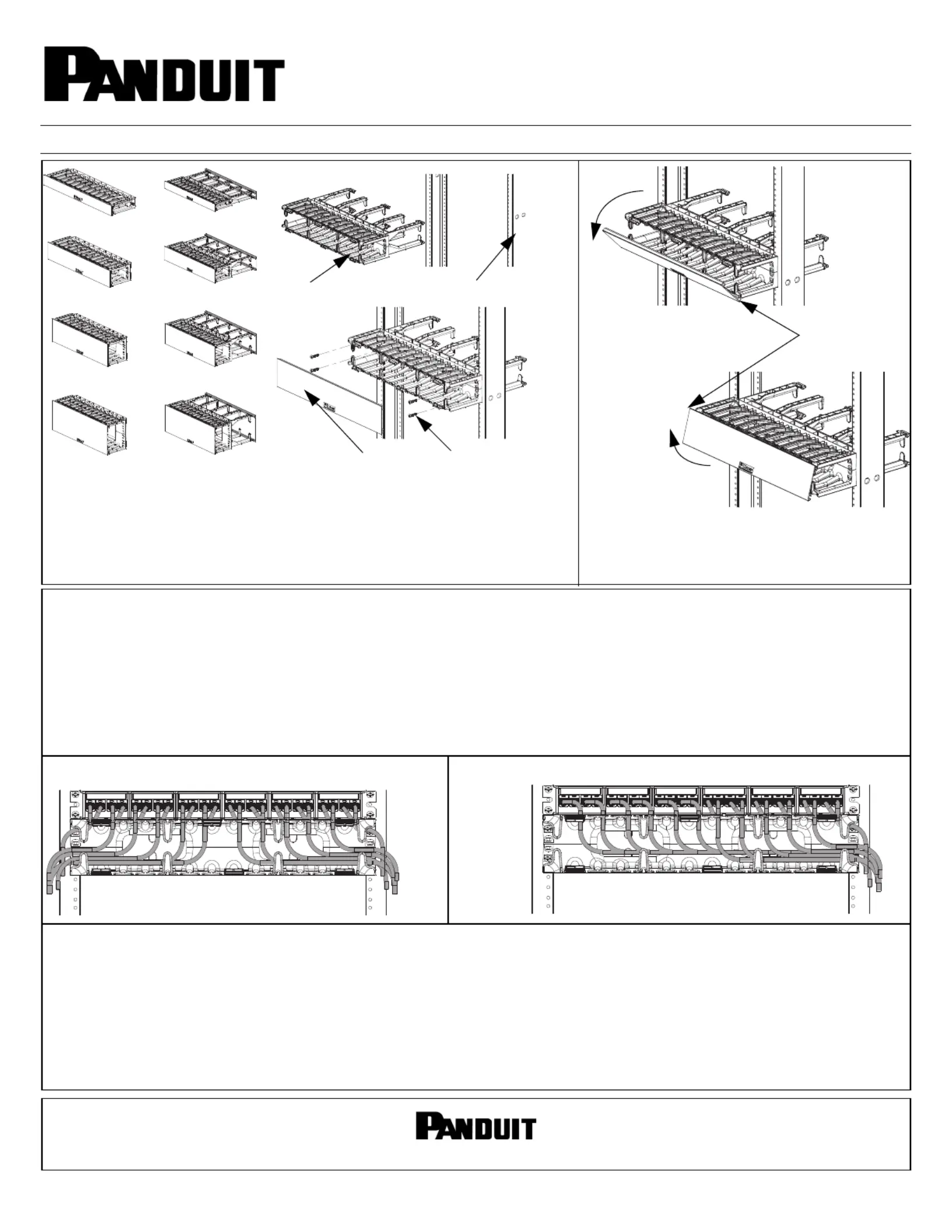

INSTALLATION INSTRUCTIONS

E-mail:

techsupport@panduit.com

Phone:

866-405-6654

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

Page 1 of 1

www.panduit.com

CM334A

NM1

NMF1

NMF2

NMF3

NMF4

NM2

NM3

NM4

Install the managers to the rack with 12-24x1 screws provided. Install the Covers

to the manager by positioning it flat against the front/rear of the manager and

pushing to snap in place.

Note: The recommended assembly torque shall be 9+/- in-lb. for #12-24 screws.

The hinged cover opens from the top or

the bottom. Pull flanges to open and

push cover to close.

Flange

Screws

Cover

19” Rack

NM2 (Shown)

The cable manager is recommended for use with Panduit 24 or 48 port patch panels mounted above and below the manager. N MET ANAGER

When routing the cables for the patch panels, either of the following two methods are recommended to help maintain cable bend radius.

METHOD 1:For each row of 24 ports, place two cables in each slot on the manager.

Route half the cables through each of the ends of the manager.

METHOD 2: If the cables are coming from one side of the rack, place 2 cables in each of the slots on the manager.

NOTE: When using front and back to manage cables on the rear of the rack, place 6 cables in each of the 4 slots in the N MET ANAGERS

rear of the manager, for each row of 24 ports.

Method 1

Method 2

Part Numbers: NM1,NMF1,NM2,NMF2,NM3,NMF3, NM4,NMF4

N MET ANAGER Network Cable Managers

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	NM2
Bredde:	482 mm
Dybde:	332 mm
Højde:	88 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Bæredygtighedscertifikater:	RoHS
Rackkapacitet:	2U
