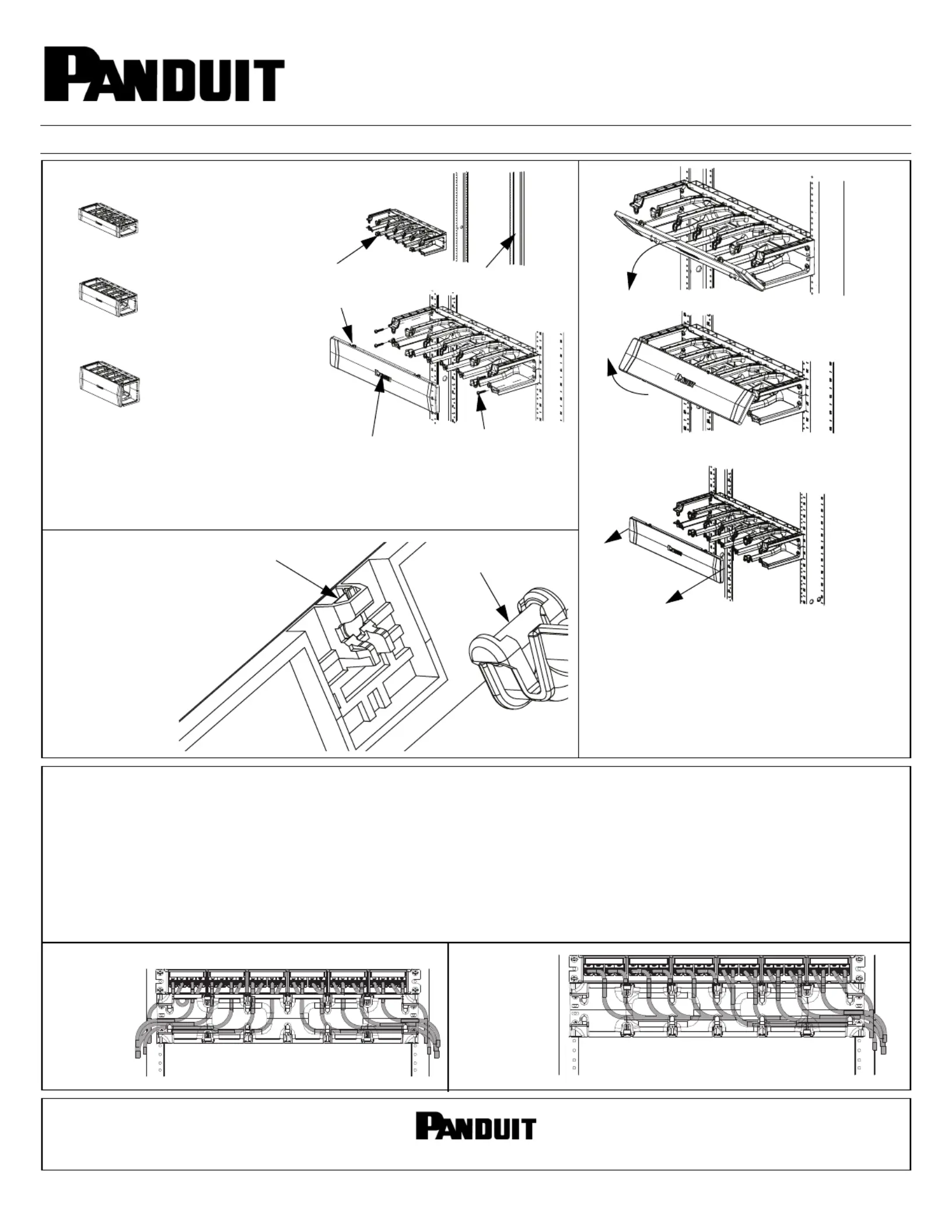

INSTALLATION INSTRUCTIONS

E-mail:

techsupport@panduit.com

Phone:

866-405-6654

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

Page 1 of 1

www.panduit.com

V00029SW

PR2HF2(WH)

PR2HF3(WH)

Install the managers to the rack with #12-24x1” screws provided. Install the cover to

the manager by positioning the magnetic latches near the hinge pins of the manager.

Note: The recommended assembly torque shall be 9.0+/-1 in-lb. for #12-24 screws.

To open the cover downwards, pull out

and down on the middle of the cover

top. To open cover upwards, pull out

and up on the middle of the cover bot-

tom. To remove the cover completely,

pull straight out on both ends of the

cover simultaneously.

Screws

Cover

19” Rack

PR2HF2 (Shown)

The cable manager is recommended for use with Panduit 24 or 48 port high density patch panels and/or switches mountedP 2ATCHRUNNER

above and below the manager.

When routing the cables from a patch panel or switch, either of the following two methods are recommended to help maintain the cable

bend radius.

METHOD 1:For each row of 24 ports, place cables in groups of four between the fingers. Route half the cables through each end of the

manager.

METHOD 2: For each row of 24 ports, place cables in groups of four between the fingers. Route all the cables through one end of the

manager.

Method 1

Method 2

Part Numbers: PR2HF2, PR2HF2WH, PR2HF3, PR2HF3WH, PR2HF4, PR2HF4WH

P 2ATCHRUNNER Horizontal Cable Managers

PR2HF4(WH)

Close up of

Magnetic Latch

and Hinge Pin

(4) Places

Hinge Pin

Magnetic

Latch

Magnetic Latch

(4) Places

See Image

Below

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	PR2HF4
Type:	Lige kabelbakke
Bredde:	484 mm
Dybde:	202 mm
Højde:	179 mm
Produktfarve:	Sort
Formfaktor:	Vandret
Antal:	1
Materiale:	Acrylonitrilbutadienstyren
Bæredygtighedscertifikater:	RoHS
