Side 1/6

PRODUCT SPECIFICATION camera solutions

C4021 / REVISED 2-23-17

International Standards

Organization Registered Firm;

ISO 9001 Quality System

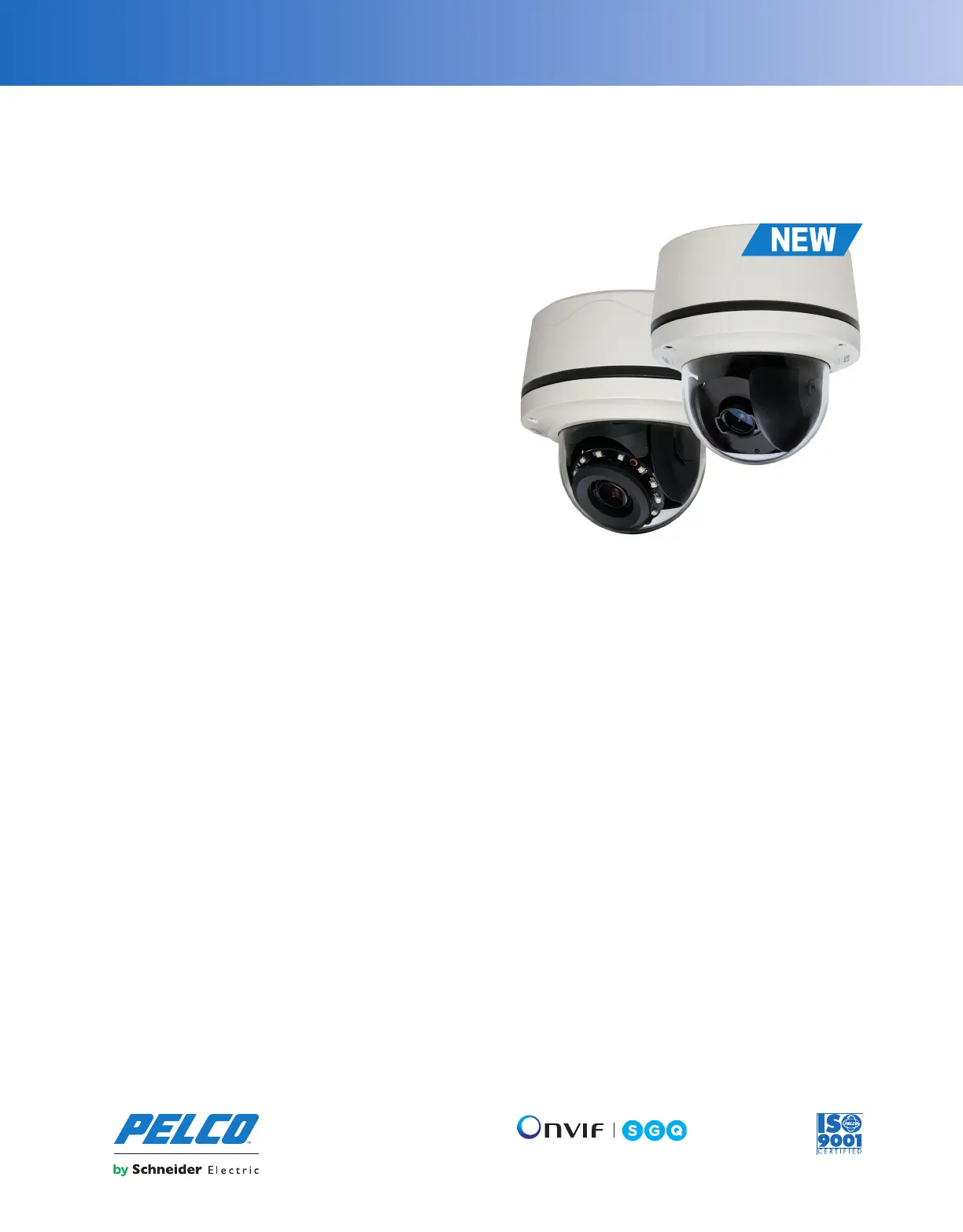

Sarix® IMP Indoor and Environmental Mini Domes

UP TO 5 MEGAPIXEL, H.264, IR, DAY/NIGHT IP DOMES

Product Features

•Up to 5 megapixel (MPx) resolution

•Up to 30 images per second (ips) at 3 MPx

•Autofocus motorized remote zoom lens

•Integrated adaptive IR illumination (environmental IR models)

•Operating temperature up to 55°C (131°F)

•Up to 64 GB edge storage with Micro SD card

•Motion detection and camera sabotage detection

•Power over Ethernet (PoE+) Class 4, 24 VAC (environmental models),

PoE, Class 3, 24 VAC, 12 VDC (indoor models)

•Pelco Smart Compression Technology

•All models vandal resistant to IK10

•Compatible with Pelco and third-party video systems

•ONVIF Profile S, Profile G, and Profile Q conformant

•Full 3-year warranty and support

Sarix Professional Range

Powerful, versatile, and affordable, the Sarix® Professional (P)

range cameras pack the most popular features and functionality of

Sarix technology into a wide range of indoor and outdoor options,

including bullet cameras and mini domes. There are also indoor-only

options such as a vandal resistant wedge and micro dome. Mix and

match the performance options and form factor you need for almost

any lighting condition, environment, and application.

Camera

Within the Sarix Professional range, the Sarix IMP Series mini

dome cameras feature a remote zoom lens for wide angle or long

range surveillance needs. Autofocus capability ensures the camera

can be automatically refocused when needed. Additionally, the

Sarix IMP Series features advanced color science and a

mechanical IR cut filter for increased sensitivity in low-light

installations.

Video

Sarix Professional range cameras support up to two simultaneous

video streams and a third service stream. The two streams can be

compressed with efficient H.264 High or Main profiles or MJPEG

formats. The streams can be configured to a variety of frame rates

and variable bit rates to optimize image quality with bandwidth and

storage efficiency.

Edge Storage

Sarix Professional range cameras feature onboard edge storage

with a micro SD card. Video clips of varying lengths can be stored to

the card upon alarm, or video can be written continuously to the

SD card in the case of network outage. Video can be retrieved from

the card through the FTP protocol or by using an ONVIF Profile G

enabled client.

Sarix Professional range cameras feature a simple motion

detection algorithm that allows the camera to record or send an

alarm when there is motion detected in a selected zone or within the

entire scene. A camera sabotage alarm is triggered if the lens is

obstructed or when the camera is repositioned.

Open and Integrated

Sarix Professional range cameras seamlessly connect to Pelco

video management systems such as VideoXpert™, Endura® version

2.0 (or later), and Digital Sentry® version 7.3 (or later). Sarix

Professional range cameras integrate with major third-party

systems through the open Pelco API or the ONVIF Profile S, Profile G,

and Profile Q standards.

Standard Web Interface

Pelco cameras use a standard Web browser interface for easy

remote setup and administration. Controls are optimized for

convenient one-step camera configuration for features including

color, exposure, flicker control, and streaming.

TECHNICAL SPECIFICATIONS

BACK BOX FEATURES

VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.

Indoor Surface Mount

• Plastic body and trim ring; polycarbonate bubble

• White, RAL 9003

• IK10 (20J) Impact Resistance

• PoE, Class 3, 24 VAC, 12 VDC

Environmental Surface Mount

• Aluminum body and trim ring; polycarbonate bubble

• RAL 7047

• IP66 Ingress Protection

• Type 4X

• IK10 (20J) Impact Resistance

• 24 VAC and PoE+ Class 4 only

13.70

(5.39)

13.97

(5.50)

7.60

(2.99)

13.70

(5.39)

13.97

(5.50)

7.60

(2.99)

14.00 (5.51)

3.50

(1.38)

4.60

(1.81)

8.30

(3.27)

18.00 (7.09)

0.30

(0.12)

12.00

(4.72)

M4M4

M3M3

19.80 (7.80)

0.73

(0.29)

6.63

(2.61)

4.60

(1.81)

8.80 (3.46)

6.85

(2.70)

8.30 (3.27)

15.00

(5.91)

Ø 22.20

(8.74)

1-1/2” NPT

9.85

(3.88)

7.80

(3.07)

Ø 14.70

(5.79)

IMPPMB-1I WALL MOUNT BRACKET

IMPPM-1I AND IMPPM-1ER PENDANT ADAPTERIMPICM-1I AND IMPICM-1ER IN-CEILING MOUNT
