Philips 32BDL4511D Manual

Philips Skærm 32BDL4511D

Læs gratis den danske manual til Philips 32BDL4511D (47 sider) i kategorien Skærm. Denne vejledning er vurderet som hjælpsom af 4 personer og har en gennemsnitlig bedømmelse på 4.6 stjerner ud af 2.5 anmeldelser. Har du et spørgsmål om Philips 32BDL4511D, eller vil du spørge andre brugere om produktet?

Download PDF

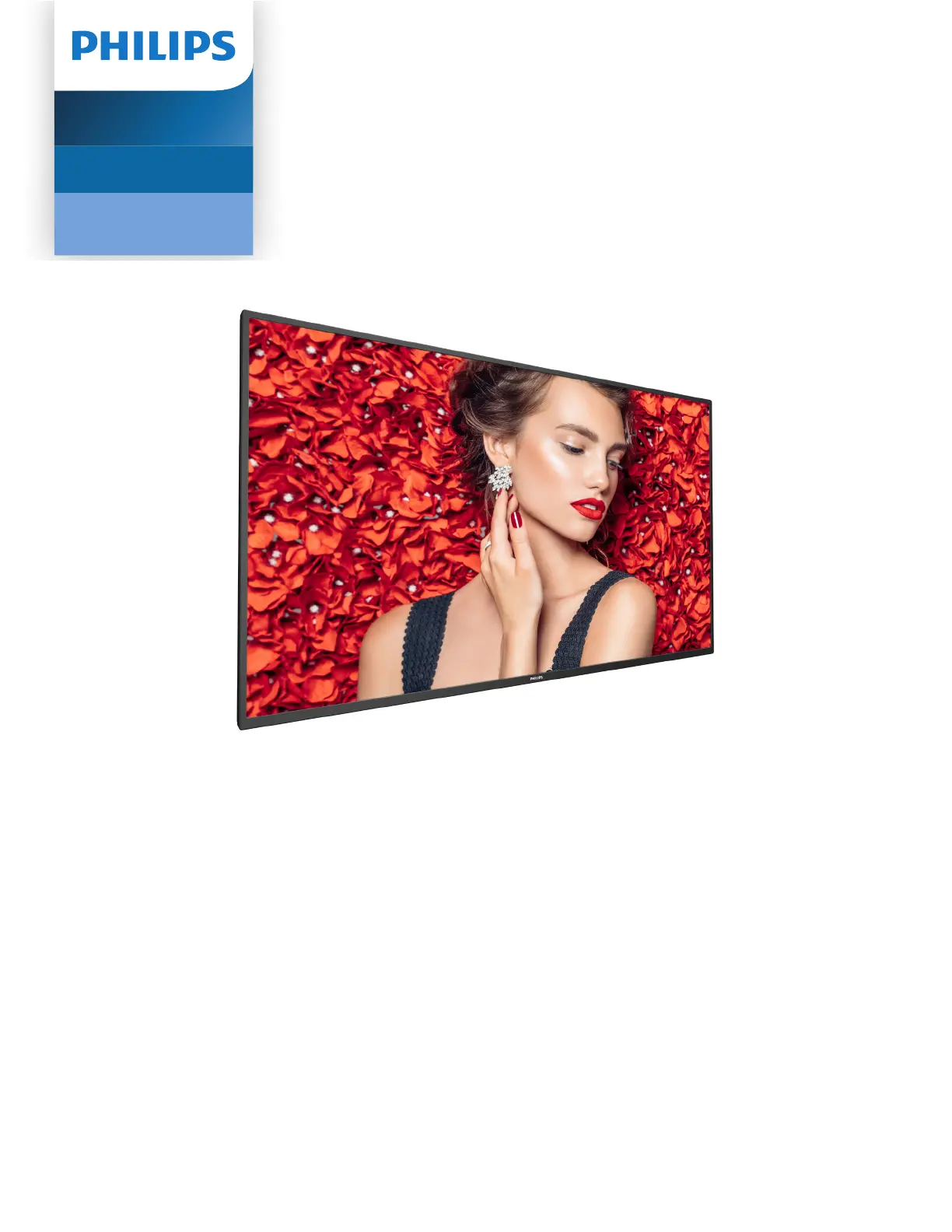

Side 1/47

Professional

Display Solutions

D Line

32BDL4511D

User Manual (English)

www.philips.com/welcome

32BDL4511D

Table Of Contents

1. Safety Instructions ......................................................... 1

2. Unpacking and Installation .......................................10

2.1. Unpacking ..........................................................10

2.2. Package Contents .............................................12

2.3. Installation Notes .............................................12

2.4. Mounting on a Wall ........................................13

2.4.1. VESA Grid .............................................13

2.5. Mounting in Portrait Orientation ...............14

2.5.1. How to remove the logo .................. 14

3. Parts and Functions .....................................................15

3.1. Control Panel ..................................................... 15

3.2. Input/Output Terminals ................................. 16

3.3. Remote Control.................................................17

3.3.1. General functions ...............................17

3.3.2. ID Remote Control .............................18

3.3.3. Inserting the batteries in the remote

control ...................................................19

3.3.4. Handling the remote control ..........19

3.3.5. Operating range of the remote

control ...................................................19

3.4. Using the remote sensor and power

indicator ..............................................................20

3.5. USB Cover ...........................................................21

4. Connecting External Equipment .............................22

4.1. Connecting External Equipment

(Multimedia Player) .........................................22

4.1.1. Using HDMI video input ...................22

4.2. Connecting a PC ................................................22

4.2.1. Using DVI input ...................................22

4.2.2. Using HDMI input ..............................22

4.2.3. Using DP input ....................................23

4.3. Connecting Multiple Displays in a Daisy-

chain Conguration ........................................23

4.3.1. Display control connection..............23

4.4. IR connection .....................................................23

4.5. IR Pass-through Connection ..........................24

4.6. Wire-connecting to Network ........................24

5. Operation .......................................................................25

5.1. Play multimedia les from USB device .......25

6. OSD Menu ......................................................................26

6.1. Navigating the OSD Menu ............................26

6.1.1. Navigating the OSD menu using the

remote control .................................... 26

6.1.2. Navigating the OSD menu using the

display’s control buttons .................. 26

6.2. OSD Menu Overview .......................................26

6.2.1. Picture menu .......................................26

6.2.2. Screen menu ........................................27

6.2.3. Audio menu ......................................... 28

6.2.4. Conguration1 menu .......................28

6.2.5. Conguration2 menu .......................29

6.2.6. Option menu .......................................30

7. Supported Media Formats .........................................34

8. Input Mode ....................................................................35

9. Pixel Defect Policy ........................................................36

9.1. Pixels and Sub-Pixels ........................................36

9.2. Types of Pixel Defects + Dot Denition ......36

9.3. Bright Dot Defects ............................................36

9.4. Dark Dot Defects ..............................................37

9.5. Proximity of Pixel Defects ..............................37

9.6. Pixel Defect Tolerances ...................................37

9.7. MURA ...................................................................37

10. Cleaning and Troubleshooting ................................38

10.1. Cleaning ..............................................................38

10.2. Troubleshooting ...............................................39

11. Technical Specications ..............................................40

Warranty policy for Philips Professional Display

Solutions .........................................................................42

Index ..........................................................................................44

Produkt Specifikationer

Mærke:	Philips
Kategori:	Skærm
Model:	32BDL4511D
Vekselstrømsindgangsspænding:	100/240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Produktfarve:	Sort
Skærm diagonal:	32 "
Skærmopløsning:	1920 x 1080 pixel
USB-port:	Ja
HD-type:	Fuld HD
Skærmteknologi:	ADS
Skærmens lysstyrke:	400 cd/m²
Responstid:	8 ms
Synsvinkel, horisontal:	178 °
Synsvinkel, vertikal:	178 °
Indbyggede højttaler(e):	Ja
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Udgangseffekt (RMS):	20 W
Antal HDMI-porte:	3
DVI-port:	Ja
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Understøttede videoformater:	H.263, H.264, H.265, MPEG
Understøttede lydformater:	AAC, HE-AAC
VESA montering:	Ja
Panel montering grænseflade:	100 x 100,200 x 200 mm
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	36 W
Driftstemperatur (T-T):	0 - 40 °C
Kabler inkluderet:	AC, DisplayPort, IR sensor, RS-232
Batterier inkluderet:	Ja
Oprindelig opdateringshastighed:	60 Hz
Understøttede billedformater:	BMP, JPG, PNG
Energiforbrug (SDR) pr. 1000 timer:	36 kWh
Fjernbetjening inkluderet:	Ja
Certificering:	CE\nFCC Class A\nCCC\nRestriction of Hazardous Substances (ROHS)\nCB\nBSMI\nEMF\nVCCI\nPSB\nETL\nCECP\nEAC
Energieffektivitetsklasse (SDR):	G
Energieffektivitetsskala:	A til G
Antal indbyggede højttalere:	2
USB version:	2.0
Understøttet placering:	Indendørs
Antal USB-porte:	2
Paneltype:	ADS
Formål:	Kommerciel
Vis antal farver:	16.7 millioner farver
Kontrastforhold (typisk):	1200:1
Kontrastforhold (dynamisk):	500000:1
Pixel pitch:	0.36375 x 0.36375 mm
HDMI-version:	2.0
Antal DisplayPorts:	2
Produktdesign:	Digital A-tavle
Tågehastighed:	25 %
Antal DVI-I-porte:	1
Fjernbetjening (IR) indgang:	1
Fjernbetjening (IR) udgang:	1
Panel levetid:	50000 t
Driftstimer (timer/dage):	24/7
Antal HDMI-indgangsporte:	2
RS-232C:	Ja
Orientering:	Horisontal/vertikal
Antal HDMI-udgangsporte:	1
DisplayPorts indgang:	1
DisplayPorts udgang:	1
Skærmbredde:	726.5 mm
Skærm, dybde:	65.1 mm
Skærm, højde:	425.4 mm
Skærm, vægt:	5700 g
