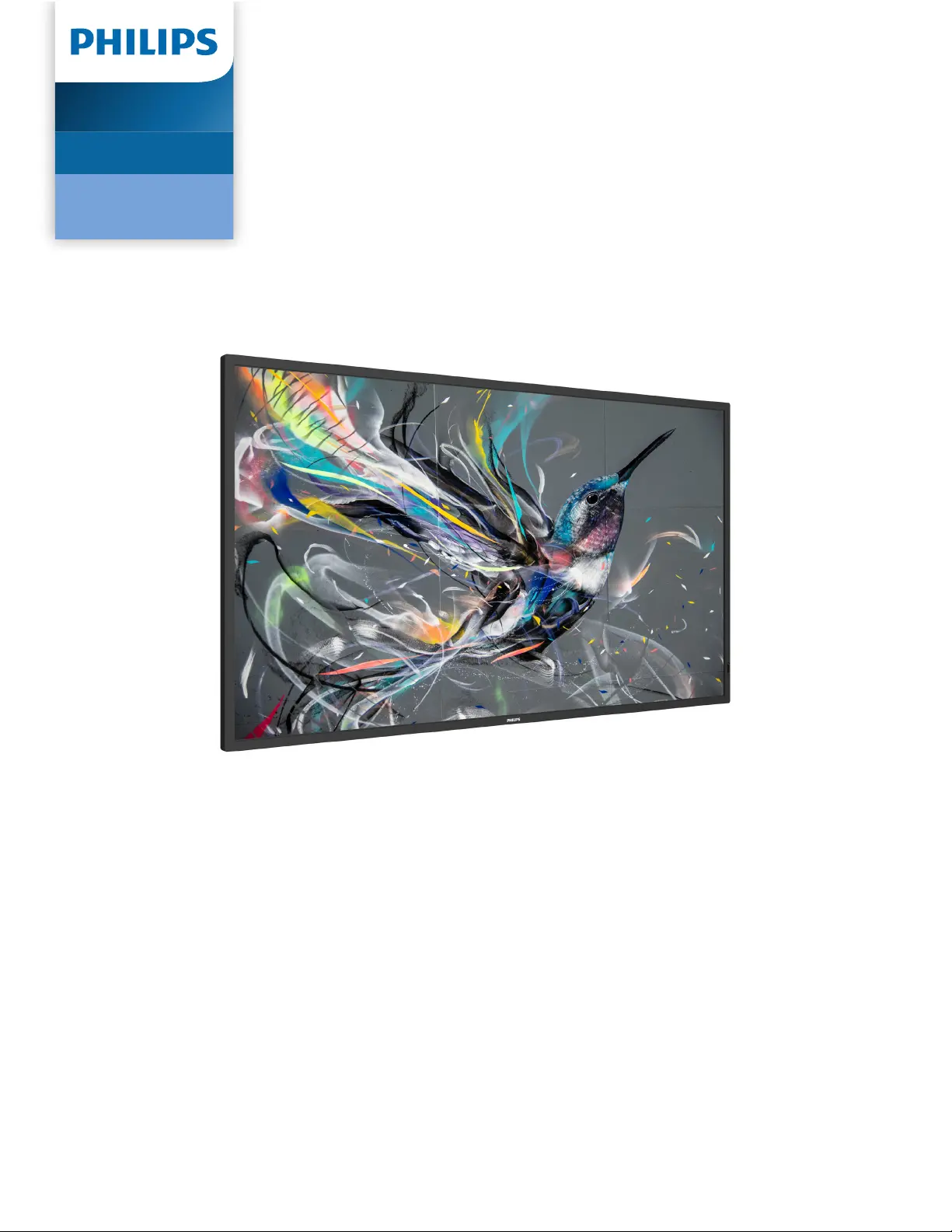

Side 1/45

User Manual (English)

www.philips.com/welcome

Professional

Display Solutions

Q Line

43BDL3511Q

50BDL3511Q

55BDL3511Q

43BDL3511Q/50BDL3511Q/55BDL3511Q

Table Of Contents

1. Safety Instructions ......................................................... 1

2. Unpacking and Installation .......................................10

2.1. Unpacking ..........................................................10

2.2. Package Contents .............................................12

2.3. Installation Notes .............................................12

2.4. Mounting on a Wall ........................................13

2.4.1. VESA Grid .............................................13

2.5. Mounting in Portrait Orientation ...............14

2.5.1. How to remove the logo .................. 14

3. Parts and Functions .....................................................15

3.1. Control Panel ..................................................... 15

3.2. Input/Output Terminals ................................. 16

3.3. Remote Control.................................................17

3.3.1. General functions ...............................17

3.3.2. ID Remote Control .............................18

3.3.3. Inserting the batteries in the remote

control ...................................................19

3.3.4. Handling the remote control ..........19

3.3.5. Operating range of the remote

control ...................................................19

3.4. USB Cover ...........................................................20

3.5. AC Switch Cover ................................................20

4. Connecting External Equipment .............................21

4.1. Connecting External Equipment (DVD/VCR/

VCD) ......................................................................21

4.1.1. Using HDMI video input ...................21

4.2. Connecting a PC ................................................21

4.2.1. Using DVI input ...................................21

4.2.2. Using HDMI input ..............................21

4.3. Connecting Multiple Displays in a Daisy-

chain Conguration ........................................22

4.3.1. Display control connection..............22

4.4. IR connection .....................................................22

4.5. IR Pass-through Connection ..........................22

4.6. Wire-connecting to Network ........................23

5. Operation .......................................................................24

5.1. Play multimedia les from USB device .......24

6. OSD Menu ......................................................................25

6.1. Navigating the OSD Menu ............................25

6.1.1. Navigating the OSD menu using the

remote control .................................... 25

6.1.2. Navigating the OSD menu using the

display’s control buttons .................. 25

6.2. OSD Menu Overview .......................................25

6.2.1. Picture menu .......................................25

6.2.2. Screen menu ........................................26

6.2.3. Audio .....................................................27

6.2.4. Tiling ......................................................27

6.2.5. Network ................................................28

6.2.6. Conguration menu ..........................28

6.2.7. Option ...................................................29

7. Supported Media Formats .........................................32

8. Input Mode ....................................................................33

9. Pixel Defect Policy ........................................................34

9.1. Pixels and Sub-Pixels ........................................34

9.2. Types of Pixel Defects + Dot Denition ......34

9.3. Bright Dot Defects ............................................34

9.4. Dark Dot Defects ..............................................35

9.5. Proximity of Pixel Defects ..............................35

9.6. Pixel Defect Tolerances ...................................35

9.7. MURA ...................................................................35

10. Cleaning and Troubleshooting ................................36

10.1. Cleaning ..............................................................36

10.2. Troubleshooting ...............................................37

11. Technical Specications ..............................................38

Warranty policy for Philips Professional Display

Solutions .........................................................................40

Index ..........................................................................................42

Produkt Specifikationer

Mærke:	Philips
Kategori:	Skærm
Model:	43BDL3511Q
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Produktfarve:	Sort
Skærm diagonal:	43 "
Skærmopløsning:	3840 x 2160 pixel
Berøringsskærm:	Ingen
USB-port:	Ja
HD-type:	4K Ultra HD
Naturligt aspektforhold:	16:9
Skærmens lysstyrke:	400 cd/m²
Responstid:	8 ms
Synsvinkel, horisontal:	178 °
Synsvinkel, vertikal:	178 °
Skærm diagonal (metrisk):	108 cm
LED-baggrundsbelysning type:	Direct-LED
Indbyggede højttaler(e):	Ja
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Udgangseffekt (RMS):	20 W
Antal HDMI-porte:	2
DVI-port:	Ja
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Understøttede videoformater:	H.264, MPEG, WMV3
Understøttede lydformater:	AAC, HE-AAC, WMA
VESA montering:	Ja
Panel montering grænseflade:	200 x 200 mm
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	105 W
Driftstemperatur (T-T):	0 - 40 °C
Kabler inkluderet:	AC, IR sensor, RS-232, USB
Understøttede billedformater:	BMP, JPG, PNG
Energiforbrug (SDR) pr. 1000 timer:	105 kWh
Energieffektivitetsklasse (SDR):	G
Energieffektivitetsskala:	A til G
Harmoniseret systemkode (HS):	85285210
Antal indbyggede højttalere:	2
USB version:	2.0
Understøttet placering:	Indendørs
Antal USB-porte:	2
Paneltype:	IPS
Formål:	Kommerciel
Vis antal farver:	1,07 milliarder farver
Lyd (L, R) indgang:	1
Kontrastforhold (typisk):	1200:1
Kontrastforhold (dynamisk):	500000:1
Pixel pitch:	0.2451 x 0.2451 mm
HDMI-version:	2.0
Lyd (L, R) udgang:	1
Gennemsnitstid mellem fejl (MTBF):	50000 t
Produktdesign:	Digital A-tavle
Tågehastighed:	1 %
Antal DVI-I-porte:	1
Fjernbetjening (IR) indgang:	1
Fjernbetjening (IR) udgang:	1
Driftstimer (timer/dage):	18/7
Antal HDMI-indgangsporte:	2
RS-232C:	Ja
Facet bredde (bund):	13.9 mm
Facet bredde (øverste):	13.9 mm
Orientering:	Horisontal/vertikal
Facet bredde (side):	13.9 mm
Skærmbredde:	973 mm
Skærm, dybde:	63.5 mm
Skærm, højde:	561.2 mm
Skærm, vægt:	10700 g
