A

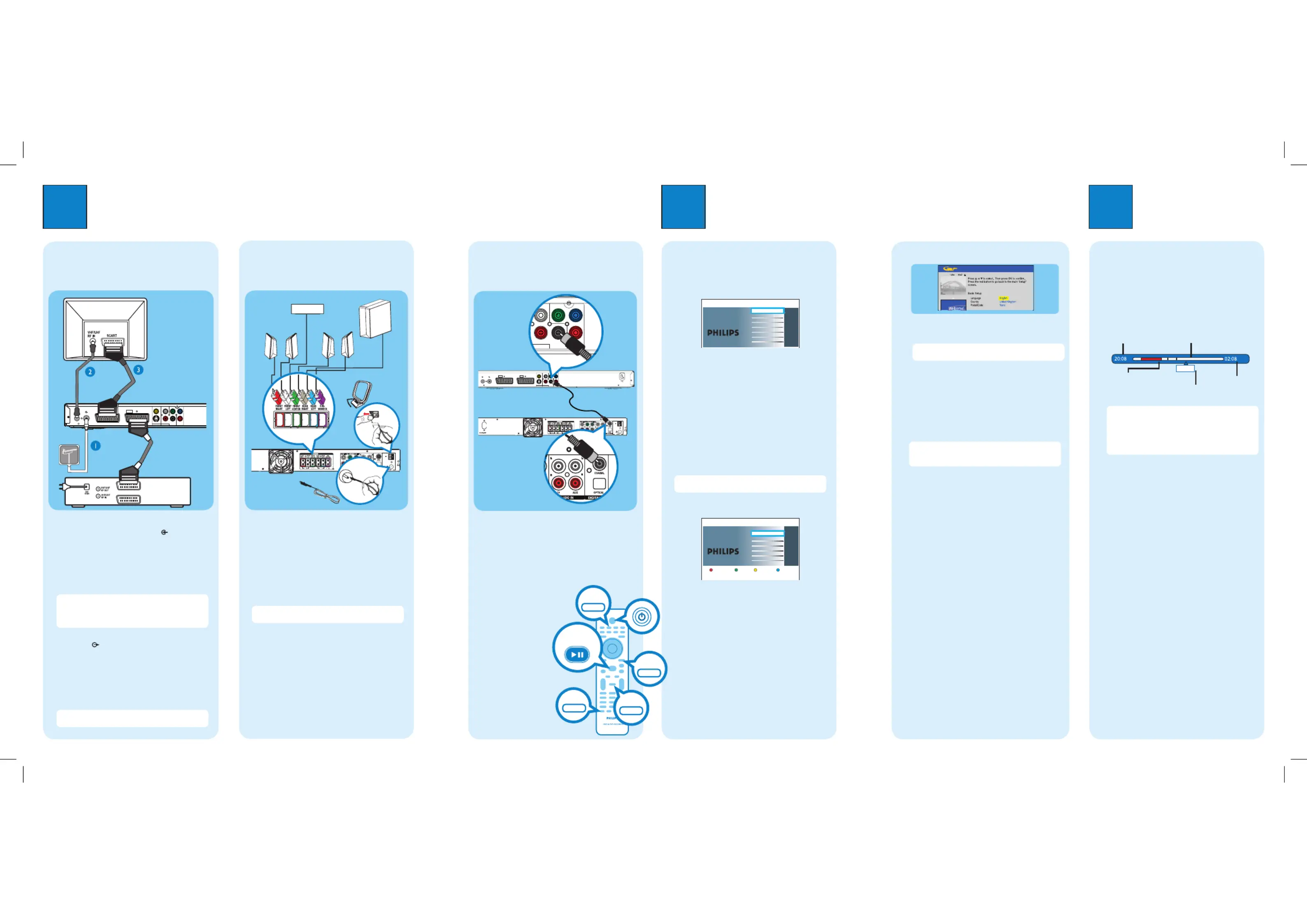

Connecting Recorder and TV
A Unplug the existing antenna cable from your TV and
connect it to the socket on the ANTENNA IN
recorder.
z If you have a Cable Box or Satellite Receiver,
connect a scart cable from the EXT2-TO VCR/
SAT scart socket on the recorder to the SCART
(TO VCR) socket on the Cable Box/Satellite
Receiver.
Note The antenna connection may not be required,
depending on the capabilities of your Cable Box /
Satellite Receiver. Refer to its user manual for more
information.
B Connect an RF antenna cable (supplied) from the
TV-OUT socket on the recorder to the
Antenna In socket on the TV.
C Connect a scart cable (supplied) from the
EXT1-TO TV scart socket on the recorder to the
SCART socket on your TV.
D Plug in the power cable from the recorder to an AC
power outlet.
Note Refer to the accompanying User Manual for
other possible connections.
AM/
12 mm
A
B
C
Connect the various coloured plugs from the
speakers and subwoofer to the same coloured
sockets on the AV Receiver.
B Connect the FM antenna to the inner pin of the
FM 75 socket. Extend the antenna for optimum
reception.
C Unfold the AM/MW loop antenna and fix the claw
into the slot. Push the tabs and insert the wires into
the AM/MW sockets.
Note Keep the antennas away from the electronic
devices to prevent unwanted interference.
D Plug in the power cable from the AV Receiver to an
AC power outlet.
2
Set up
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
AUDIO
ANTENNA-IN
TV-OUT
TO TV
EXT1
TO VCR/SAT
EXT2
MAINS
P
B
P
R
Y
R
L
AM/
COAXIAL
DIGITAL OUT
AUDIO OUT
AUDIO
P
B
P
R
Y
R
This connection enables you to hear the recorder
playback from the AV Receiver. It supports multi-
channel surround sound output.
z
Connect the coaxial cable (supplied) between the
COAXIAL OUT socket on the recorder and
COAXIAL IN socket on the AV Receiver.
B
Connecting Speakers and radio
antennas to AV Receiver
C
Connecting Recorder and AV
Receiver
Antenna
Television ( rear)
Philips Recorder (rear)
Philips AV
Receiver (rear)
Philips Recorder (rear)
A
Finding the viewing channel
A Press 2 on the recorder. STANDBY-ON
B Turn on the TV.
You should see the installation menu.
Dansk
Français
Italiano
Nederlands
Norsk
Español
Deutsch
Menu Language
English
Please select your language.
Denes the languages of all
on-screen menu displays.
C In case you don’t see the recorder’s setting menu,
press the Channel Down button on the TVs remote
control repeatedly (or AV, SELECT,
°
button) until
you see the menu. This is the correct viewing
channel for the recorder.
B
Start initial installation
Use the recorder’s remote control and follow the on-
screen instructions to complete the installation.
A Select the desired menu language, your country and
the TV shape.
Note OK Green Press or the button on the
remote control to go to the next screen.
B Press OK to start automatic analogue channel
search.
Previous Skip
Channel search
Start Auto search
C Once complete, press the button to Green
continue.
D Enter the correct time in the entry field, press OK
followed by the button to continue. Green
Proceed the same for date entry.
E To continue with the GUIDE Plus+ installation,
press the button.Green
z
Otherwise, press the button to skip. Red
3
Enjoy
Cable TV/
Satellite Receiver
About the Time Shift Buffer
(TSB)
Once you turn on the recorder, the selected TV
programme will be stored in a temporary hard disk
storage called Time Shift Buffer ‘ ’. The ‘ ’ can TSB TSB
store up to 6 hours of programmes temporarily.
Press to display the Time Shift video bar.INFO
Now
22:04:30
Notes:
- The contents in the time shift video bar will be
cleared when you press .STANDBY ON ( )2
- The blue LED on the recorder will be lit up when the
Time Shift Buffer is active or when you playback a
recording from the hard disk drive.
Watch TV – Pause live TV
Your Philips Recorder allows you to control the TV
programme. You can PAUSE it as if you were in control
of the live broadcast.
A Turn on your recorder to the live TV mode and
press / to select a TV programme.P + -
z
To hear recorder playback from the AV Receiver,
turn on the AV Receiver. If no sound, press
SOURCE repeatedly to change the input source
mode for the AV Receiver to ‘COAX IN’.
B Press PAUSE LIVE TV to suspend it.
C Press PAUSE LIVE TV
again to continue.
D To return to live broadcast, press .LIVE TV
About the internal hard disk
drive
This recorder’s hard disk drive can be used as a Media
Jukebox, allowing you to store and playback your TV
programmes, videos, music and photos  les.
Press on the remote control to access your HOME
contents stored in the { Hard Disk }.
Current time
of playback
Selected clips for
recording
Programmes
stored in the ‘TSB’
Start time of the
programme
Present time
SOURCE
HOME
LIVE TV
TIMER
PAUSE LIVE TV
GUIDE Plus+
C
Install the GUIDE Plus+ system
z
Follow the on-screen instructions to select your
language, country and enter the postal code of your
area.
Note If no or wrong postal code is entered, it will
cause no GUIDE Plus+ (EPG) service information.
D
Load the TV listing data
A Press TIMER (GUIDE Plus+)
to exit GUIDE Plus+
system.
Leave the recorder in ‘standby’ mode and turn ‘on’
the set-top box overnight to collect the TV listing
data, this may take up to 24 hours.
Note If you tune to your Host Channel before going
to ‘standby’ mode, this recorder will start downloading
the TV listings data immediately.
B Check the { Editor } screen the next day to ensure
the source and programme numbers are matching for
all channels.
F
Turn on the AV Receiver and  ne-
tune the speakers
A Press 2 STANDBY-ON on the AV Receiver.
z
If you cannot hear the playback from the recorder,
press on the AV Receiver repeatedly until SOURCE
‘COAX IN’ appears on the display panel.
To adjust or  ne-tune the speaker settings
B Press and hold on the AV Receiver for PROGRAM
more than five seconds.
C Press . >or to toggle between ‘CENTER
DELAY’, ‘REAR DELAY’, ‘TEST TONE’ and ‘EXIT’
setting options.
D Press PROGRAM to select an option.
E Rotate the VOL control to scroll through the
various delay time options, then press PROGRAM
to confirm your setting.
z
Repeat steps 3~5 for other settings options.
F To exit the speaker setting mode, press or . >
until ‘EXIT’ appears.
SUBWOOFER
FRONT
RIGHT
FRONT
LEFT
REAR
RIGHT
REAR
LEFT
FRONT CENTRE
Philips AV
Receiver (rear)
FM antenna
AM/MW loop
antenna
3
Enjoy
Need help?
User Manual
See the user manual that came with your Philips Recorder or AV Receiver
Online
Register your product and get support at www.philips.com/welcome
Start playback
A
Playback from hard disk
A Press HOME.
Disc Tray
USB
Recordings
Video les
Music
Source Content
Hard Disk
B Select { Hard Disk right } and press .
C Select the contents type and press .right
D Use keys to reach the title/file you want
to play and press to start playback.u
B
Playback from disc
A Hold down STOP until the disc tray opens. Load a
disc and close the disc tray.
B Press HOME Disc Tray and select { }.
C Use keys to reach the title/file you want
to play and press to start playback.u
C
Playback from USB device
A Insert the USB device to the USB port.
B Press HOME USB and select { }.
C Use keys to reach the contents list.
D Select the contents type and press .right
E Select a data file
(MP3, WMA, DivX and JPEG)
and
press to start playback.u
2007 © Koninklijke Philips N.V.
All rights reserved.
12 NC 3139 245 28 209
www.philips.com
Hard Disk / DVD Recorder & Digital AV Receiver
Quick Start Guide
Connect
Set up
Enjoy
1
2
3

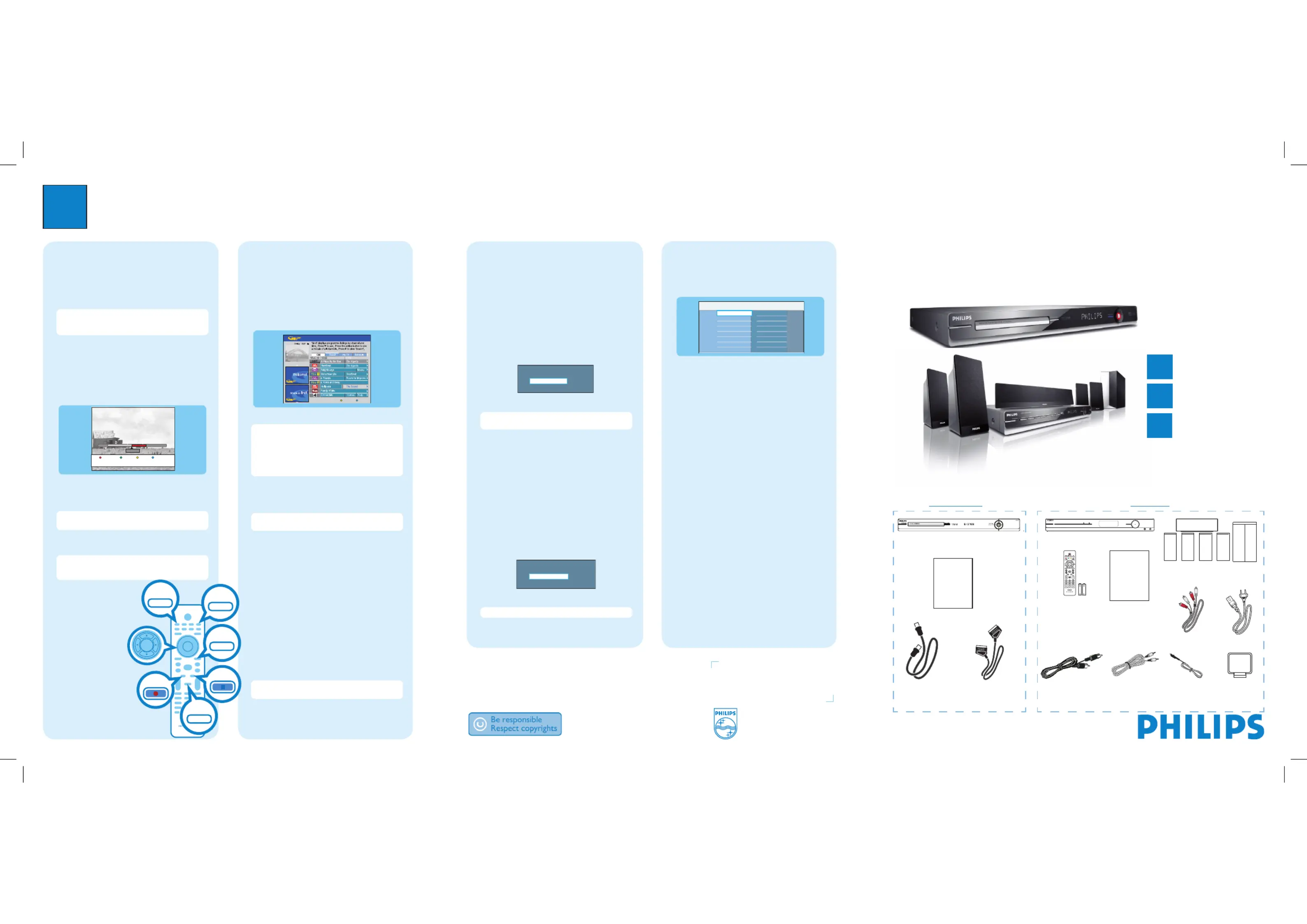

What’s in the box?
Hard Disk/ DVD Recorder
RF antenna cable
(connect between
recorder and TV)
Remote Control
and 2 batteries
Scart cable
SUBTITLE
INFO SELECT EDIT SCART
AUDIO
PAUSE LIVE TV
DVDR3570H
User
Manual
Record to hard disk
A
Record current TV programme
A Press REC to start recording. It can record up to
6 hours.
Note REC To set the recording time length, press
repeatedly to extend the recording time in 30-minute
increments, up to 6 hours.
B To stop the recording before the scheduled time,
press .STOP
B
Mark a speci c content in the Time
Shift Buffer for recording
23:30
22:13
21:00
Cancel Rec.
More Info
A Press or left to search for the scene right
where you want to record.
B Press REC
to start recording from here.
Note Red Pressing the button will cancel the
recording.
C Press to search for the scene to end the right
recording, then press .STOP
Note The title will be marked in red and the
recording will only take effect when you turn off the
recorder.
B
Copy  les from USB
You can only copy the data  les (MP3, WMA, DivX and
JPEG) from your USB device to the recorder’s hard disk
drive or recordable DVD.
A Insert your USB device to the USB port at the front
panel of the recorder.
B Press HOME USB and select { }.
C Use  keys to reach the file you want to
copy.
D Press the Green Copy button for { }.
Target for copy.
Choose destination for copy.
To Disc
To Hard Disk
E Select the destination for copying and press .OK
Note If select { To Disc }, insert an empty
recordable DVD into the recorder.
F Press OK again to start copying.
C
Copy  les from Disc
Copy prohibited contents cannot be copied to this
recorder.
A Insert a CD/DVD into the recorder.
B Press HOME Disc Tray and select { }.
C Use  keys to reach the title/file you want
to copy.
D Press the Green Copy button for { }.
Target for copy.
Choose destination for copy.
To USB
To Hard Disk
E Select the destination for copying and press .OK
Note Only data  les are able to copy to USB device.
F Press OK again to start copying.
HDD LIST
INFO
REC
STOP
HOME
TIMER
GUIDE Plus+
C
Using the GUIDE Plus+ system
Make sure that the GUIDE Plus+ TV listing data
download is completed.
A Press TIMER (GUIDE Plus+).
It shows the list of TV programmes that are
currently broadcast and the next 8 days of TV
programmes.
Channels Home
Record
B Press to select a TV channel.down
Notes
– To see an overview of all the available channels,
press the button on the remote control.Yellow
– To go directly to the previous day’s or the next
day’s TV listing, press . í ë/
– To scroll up or down a page, press / .P+ -
C Press or left right to select a TV programme.
D Press the Red
button on the remote control to set
the highlighted programme for recording.
Note You can store up to 25 programmes for
recording.
Copy TV programmes or  les
A
Copy TV programmes from hard
disk
A Insert a recordable DVD into the recorder.
B Press HDD LIST on the remote control.
C Select a title to copy and press the button Green
on the remote control for { }. Copy
D The making disc copy information appears. Press
the button again to start copying.Green
Note It is not possible to copy the TV recordings to
USB device.
HTS5710H
STANDBY-ON SURROUNDSOUND TREBLE BASS PROGRAM
TUNING
SOURCE
PHONES MP3 LINE-IN
VOL
FM wire
antenna
AM/MW
loop antenna
Audio cable
Coaxial cable
(connect between
recorder and receiver)
Power cable
Digital AV Receiver
1 centre, 2 front, 2 rear speakers
and subwoofer
HTR5204
User
Manual
MP3 LINE-IN
cable
HTR5204DVDR3570H

Produkt Specifikationer

Mærke: Philips
Kategori: Hjemmebiograf sæt
Model: Immersive Sound HTS5710H

Har du brug for hjælp?

Hvis du har brug for hjælp til Philips Immersive Sound HTS5710H stil et spørgsmål nedenfor, og andre brugere vil svare dig


Hjemmebiograf sæt Philips Manualer

Philips

Philips HTB7560KD Manual

21 August 2025
Philips

Philips HTD3520 Manual

15 August 2025
Philips

Philips MX6050D Manual

15 August 2025
Philips

Philips HTS3375 Manual

15 August 2025
Philips

Philips HTS3565D Manual

15 August 2025
Philips

Philips TAB7568 Manual

15 August 2025
Philips

Philips HTS3568W Manual

15 August 2025
Philips

Philips MX3660D Manual

15 August 2025
Philips

Philips HTB2510 Manual

15 August 2025
Philips

Philips HTS6515D Manual

14 August 2025

Hjemmebiograf sæt Manualer

Nyeste Hjemmebiograf sæt Manualer

Panasonic

Panasonic SC-HT75 Manual

26 September 2025
Samsung

Samsung HT-WP38 Manual

25 September 2025
Boston Acoustics

Boston Acoustics SoundWare XS Digital Cinema Manual

24 September 2025
LG

LG LHC5200WI Manual

9 September 2025
Yamaha

Yamaha Cubycon 2 Manual

5 September 2025
Furman

Furman IT-Reference 20i Manual

1 September 2025
Samsung

Samsung HT-KZ310 Manual

25 August 2025
Coby

Coby DVD-937 Manual

24 August 2025
Sherwood

Sherwood CONCERTO 10SW Manual

23 August 2025
LG

LG LF-K9150 Manual

23 August 2025
