2-DIN 12.301190-04

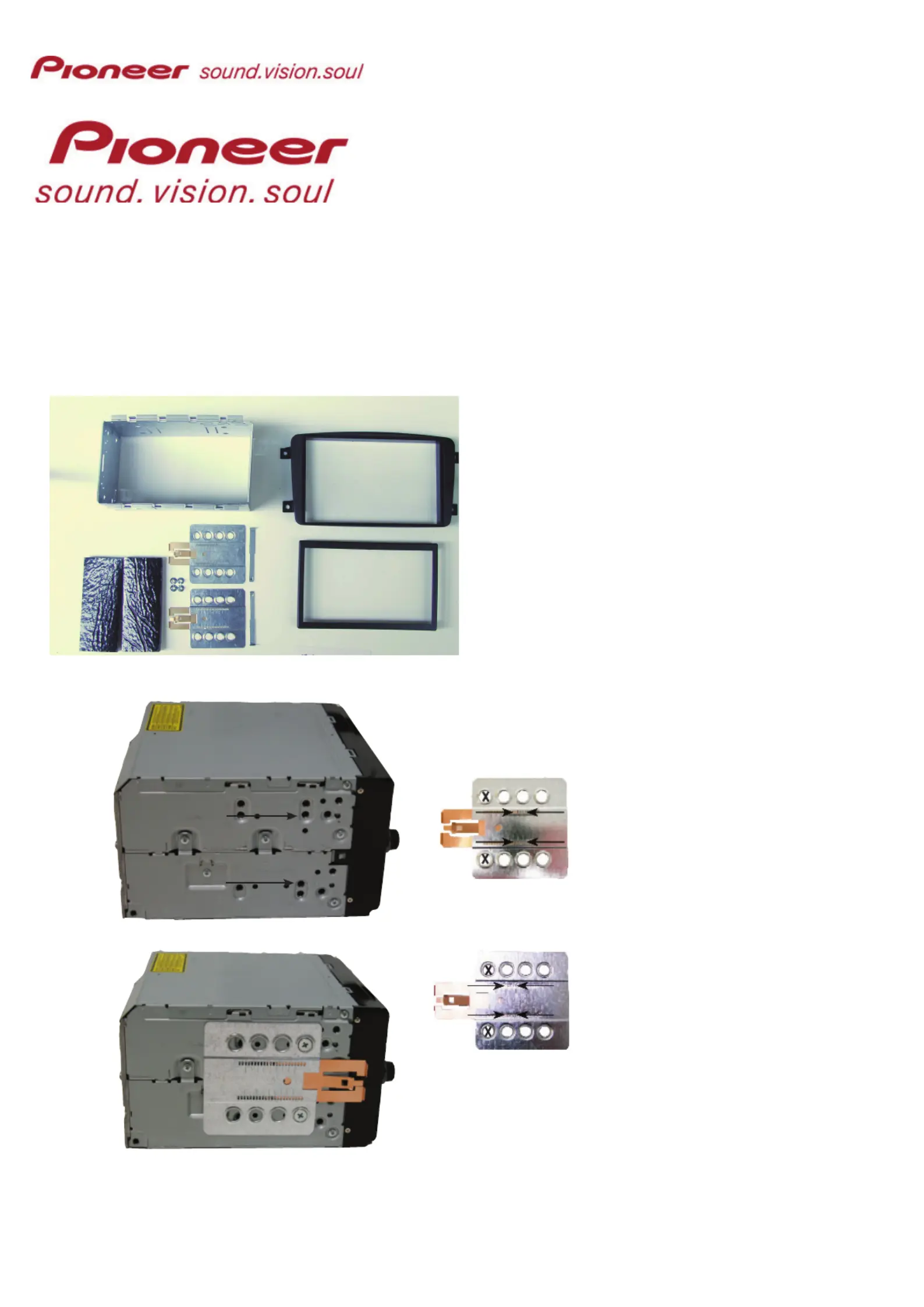

Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Replacement panel
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 2X Cushion
Installation manual for:
Mercedes Benz C-Class (W203-004) <-04-2004
C- & T- Models Mercedes Benz CLK (W209-3) <-
04-2004
Mercedes Benz Vito (W639)
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 9 & 11 marked with an arrow
Measured from left to right.

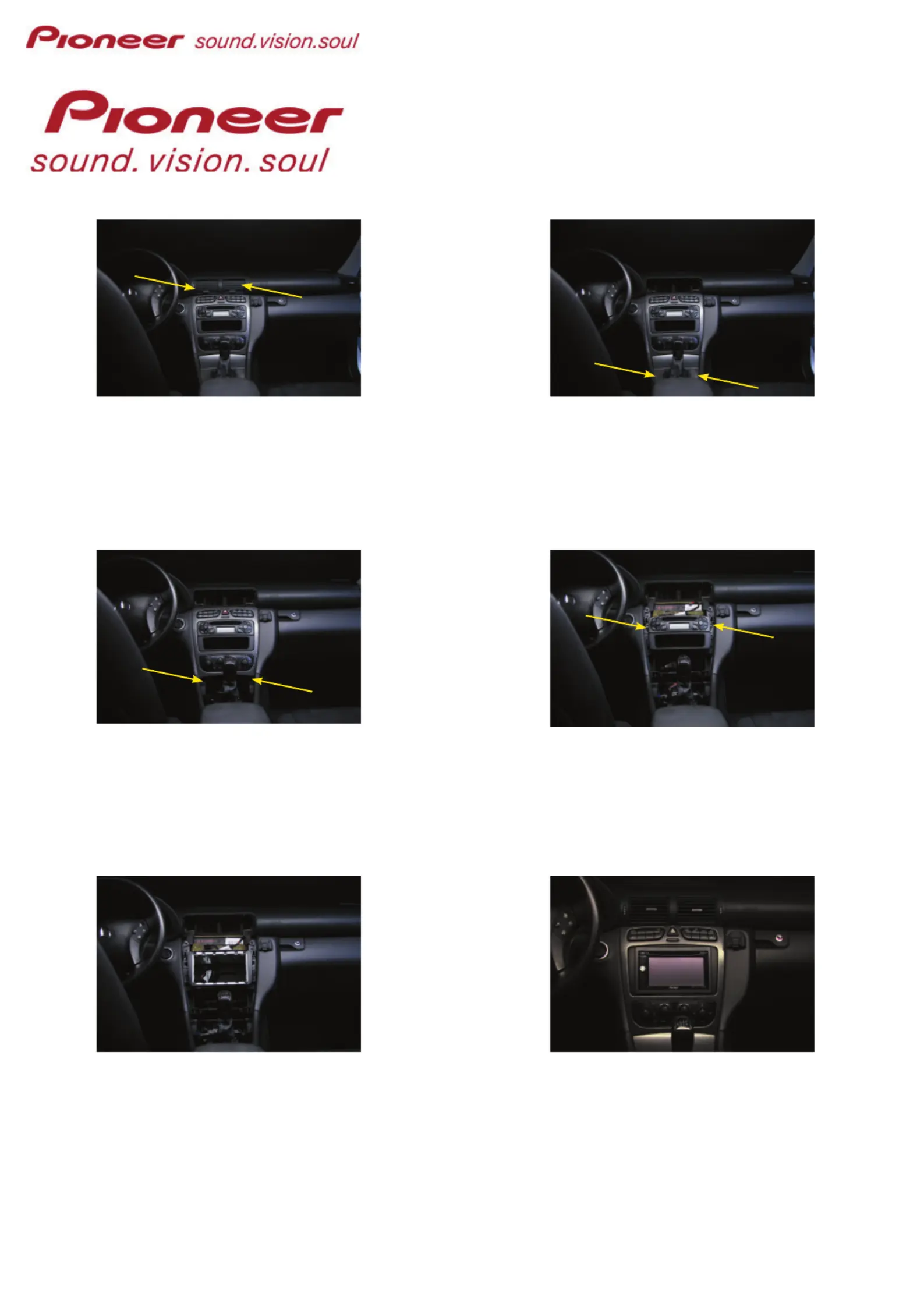

Turn the air ventilation shafts . upwards
Remove the two screws.
Turn the air ventilation shafts . downwards
Notice that two clips have become visible.
Gently push them downwards. Gently pull the
ventilation shaft towards you.
Pull the the dashboard towards you. At
the location of the arrows there are clips
which holds the dashboard in place.
Remove the plastic trim around the gear
lever. And remove the ashtray.
Connect all of the needed wiring harnesses and check the connections carefully.
1 2
3
Remove the original radio.
4
Place the replacement panel. Place the
2-Din metal bracket.
5
2-DIN 12.301190-04
Place the headunit and radio trim.Replace
all the panels.
