2-DIN 12.301190-06

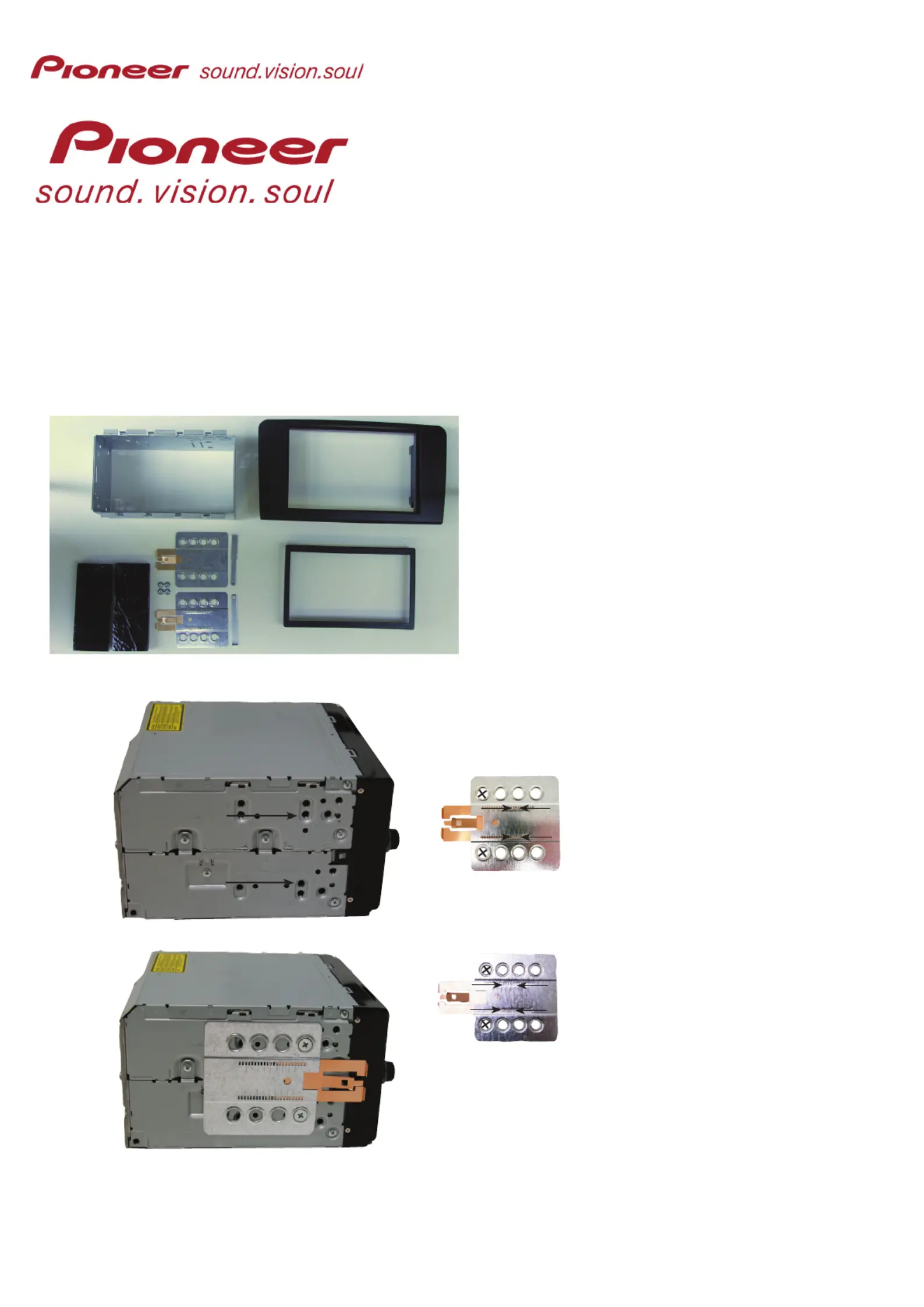

Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
Installation manual for:
Mercedes M W-164 2005 -->/
GL 2006 -->/ R 2006 -->
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 9 & 11 marked with an arrow
Measured from left to right.

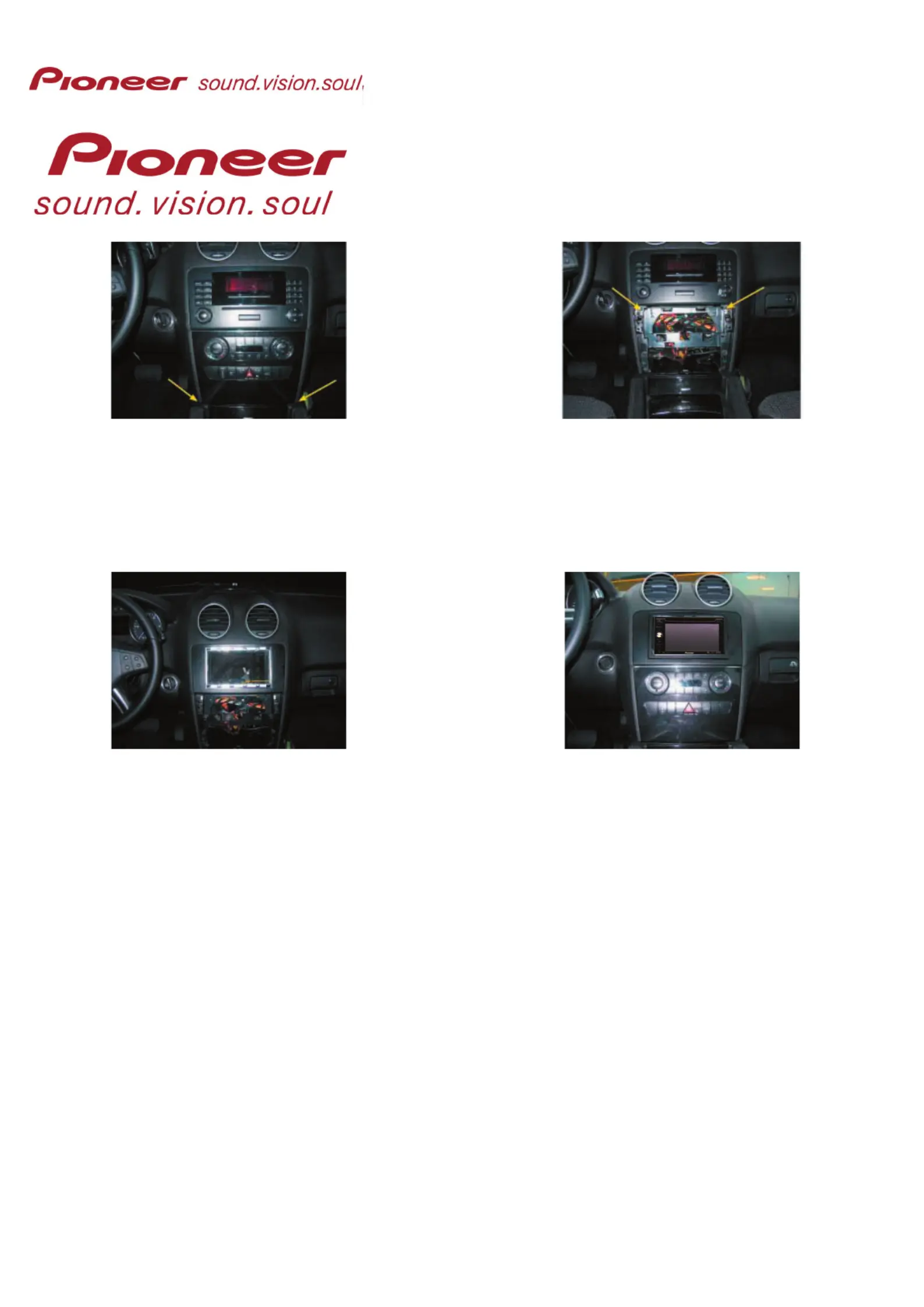

Gently loosen the dashboard panel at
the location of the arrows. This is a click
system. Move the panel towards you.
Place the 2-din metal bracket
Remove the 2 torx 20 screws at the l
ocation of the arrows. Gently pull down
the silver bolt.
Place the headunit
Connect all of the needed wiring harnesses and check all the connections carefully.
1 2
3 4
2-DIN 12.301190-06
