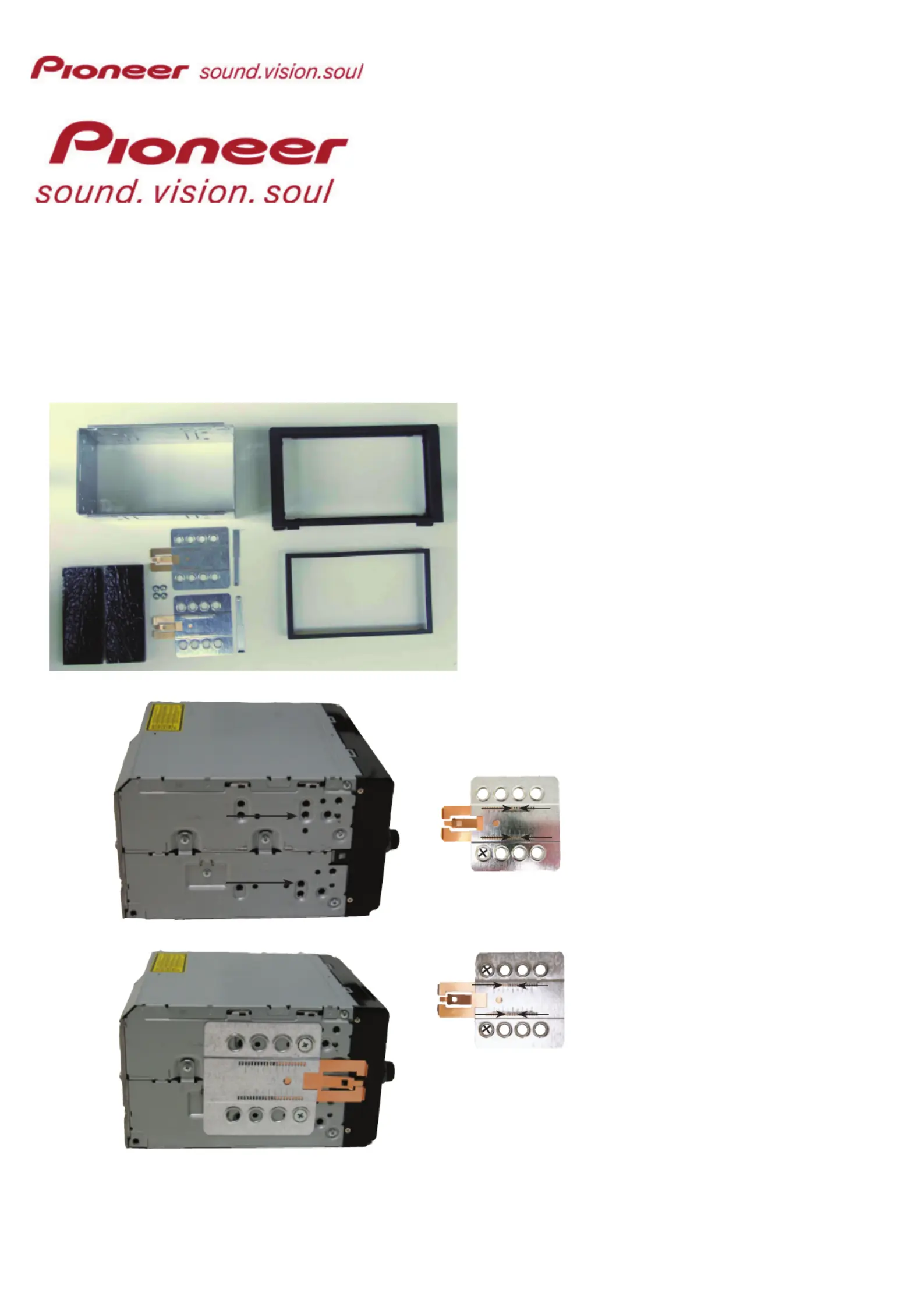

Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
Installation manual for:
Saab 9.3 09 - 2006 -->
* Mount the plates.
2-DIN 12.301270-01
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 10 & 12 marked with an arrow
Measured from left to right.

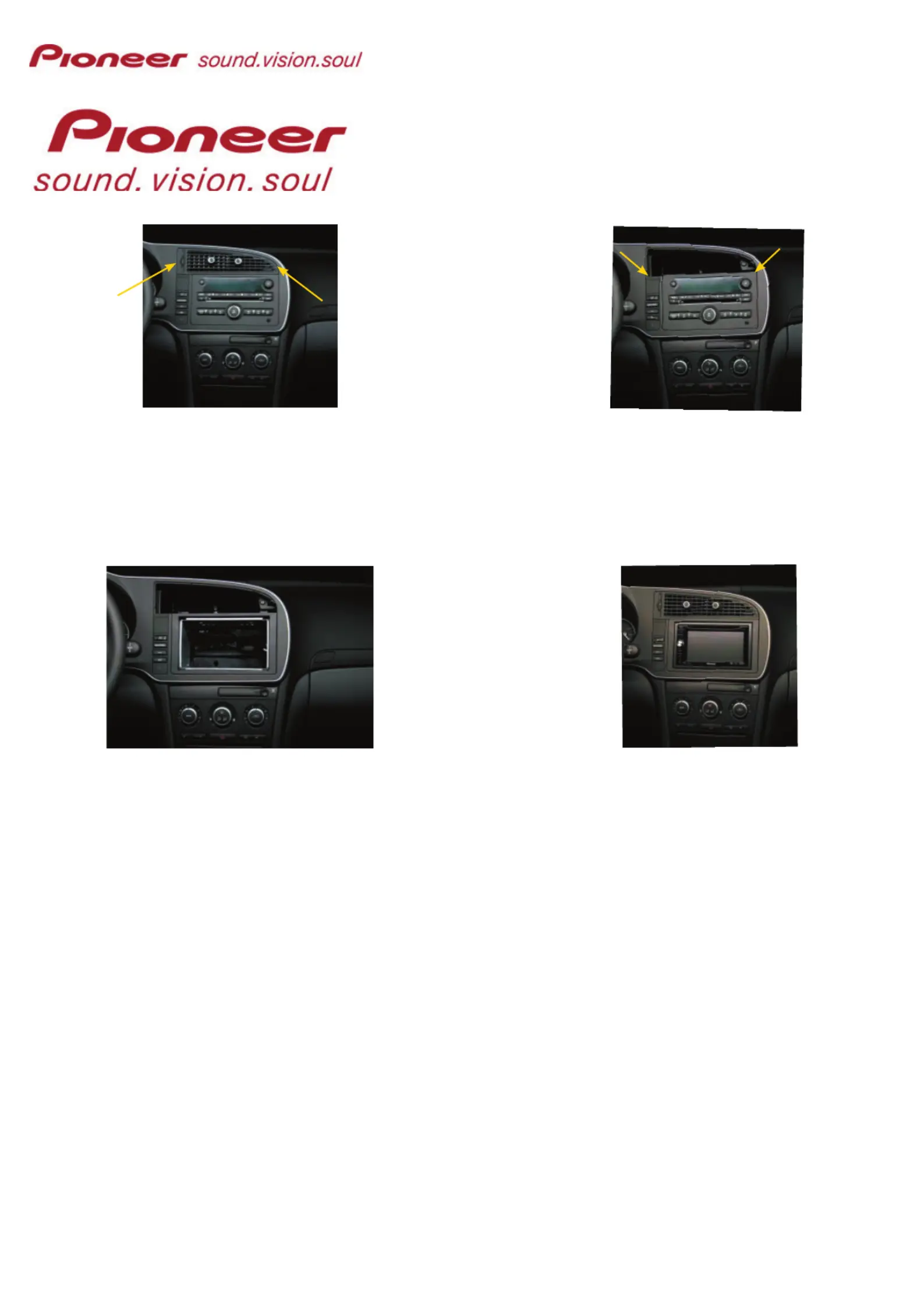

Gently remove the air ventilation shaft
with a plastic wedge.
Place the 2-Din metal bracket.
Remove the torx screws at the location of
the arrows and remove the radio.
Place the head unit and connect all the
wiring.
Connect all of the needed wiring harnesses and check all the connections carefully.
1 2
3 4
2-DIN 12.301270-01
