You need
OEM Bezel
Part Number : 55405-05160
2-DIN 12.301300-06
Installation manual for:
Toyota Avensis 2004-->

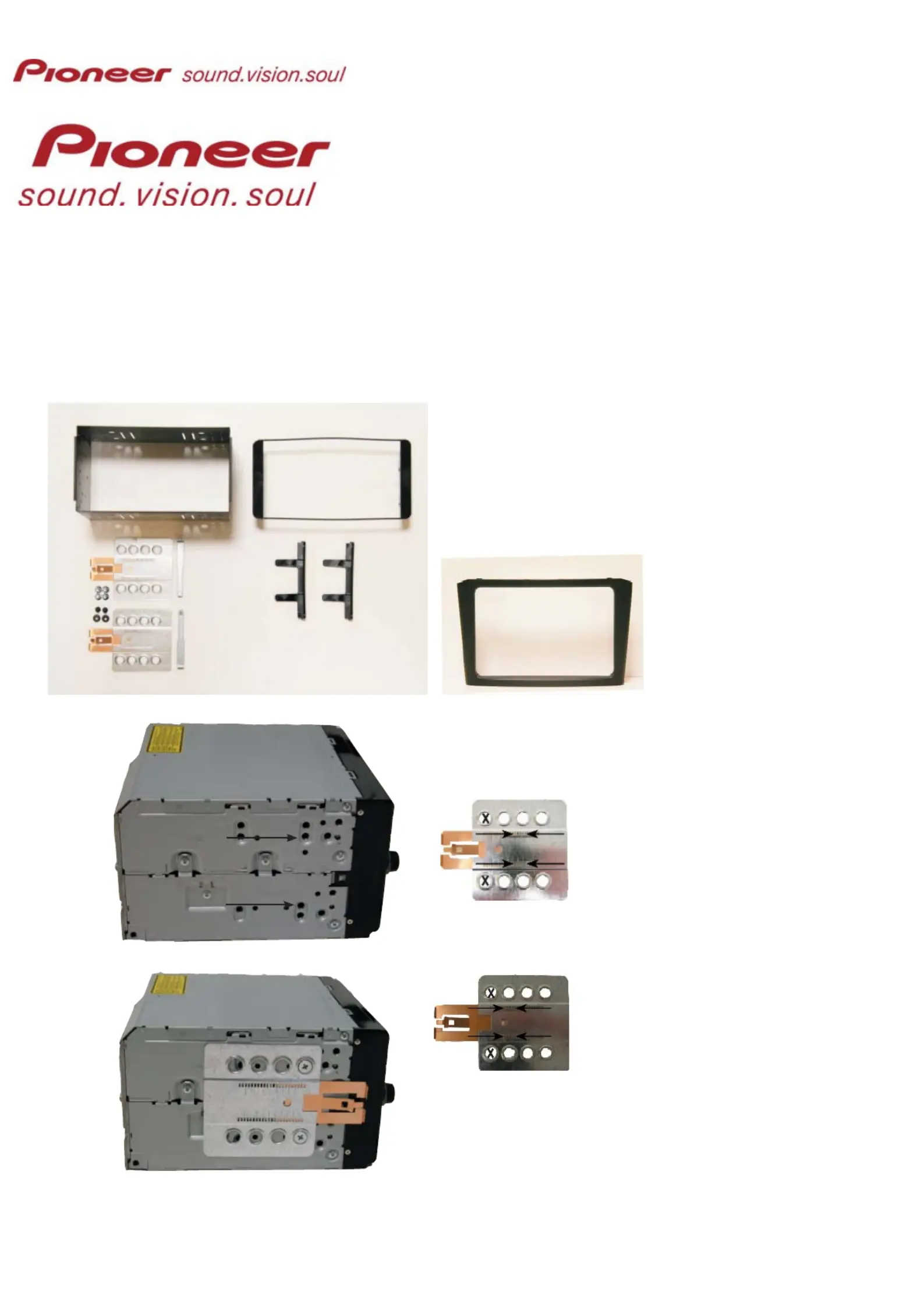

Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1x Replacement panel for non motorized screen
* 2X Replacement panel for motorized screen
* 2X Mounting plates
* 2X Mounting spaces
* 2X Radio keys
* 4X Screws
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 12 & 14 marked with an arrow
Measured from left to right.
2-DIN 12.301300-06

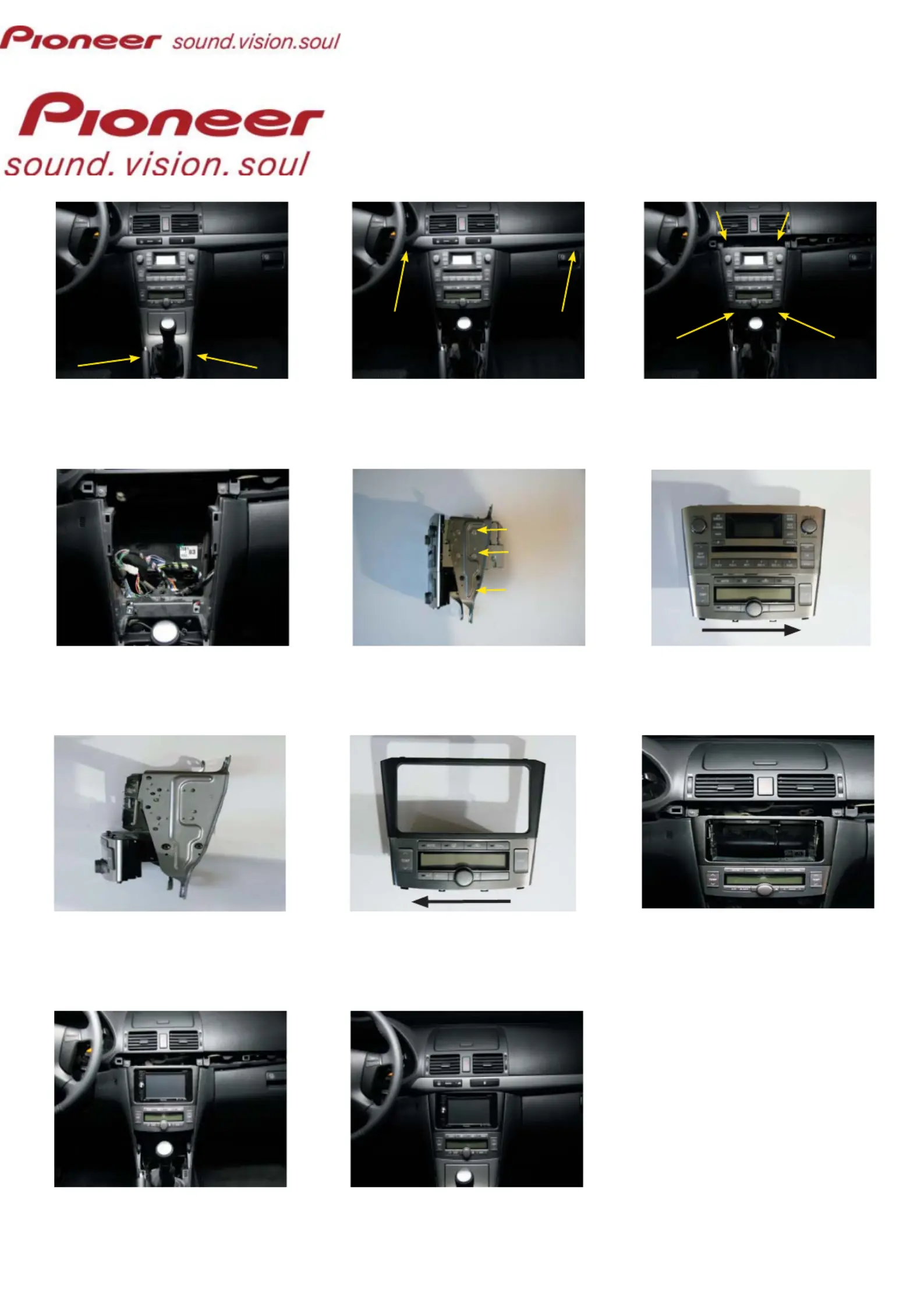

Remove the dashboardpanels around
the radio at the location of the ar-
rows.
1 2 3
4 5 6
Remove the original OEM metal brackets
from the radio and the climate control
unit. This is tigten by twelve screws.
Remove the original radio
f
rom the
climate control.
Slide the climate control unit to
the right.
Place the new metal bracket and the cli-
mate control unit between the OEM
radio brackets.Tighten the climate control
with the four original screws.
7 8 9
Place the OEM replacement panel on the
climate control unit by sliding it to the
left .
Place the OEM replacement panel with
the climate control unit and the metal
bracket into the dashboard.
Place the new headunit.
10 11
Place the radio trim and replace all
dashboardpanels in reverse order.
Remove the frame above the radio by
using a plastic wedge at the location of
the arrows.
Remove the original radio at the location
of the arrows.
The radio is tighten by four screws.
