2-DIN 12.301327-04

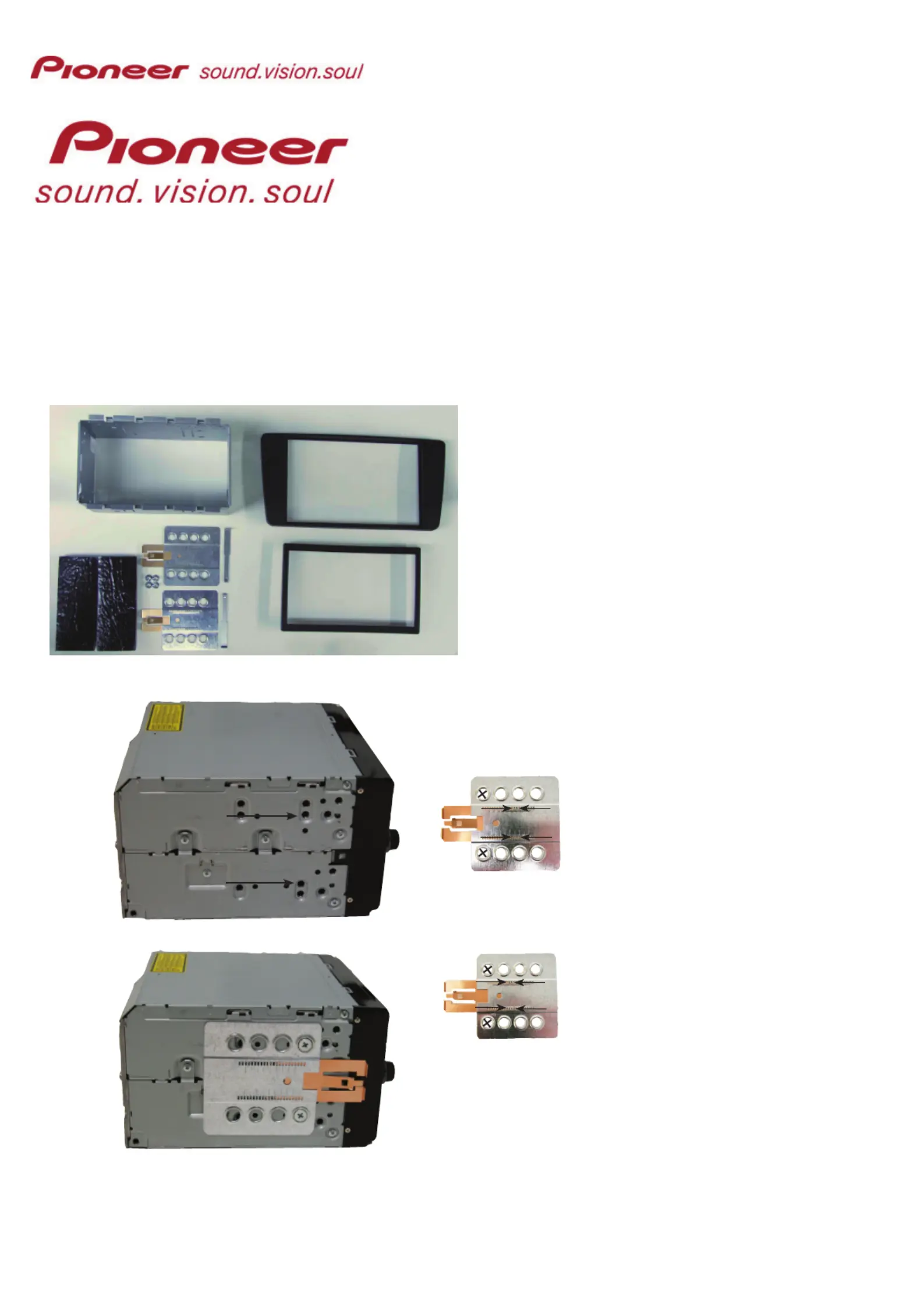

Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Replacement frame
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushion
Installation manual for:
Skoda Octavia 2004 -->
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 11 & 13 marked with an arrow
Measured from left to right.
2-DIN 12.301327-04
Remove the plastic trim starting at the
location of the arrows.
Remove the 4 screws at the location of
the arrows
Remove the four plastic covers at the
location of the arrows.
Connect all of the needed wiring harnesses and check the connections carefully.
1 2
3
Place the 2-Din met bracket.
Tighten the panel at the location of the
arrows.
4
Place the replacement panel.
5
Place the head unit and radio trim.
6
