Compatible with these Pioneer double DIN devices

Pioneer Navigation

Installation Manual

Double DIN Kit

Standard: 381190-28

Rubber-Touch: 391190-28

• Mercedes E-Class (W211)

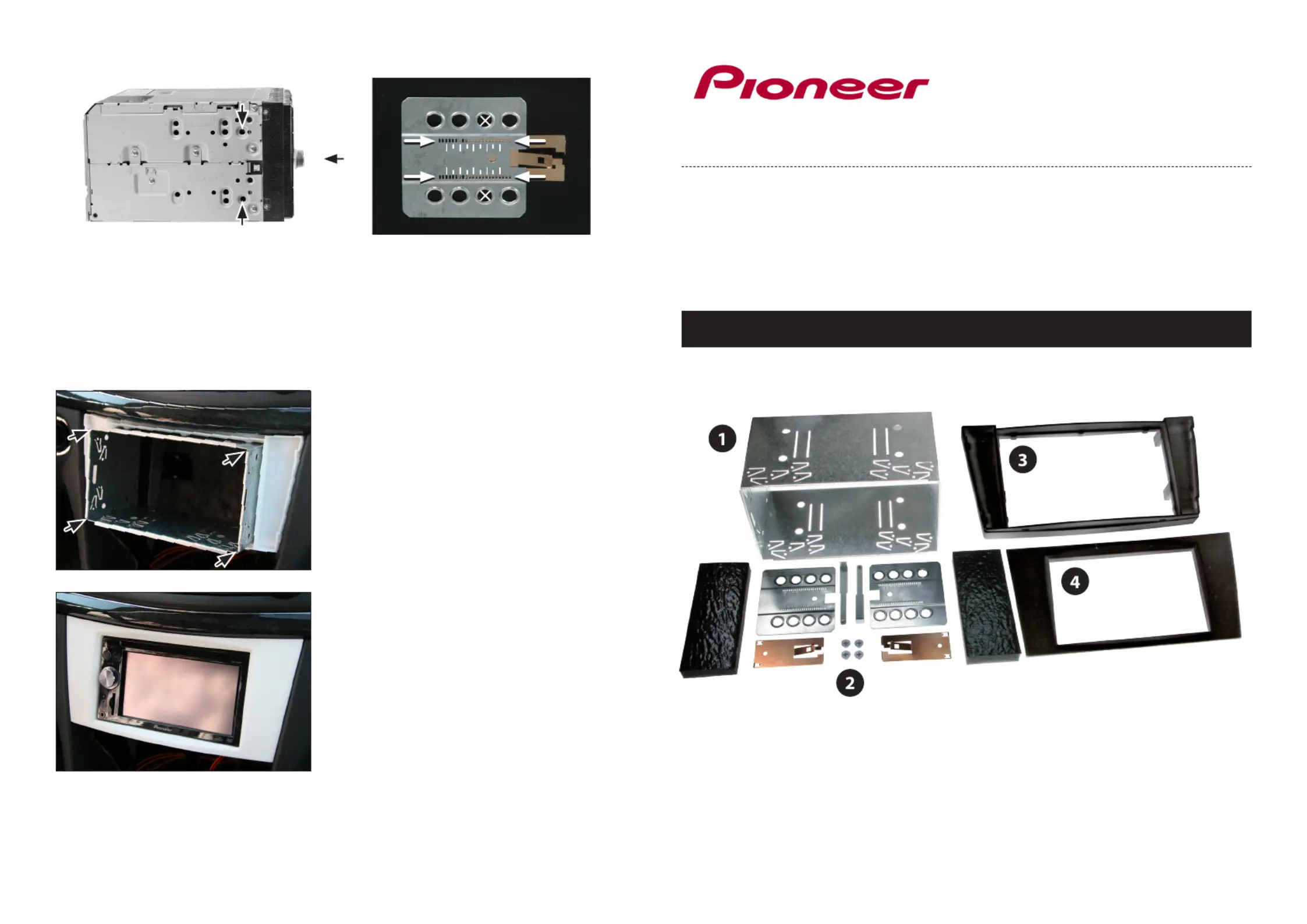

Double DIN Set contents

• (1) Metal Frame

• (2) Installation Kit

• (3) Mounting Bracket

• (4) Facia Plate

Mount the metal brackets to the

double DIN head unit.

The position of the copper

coloured holder can be adjusted

to your needs for perfect t.

(see sample)

(sample photo) (sample photo)

7. Push the metal frame into the

mounting bracket

Connect all required circuit points

Push the Pioneer Navigation into

the metal frame until it snaps in.

8. Push the facia plate onto the

mounting bracket

Reinstall everything in reverse

order to nish installation.

Installation Manual Double DIN Kit

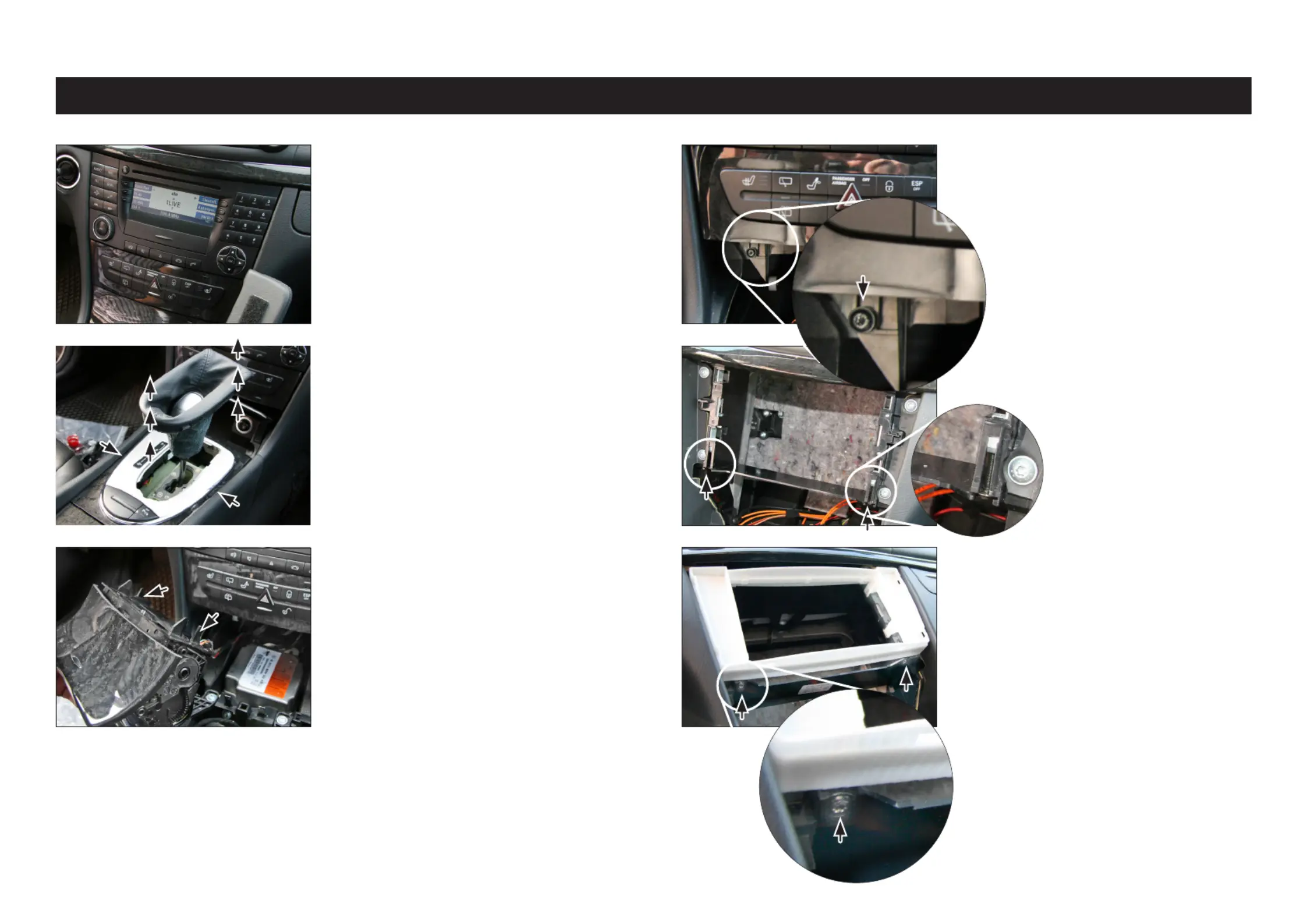

3. Open the ash tray and remove the

complete ash tray unit

All installation work must be performed by a qualied professional installer only.

The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

1. Mercedes E-Class with

OEM head unit

Facelift models 2007 upwards:

After Replacing the OEM head unit it is

not possible to use the pocket underne-

ath the radio anymore.

2. Pull up the gear shift cover

Unclip the gear shift panel and

remove it

5. Remove the OEM head unit

Release the two screws (see arrows)

underneath the radio rst - then

pull out the OEM head unit

4. Remove the control unit / or CD-

Changer underneath the OEM

radio by removing the screws at

left and right side

6. Place the mounting bracket on

the dashboard

Fix the mounting bracket with the

two screws (see arrows) at the left

and right side under the mounting

bracket holder
