INSTALLATION INSTRUCTIONS FOR PART 99-3309B

APPLICATIONS

REV. 5/15/2013 INST99-3309B

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

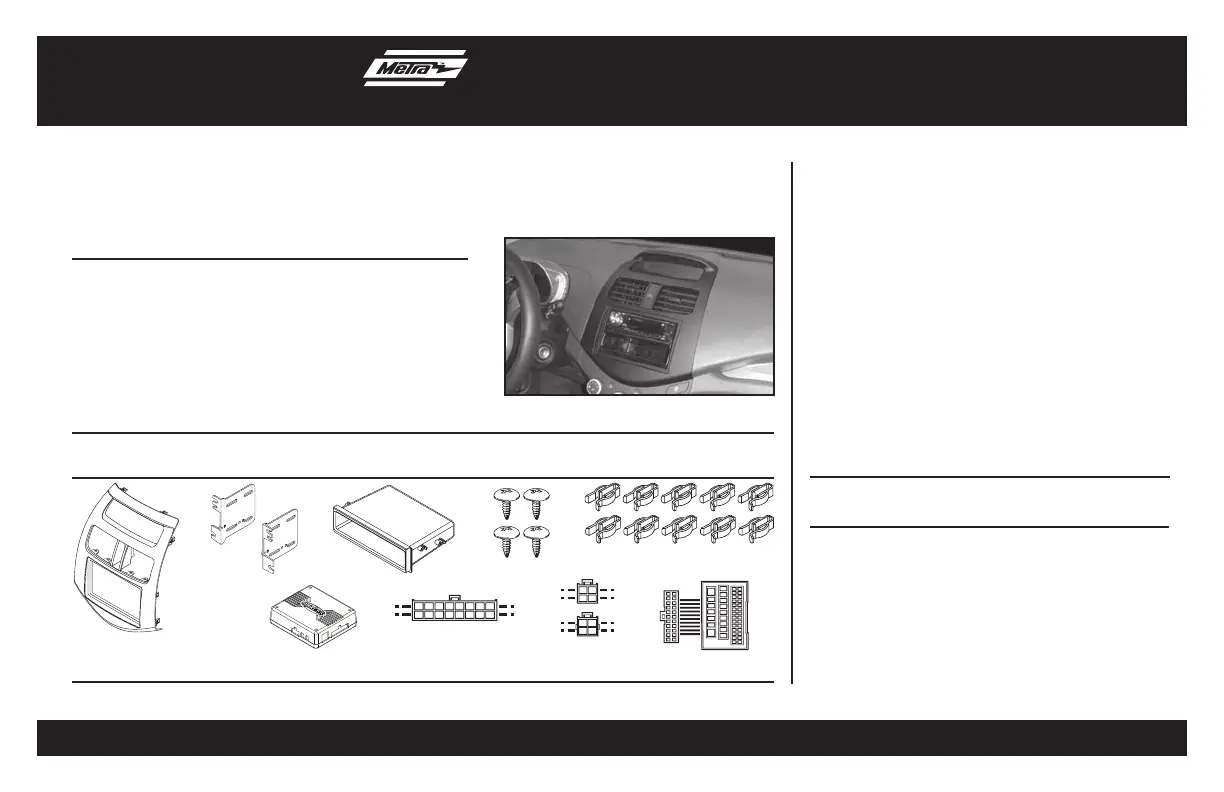

• A) Radio Trim Panel • B) Radio Brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (10) White Plastic Panel Clips

• F) Interface • G) 16-pin harness • H) 4-pin to 4-pin resistor pad • I) 22-pin to 44-pin harness

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • Interface included Antenna Adapter: • 40-EU55 antenna adapter

• Panel removal tool • Phillips screwdriver

• Small flat-blade screwdriver

TOOLS REQUIRED

A B C

F G H I

D E

• ISO DIN head unit provision with pocket

• DDIN head unit provisions

• Interface included retains factory OnStar, Bluetooth,

and all warning chimes

• Provides a 12-volt accessory power and VSS,

parking brake, and reverse signals

• Painted Matte Black

Table of Contents

Dash Disassembly

– Chevy Spark 2013-up .......................................... 2

Kit Assembly

– ISO radio provision with pocket ............................ 3

– DDIN radio provision ............................................ 4

Axxess Interface Installation

– Installing Interface.............................................5-6

– Vehicle Customization with Optional LCD .............. 7

99-3309B

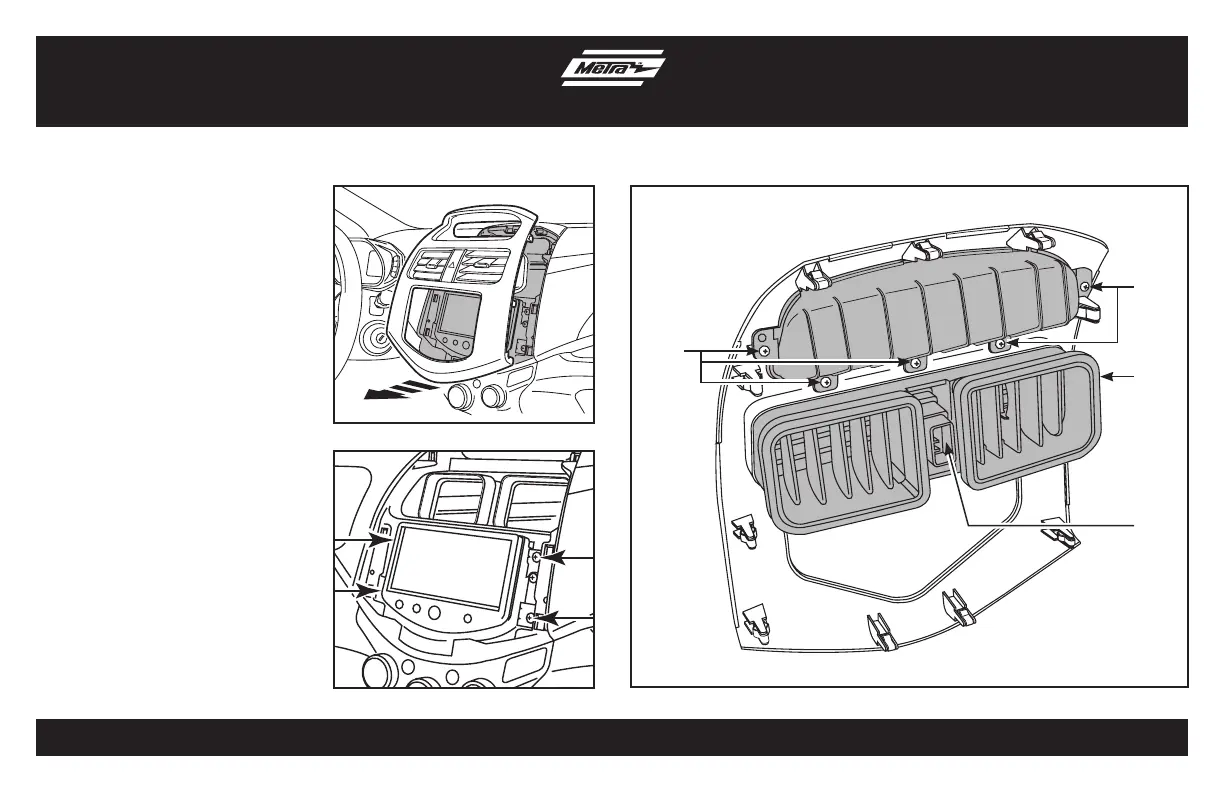

1. Unclip and remove the radio trim

panel. (Figure A)

2. Remove (4) Phillips screws

securing the factory radio and

remove from dash. (Figure B)

3. Unclip and remove the vents from

the factory panel. (Figure C)

4. Unclip and remove the hazard

button from the trim panel.

(Figure C)

5. Remove (5) Phillips screws

securing the upper display shroud

from the factory panel. (Figure C)

Continue to kit assembly

Dash Disassembly

(Figure A)

(Figure C)

Step 3

Step 5

Step 4

Step 5

(Figure B)
