ISUZU
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
03/21 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.R0
INSTALLATION MANUAL
Kit content:
Customer code:
Year:
Compa bily:�
Compa ble with double DIN device�
Isuzu D-Max:
2020>

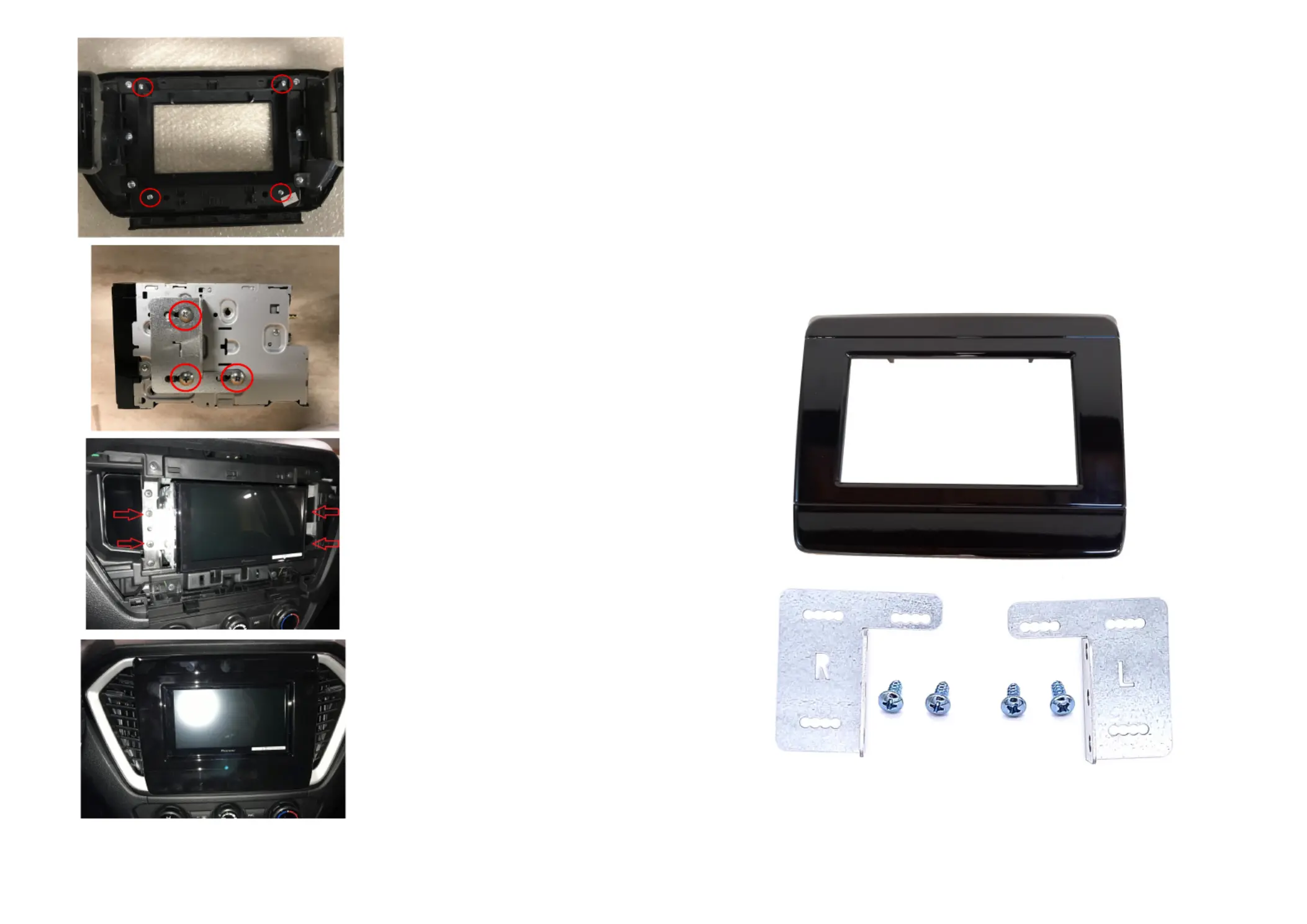

4. Fix the facia plate by using the 4 screws
supplied in the kit.
4
5. Fix the metal brackets to the head unit by
�ghtening the 3 screws (contained in the
Radio Kit) per side circled in Red.
6. Install the head unit in the radio tunnel
by ghtening the 4 screws saved previoulsy.�
7. Install facia plate and the air vents.
This is the nal resultfi
5
6
7
facia plate & moun ng brackets + screws�
CA-HM-ISU.002
2. Remove the metal bracket by unscrewing
the 4 screws circled in Red. Save the 4 screws
just removed for the next steps
1
2
3
1
2
1. This is how the original dashboard looks
like. Remove the Radio and the air vents are
fixed by clips.
3. Remove the head unit from the air vents
by unscrewing the 4 screws circled in Red
IF THE VEHICLE IS EQUIPPED WITHOUT TOUCHSCREEN OEM RADIO.
GO TO POINT 4 ON THE LAST PAGE TO FINISH THE INSTALLATION
IF THE VEHICLE IS EQUIPPED WITH TOUCHSCREEN OEM RADIO.
1. This is how the original dashboard looks
like. Remove the Radio and the airvents are
fixed by clips.
2. Remove the metal bracket by unscrewing
the 4 screws circled in Red. Save the 4
screws just removed for the next steps
3
GO TO POINT 4 ON THE LAST PAGE TO FINISH THE INSTALLATION
3. Remove the head unit from the air vents
by unscrewing the 4 screws circled in Red
